400 Gallon Asphalt Distributor Tank Skid Mounted

More images

Price Drop Alert
Items Found Alert
Save to Favorites
Payment Calculator
E-mail to a Friend
View e-Brochure
ID# DMS-400
Model DMS-400
Year NEW
PriceCall for price
Shipping Call for Price


Call for price

First Name

Last Name


ZIP/Postal Code

How can we help you?

Your  Privacy  matters to us.

Overview: PavementGroup's STRATOS DMS-400 gives you 400 gallon capacity, on a skid-mounted base for easy mounting to your flat-bed. At PavementGroup, we designed STRATOS for hard-core, day- after-day, commercial use. That's why you'll only find high-quality OEM components such as Honda, Viking, Hannay reels and Sauer Danfoss controls. We give you the industry's only 18- Month Warranty and quick turn-around time. STRATOS is built to spray over 35 different emulsion products such as CSS-1h, CRS-2, HFRS-2 and others. Don't aim for second best when you can have the best for less. Call PavementGroup today! 518-218-7676

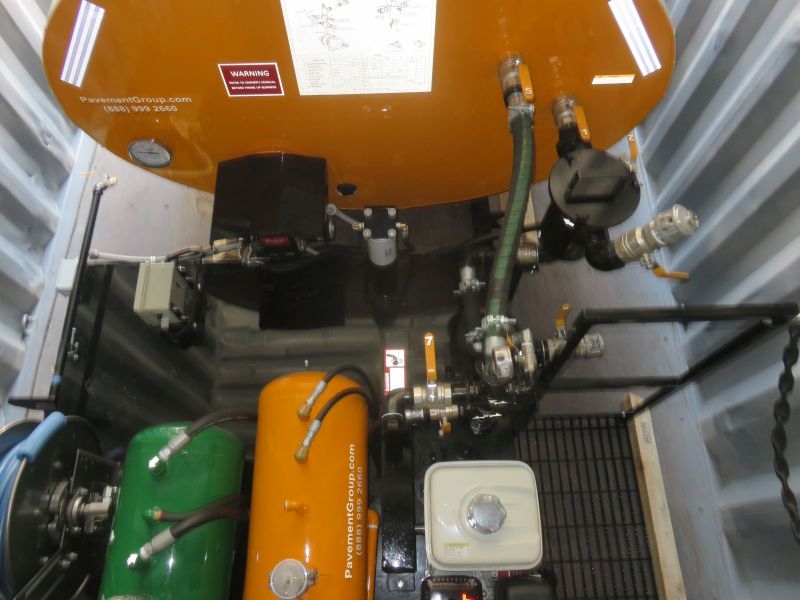

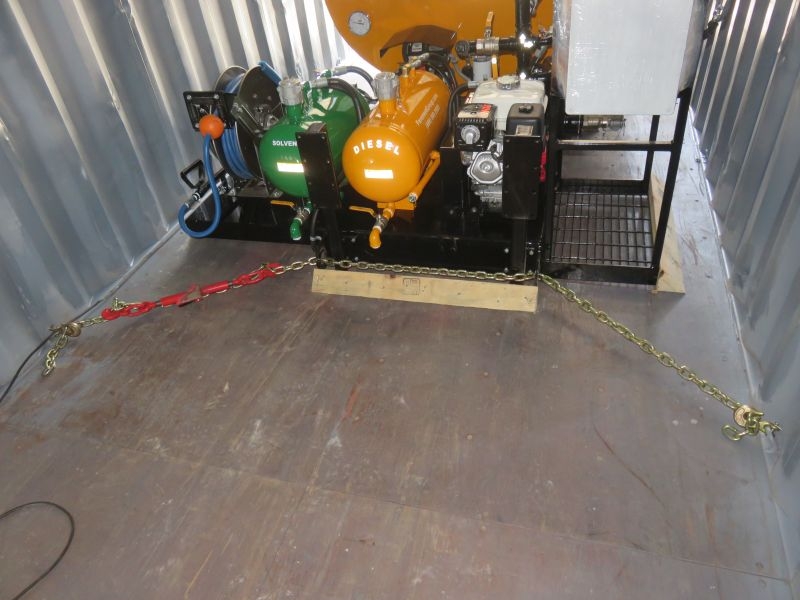

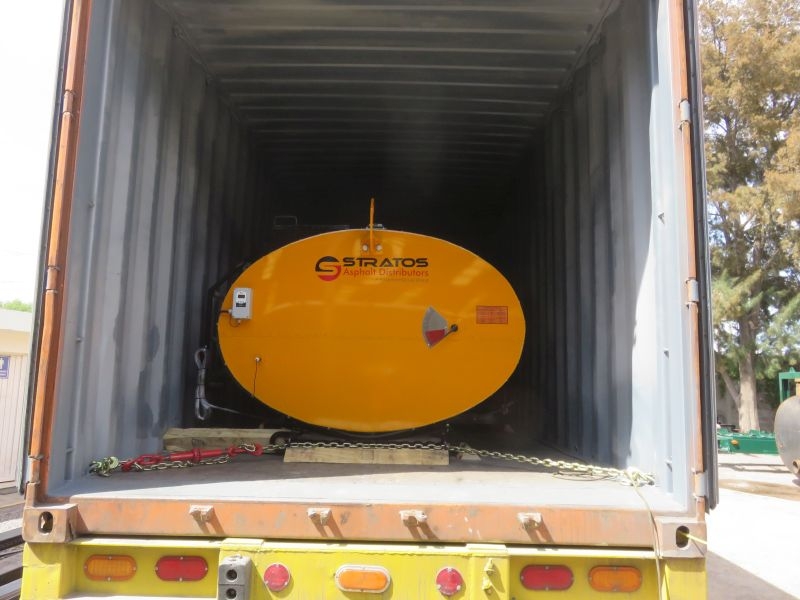

PavementGroup STRATOS DMS-400 Asphalt Distributor, Skid Mounted

  • Standard Features Include:
  • 400 gallon capacity

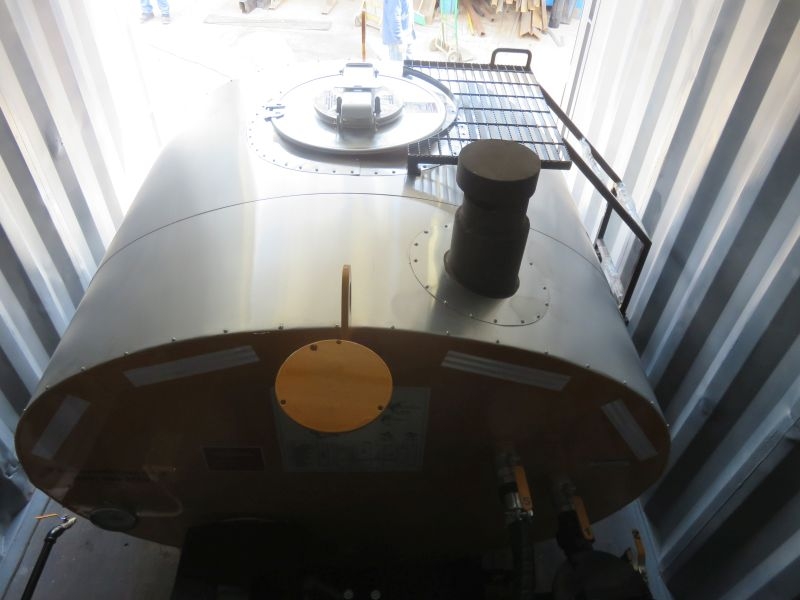

  • Elliptical tank, baffled, low center of gravity
  • Skid frame for quick mounting to flatbed or your truck chassis' frame-rails

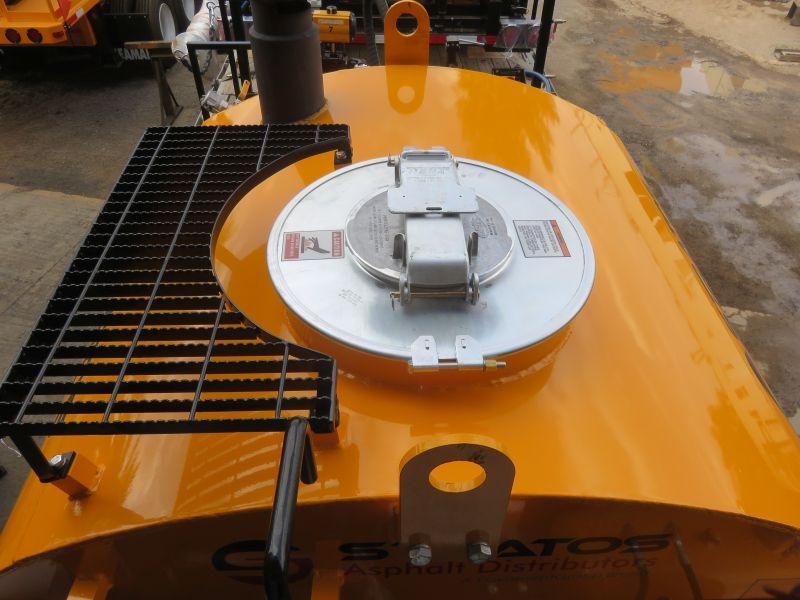

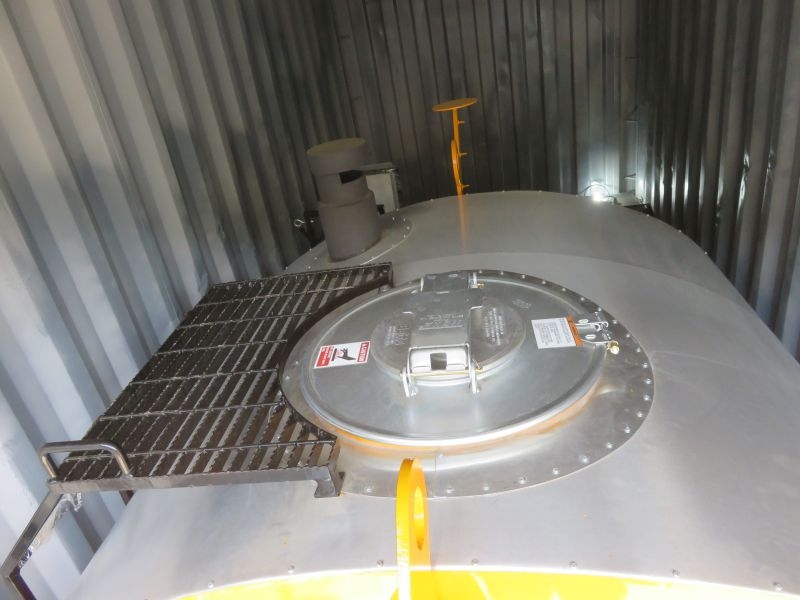

  • Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
  • Diesel fired Beckett burner system, 350,000 BTU
  • Thermostatic material controls, digital, set high-low, view current temp
  • Temperature sensor gauge, analog

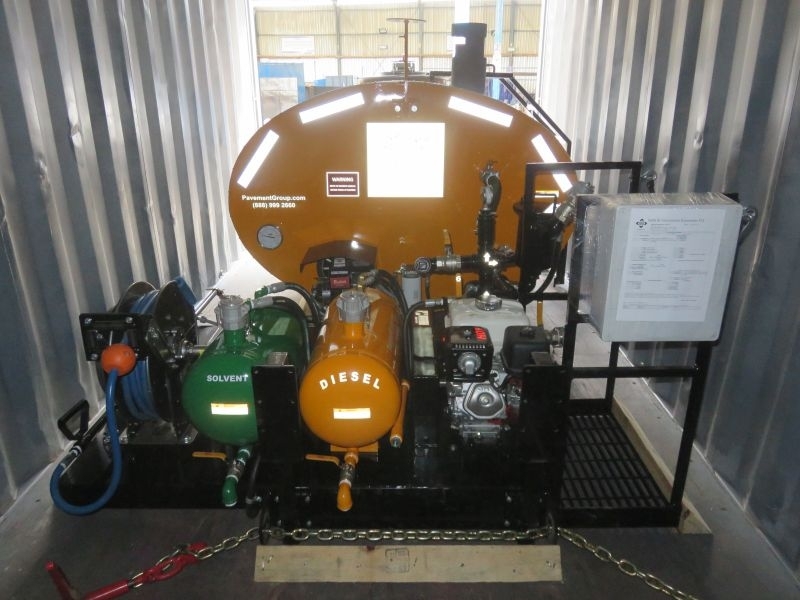

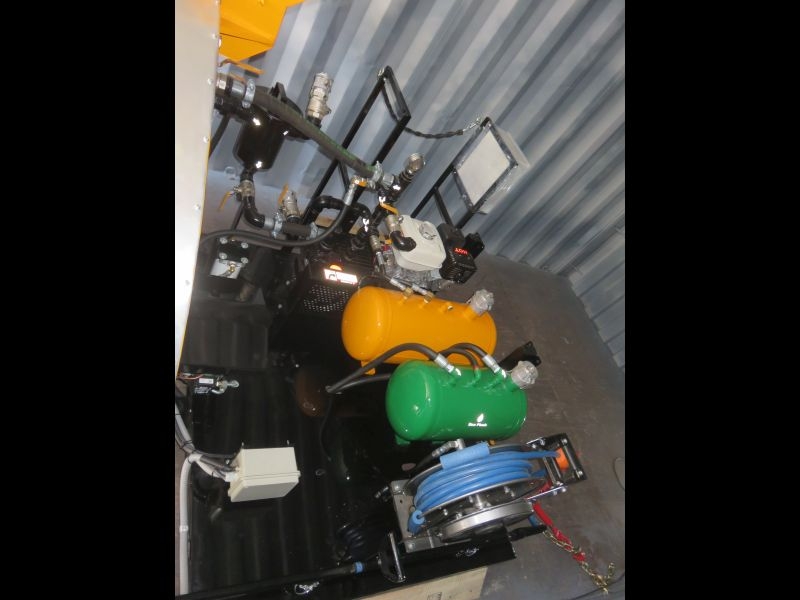

  • 60 GPM Viking pump, 14 hp Briggs Vanguard gas engine, electric start +pull start, 20 amp charging circuit
  • Deep-cell battery package, battery box, voltage meter
  • In-line strainer basket for easy cleanout
  • Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
  • Applicator hand wand, on/off valve and foot valve
  • Material level gauge indicator
  • Flush tank system, 10-gal tank
  • Paint yellow tank, black trailer
  • NEW: Side-mounted ladder for a tight fit to the cab
  • NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
  • WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty


  • Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
  • Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens.  More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.
  • (upgrade) Insulated tank, 2" ceramic wool, aluminum wrapped.
  • (downgrade) 32 GPM Viking pump, 6.5 hp Briggs Vanguard gas engine, electric start +pull start, 20 amp charging circuit, 2" plumbing
  • (downgrade) 1/2" hose, 50', with 1/2" hand wand and valve
  • 8' Spray Bar, adjustable height, 12" cut-offs, (or 6" cutoffs requires 60gpm pump)
  • 12' Spray Bar, adjustable height, 12" cut-offs (or 6" cutoffs, requires 60gpm pump)
  • 14' Spray Bar, adjustable height, 6" cut-offs (requires 60gpm pump)
  • Remote spraybar on/off controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
  • Overnight heat maintainer (6kW, 220V, 2 phase), thermostat controls
  • Strobe light (LED, amber, mounted)
  • Custom color
  • DIMENSIONS WEIGHT: L 119" (129" with spraybar option) x W 63" x H 59"
  • DMS-2000- GVWR of 33,000lb
  • DMS-1500- GVWR of 26,500lb
  • DMS-1000- GVWR of 19,500lb -26,500lb
  • DMS-600-   GVWR of 16,500lb
  • DMS-400-   GVWR of 16,500lb
Call Today! Pavementgroup.com: 8am-6pm (M-F) 518-218-7676
After hours and weekends: call Devin at 330-835-7742

tips awarded vendor

Our equipment is also available through TIP's "The Interlocal Purchasing System." For more information, please visit our listing on TIPS's website. Click here to learn more!

Product Details

Product Details

Category Distributor Trailers
New/Used? New
Product Name 400 Gallon Asphalt Distributor Tank Skid Mounted
Product ID DMS-400
Manufacturer PavementGroup
Model DMS-400
Year NEW
Size L 10' x W 64" x H 59"
Capacity 400 Gal
Condition New
Shipping Dimensions
Lbs KG
Weight 2582.00 1161.9
Inches Feet Cm
Length 129.00 10.75 327.66
Width 63.96 5.33 162.46
Height 59.04 4.92 149.96
