600 Gallon Tack Sprayer Skid Mounted

More images

Price Drop Alert
Items Found Alert
Save to Favorites
Payment Calculator
E-mail to a Friend
View e-Brochure
ID# DMS-600
ManufacturerPavementGroup
Model DMS-600
Year NEW
PriceCall for price
Shipping Call for Price

Purchase

Call for price

First Name

Last Name

Phone

ZIP/Postal Code

How can we help you?

Your  Privacy  matters to us.

Overview: STRATOS 600 Gallon tack sprayer, sprays over 35 different emulsions. Our new computer monitor option gives you real-time feedback of gallons per minute sprayed and ground speed, so that you can spray just the right amount of tack coat emulsion on your municipal roadway projects. With our computer monitor, you can compete on projects where you'd typically need an expensive Rosco or Etnyre distributor trailer with computer controls. Stratos Our top quality construction and OEM parts give you reliability day after day, backed with our industry leading 18-month warranty. Call us today 518-218-7676

Description

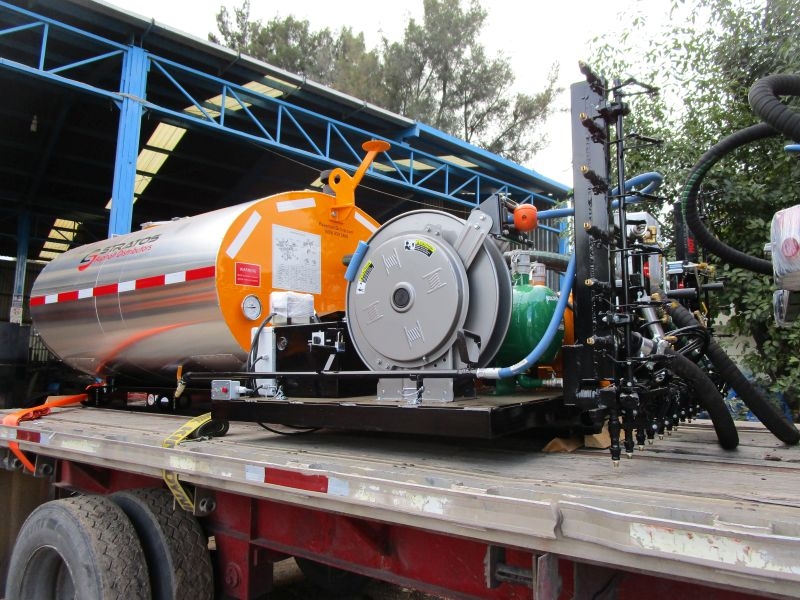

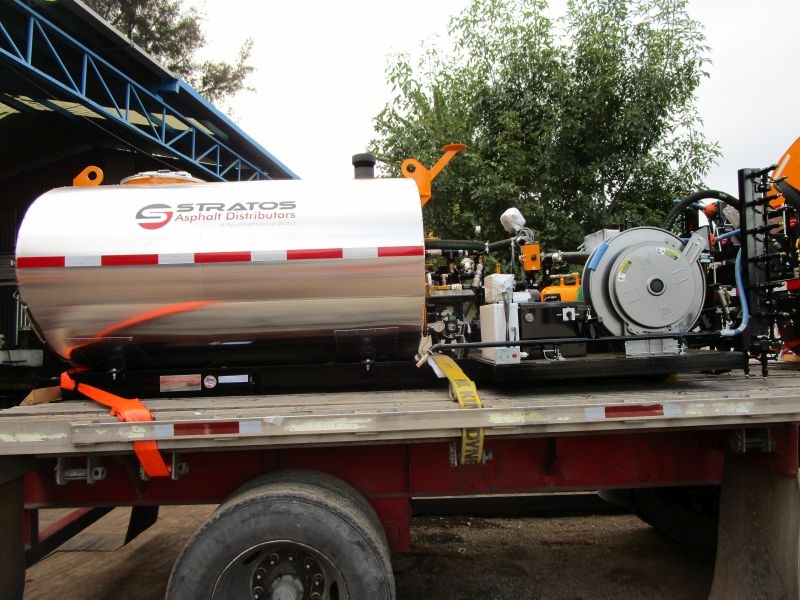

PavementGroup STRATOS DMS-600 Asphalt Distributor, Skid Mounted

  • Standard Features Include:
  • 600 gallon capacity

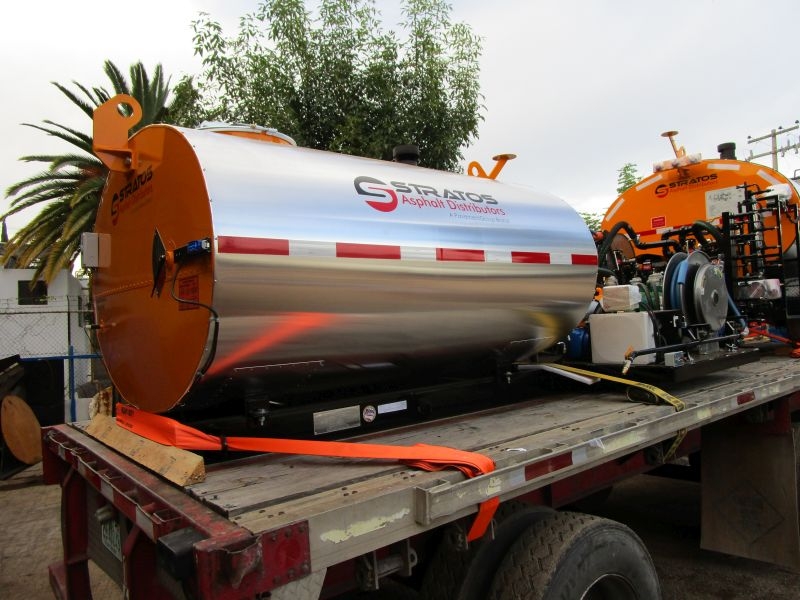

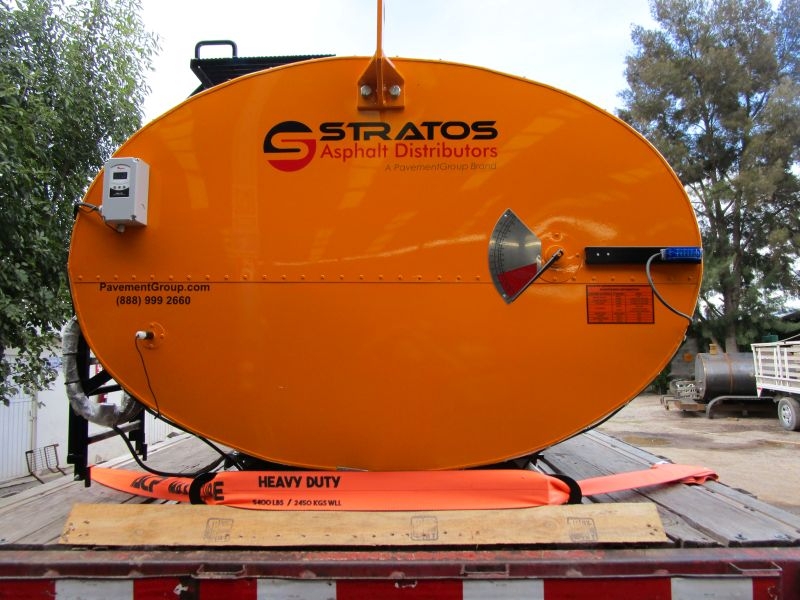

  • Elliptical tank, baffled, low center of gravity

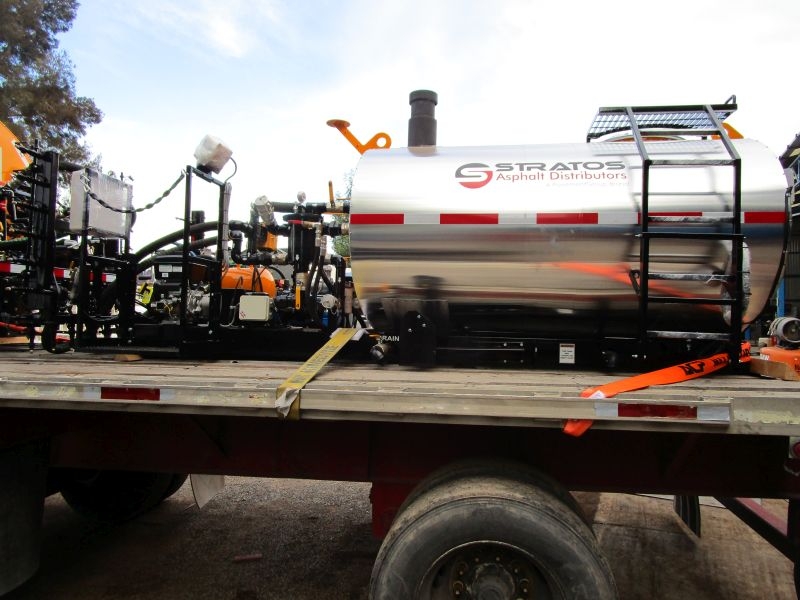

  • Skid frame for quick mounting to flatbed or your truck chassis' frame-rails
  • Insulated tank, 2" ceramic wool, aluminum wrapped

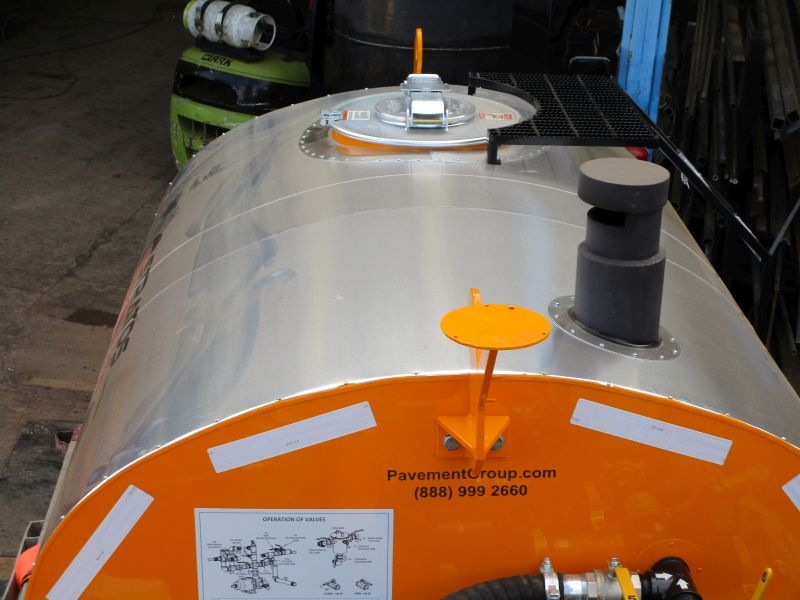

  • Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
  • Diesel fired Beckett burner system, 350,000 BTU
  • Thermostatic material controls, digital, set high-low, view current temp
  • Temperature gauge, analog

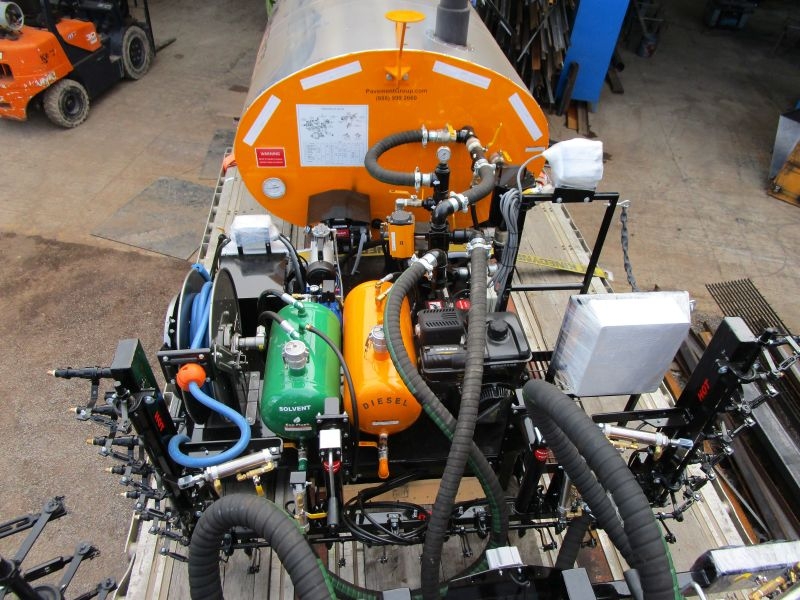

  • Briggs Vanguard 14hp gas engine, 20amp charging circuit, electric start +pull start
  • Deep-cell battery package, battery box, voltage meter
  • Viking 60GPM material pump
  • In-line strainer basket for easy cleanout
  • Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
  • Applicator hand wand, on/off valve and foot valve
  • Material level gauge indicator
  • Flush tank system, 10-gal tank
  • Paint yellow tank, black trailer

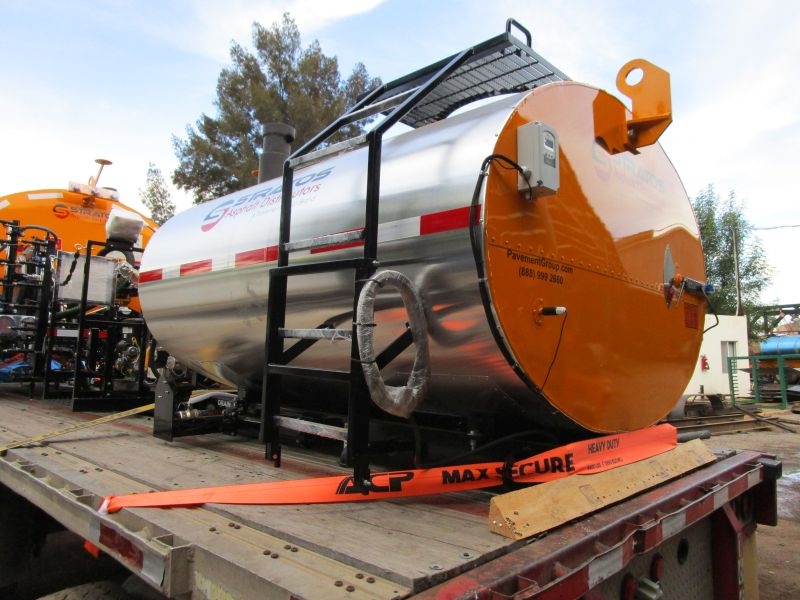

  • NEW: Side-mounted ladder for a tight fit to the cab
  • NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
  • WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty

OPTIONS:

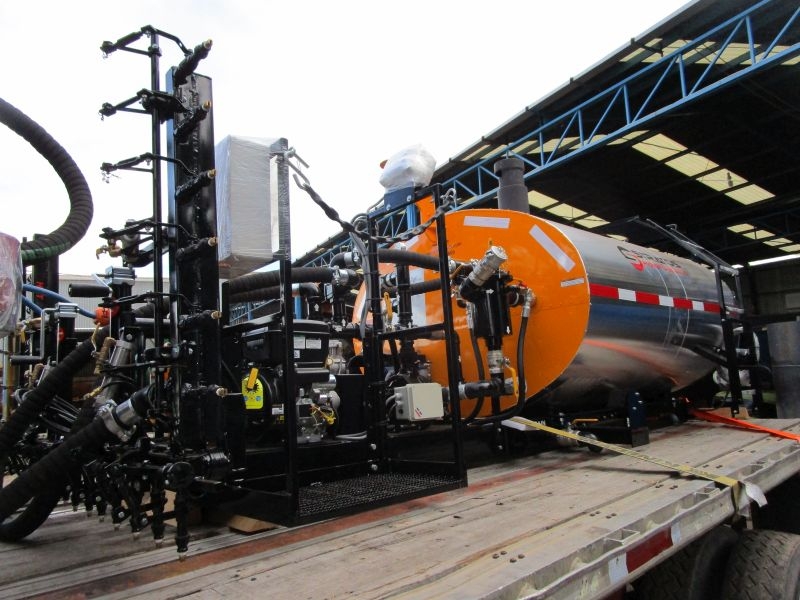

  • Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
  • Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.
  • (downgrade) No insulation
  • 8' Spray Bar, adjustable height, 12" cut-offs, operator platform, railing and safety chain
  • 12' Spray Bar, adjustable height, 12" cut-offs (6" cutoffs when using 60gpm pump) operator platform, railing and safety chain
  • 14' Spray Bar, adjustable height, 6" cut-offs, operator platform, railing and safety chain
  • Remote spraybar controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
  • Overnight heat maintainer (6kW, 220V, 1 phase) thermostatic control
  • Strobe light (LED, amber, mounted)
  • Custom color
  • DIMENSIONS WEIGHT: L 144" (154" with spraybar option) x W 64" x H 59"
  • DMS-2000- GVWR of 33,000lb
  • DMS-1500- GVWR of 26,500lb
  • DMS-1000- GVWR of 19,500lb
  • DMS-600-   GVWR of 16,500lb
  • DMS-400-   GVWR of 16,500lb

Call Today! Pavementgroup.com: 8am-6pm (M-F) 518-218-7676
After hours and weekends: call Devin at 330-835-7742

Product Details

Product Details

Category Distributor Trailers
New/Used? New
Product Name 600 Gallon Tack Sprayer Skid Mounted
Product ID DMS-600
Manufacturer PavementGroup
Model DMS-600
Year NEW
Size 144", 153" with spraybar
Capacity 600 Gal
Condition New
MachinioSkip:No
Shipping Dimensions
Lbs KG
Weight 3206.00 1442.7
Inches Feet Cm
Length 153.00 12.75 388.62
Width 63.96 5.33 162.46
Height 59.04 4.92 149.96
