1000 Gallon Distributor Skid Mounted

More images

Price Drop Alert
Items Found Alert
Save to Favorites
Payment Calculator
E-mail to a Friend
View e-Brochure
ID# DMS-1000
Model DMS-1000
Year NEW
PriceCall for price
Shipping Call for Price


Call for price

First Name

Last Name


ZIP/Postal Code

How can we help you?

Your  Privacy  matters to us.

Overview: PavementGroup's STRATOS DMS-1000. Our 1000 gallon capacity tank is available skid mounted for easy mounting to a flatbed. Stratos emulsion sprayers anre engineered for dependability and easy operation, without the complexity. Stratos sprays 35+ emulsion products such as CSS-1h, CRS-2, HFRS-2 and many others. Ask about our industry leading 18 MONTH WARRANTY.. Yanmar diesel engine is available. Options include a computer monitor system, remote control on/off spray-bar, dual flow controls, radar monitor to help maintain gals/minute applied and track historical spray application data.

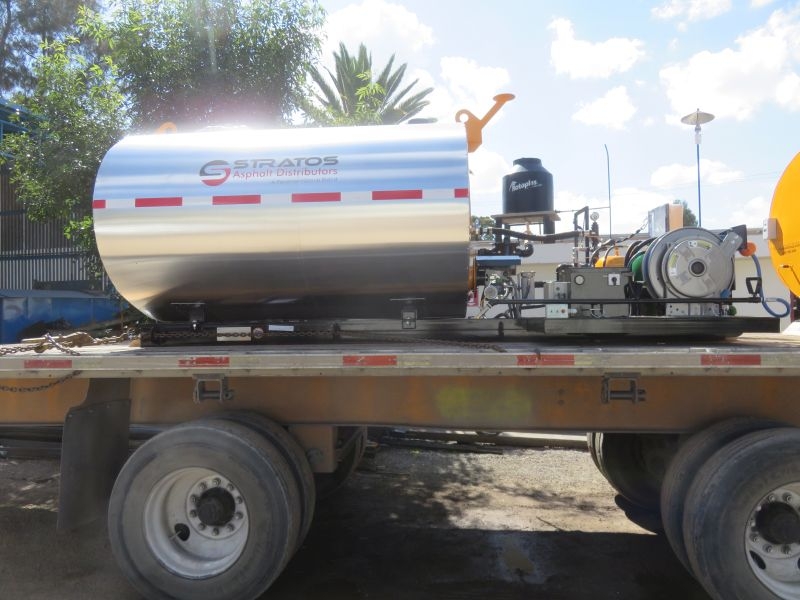

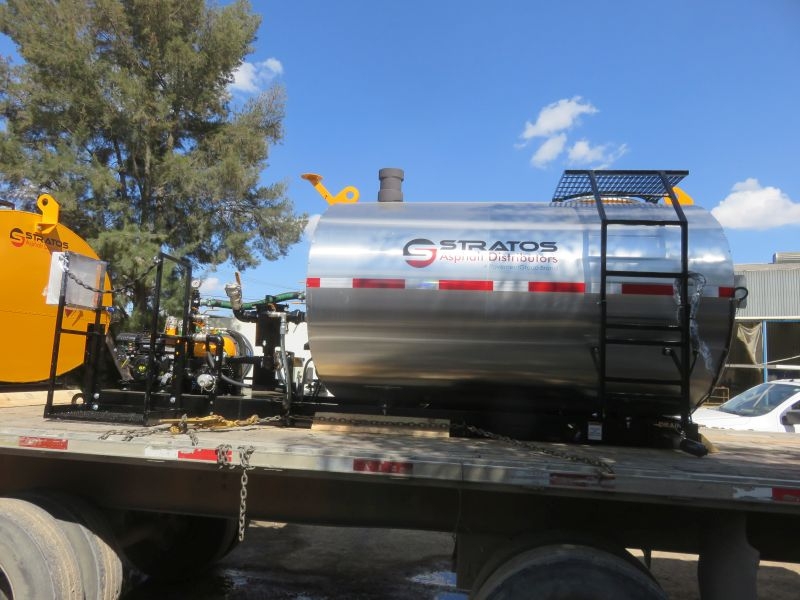

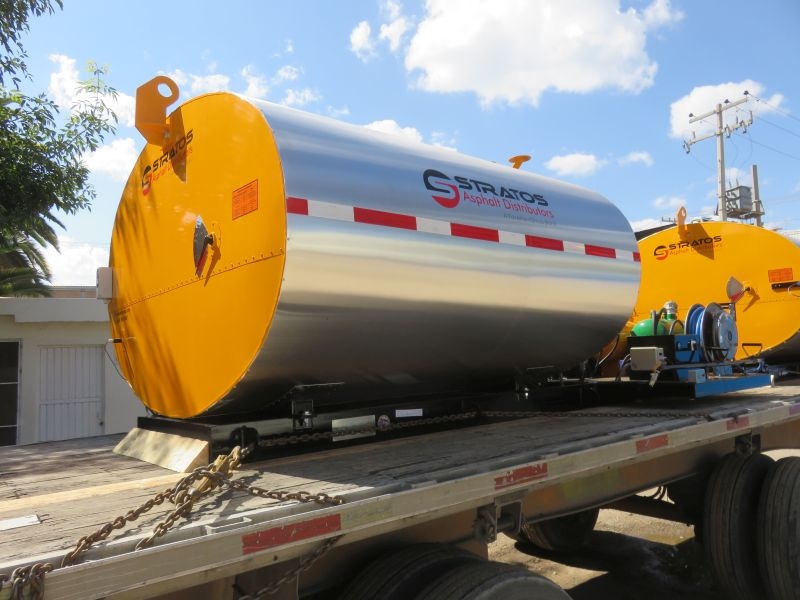

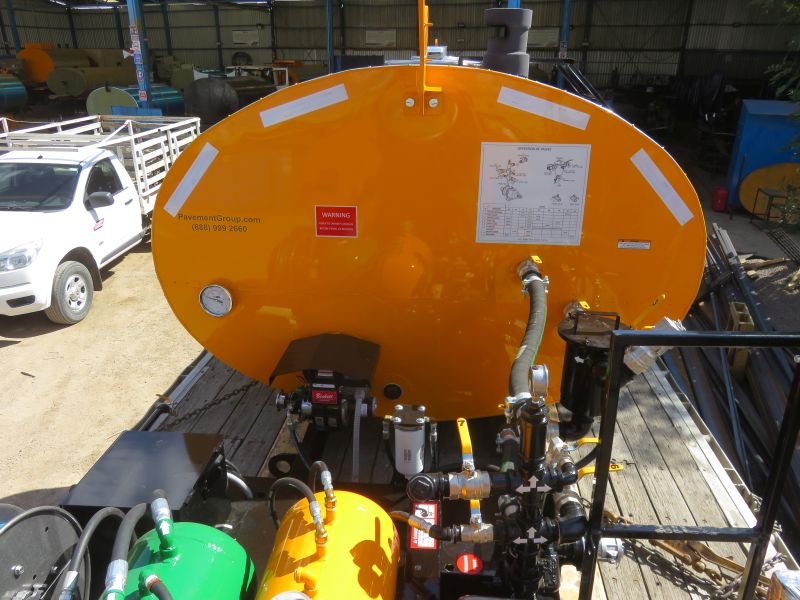

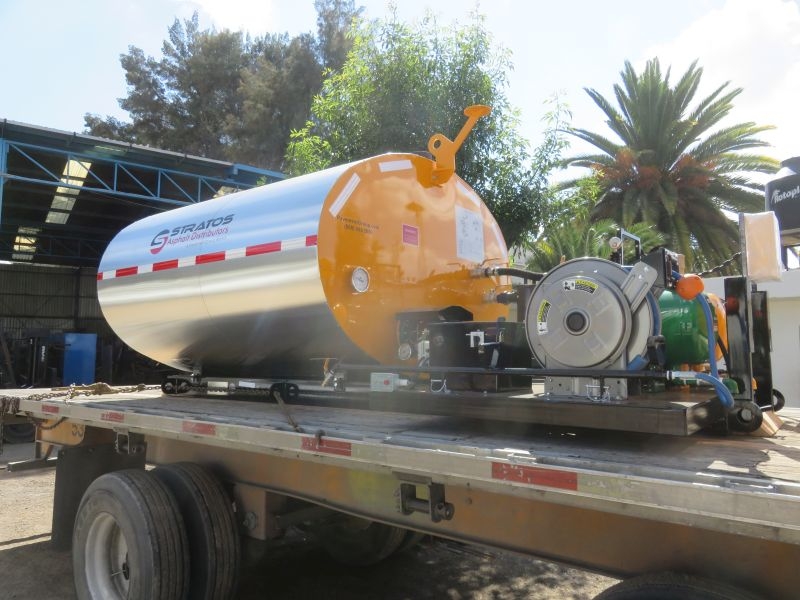

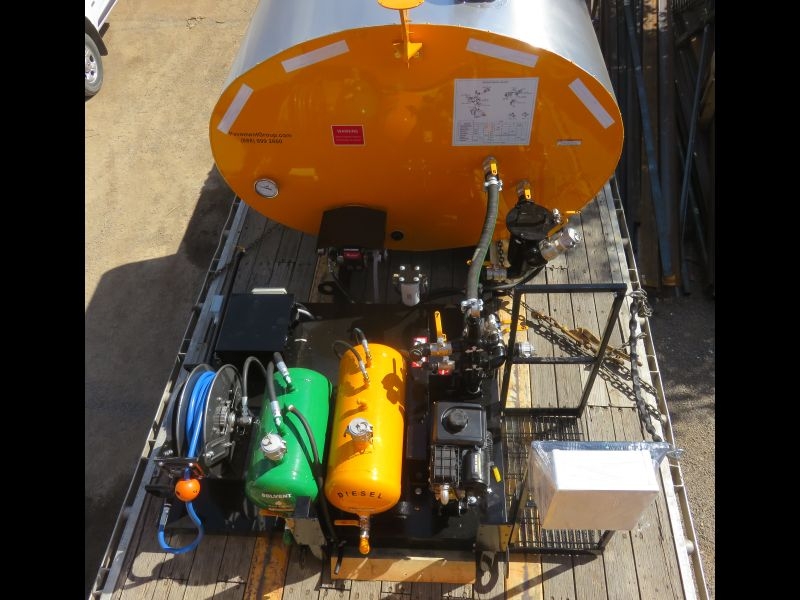

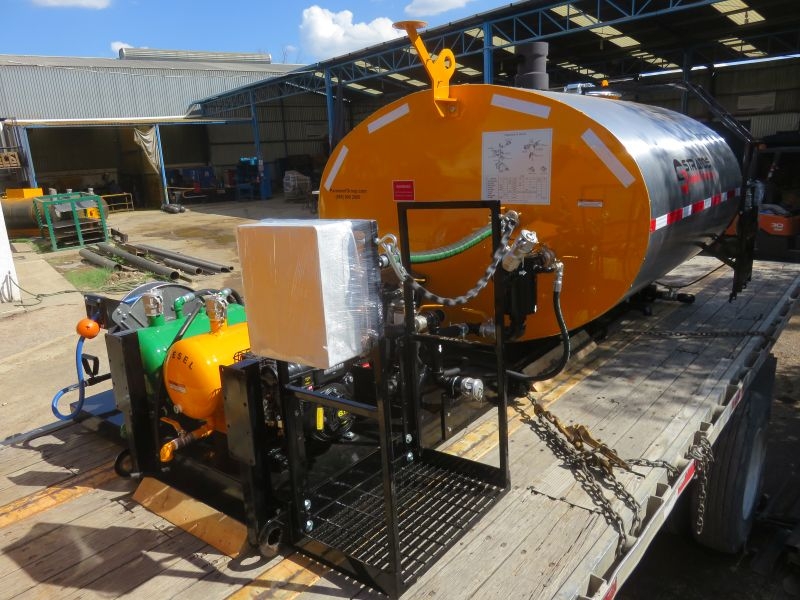

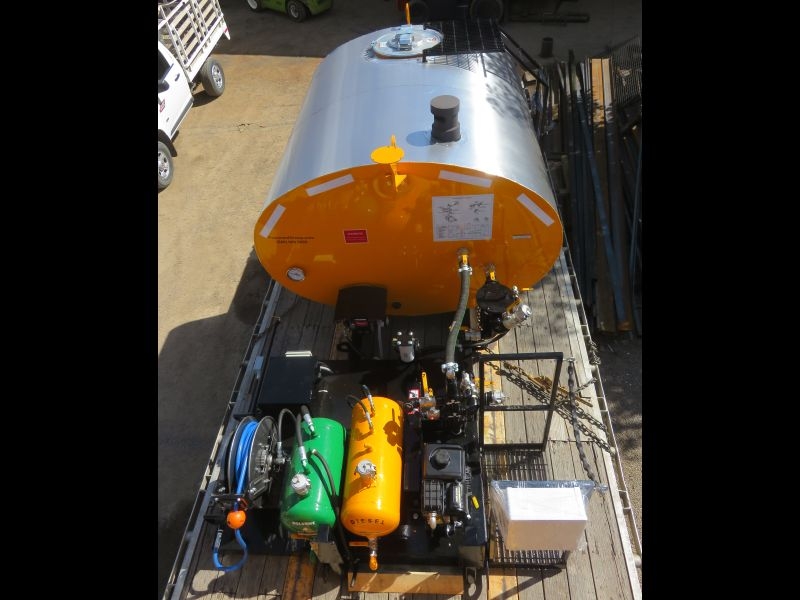

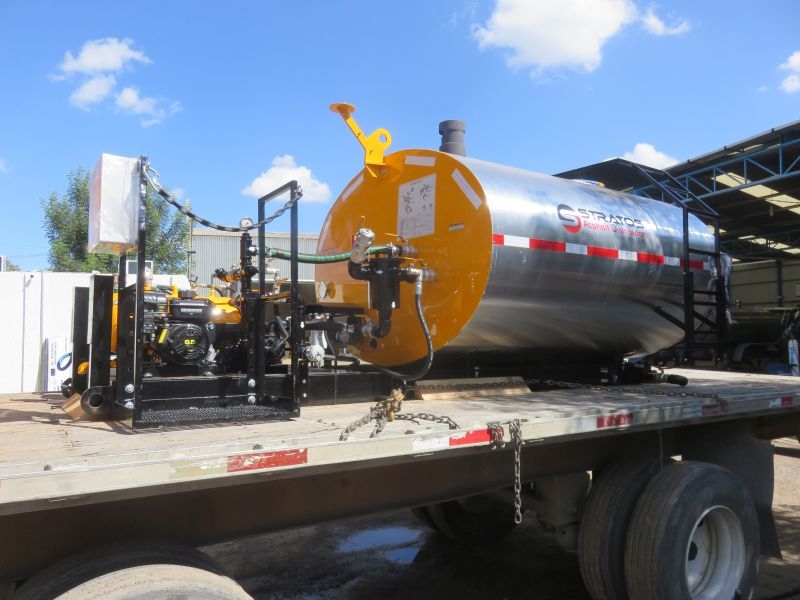

PavementGroup STRATOS DMS-1000 Asphalt Distributor, Skid Mounted

  • Standard Features Include:
  • 1000 gallon capacity
  • Designed for your NON-CDL drivers! (Don't miss our 1500 gal option, for even more capacity and still NO-CDL required

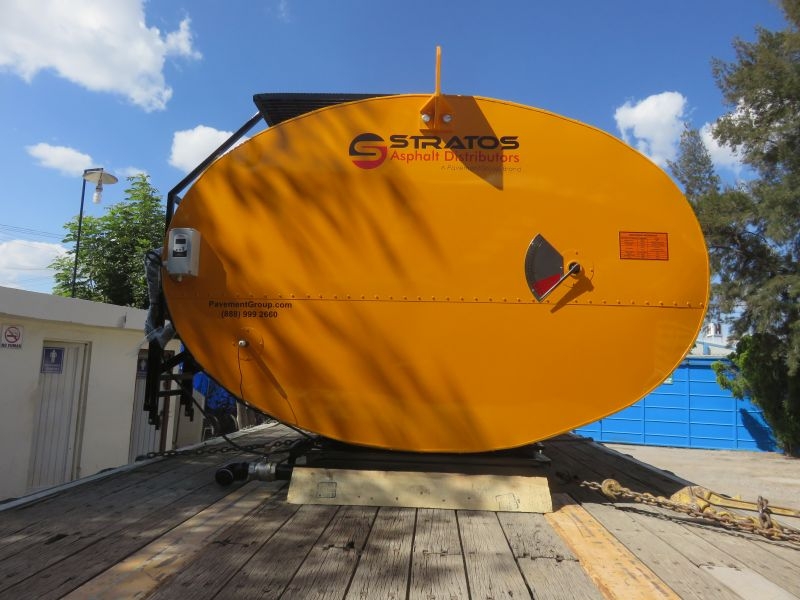

  • Elliptical tank, baffled, low center of gravity
  • Insulated tank, 2" ceramic wool, aluminum wrapped
  • Diesel or gas engine with 14+amp charging circuit, electric start + pull start
  • Skid frame for quick mounting to flatbed or your truck chassis' frame-rails
  • Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
  • Diesel fired Beckett burners, 350,000 BTU each
  • Thermostatic material controls, digital, set high-low, view current temp
  • Temperature sensor gauge, analog
  • Diesel or gas engine with 14+amp charging circuit, electric start + pull start
  • Deep-cell battery package, battery box, voltage meter

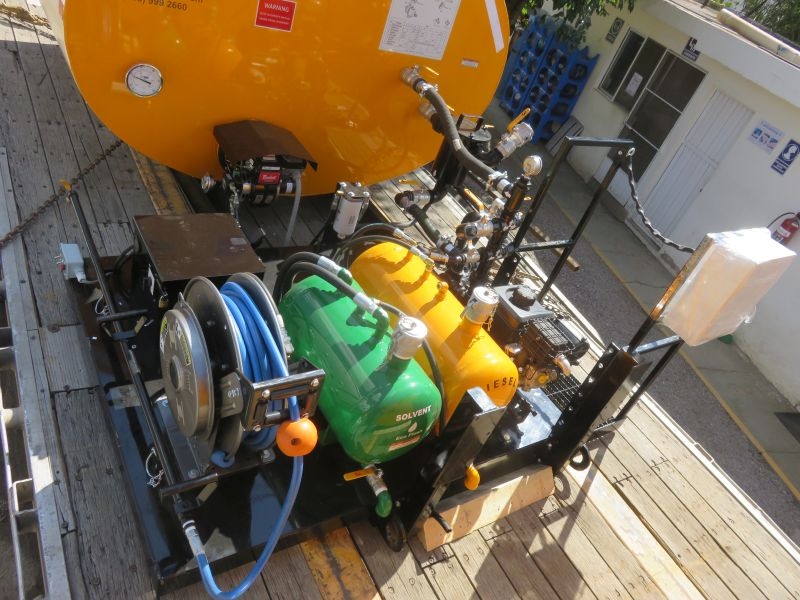

  • Viking 60GPM material pump
  • In-line strainer basket for easy cleanout
  • Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
  • Applicator hand wand, on/off valve and foot valve
  • Material level gauge indicator
  • Flush tank system, 10-gal tank
  • Paint yellow tank, black trailer

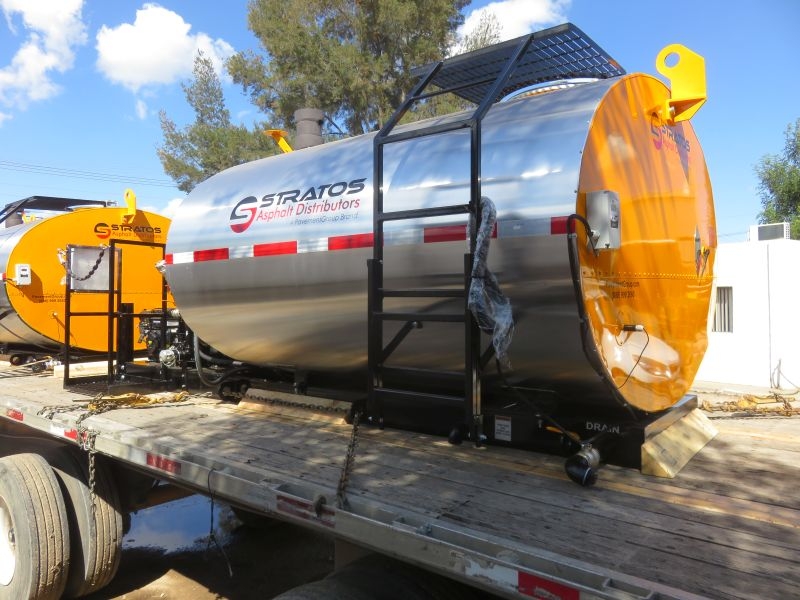

  • NEW: Side-mounted ladder for a tight fit to the cab
  • NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
  • WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty


  • Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
  • Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens.  More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.
  • (downgrade) No insulation
  • 8' Spray Bar, adjustable height, 12" cut-offs, (or 6" cutoffs requires 60gpm pump)
  • 12' Spray Bar, adjustable height, 12" cut-offs (or 6" cutoffs, requires 60gpm pump)
  • 14' Spray Bar, adjustable height, 6" cut-offs (requires 60gpm pump)
  • Remote spraybar on/off controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
  • Overnight heat maintainer (6kW, 220V, 1 phase), thermostat controls
  • Strobe light (LED, amber, mounted)
  • Custom color
  • DIMENSIONS WEIGHT: L 165" (165" with spraybar option) x W 85" x H 62"
  • DMS-2000- GVWR of 33,000lb
  • DMS-1500- GVWR of 26,500lb
  • DMS-1000- GVWR of 19,500lb -26,500lb
  • DMS-600-   GVWR of 16,500lb
  • DMS-400-   GVWR of 16,500lb

Call Today! Pavementgroup.com: 8am-6pm (M-F) 518-218-7676
After hours and weekends: call Devin at 330-835-7742

tips awarded vendor

Our equipment is also available through TIP's "The Interlocal Purchasing System." For more information, please visit our listing on TIPS's website. Click here to learn more!

Product Details

Product Details

Category Distributor Trailers
New/Used? New
Product Name 1000 Gallon Distributor Skid Mounted
Product ID DMS-1000
Manufacturer PavementGroup
Model DMS-1000
Year NEW
Size 13'
Capacity 1000 Gal
Condition New
Shipping Dimensions
Lbs KG
Weight 3638.00 1637.1
Inches Feet Cm
Length 150.00 12.50 381.00
Width 75.00 6.25 190.50
Height 66.96 5.58 170.08
