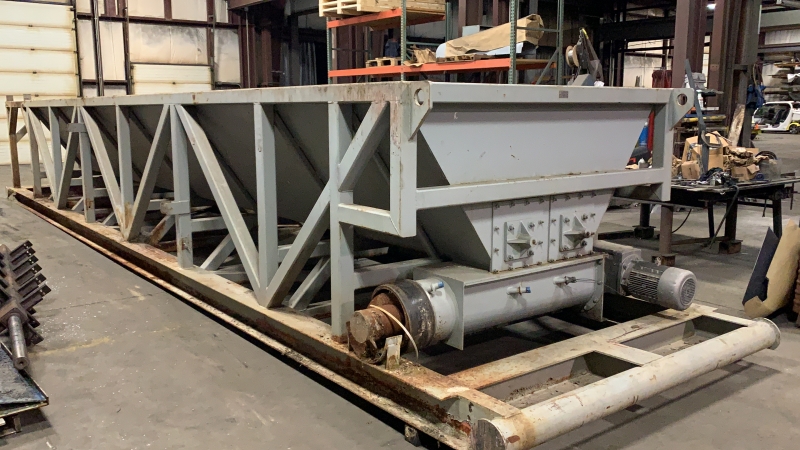

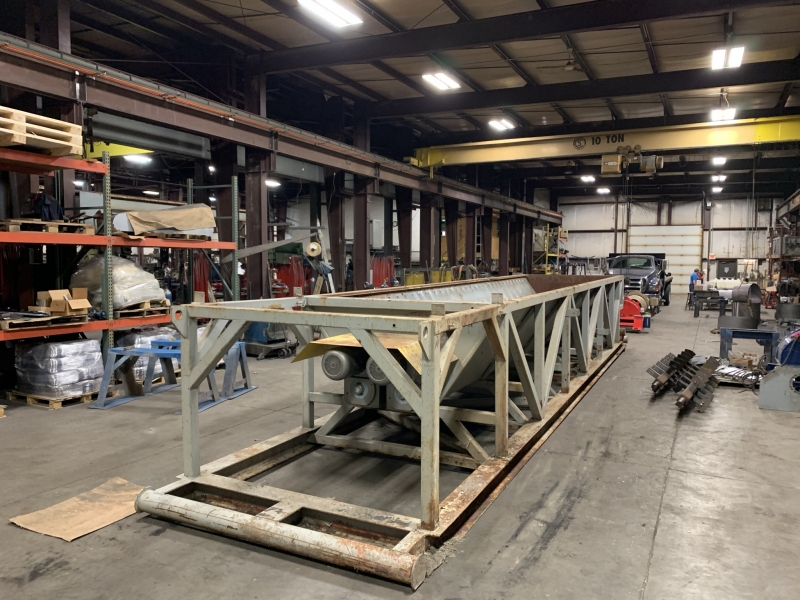

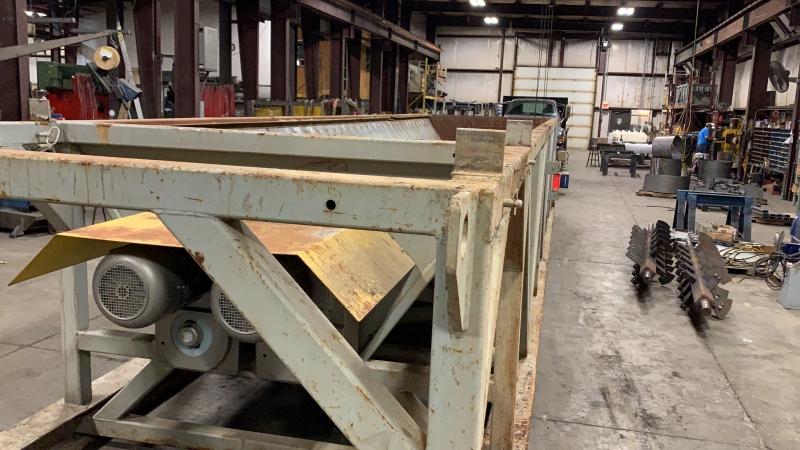

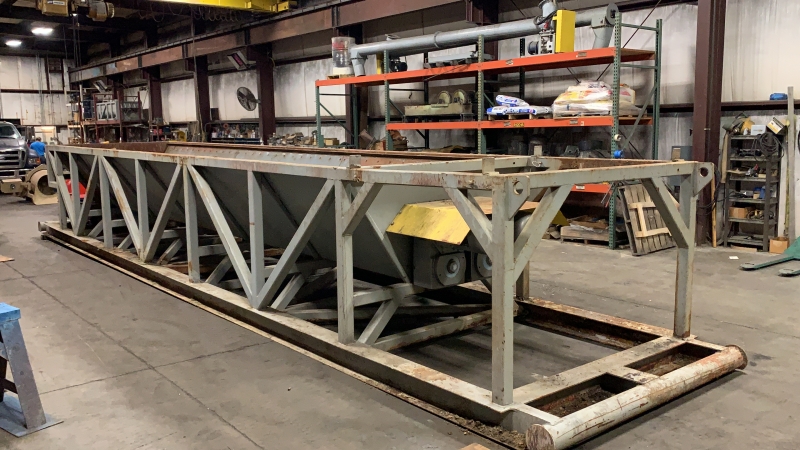

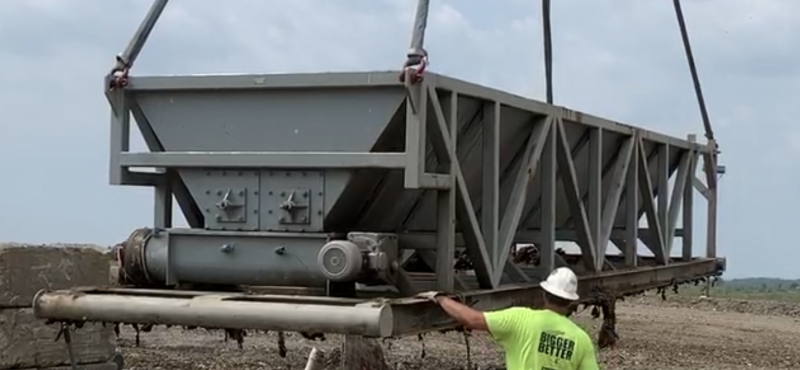

Overview: For sale: 45CY twin screw industrial live bottom bin with cross screw feeding to a 16" diameter 34'L discharge screw. Twin Nord 15hp motors powering live bottom bin and cross screw. This system was built for use in the oil and gas industry, liquid & sludge waste and can be fitted to a variety of other applications. Good working condition, was used for one season for liquid waste solidification. Built for natural gas drilling rigs Call today: office 518-218-7676 After hours/weekends call Devin 330-835-7742

Description

Over 50 of these systems were originally built for the oil and gas industry. They were an excellent seller, dependable, with no warranty issues.

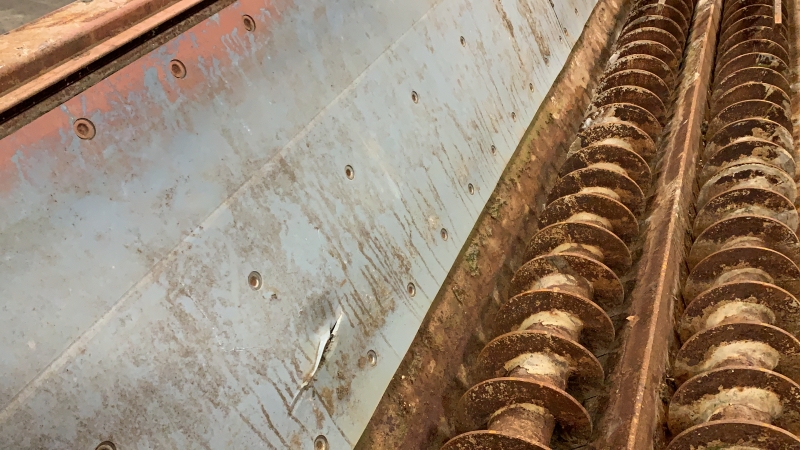

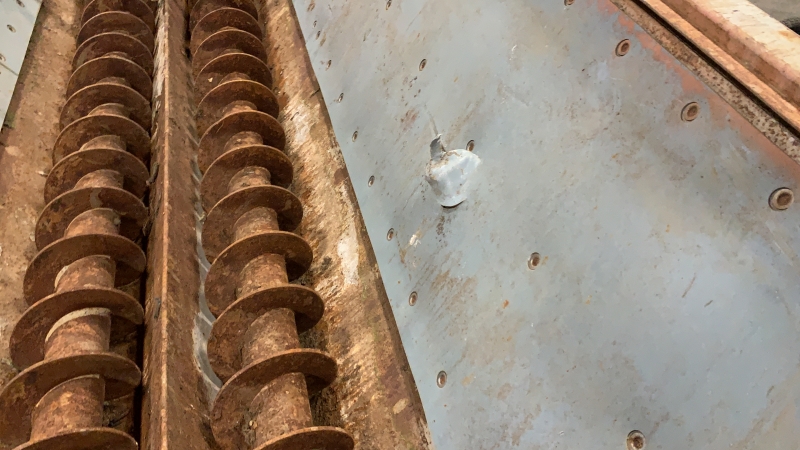

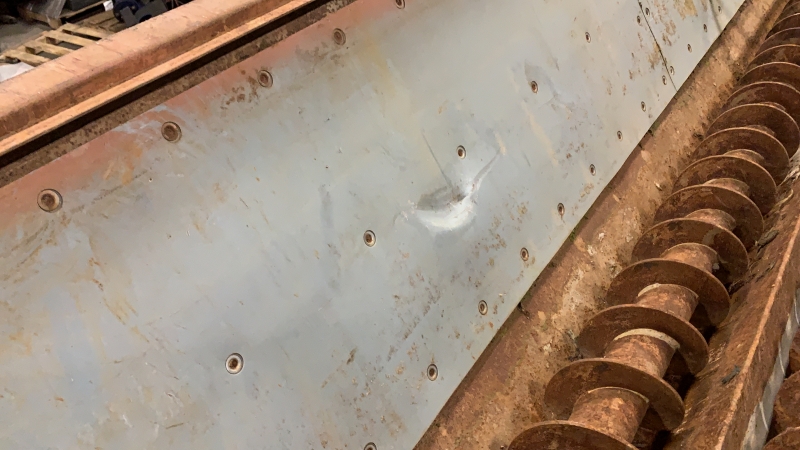

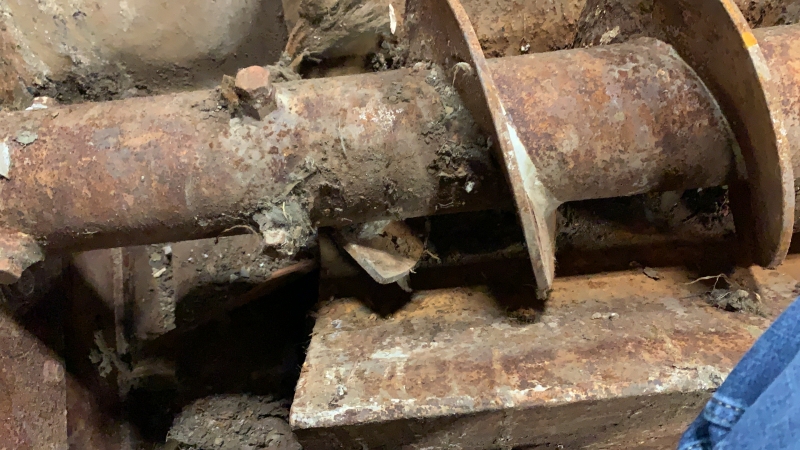

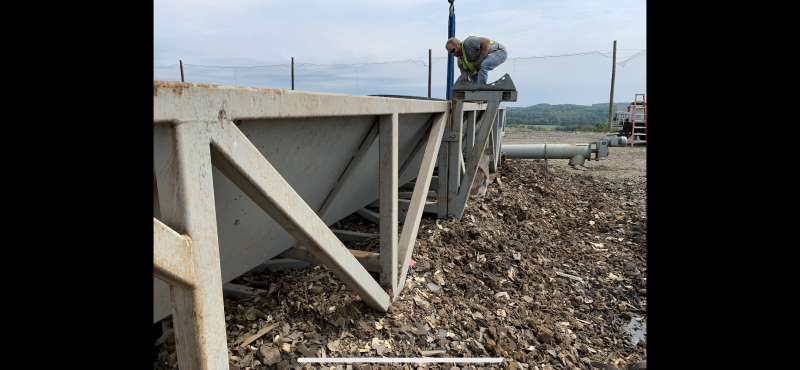

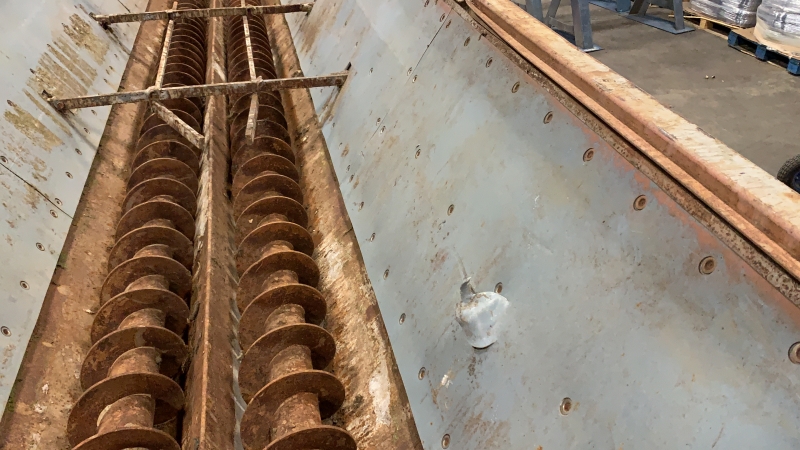

The sludge bin and incline screw which is being sold, was used for 1 season at a Waste Mgt facility for liquid waste solidification. It was used intermitently over a one year period. The overall condition is good. There are a couple of spots where there is a bend in the feed screws. The bins are lined with a polyurethane type protective material which have a couple of holes shown in the photos. The rubber boot which sits inside the tube that connects the bin's output to the incline screw, may have a tear in it. The Nord motors and gear boxes were all fully functional with very low hours at the time the system was removed from service August 2020. Full specifications are below.

LOCATION of equipent: Honeybrook PA (Call to arrange onsite inspection) The equipment is sitting in the original equipment mfg's yard and so any questions about the equipment can be discussed with the manufacturers before or during your inspection.

Mfg: Specifications are below:
  • Twin Screw 45CY Live Bottom Hopper with Cross Screw
    • Bin Length 32 ft inside
    • Bin Width 7 ft inside
    • Bin Height 5.5 ft outside
    • 45 cubic yards capacity
    • Material Sludge (dirt, silt, water, vegetable- and petrol-based lubes)
    • density: "dry dirt" to "water"
    • up to 100 tph
    • Sludge Screw (2) 12" OD x 8" pitch for exit end of screw and 6" pitch on lead off screw on 6" pipe; carbon steel
    • Sludge Screw Motor (2) Seimens 15 hp, 1800 RPM, 3 phase
    • Sludge Screw Gear Box (2) Nord Gear Corp
    • Model #: SK 7382SC-160 M/4
    • Serial #: 1/811134266600 003
    • Ratio: 78.81
    • Torque: 42110 in*lbs
    • Speed: 22 RPM [motor speed adjusted to meet demand]
    • Mounting position: M1
    • Cross Screw 12" OD x 12" pitch on 6" pipe; carbon steel
    • Cross Screw Motor 7.5 hp; 3 phase
    • Gear Box Nord Gear Corp
    • Model #: SK 9042.1SCP-132 S/4 CUS
    • Serial #: 1/811134265900 001
    • Ratio: 40.54
    • Torque: 11039 in*lbs
    • Speed: 43 RPM [motor speed adjusted to meet demand]
    • Mounting position: M3
    • Power Connector Rubber Covered Cord with 480VAC Plug
    • Controls No (refer to Control House)
    • Ambient Conditions -10° to +120°F (-23.3° to +48.9°C)
    • 0 to 100% RH
  • Incline Screw Feed
    • Screw Diameter 16 in
    • Inlet to Discharge Length 34.25 ft
    • Conveyor Angle 12°-15°
    • Material Sludge (dirt, silt, water, vegetable- and petroleum-based oils)
    • density: "dry dirt" to "water"
    • up to 100 tph
    • Screw 16" OD x 16" pitch on 6" pipe; carbon steel
    • Motor Nord 15 hp, 30 PRM, Class 2 SC drive
    • Gear Box Nord Gear Corp
    • Model #: SK 6382 A2B-160 M/4
    • Serial #:
    • Ratio: 59.66
    • Torque: 31878 in*lbs
    • Speed: 30 RPM [motor speed adjusted to meet demand]
    • Mounting position:
    • Inlet 12" x 12" square
    • Outlet 16" x 16" square
    • Power Connector Rubber Covered Cord with 480VAC Plug
    • Controls No (refer to Control House)
    • Ambient Conditions -10° to +120°F (-23.3° to +48.9°C)
    • 0 to 100% RH

Call Today office in NY: 518-218-7676

After hours/weekends call Devin 330-835-7742

Product Details

Product Details

Category Used Pugmills
New/Used? Used
Product Name Twin Screw Conveyor Bin with discharge screw
Product ID UEP-1415
Manufacturer PavementGroup
Year 2014
Size Bin 32'x7'x5.5'
Condition Good
