Overview: 2002 LeeBoy L150 -- 90 DAY PARTS WARRANTY -- 518-218-7676

Description

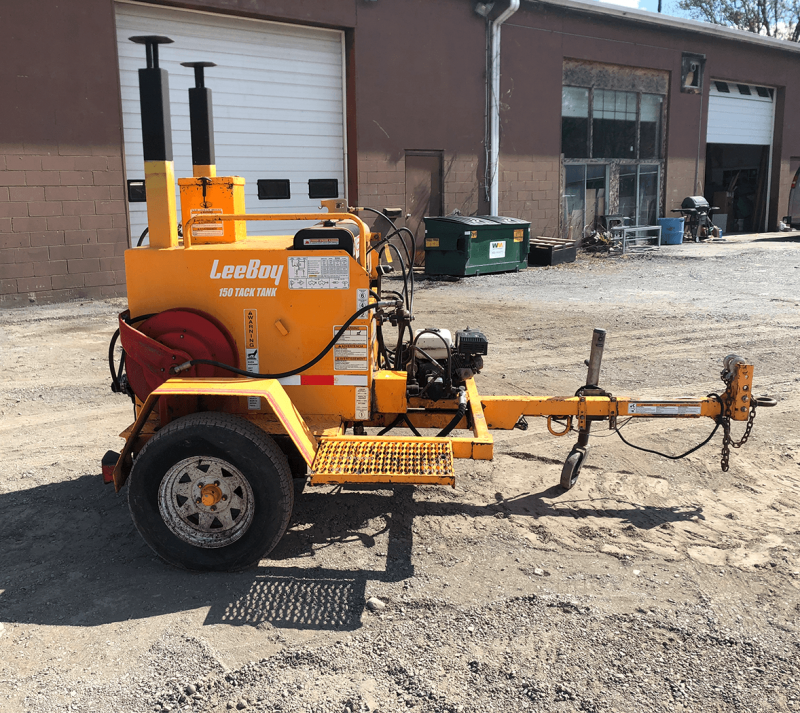

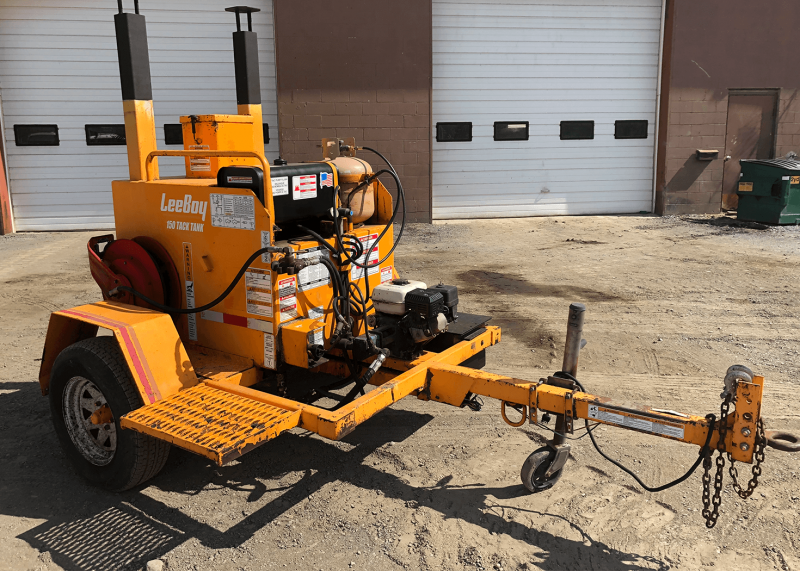

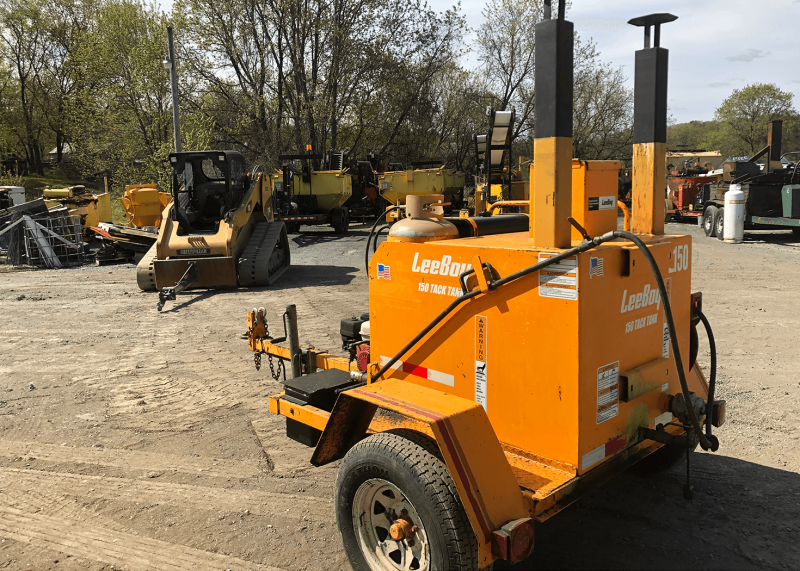

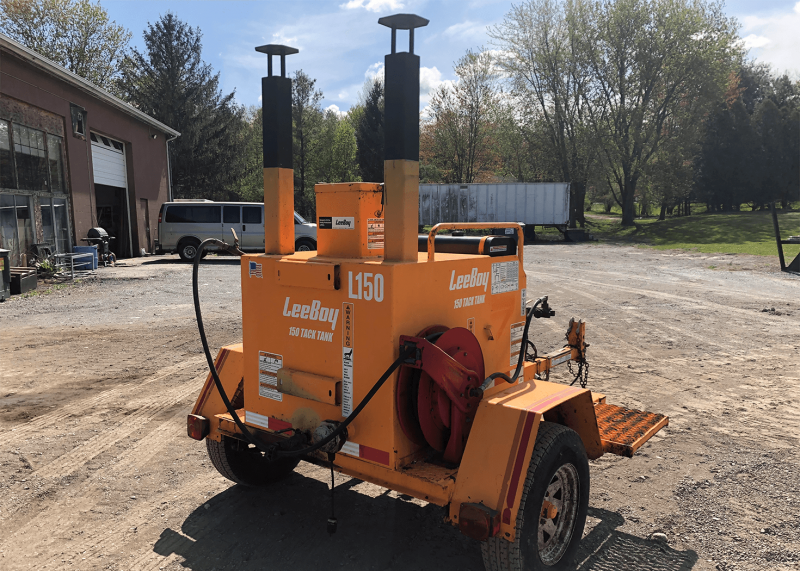

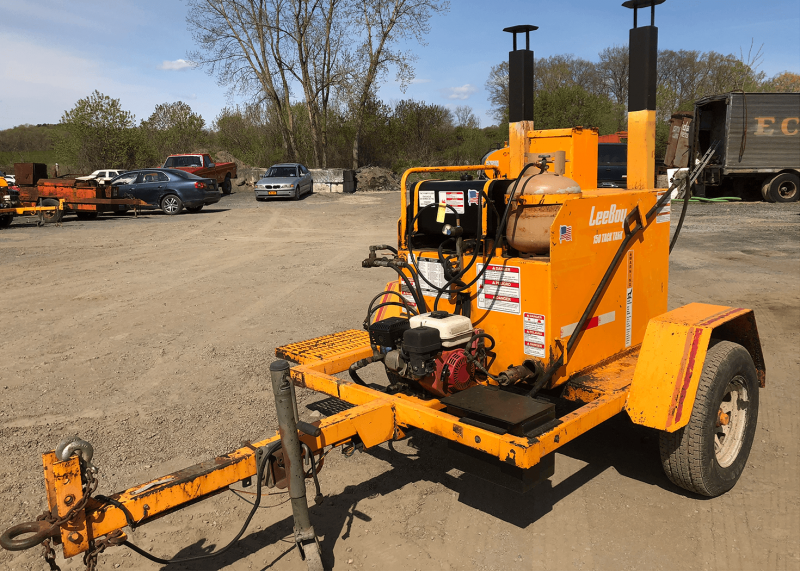

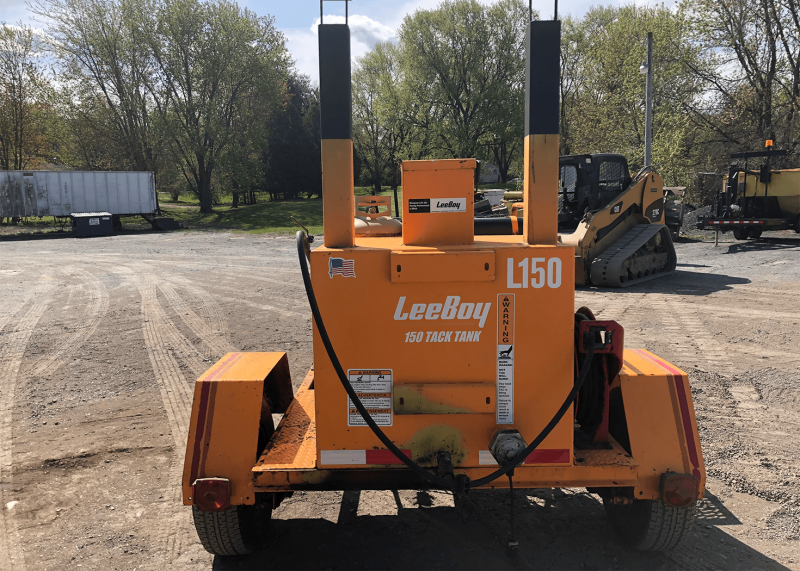

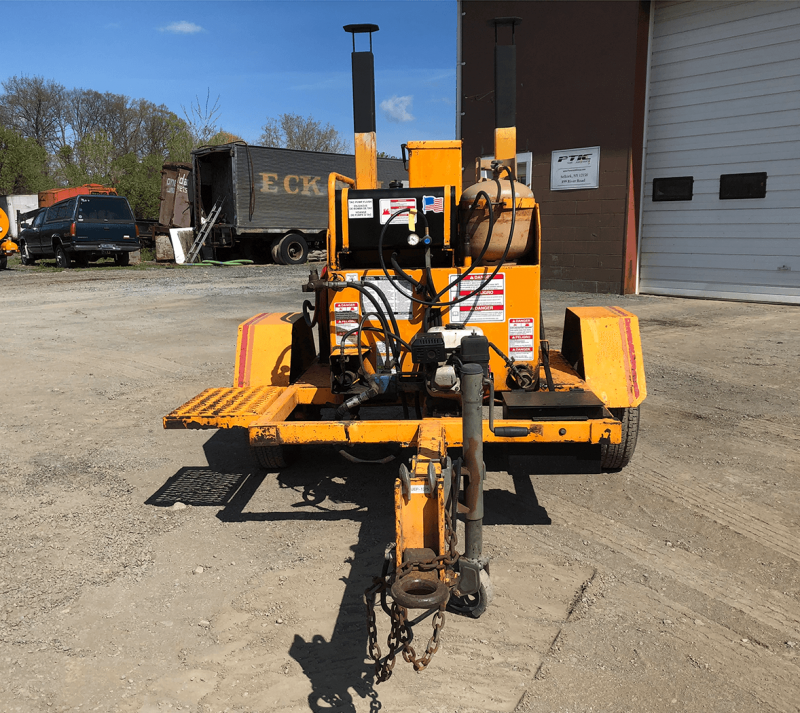

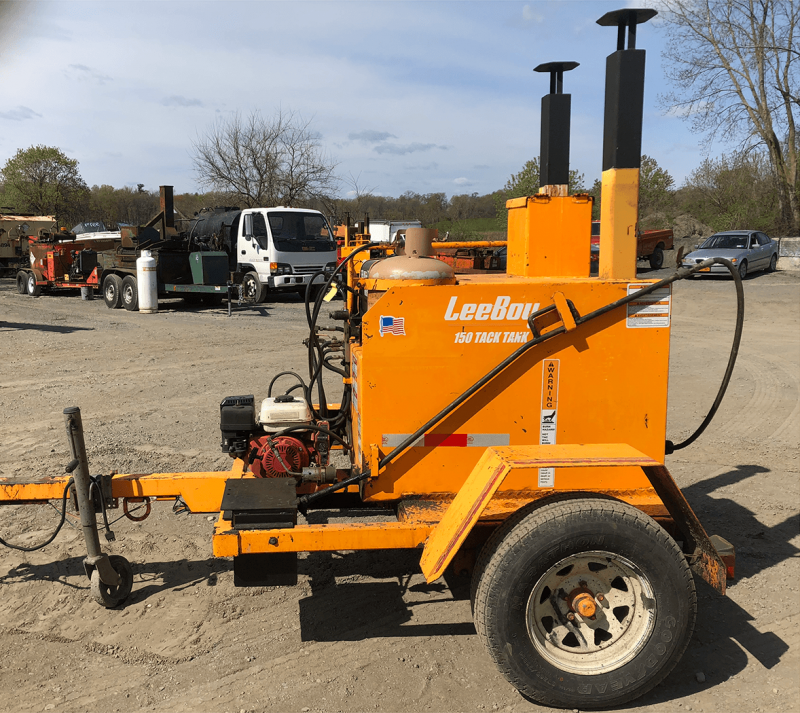

2002 LeeBoy L150

  • The 150 Tack Distributor ideally serves the paving contractor dedicated to smaller projects
  • With a conservative 150 gallon capacity tank, this solution still boast of many features and functions of the larger units
  • Inclusive of a powerful Honda engine, the userfriendly design can either be trailer or skid mounted
  • Multiple additional options including in-cab controls or overnight heating can further enhance the end user’s experience
  • Dimensions:
    • Length: 11’ (3.35 m)
    • Width: 6’ 6” (1.98 m)
    • Height: 7’ 2” (2.18 m)
    • Tank: 150 gallons (567.8 l)
  • Trailer Specifications (for trailer configuration):
    • 3,500 lb (1,587 kg) axles with pintle eye
    • 1,500 lb (680.3 kg) jackleg
    • Wired for towing
    • Tires: ST 225/75D15
    • Shipping weight: 1,556 lbs (705.7 kg)
    • Loaded weight: 2,771 lbs (1,256.9 kg)
  • Dimensions (skid-mount configuration):
    • Length: 6’ 4” (1.93 m)
    • Width: 4’ (1.21 m)
    • Height: 6’ 6” (1.98 m)
    • Tank: 150 gallons (558 l)
  • Skid Mount Specifications (for skid-mount configuration):
    • For transport in the back of a truck
    • Shipping weight: 900 lbs (408 kg)
    • Loaded weight: 2,595 lbs (1,177 kg)
  • Tank Dimensions:
    • Length: 42.25” (1.07 m)
    • Width: 34” (.86 m)
    • Height: 30” (.76 m)
  • Engine:
    • 4.8 HP (3.6 kw) Honda
    • 1 gallon (3.79 l) fuel tank
  • Asphalt Pump: Specially designed 7 GPM (26.5 LPM) pump
  • Heat System:
    • Two 54,000 BTU propane burners
    • One starter burner
    • 30 lbs (13.6 kg) propane fuel tank
  • Temperature Gauge: 50 - 300° F (10 - 149° C)
  • Flush Tank: 7 gallons (26.5 l) tank with suck back valve
  • Hose and Reel: .5” x 40’ (13 mm x 12.192 m) heavy-duty recoil hose reel
  • Wand:
    • 6’ (1.829 m) wand with cold handles
    • On/off valve
    • Removable spray tip
  • Fill Spout:10” x 10” (254 x 254 mm) with splash plate
  • Clean Out:4” (102 mm)
  • Access Valve:1” (25 mm)

Call Today 518-218-7676

Product Details

Product Details

Category Used Distributor Trailers
New/Used? Used
Product Name 2002 LeeBoy L150
Product ID UEP-1375
Manufacturer LeeBoy
Model L150
Year 2002
Size 150 GAL
MachinioSkip:No
Shipping Dimensions
Lbs KG
Weight 0.00 0
Inches Feet Cm
Length 0.00 0.00 0.00
Width 0.00 0.00 0.00
Height 0.00 0.00 0.00
