Portable Surge Bin Hopper by Olympus

Description

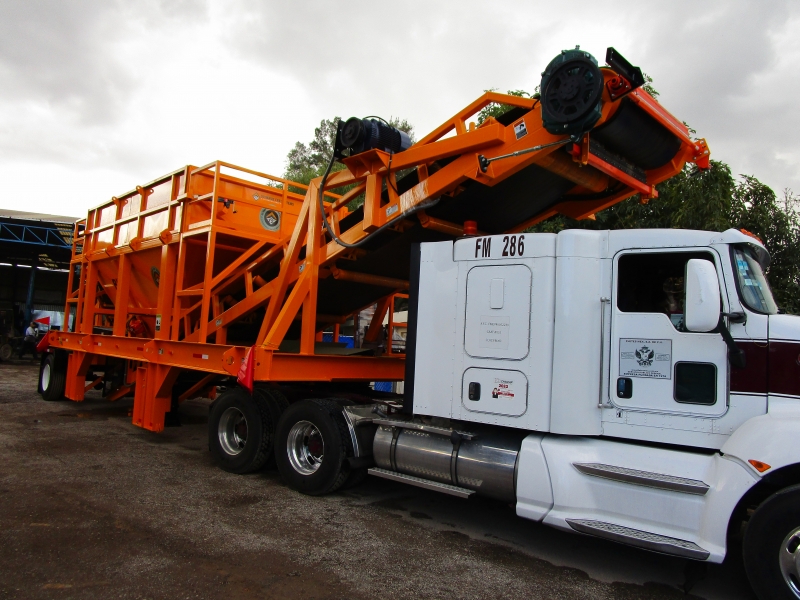

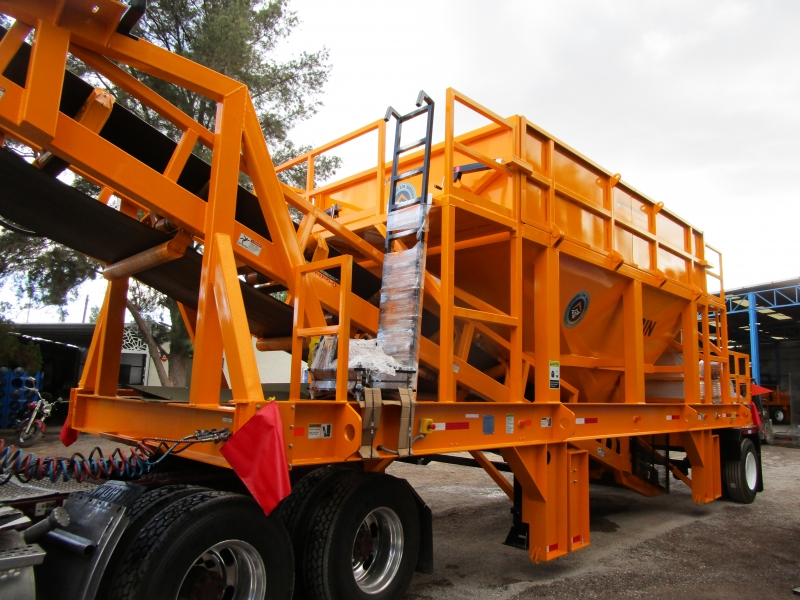

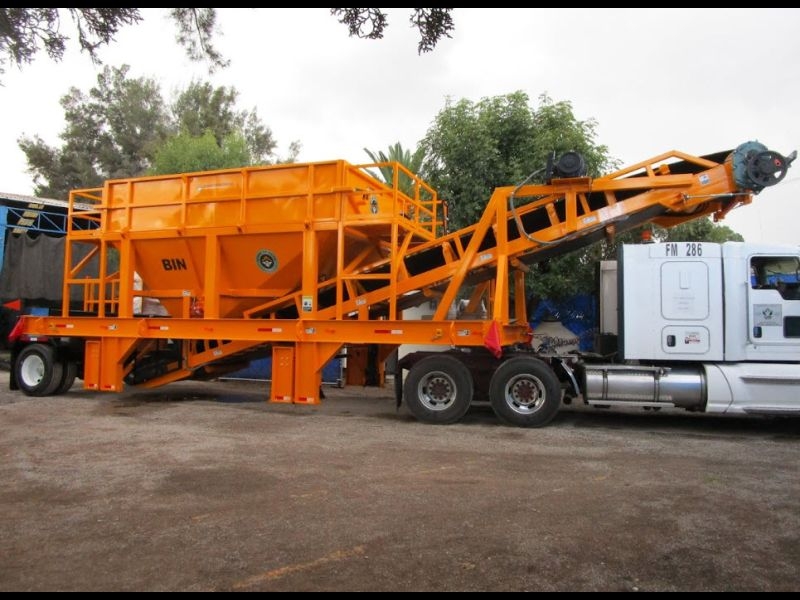

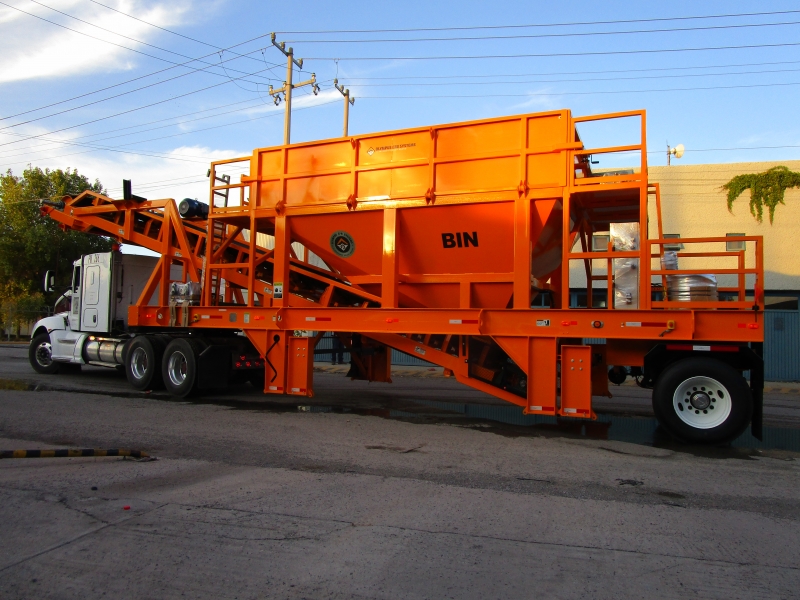

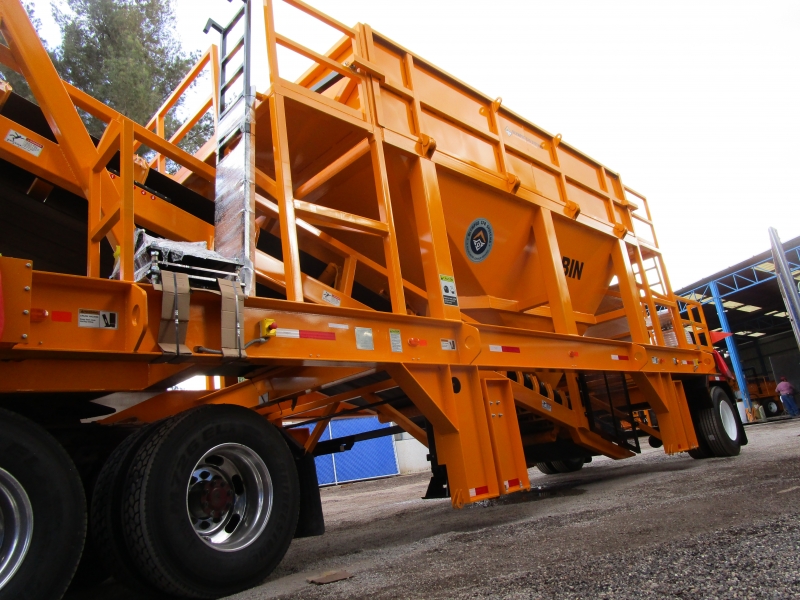

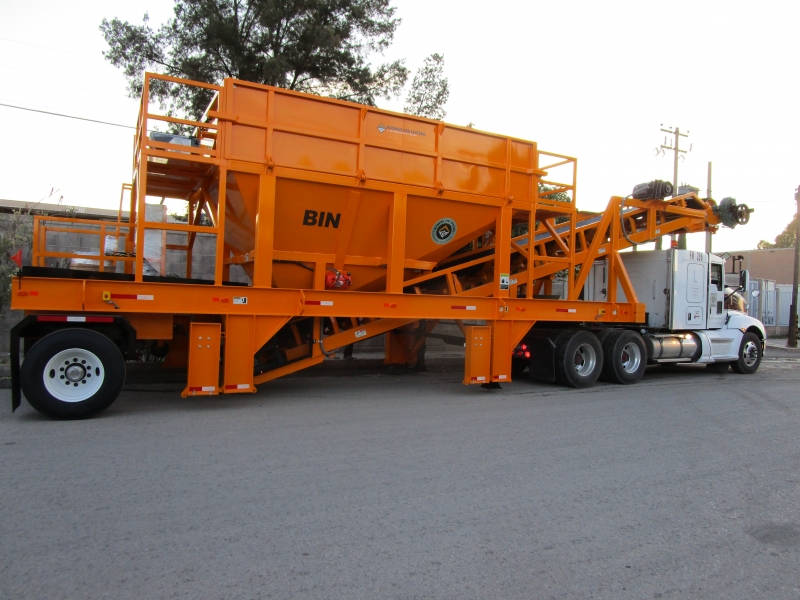

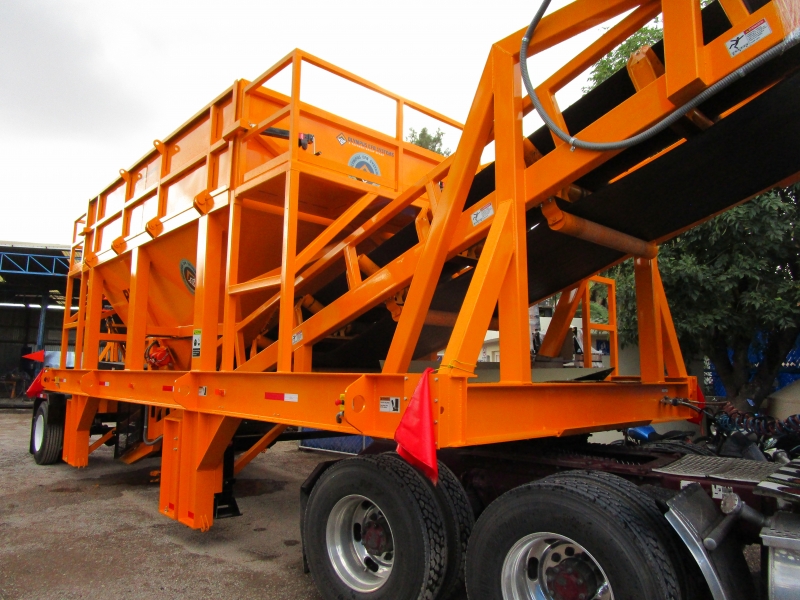

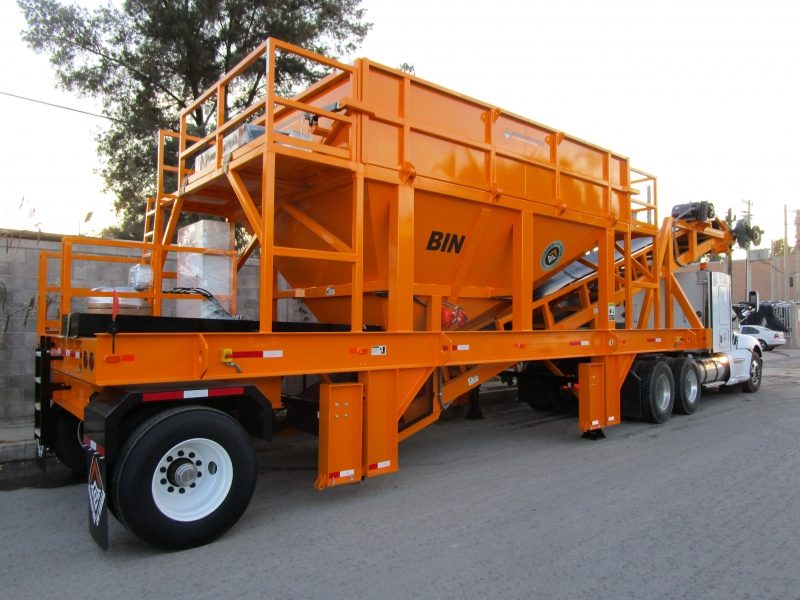

SURGEMAX by Olympus is a portable surge hopper that is designed to reduce haul-truck cycle times by maximizing delivery system productivity. The hopper has a massive capacity of 45 cubic yards and can accept full loads of various materials such as roller compacted concrete (RCC), rock, sand, dirt, and cement treated base from dump trucks or from a pugmill or central mix concrete plant. This eliminates downtime between your loaded trucks leaving and your waiting trucks being loaded.

Surgemax highlights:

Designed to deliver reliable performance and ease of operation. The Danfoss control system is intuitive and user-friendly.

Built with a portable structure that incorporates a trailer, king pin hookup with airbrakes, enabling it to be towed between job sites with ease.

An onboard conveyor and 45cy capacity significantly reduces Surgemax' time between loadouts.

Bin extensions are incorporated to minimize travel height while significantly increasing bin capacity. The bin extensions are easily raised and lowered by the opearators.

SURGEMAX Specifications:

• 45 yd3 bin with bin extensions raised
• 48” wide conveyor with 50hp motor
• Dodge gear reducer and VFD
• Single axle portability (requires oversize permits)
• Electric bin gate adjustment with position sensor
• Danfoss controller
• Front & back catwalks
• Electric Vibco vibrator ¾ hp, 220/440VCA

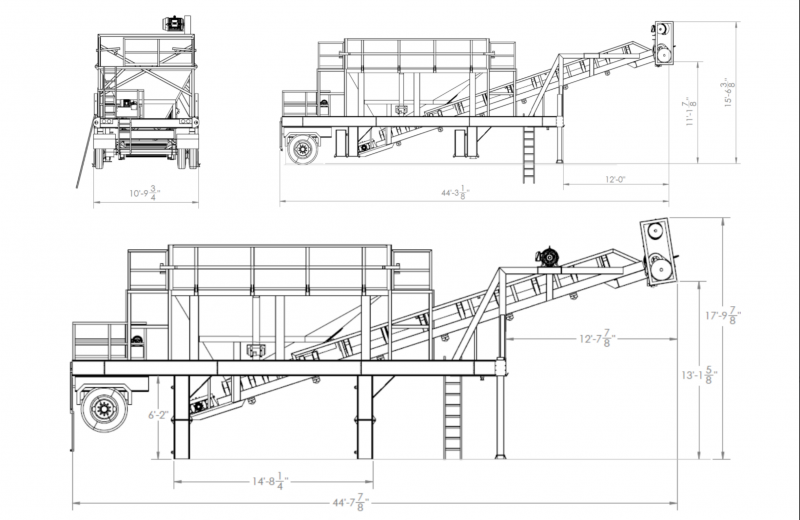

• Overall 44.5’ L 10’7” W 13’8” H  33,000 lb

Quick delivery current build times between 4-8 weeks
