At PavementGroup, our STRATOS DMT-600 sets the industry standard. You get 600 gallons of capacity, and a CDL is NOT required. Our asphalt tank uses a diesel heating system. It's builtfor chip sealing applications, tack coating, emulsion spraying, foundation spraying, and even sealcoating. We include an industry leading18-MONTH Warranty on our tank and frame system! Call us today 518-218-7676

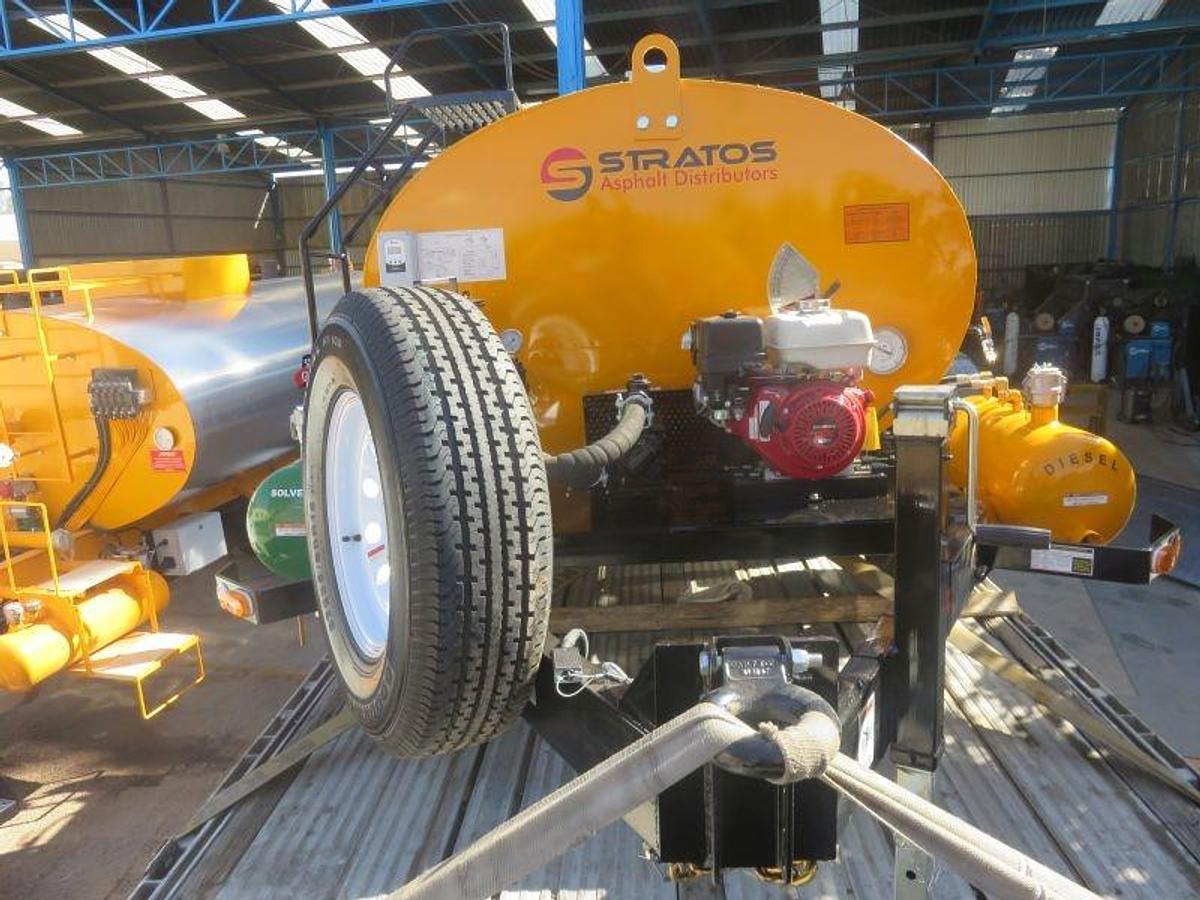

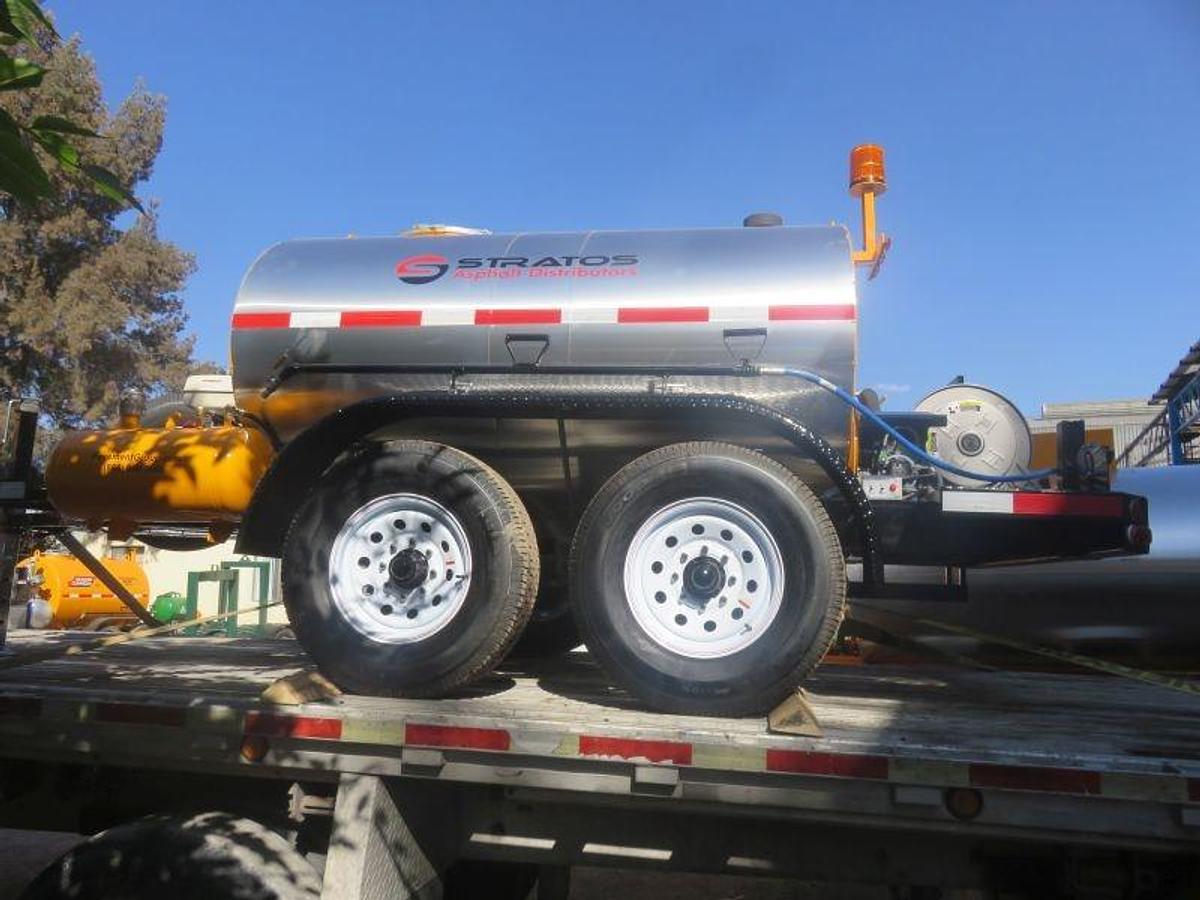

PavementGroup STRATOS DMT-600 gallon Asphalt Distributor Trailer
Standard Features Include:
600-gallon capacity NO-CDL Required!!
Elliptical tank, baffled, low center of gravity
Insulated tank, 2" ceramic wool, aluminum wrapped
Manway, DOT-compliant, double-folding sealed hatch with strainer and expansion overflow
Diesel-fired burner, Beckett burner heating system (350,000 BTU burner)
Thermostatic material controls, digital, set high-low, view current temp.
Temperature sensor gauge, analog

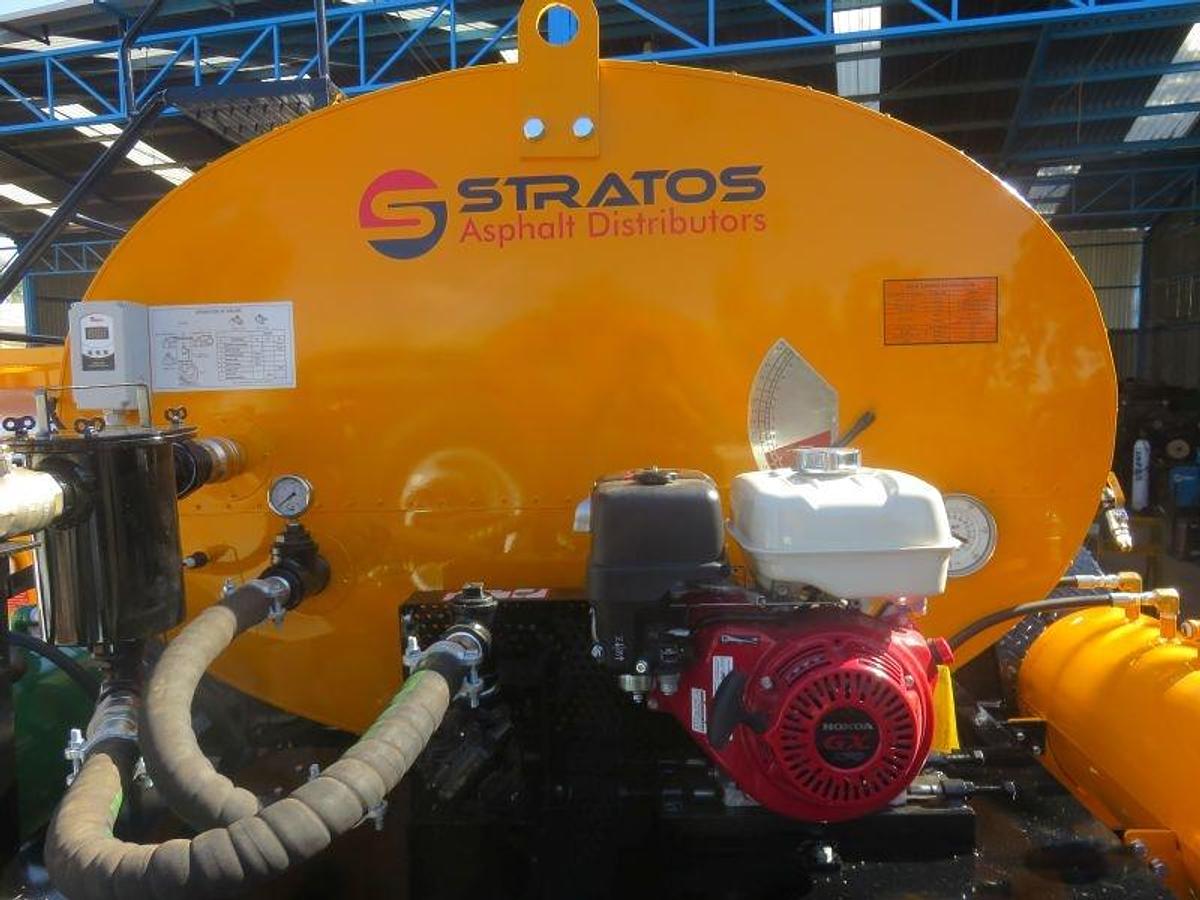

Briggs Vanguard 14hp gas engine, 20amp charging circuit, electric start +pull start
Deep-cell battery package, battery box, voltage meter
Viking 60GPM material pump

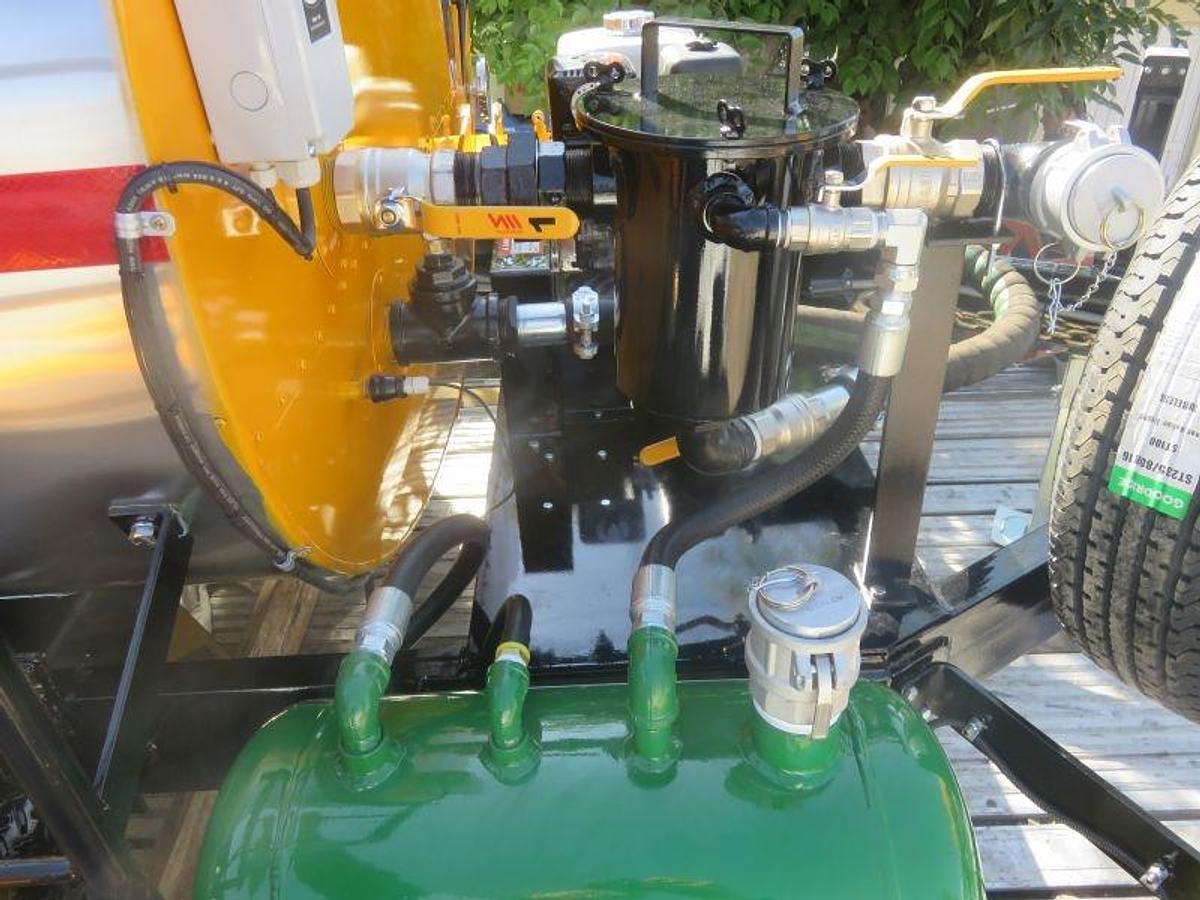

In-line strainer basket for easy cleanout

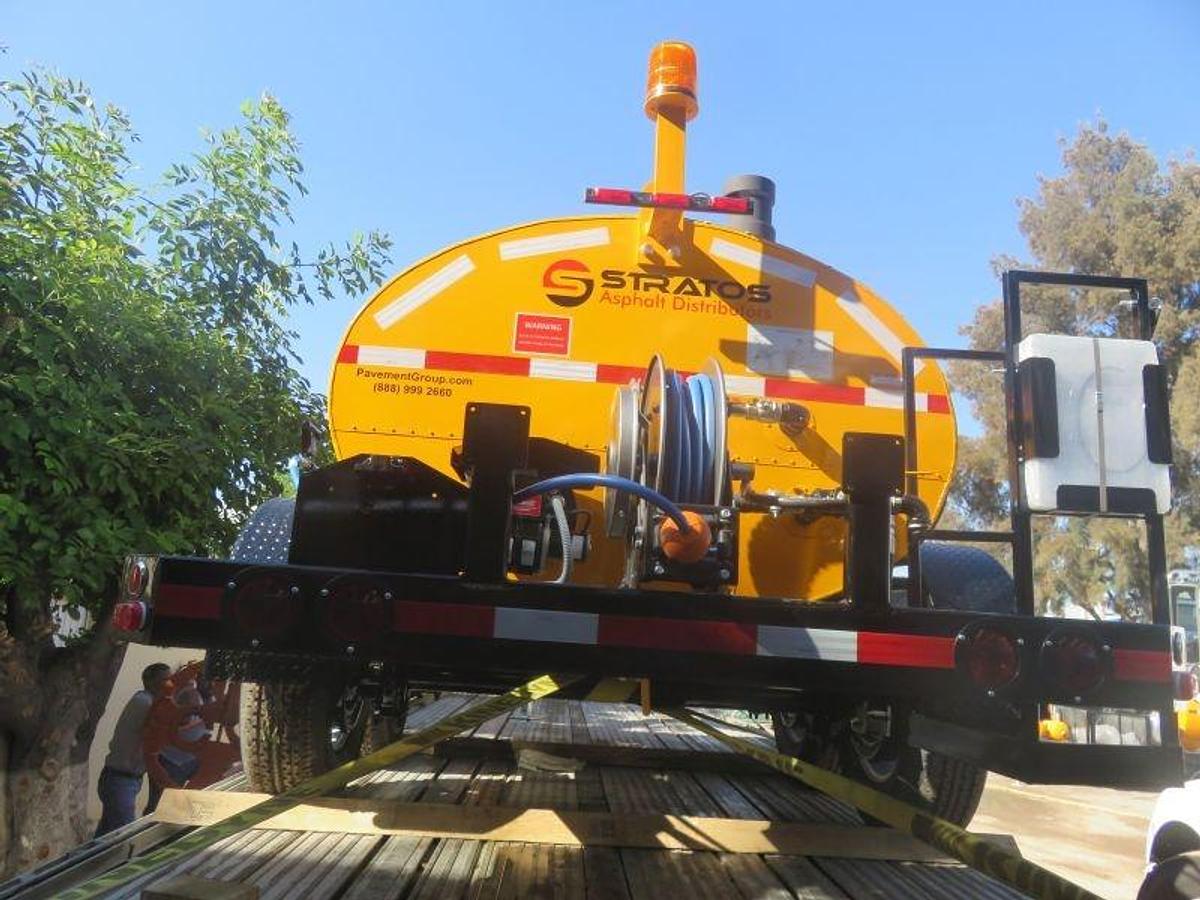

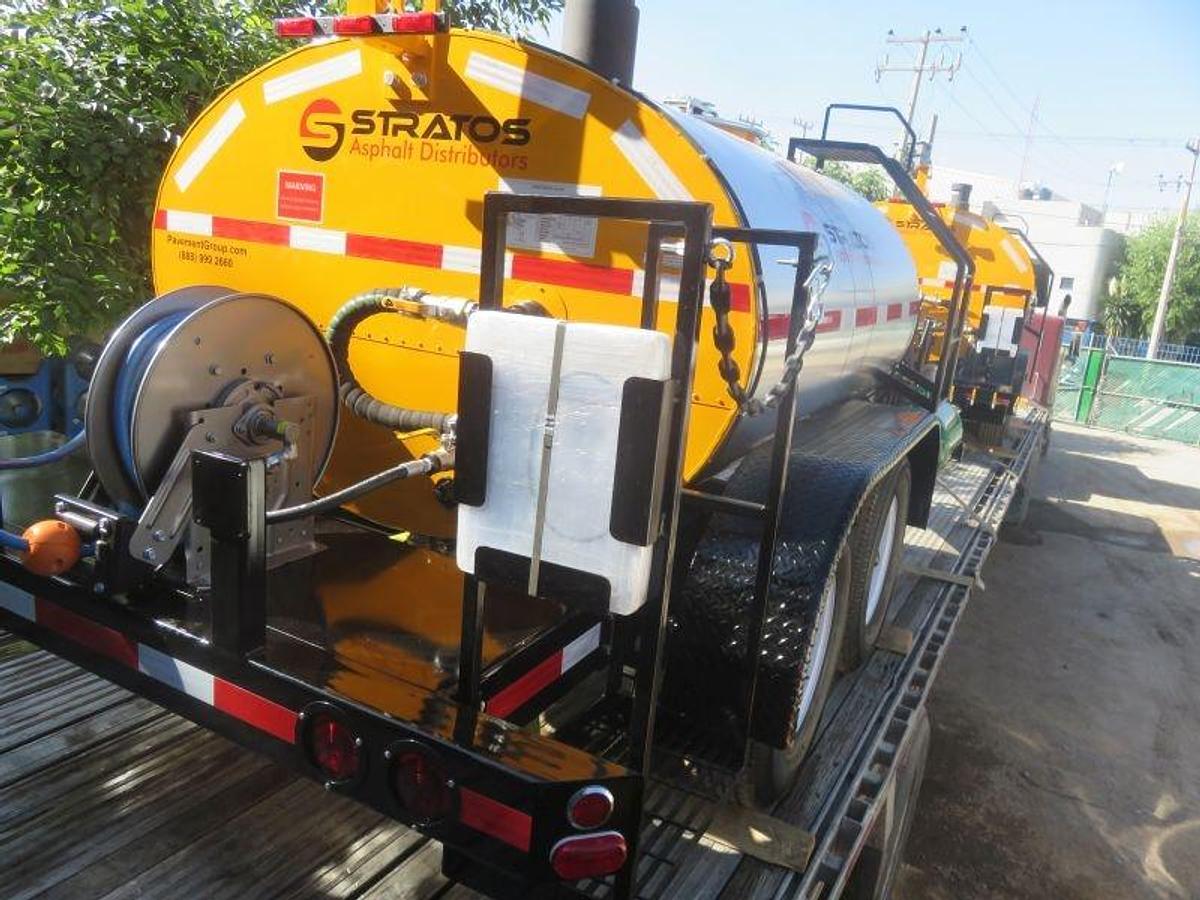

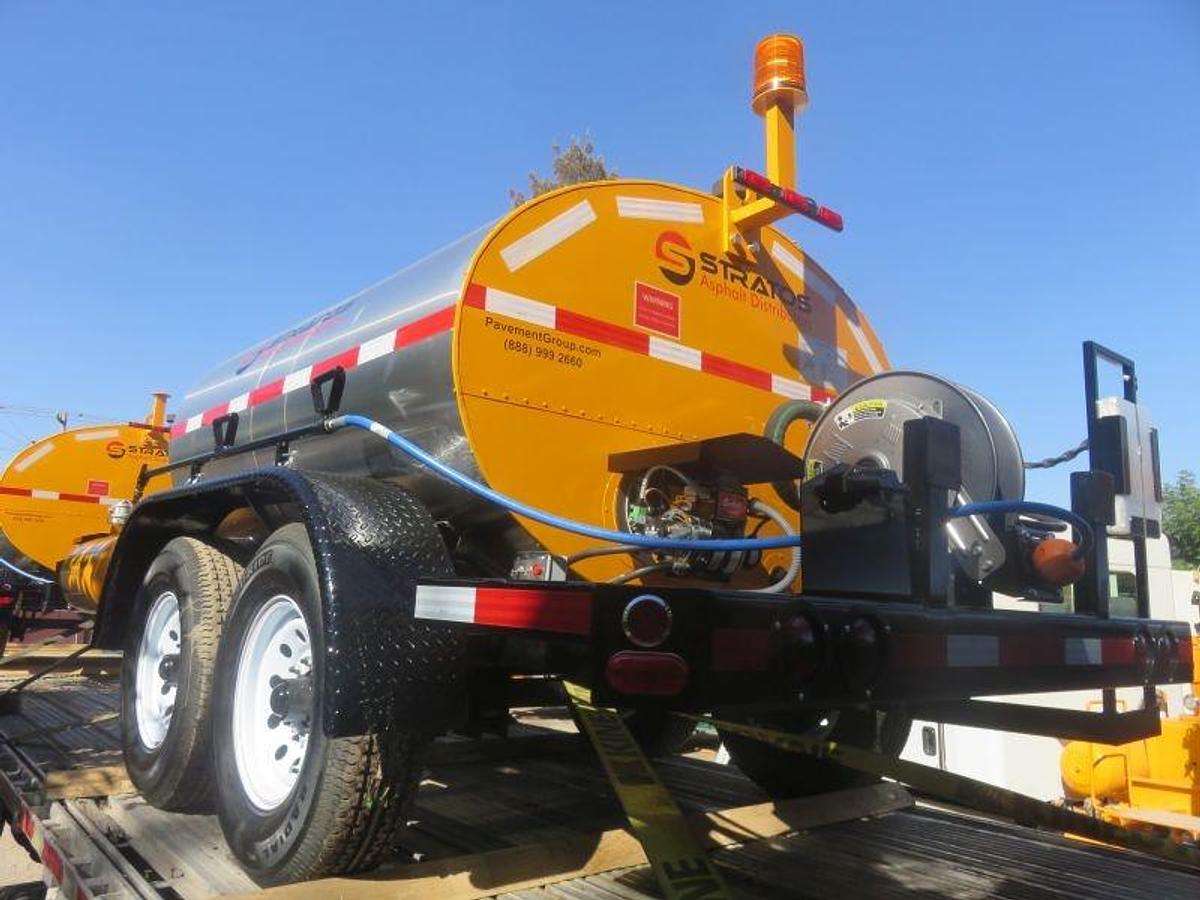

Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
Applicator hand wand, on/off valve, and foot valve
Material level gauge indicator
Flush tank system, 10-gal tank
Paint yellow tank, black trailer
Ladder, side-mounted

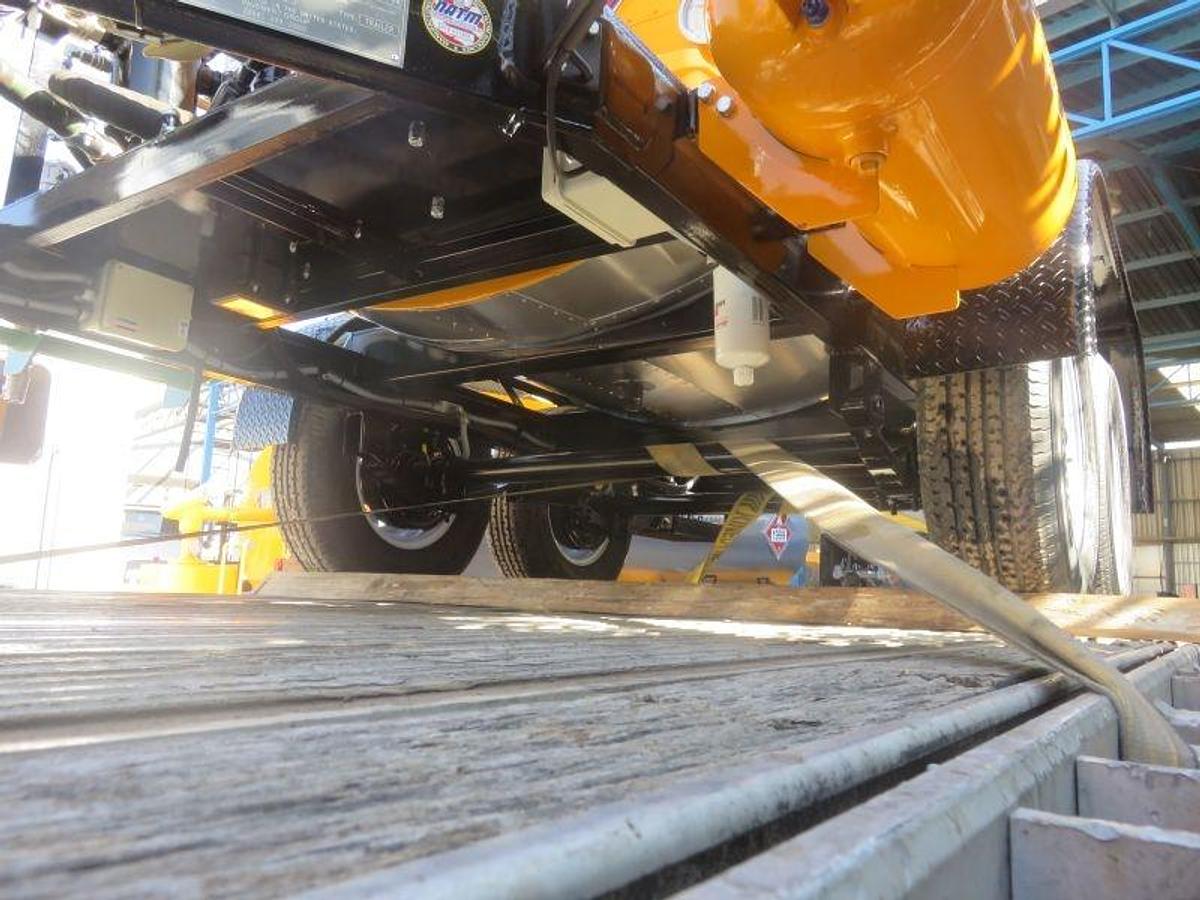

Trailer, double axle, 7000 lb axles
Heavy-duty diamond plate fenders
GVWR 8,907LBS (No CDL required!)
GAWR 14,000 lb
DOT-compliant LED lighting (brake, turn, running), flush-mounted into fenders
Electric brakes on both axles, with break-away kit
Heavy-duty, adjustable height tongue jack
Hitch plate, 12", 5-position adjustable up to 29" tow height
Pintle ring
NATM, National Association of Trailer Manufacturers, compliant (exceeds DOT requirements)
Paint: Yellow Tank, Black Trailer (aluminum if insulated)
NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors, and features of this product. What you'll receive from us is always the latest, most improved model of our machinery. Photos may show equipment with optional equipment.
WARRANTY: 18-MONTH Industry-Leading EQUIPMENT WARRANTY
OPTIONS:
Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes, or air compressor)
Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple-to-use Danfoss DM430E computer allows the operator to monitor critical functions in real-time: gallons/SY, gallons discharged, trailer speed, and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of the spray bar (# of tips) being used to receive real-time volumetric material output reading and ground speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in-cab mounting.
(downgrade) No insulation
8' Spray Bar, adjustable height, 12" cut-offs, operator platform, railing, and safety chain
12' Spray Bar, adjustable height, 12" cut-offs (6" cutoffs when using 60gpm pump), operator platform, railing, and safety chain
14' Spray Bar, adjustable height, 6" cut-offs, operator platform, railing, and safety chain
Remote spraybar controller package: remote control fob, electrically-activated pneumatic valve, air compressor, air tank
Hydraulic Brakes
Hitch Extension, 3'
Overnight heat maintainer (6kW, 220V, 1 phase) thermostatic control

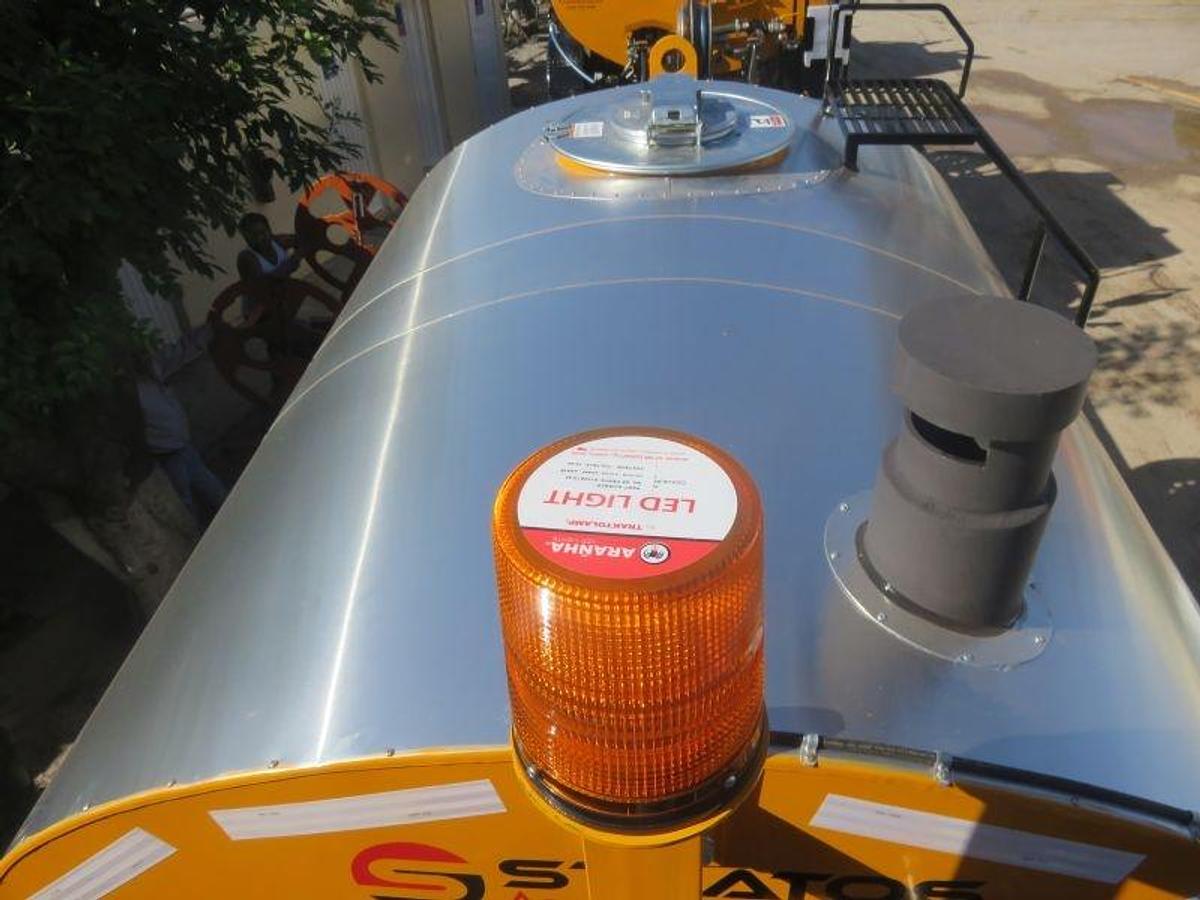

Strobe light (LED, amber, mounted)
Spare Tire, mounted
Custom color
DIMENSIONS WEIGHT: L 196" x W 84" x H 86"
