PavementGroup's STRATOS DMS-1000. Our 1000 gallon capacity tank is available skid mounted for easy mounting to a flatbed.Stratos emulsion sprayers anre engineered for dependability and easy operation, without the complexity. Stratos sprays 35+ emulsionproducts such as CSS-1h, CRS-2, HFRS-2 and many others. Ask about our industry leading 18 MONTH WARRANTY.. Yanmar dieselengine is available. Options include a computer monitor system, remote control on/off spray-bar, dual flow controls, radar monitor tohelp maintain gals/minute applied and track historical spray application data.

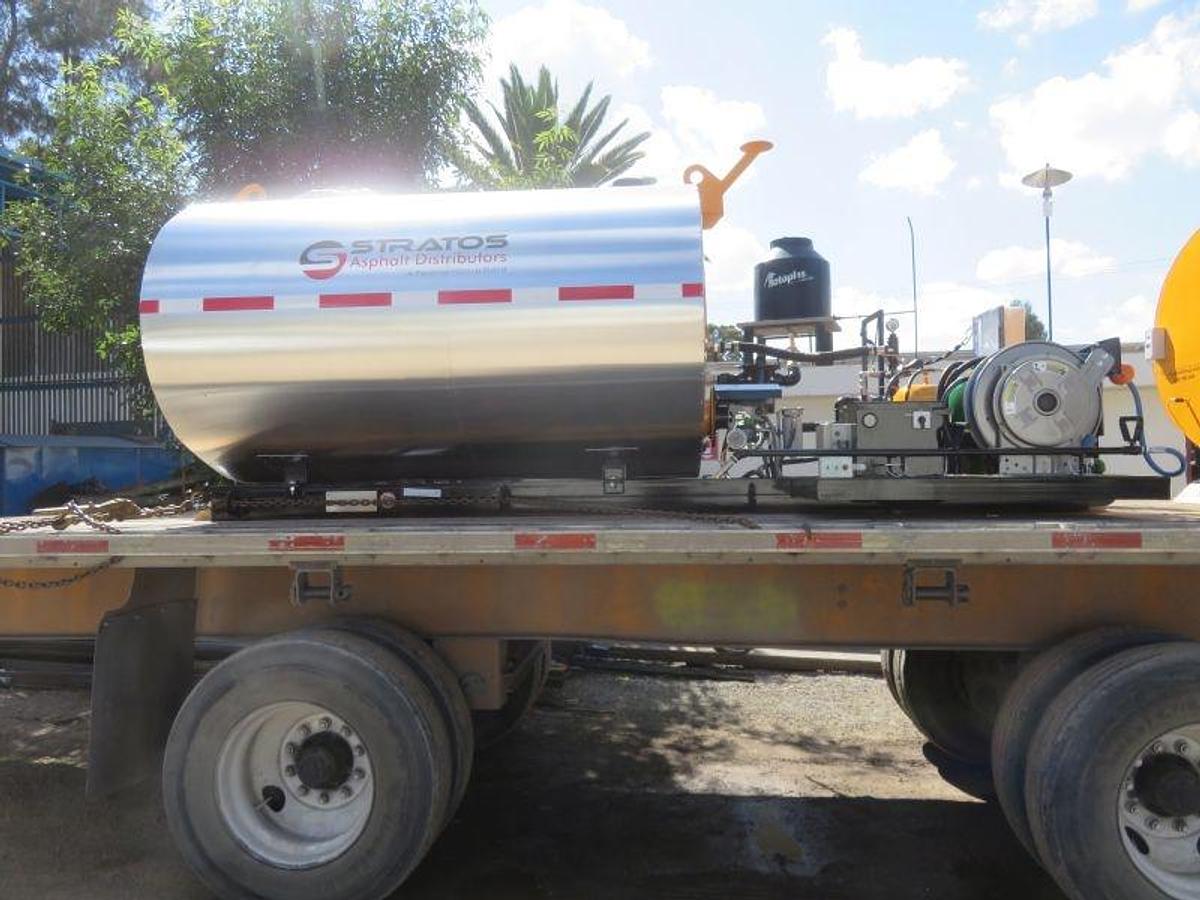

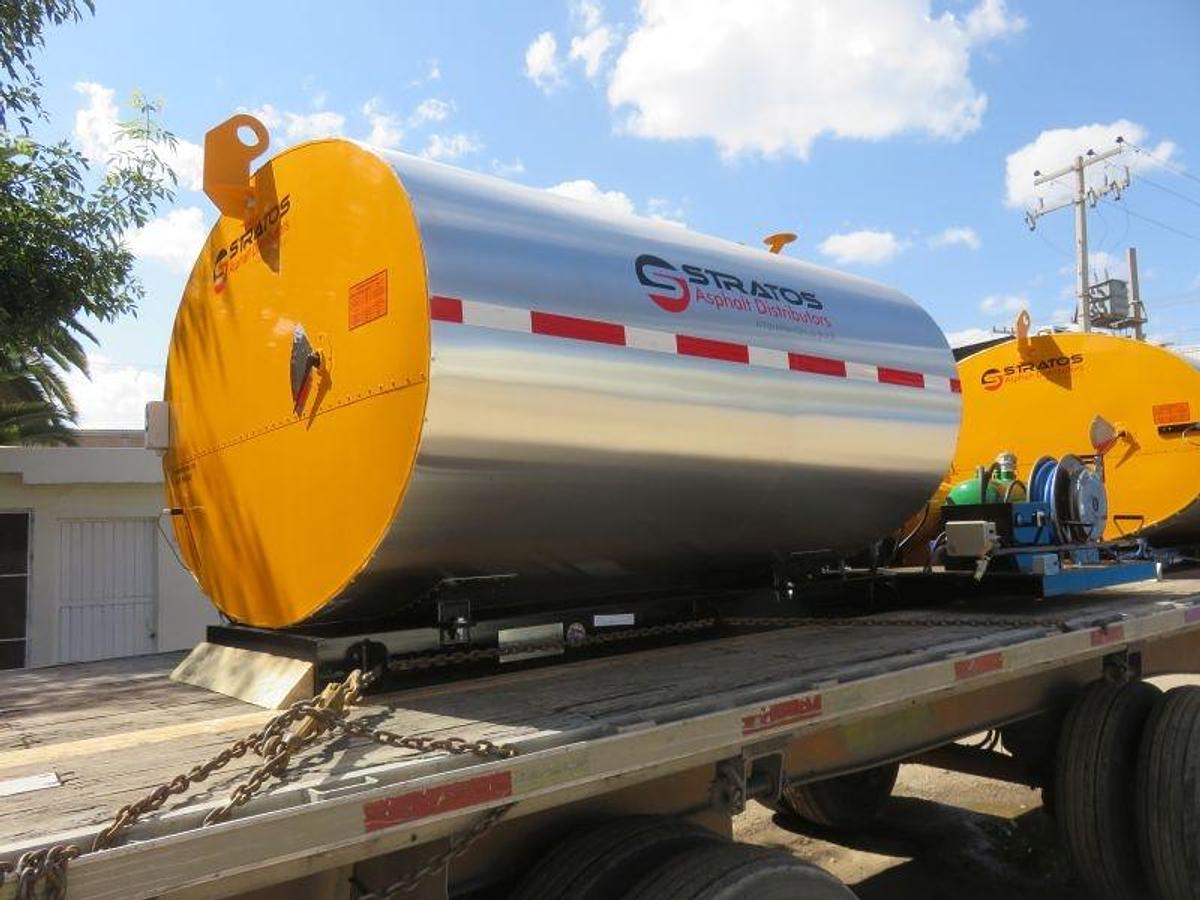

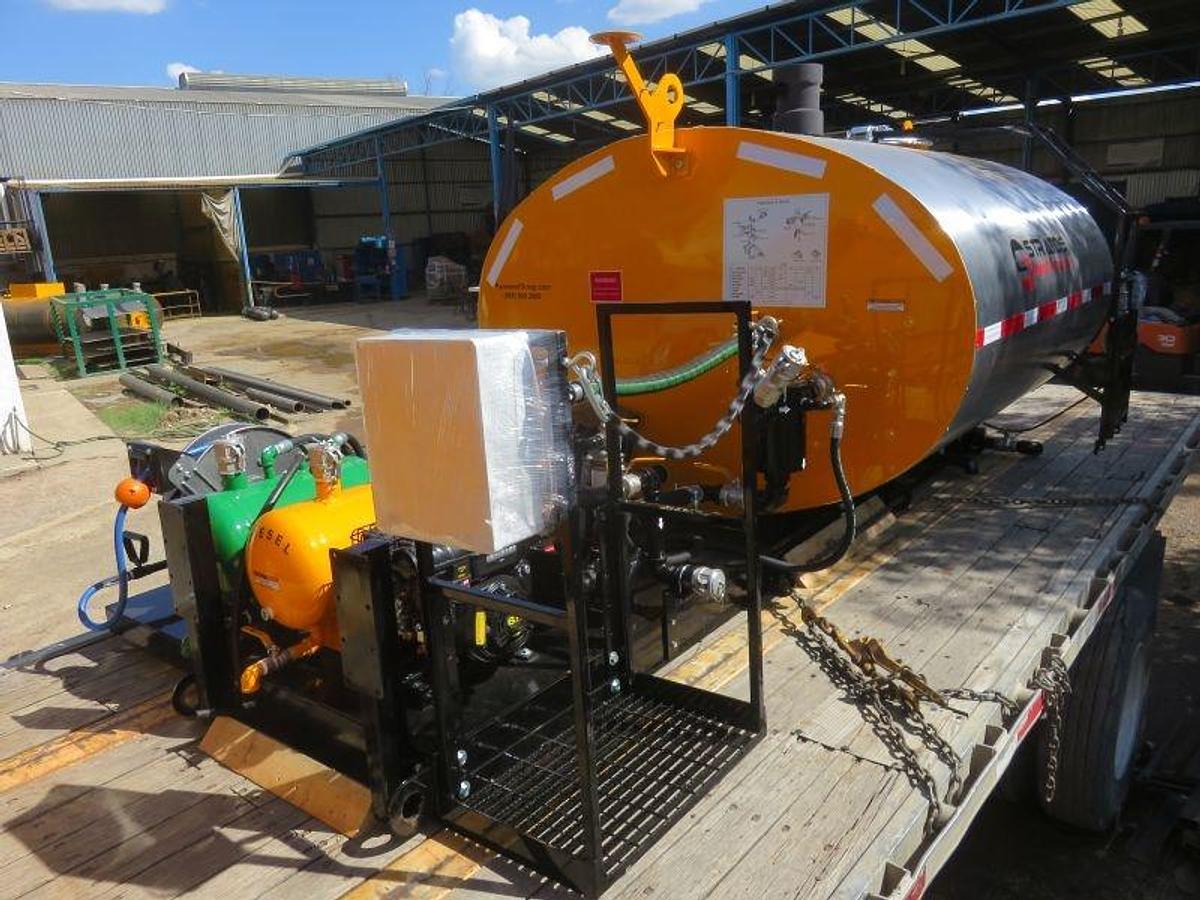

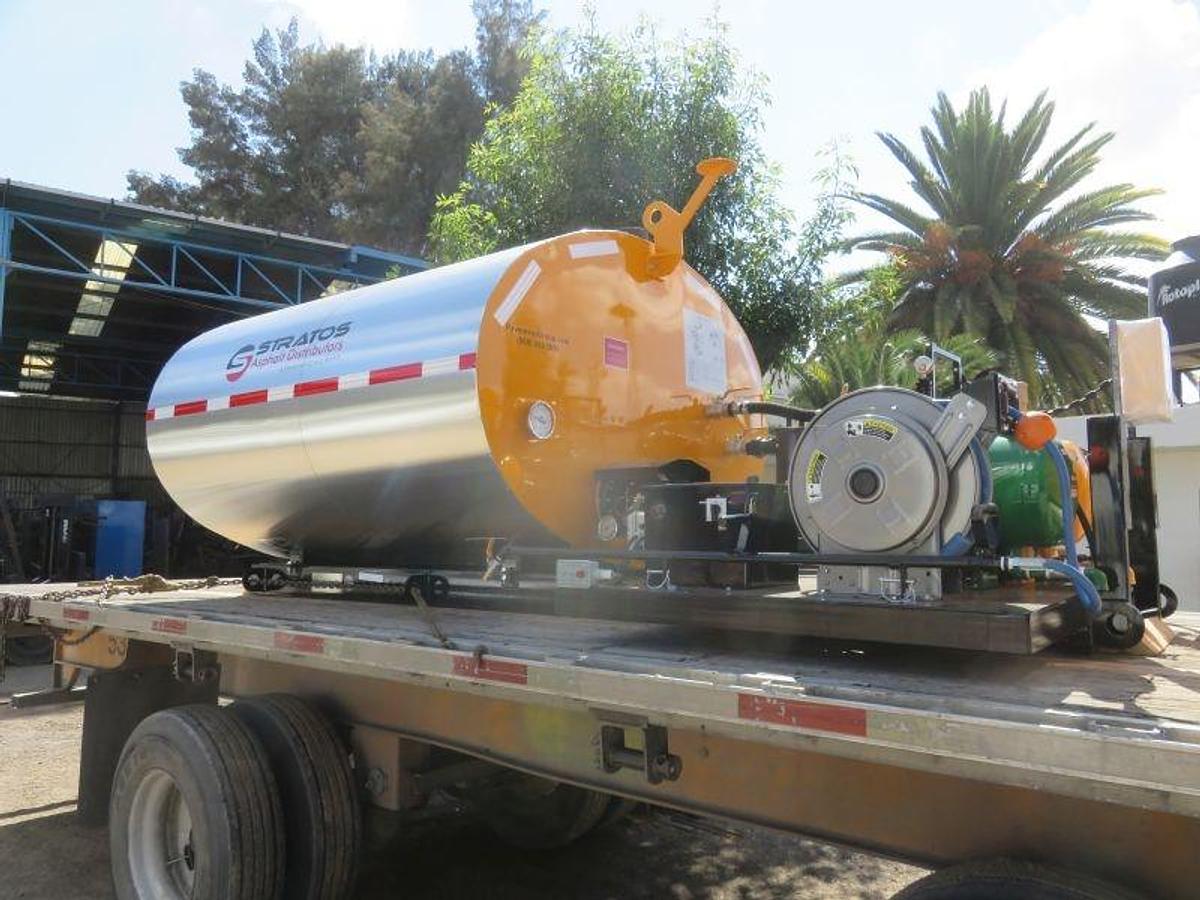

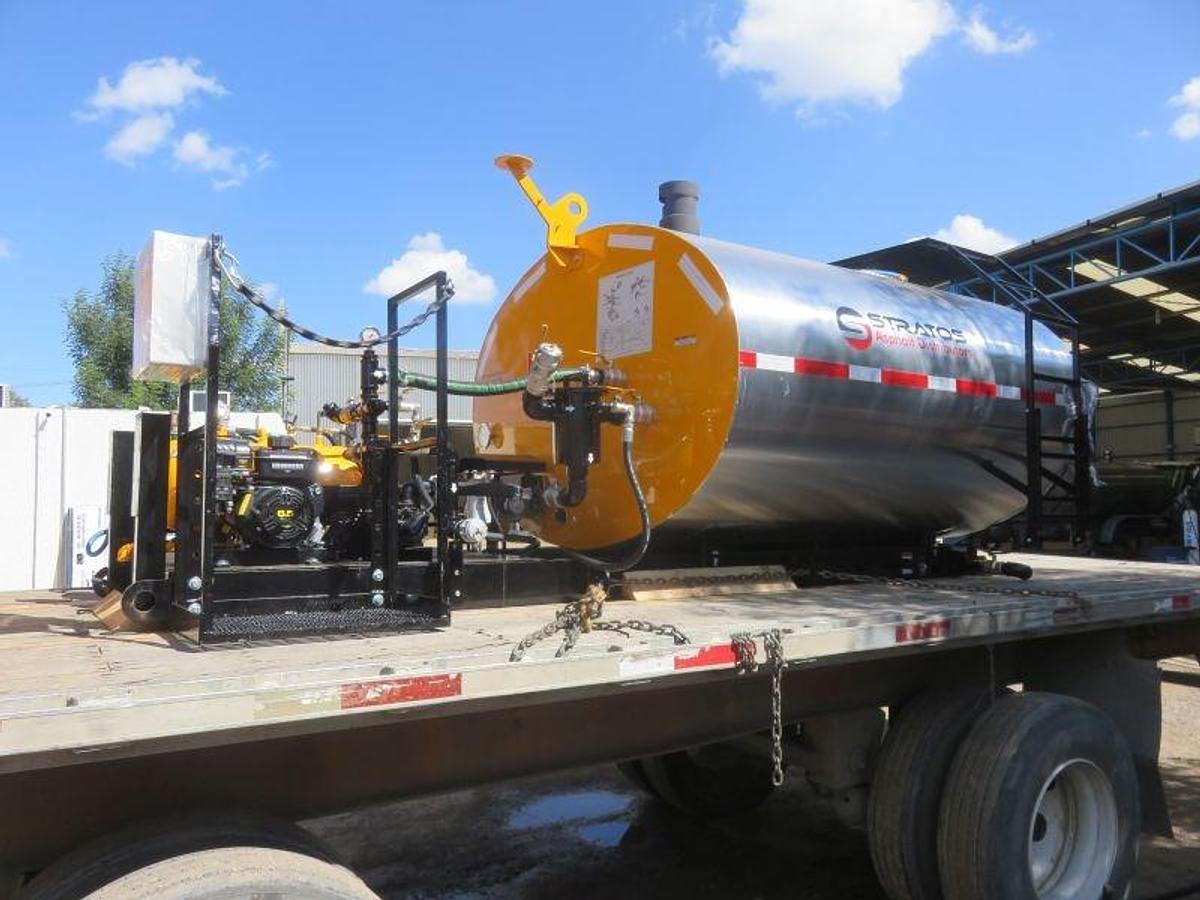

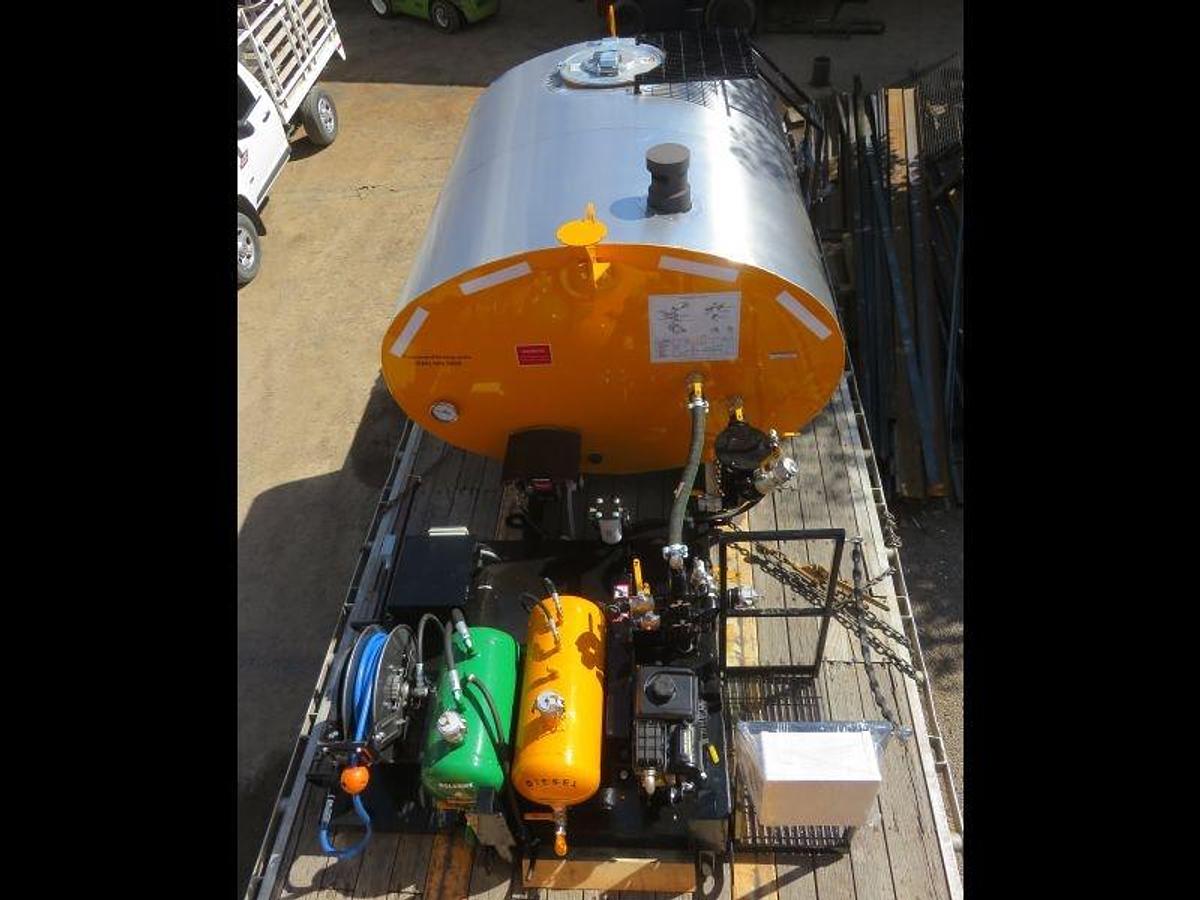

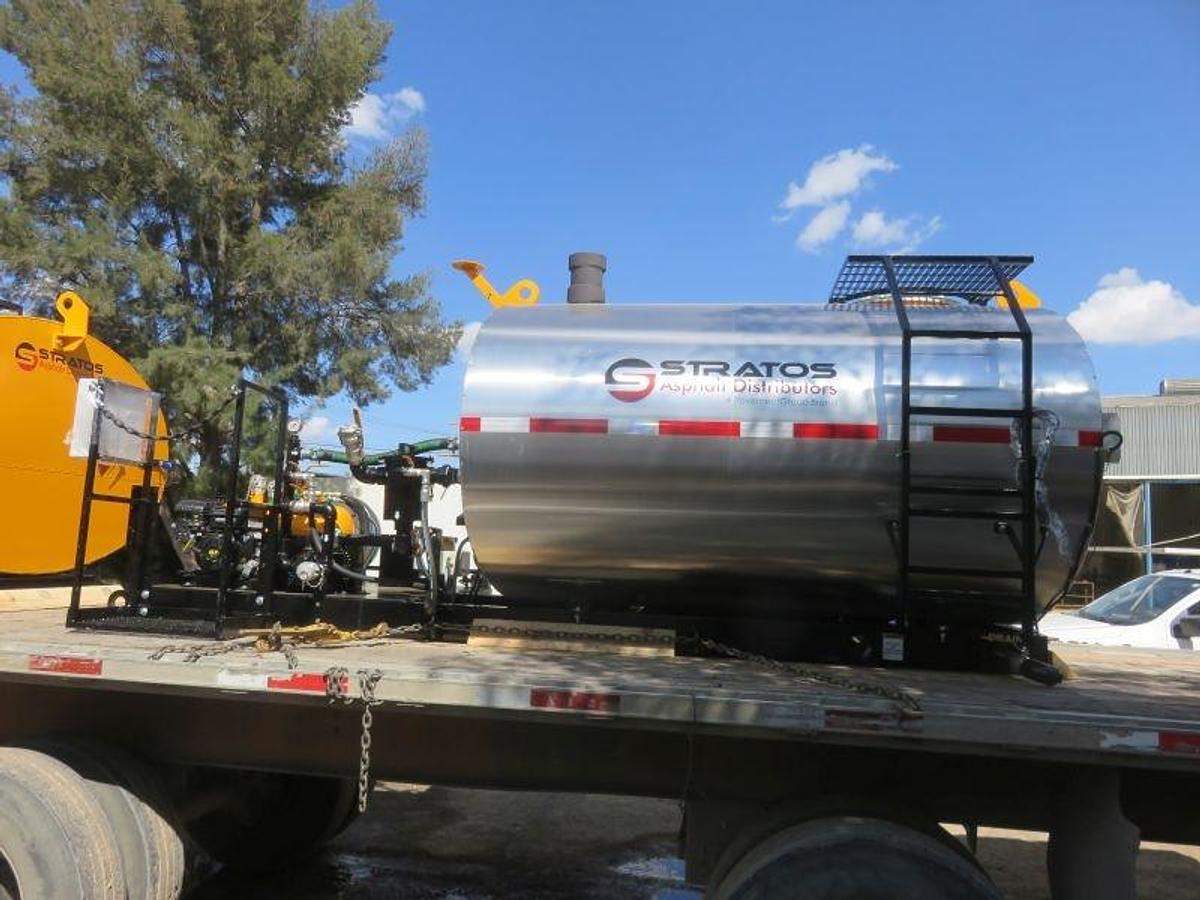

PavementGroup STRATOS DMS-1000 Asphalt Distributor, Skid Mounted
Standard Features Include:
1000 gallon capacity
Designed for your NON-CDL drivers! (Don't miss our 1500 gal option, for even more capacity and still NO-CDL required

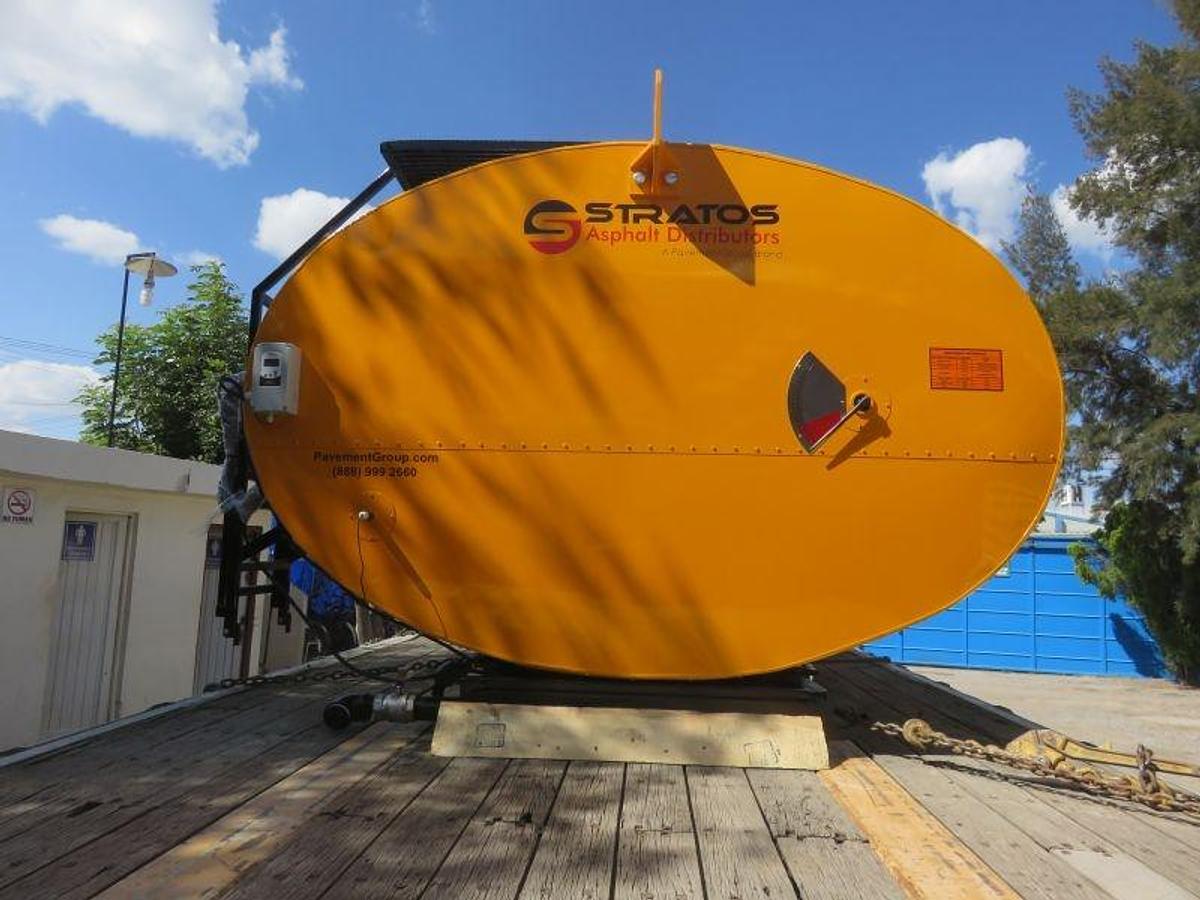

Elliptical tank, baffled, low center of gravity
Insulated tank, 2" ceramic wool, aluminum wrapped
Diesel or gas engine with 14+amp charging circuit, electric start + pull start
Skid frame for quick mounting to flatbed or your truck chassis' frame-rails
Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
Diesel fired Beckett burners, 350,000 BTU each
Thermostatic material controls, digital, set high-low, view current temp

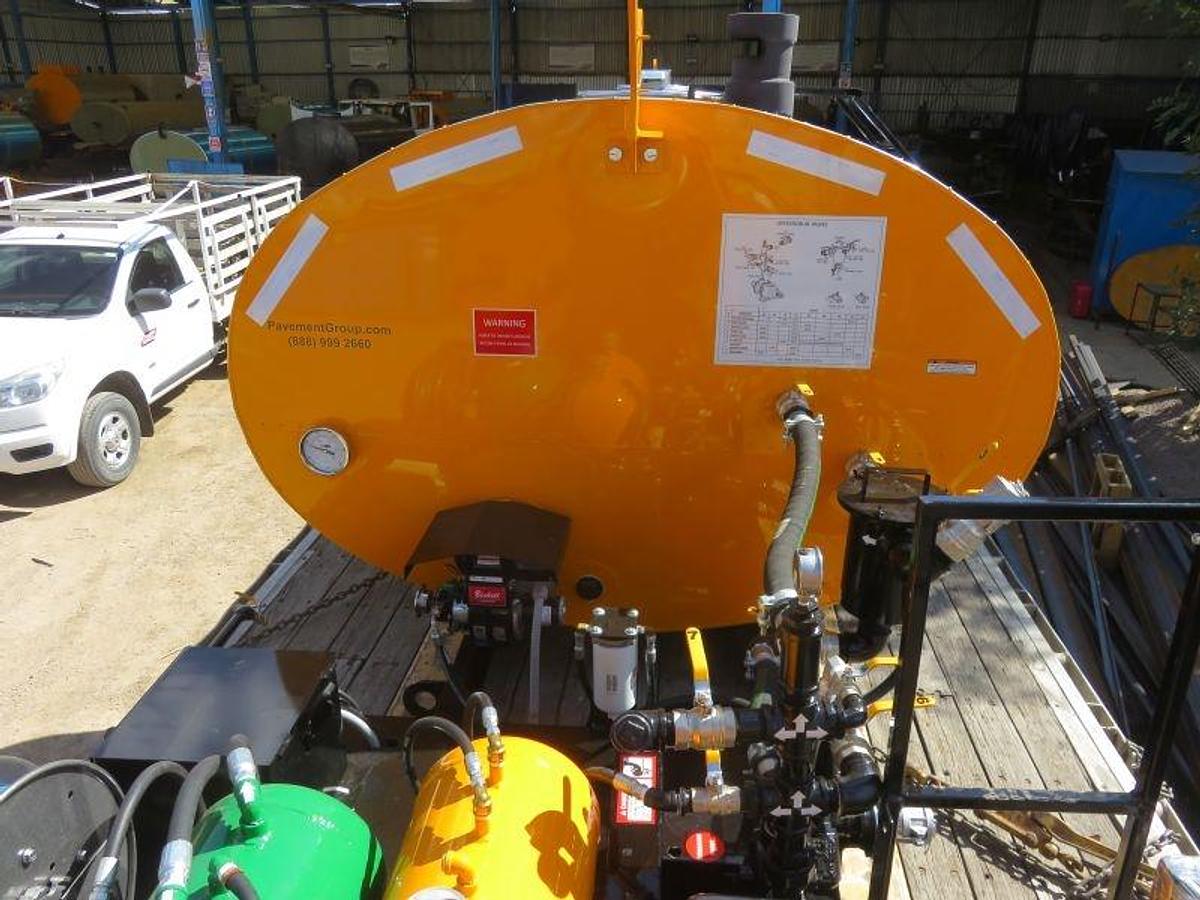

Temperature sensor gauge, analog
Diesel or gas engine with 14+amp charging circuit, electric start + pull start

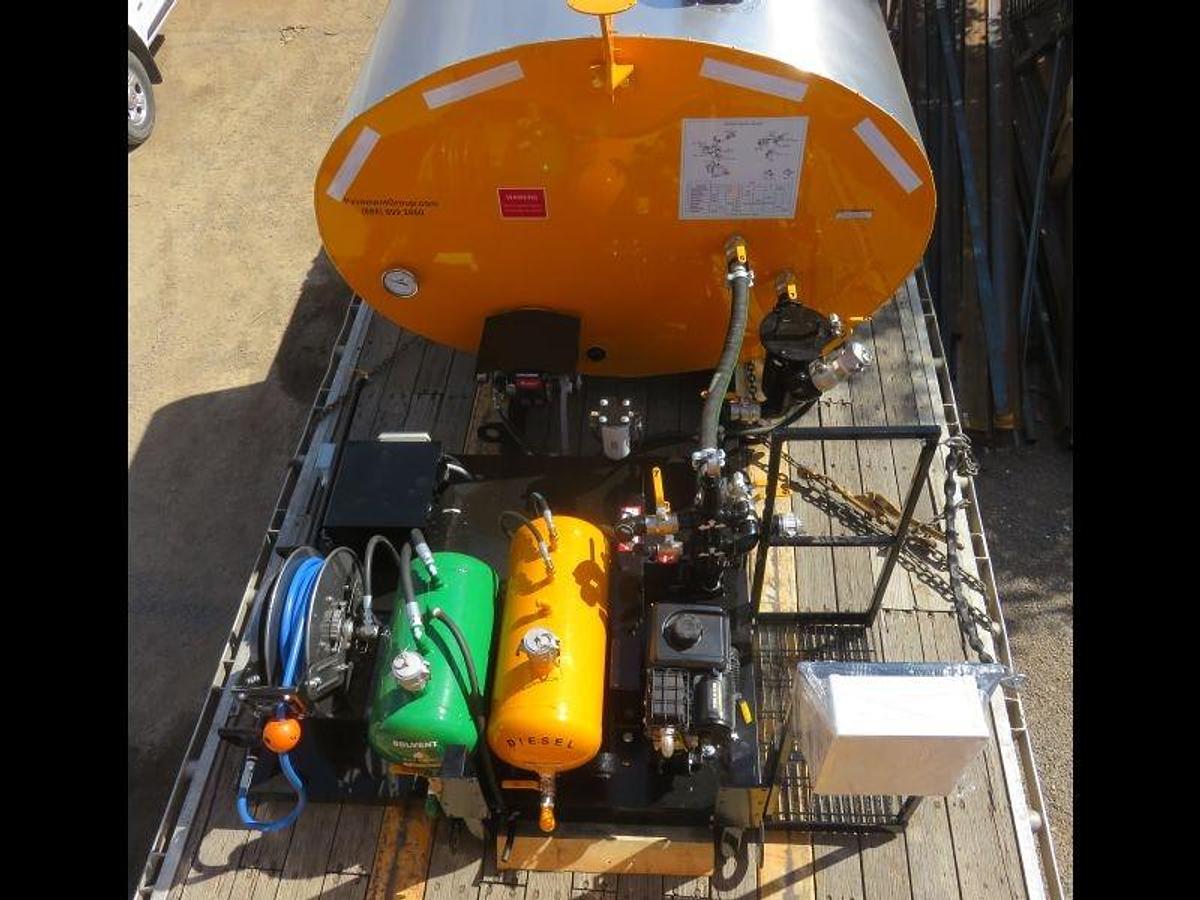

Deep-cell battery package, battery box, voltage meter
Viking 60GPM material pump
In-line strainer basket for easy cleanout

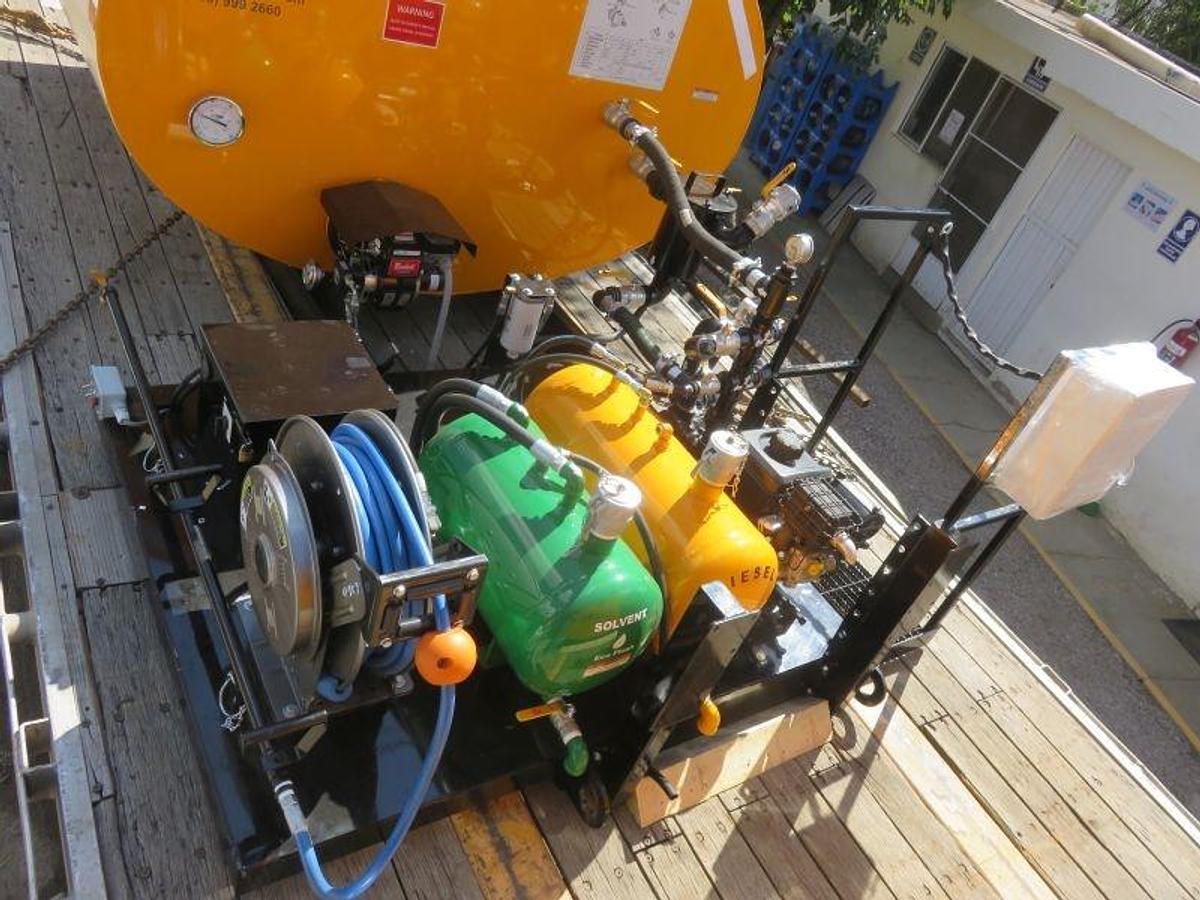

Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
Applicator hand wand, on/off valve and foot valve
Material level gauge indicator
Flush tank system, 10-gal tank
Paint yellow tank, black trailer

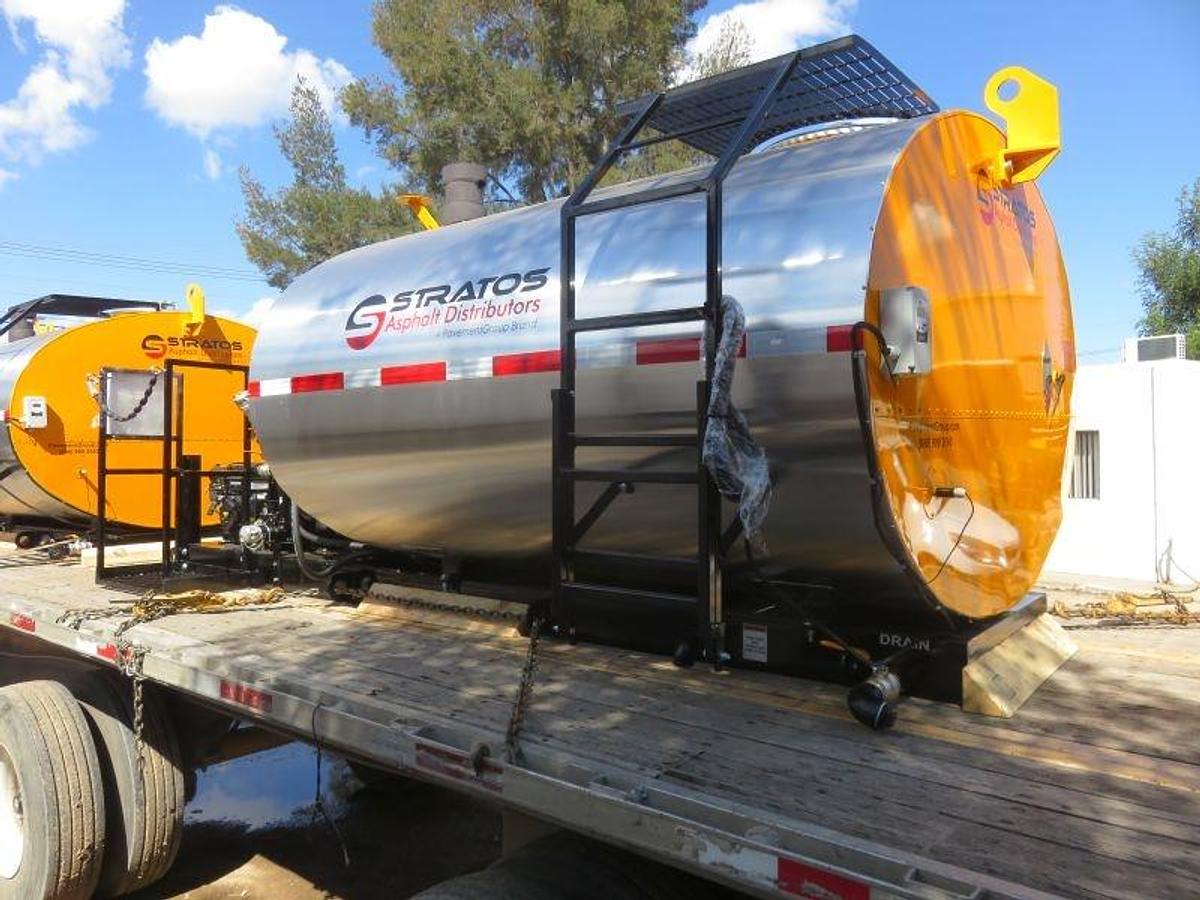

NEW: Side-mounted ladder for a tight fit to the cab
NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty
OPTIONS:
Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.
(downgrade) No insulation
8' Spray Bar, adjustable height, 12" cut-offs, (or 6" cutoffs requires 60gpm pump)
12' Spray Bar, adjustable height, 12" cut-offs (or 6" cutoffs, requires 60gpm pump)
14' Spray Bar, adjustable height, 6" cut-offs (requires 60gpm pump)
Remote spraybar on/off controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
Overnight heat maintainer (6kW, 220V, 1 phase), thermostat controls
Strobe light (LED, amber, mounted)
Custom color
DIMENSIONS WEIGHT: L 165" (165" with spraybar option) x W 85" x H 62"
DMS-2000- GVWR of 33,000lb
DMS-1500- GVWR of 26,500lb
DMS-1000- GVWR of 19,500lb -26,500lb
DMS-600- GVWR of 16,500lb
DMS-400- GVWR of 16,500lb
