STRATOS 600 Gallon tack sprayer, sprays over 35 different emulsions. Our new computer monitor optiongives you real-time feedback ofgallons per minute sprayed and ground speed, sothat you can spray just the right amount of tack coat emulsion on your municipal roadway projects. Withour computer monitor, you cancompete on projects where you'd typically needan expensive Rosco or Etnyre distributor trailer with computer controls. Stratos Our top qualityconstruction and OEM parts give youreliability day after day, backed with ourindustry leading 18-month warranty. Call us today 518-218-7676

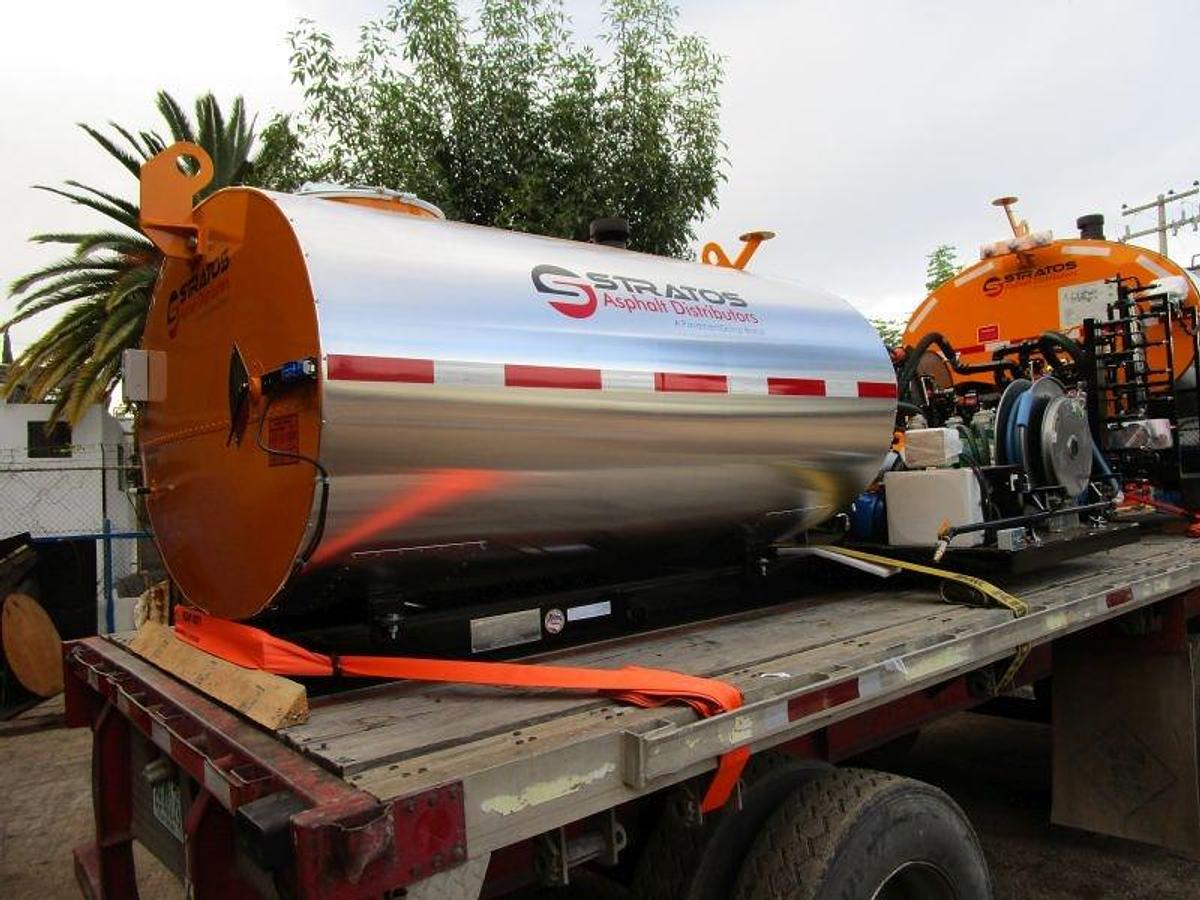

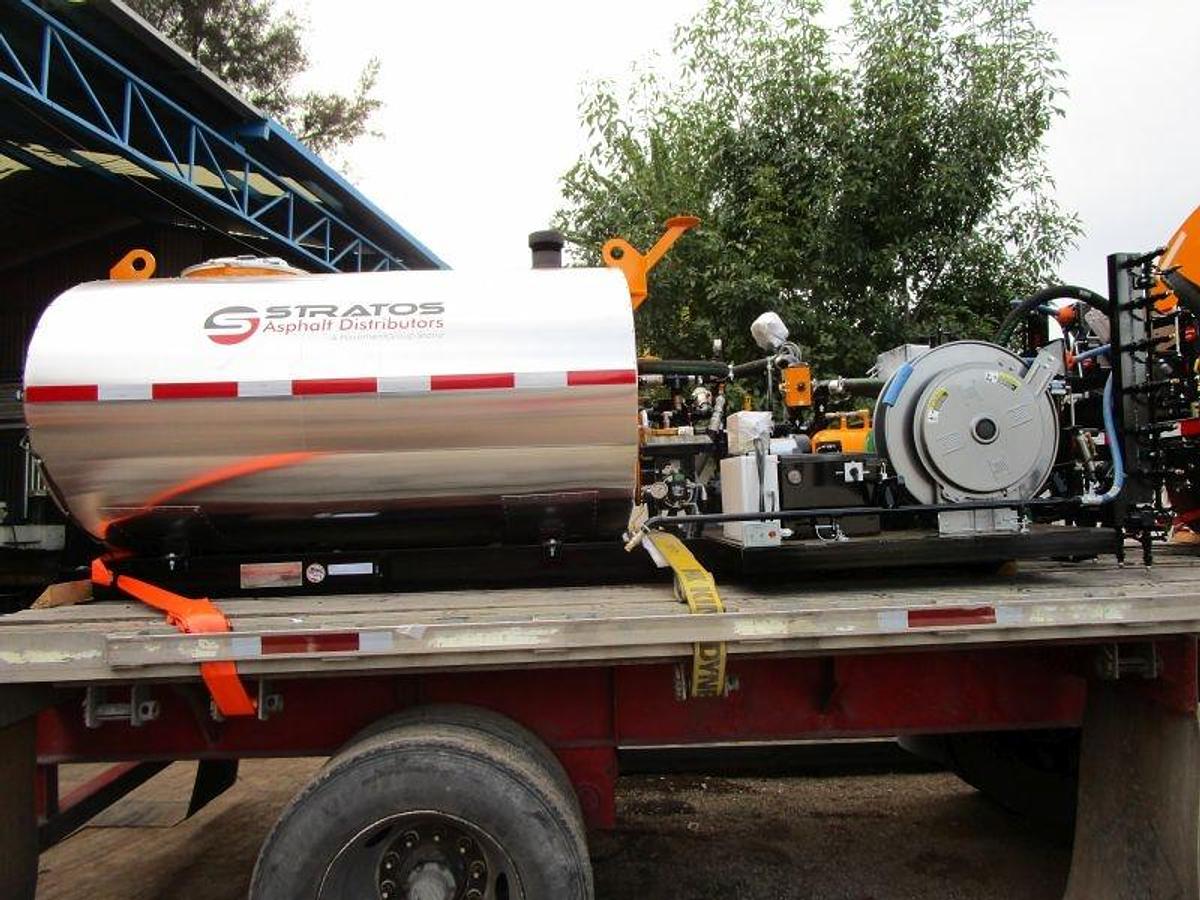

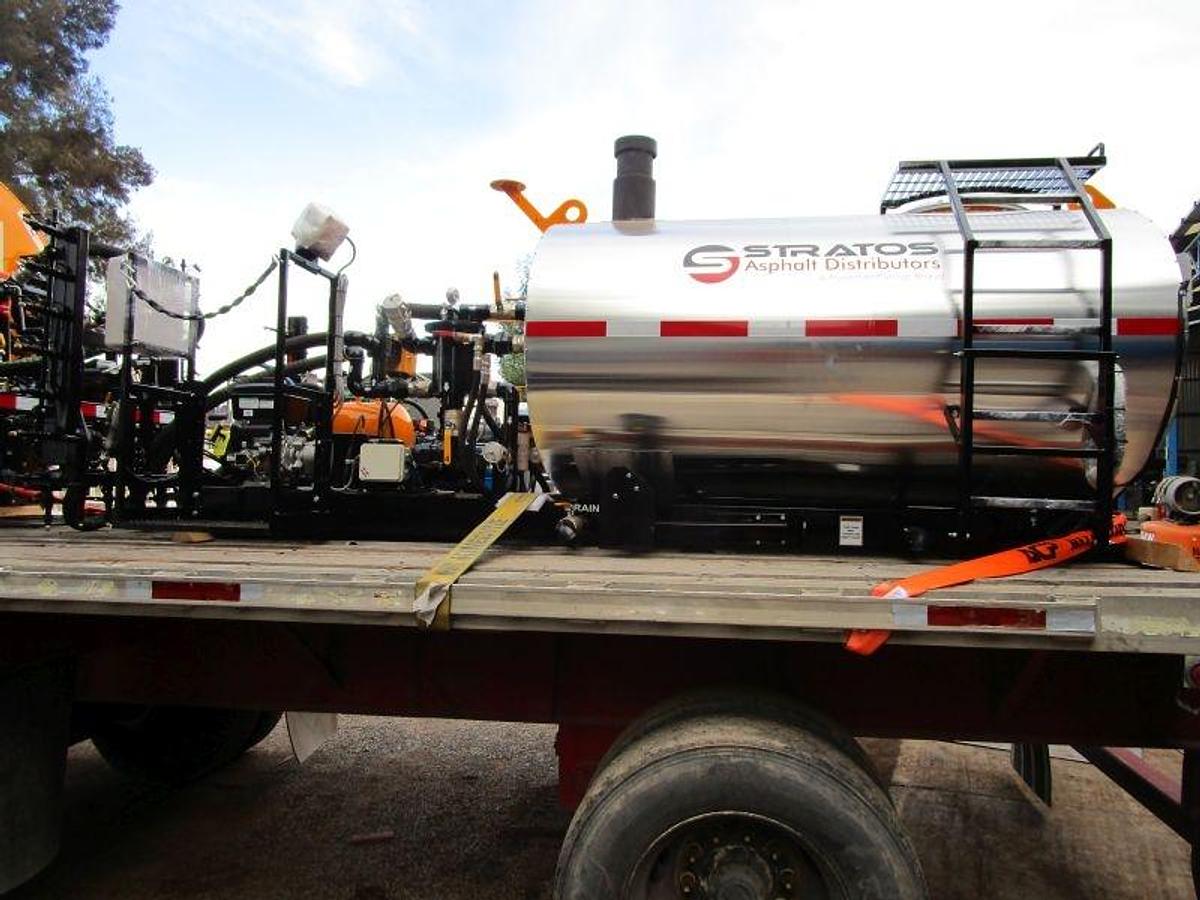

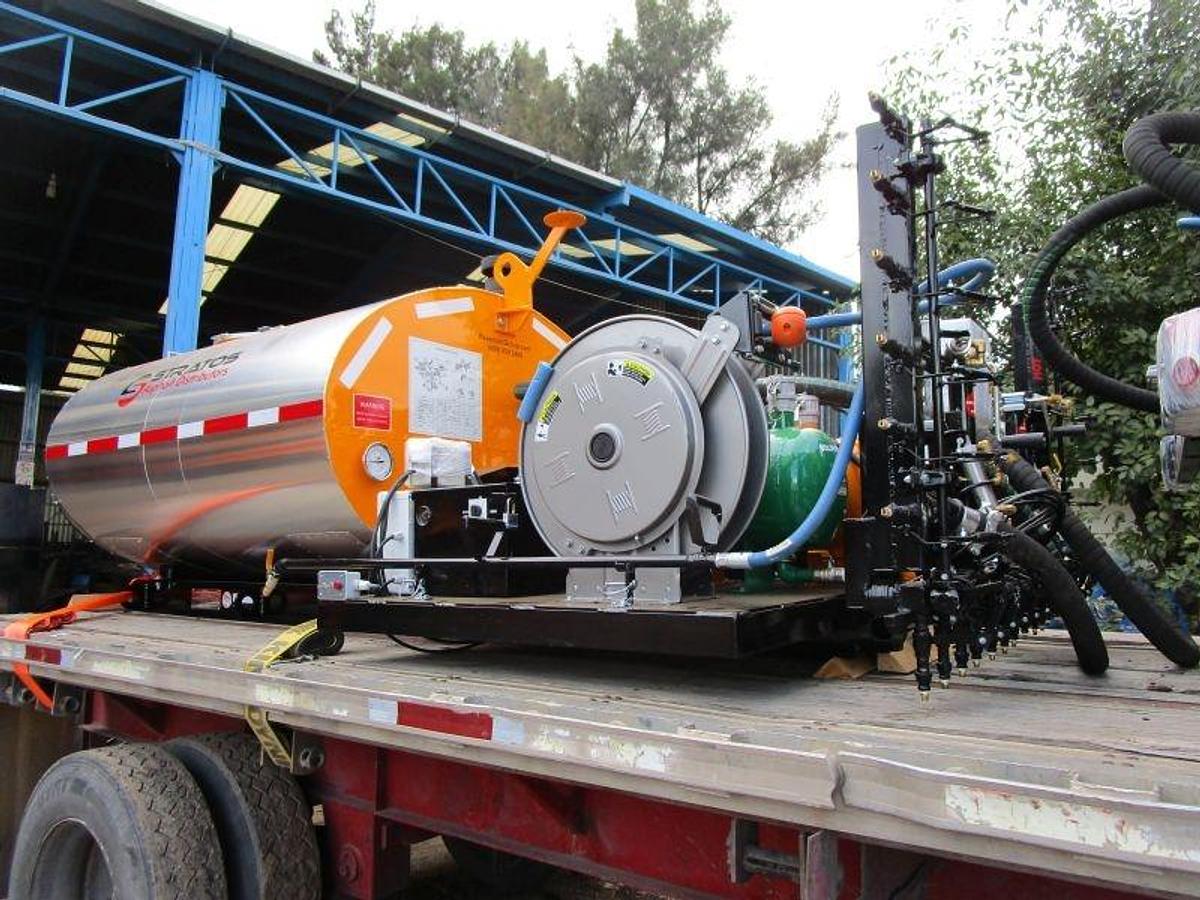

PavementGroup STRATOS DMS-600 Asphalt Distributor, Skid Mounted
Standard Features Include:
600 gallon capacity

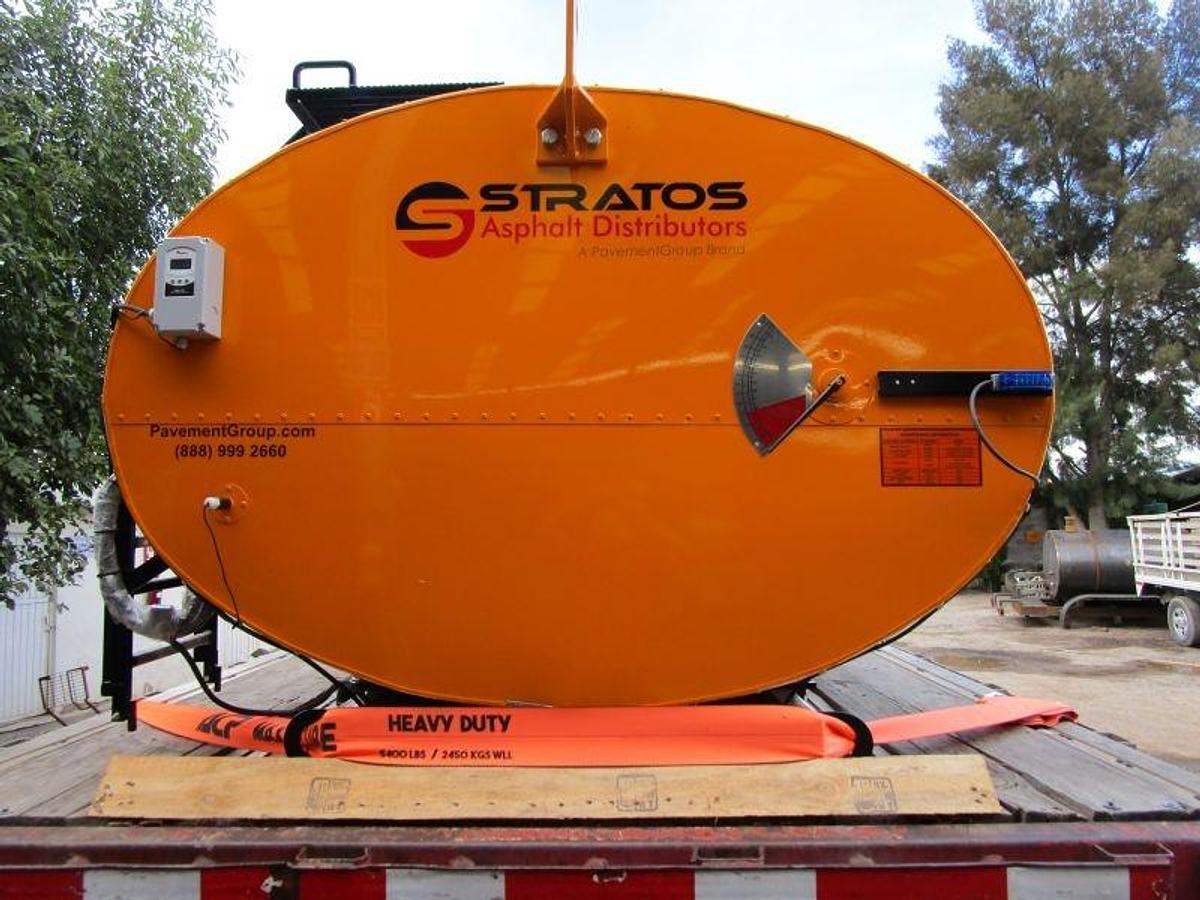

Elliptical tank, baffled, low center of gravity
Skid frame for quick mounting to flatbed or your truck chassis' frame-rails
Insulated tank, 2" ceramic wool, aluminum wrapped

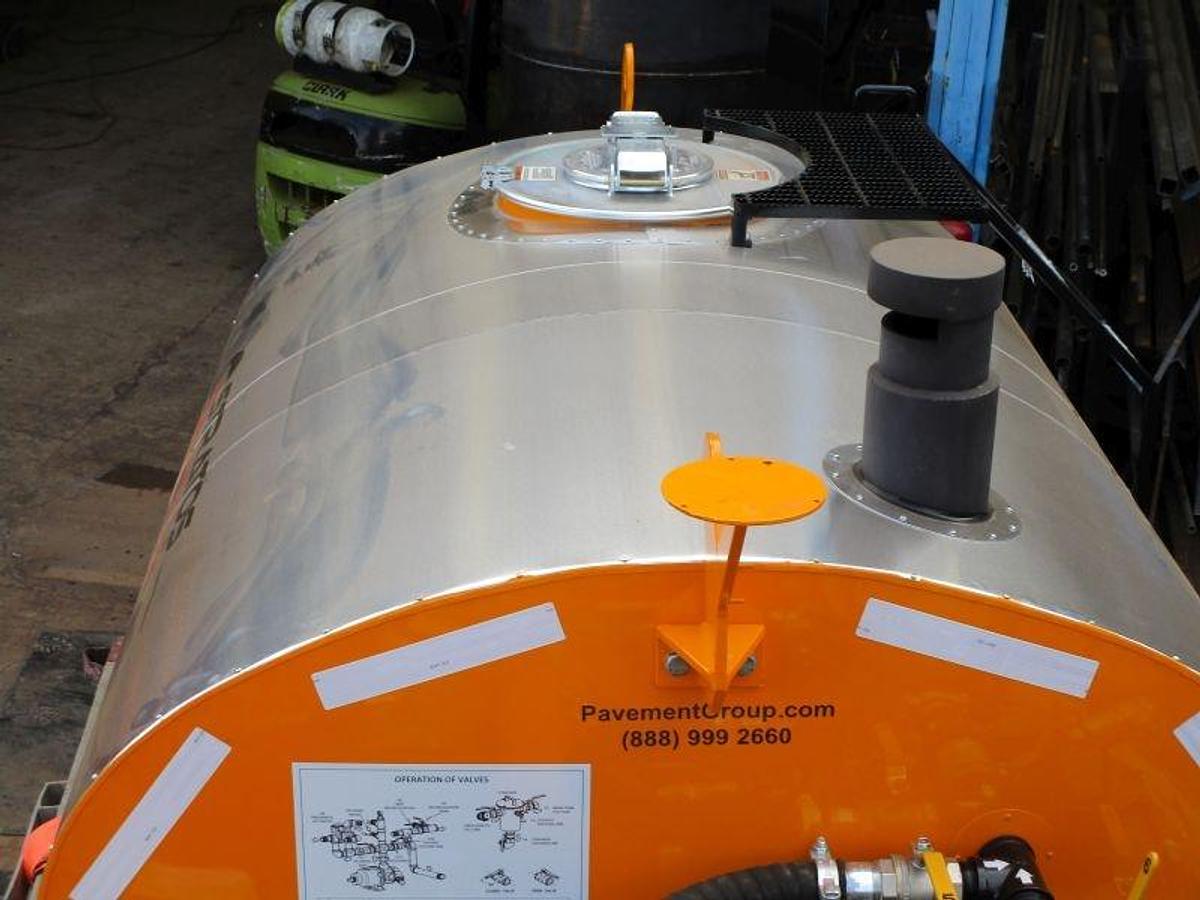

Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
Diesel fired Beckett burner system, 350,000 BTU
Thermostatic material controls, digital, set high-low, view current temp
Temperature gauge, analog
Briggs Vanguard 14hp gas engine, 20amp charging circuit, electric start +pull start
Deep-cell battery package, battery box, voltage meter

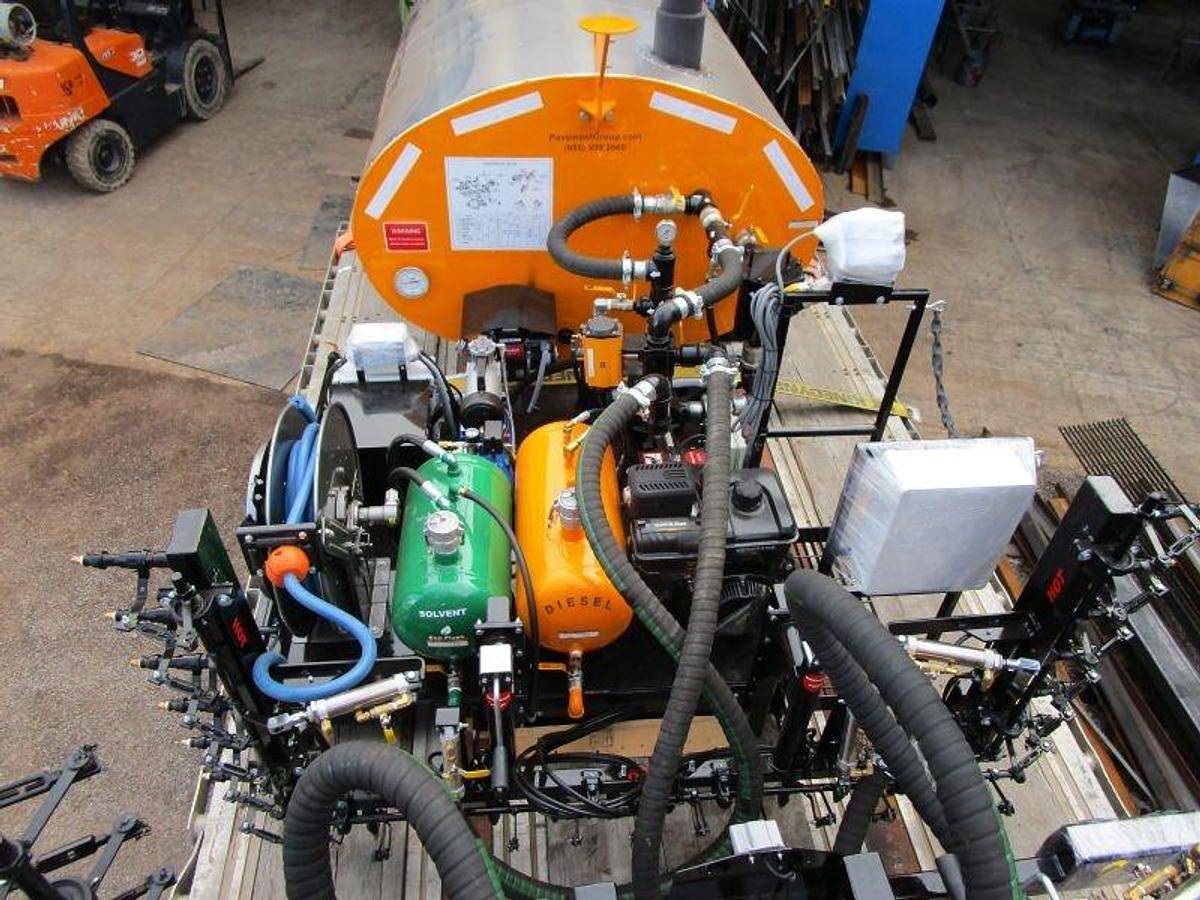

Viking 60GPM material pump
In-line strainer basket for easy cleanout
Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
Applicator hand wand, on/off valve and foot valve
Material level gauge indicator
Flush tank system, 10-gal tank
Paint yellow tank, black trailer

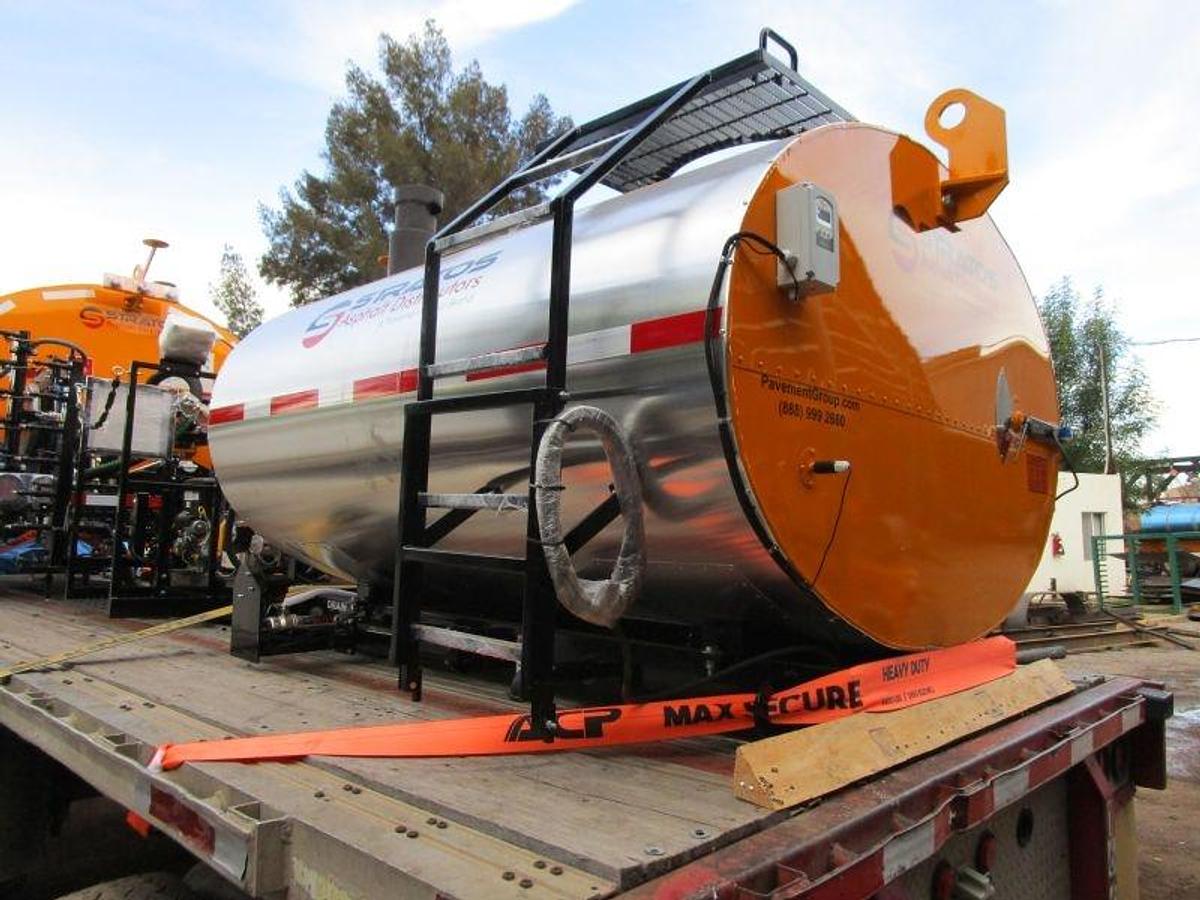

NEW: Side-mounted ladder for a tight fit to the cab
NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty
OPTIONS:
Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.
(downgrade) No insulation

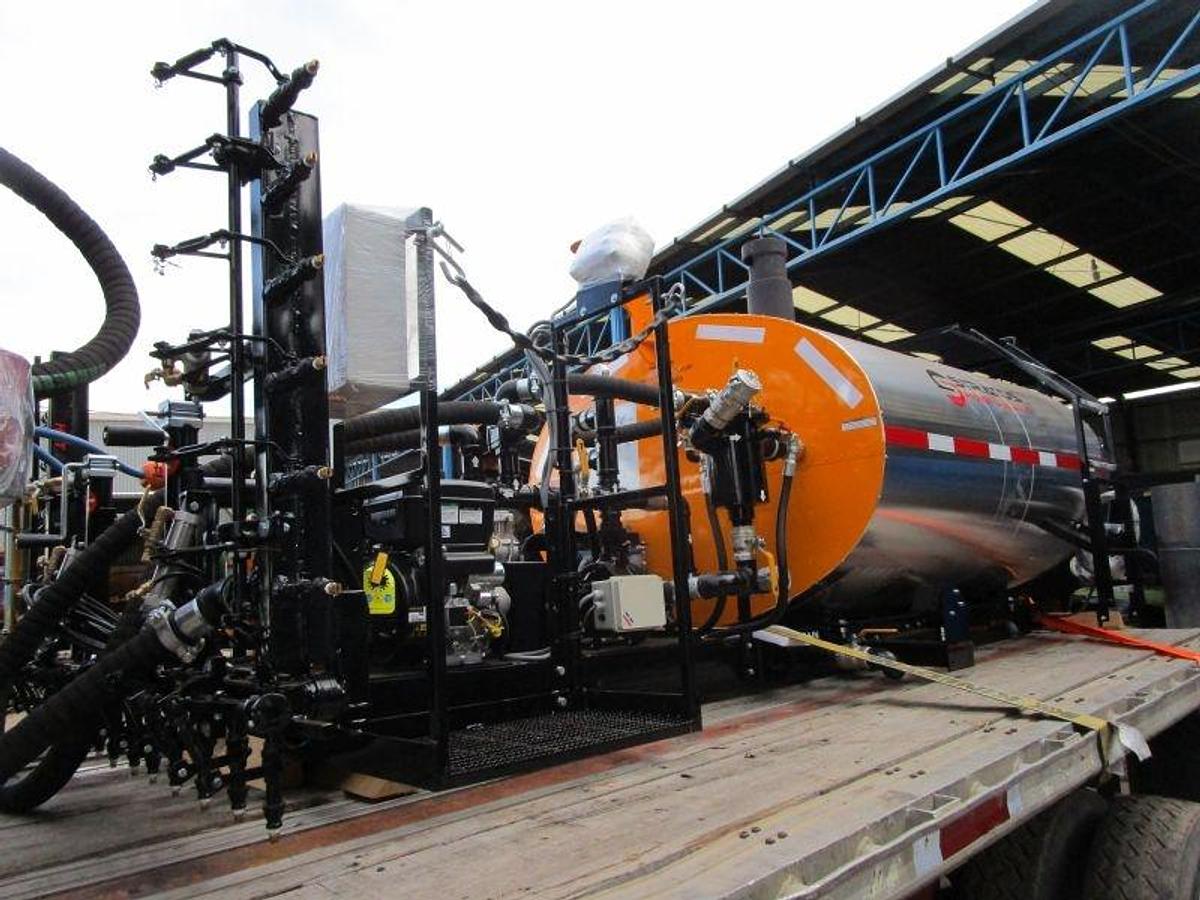

8' Spray Bar, adjustable height, 12" cut-offs, operator platform, railing and safety chain
12' Spray Bar, adjustable height, 12" cut-offs (6" cutoffs when using 60gpm pump) operator platform, railing and safety chain
14' Spray Bar, adjustable height, 6" cut-offs, operator platform, railing and safety chain
Remote spraybar controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
Overnight heat maintainer (6kW, 220V, 1 phase) thermostatic control
Strobe light (LED, amber, mounted)
Custom color
DIMENSIONS WEIGHT: L 144" (154" with spraybar option) x W 64" x H 59"
DMS-2000- GVWR of 33,000lb
DMS-1500- GVWR of 26,500lb
DMS-1000- GVWR of 19,500lb -26,500lb
DMS-600- GVWR of 16,500lb
DMS-400- GVWR of 16,500lb
