PavementGroup's STRATOS DMS-400 gives you 400 gallon capacity, on a skid-mounted base for easy mountingto your flat-bed. AtPavementGroup, we designed STRATOS for hard-core, day-after-day, commercial use. That's why you'll only find high-quality OEM components such as Honda, Viking,Hannay reels and Sauer Danfosscontrols. We give you the industry's only 18-Month Warranty and quick turn-around time. STRATOS is built to spray over 35 different emulsion productssuch as CSS-1h, CRS-2, HFRS-2and others. Don't aim for second best when youcan have the best for less. Call PavementGroup today! 518-218-7676

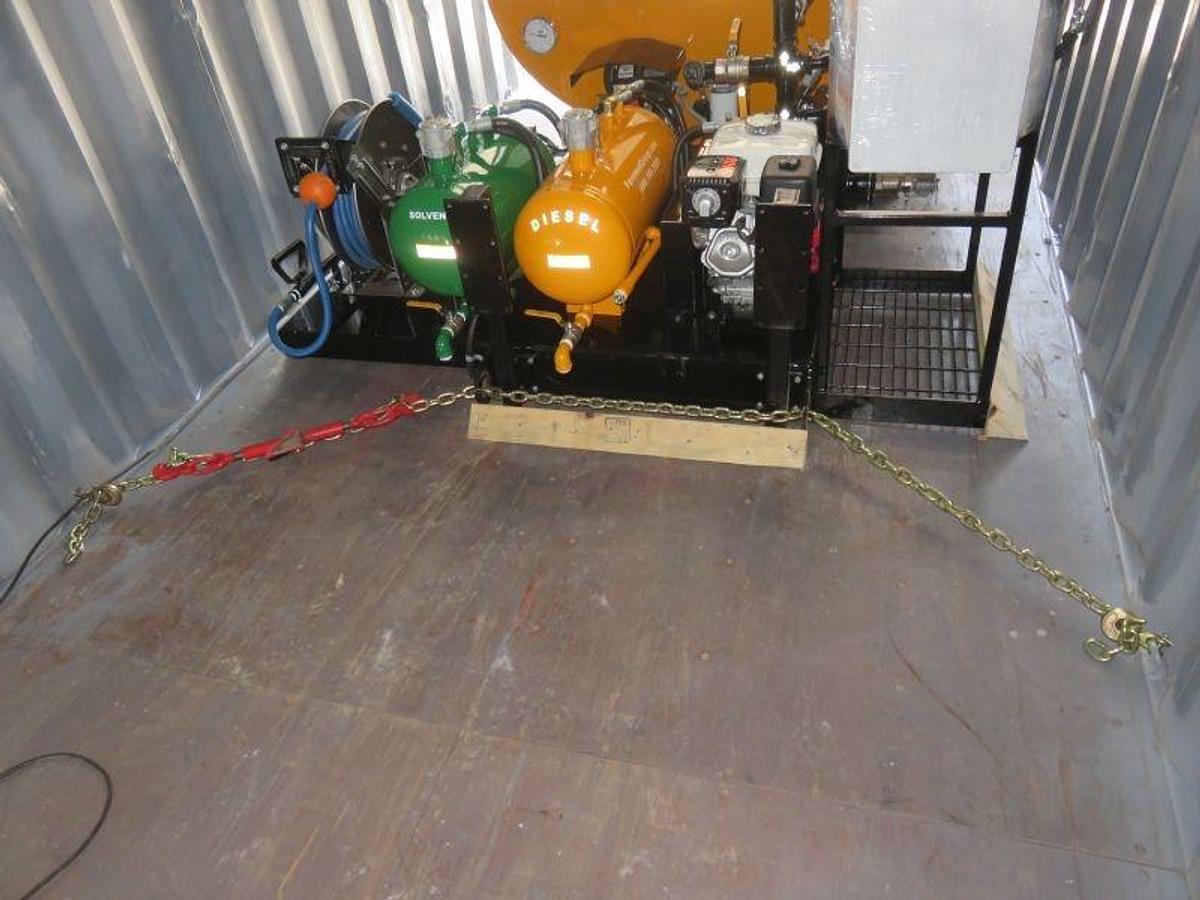

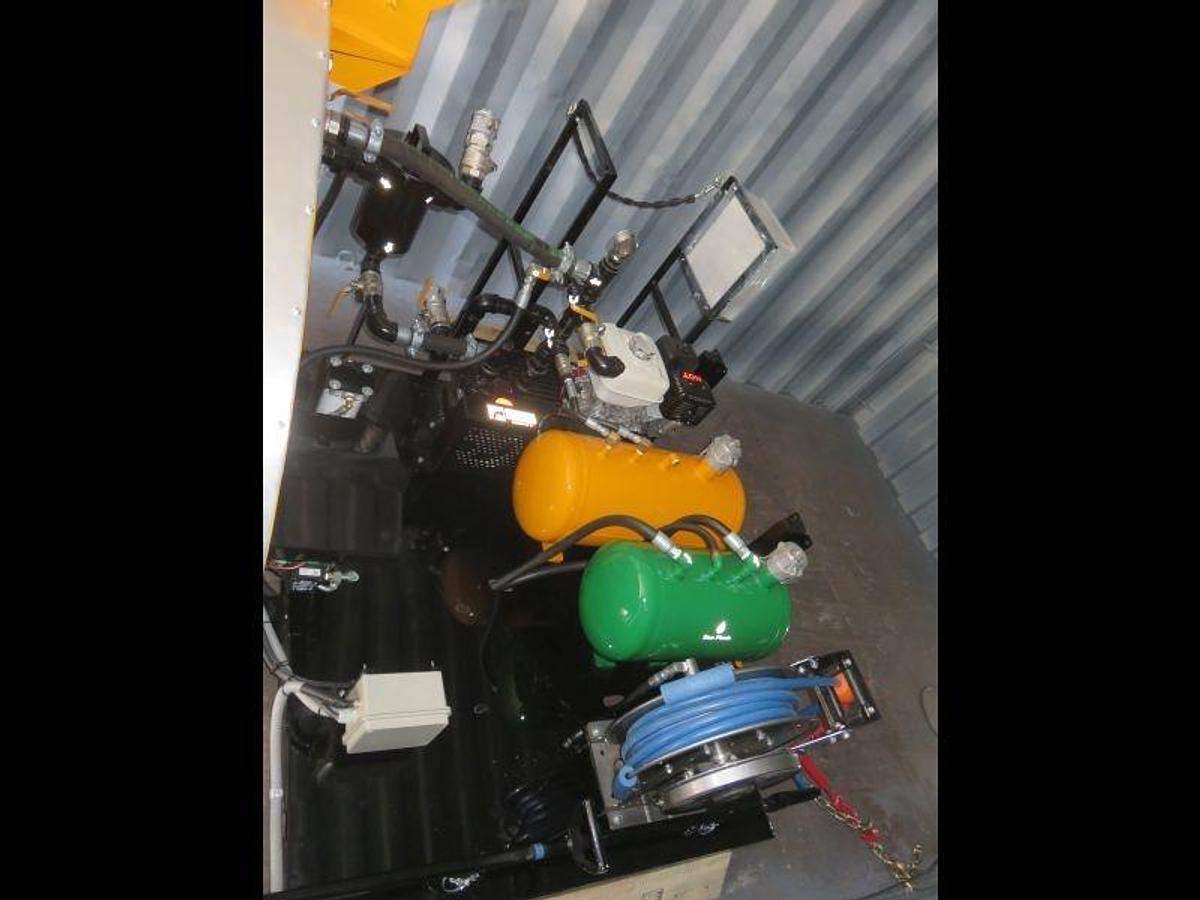

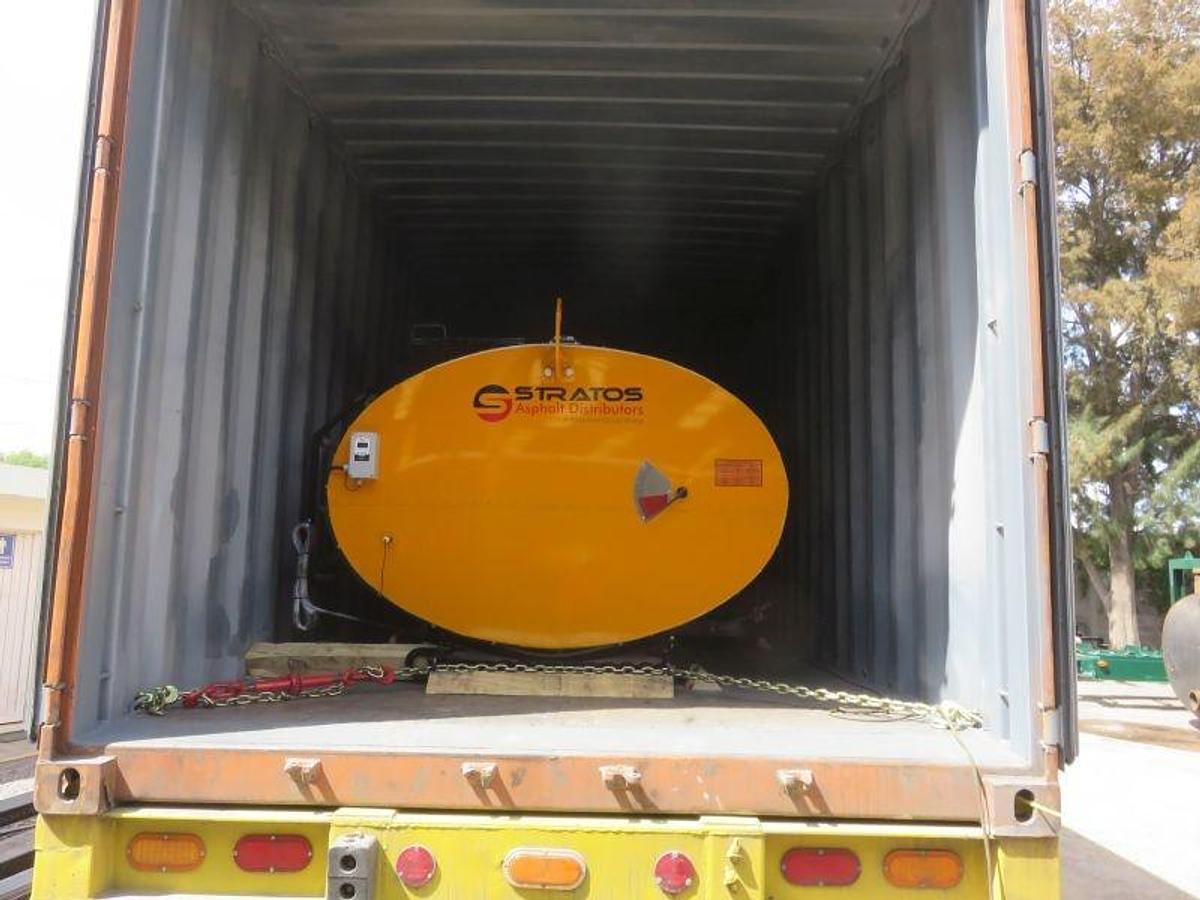

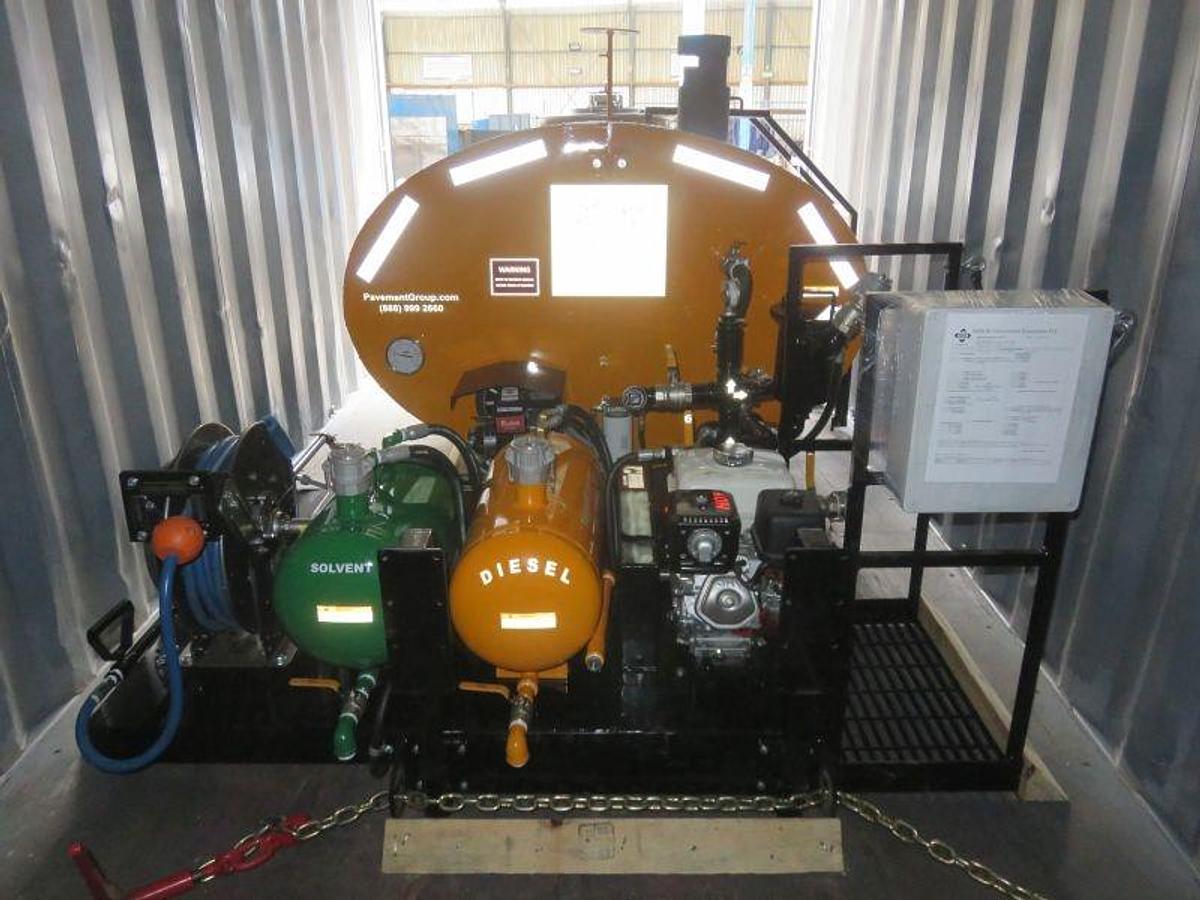

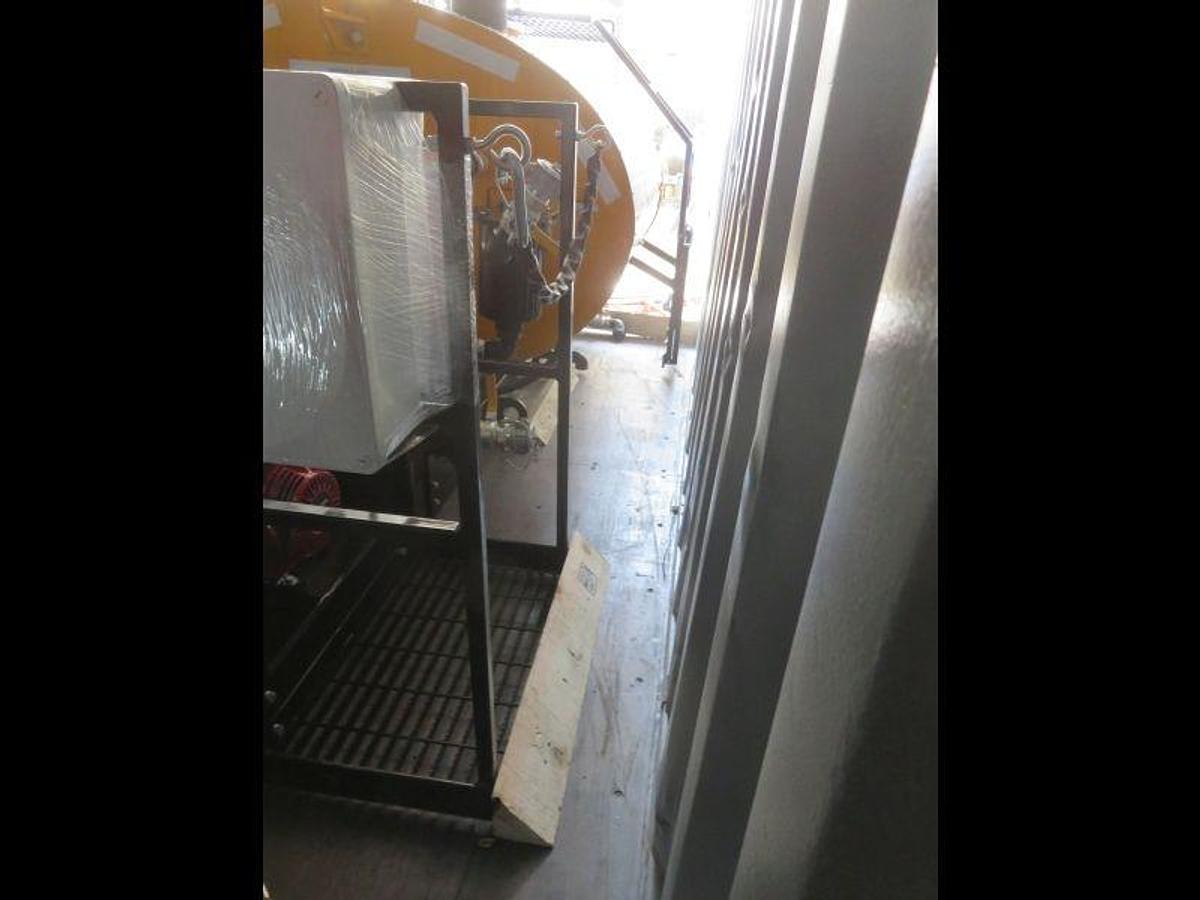

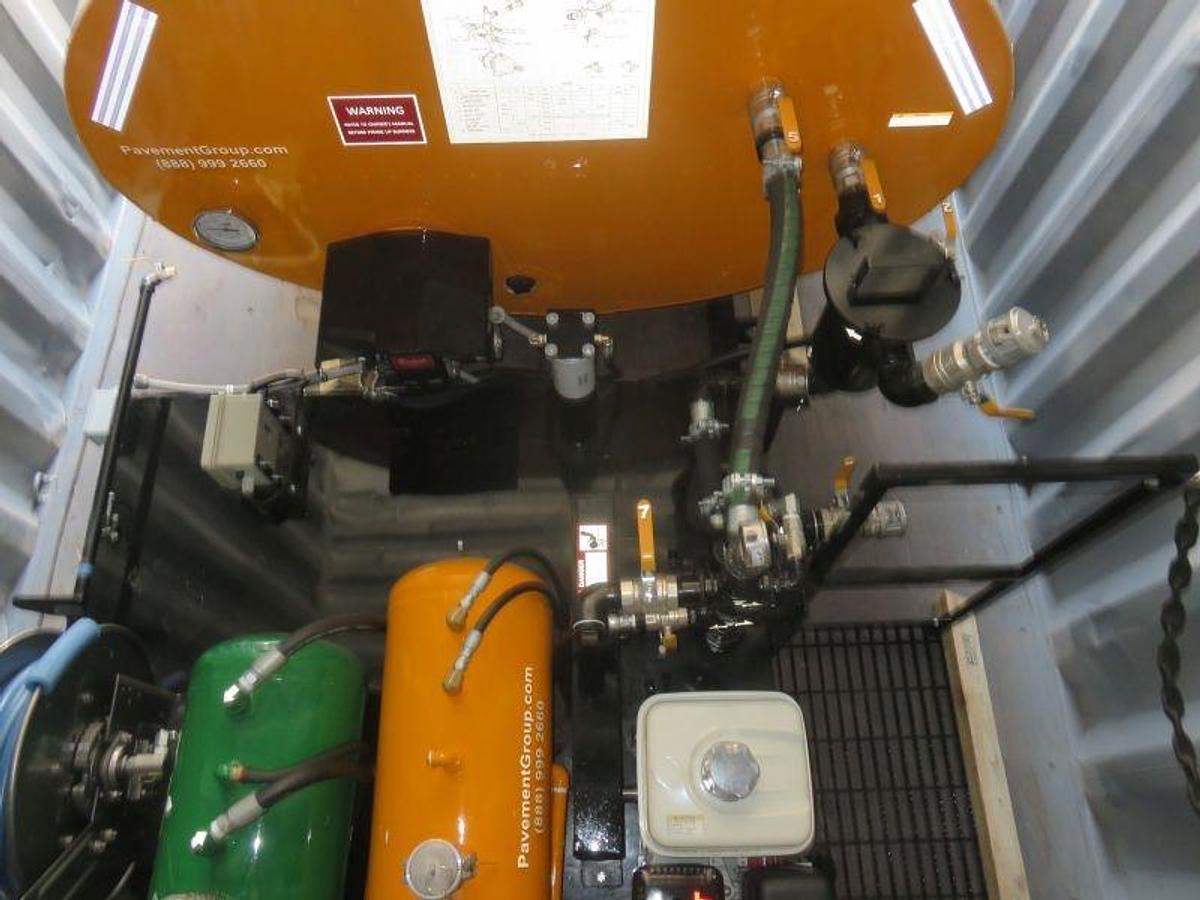

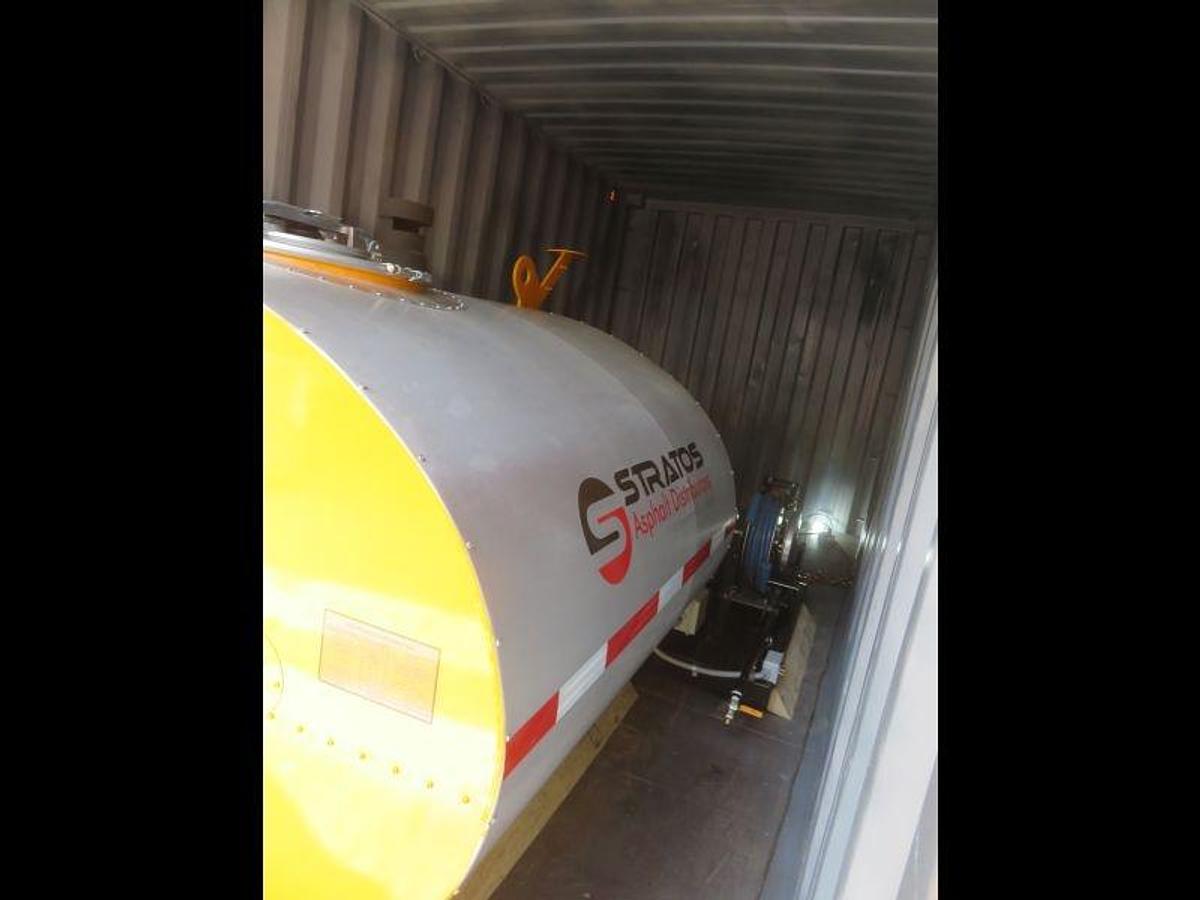

PavementGroup STRATOS DMS-400 Asphalt Distributor, Skid Mounted
Standard Features Include:
400 gallon capacity
Elliptical tank, baffled, low center of gravity
Skid frame for quick mounting to flatbed or your truck chassis' frame-rails

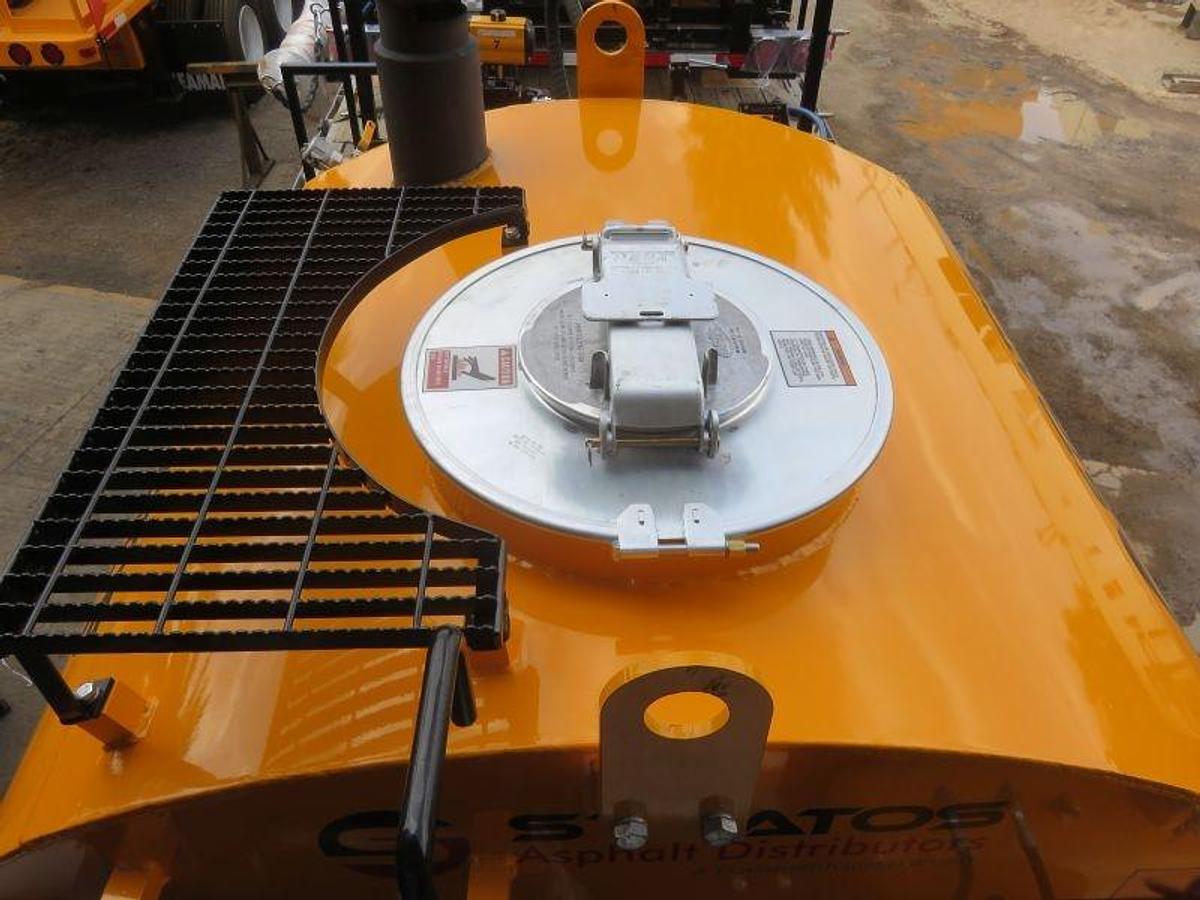

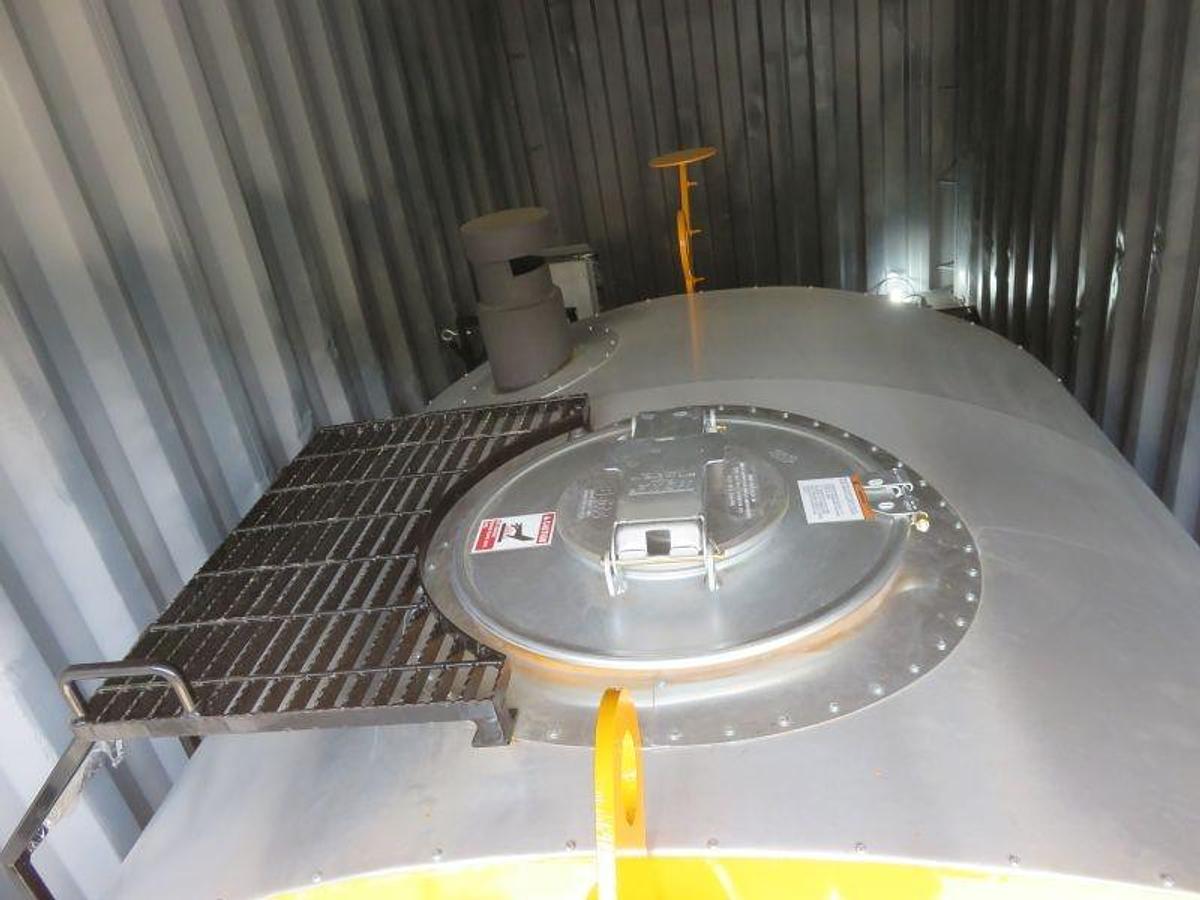

Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
Diesel fired Beckett burner system, 350,000 BTU
Thermostatic material controls, digital, set high-low, view current temp
Temperature sensor gauge, analog
60 GPM Viking pump, 14 hp Briggs Vanguard gas engine, electric start +pull start, 20 amp charging circuit
Deep-cell battery package, battery box, voltage meter
In-line strainer basket for easy cleanout
Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
Applicator hand wand, on/off valve and foot valve
Material level gauge indicator
Flush tank system, 10-gal tank
Paint yellow tank, black trailer

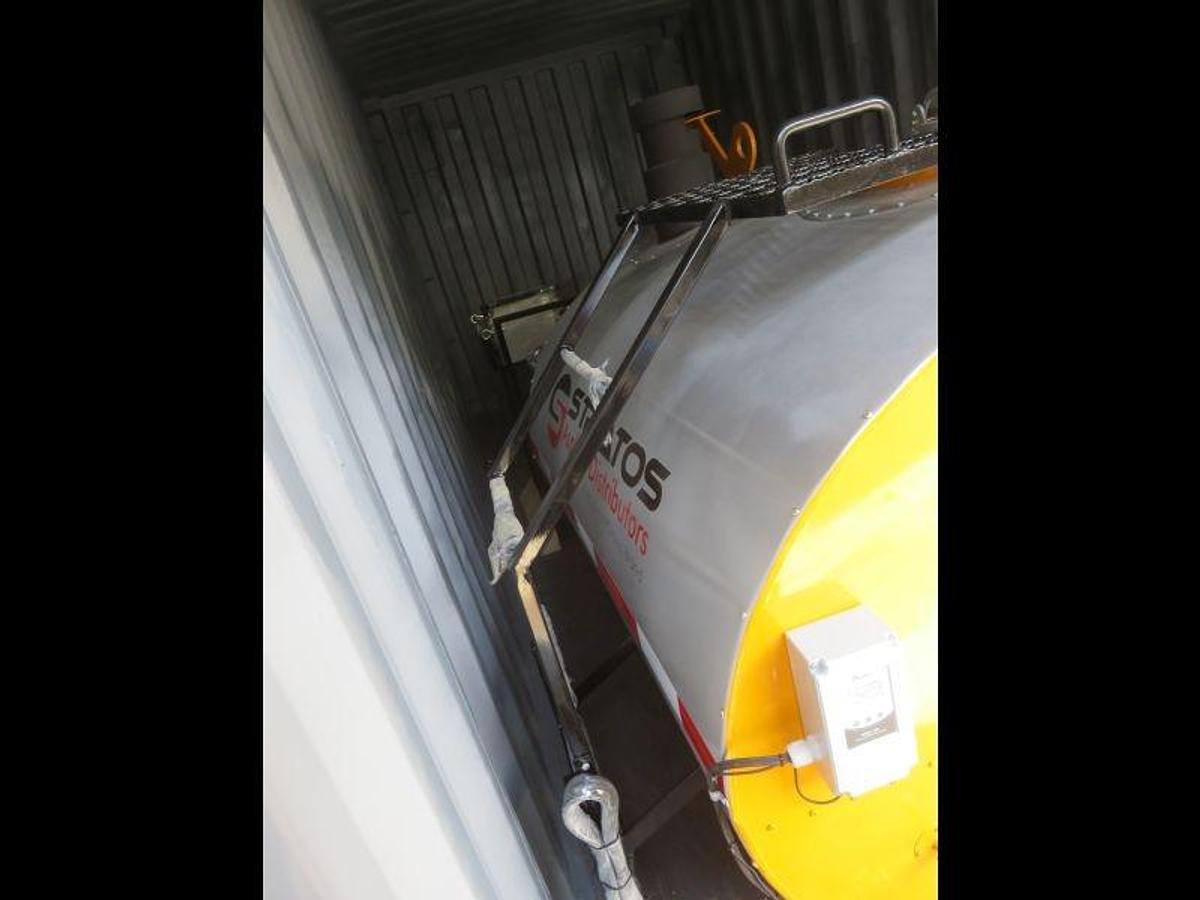

NEW: Side-mounted ladder for a tight fit to the cab
NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty
OPTIONS:
Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.

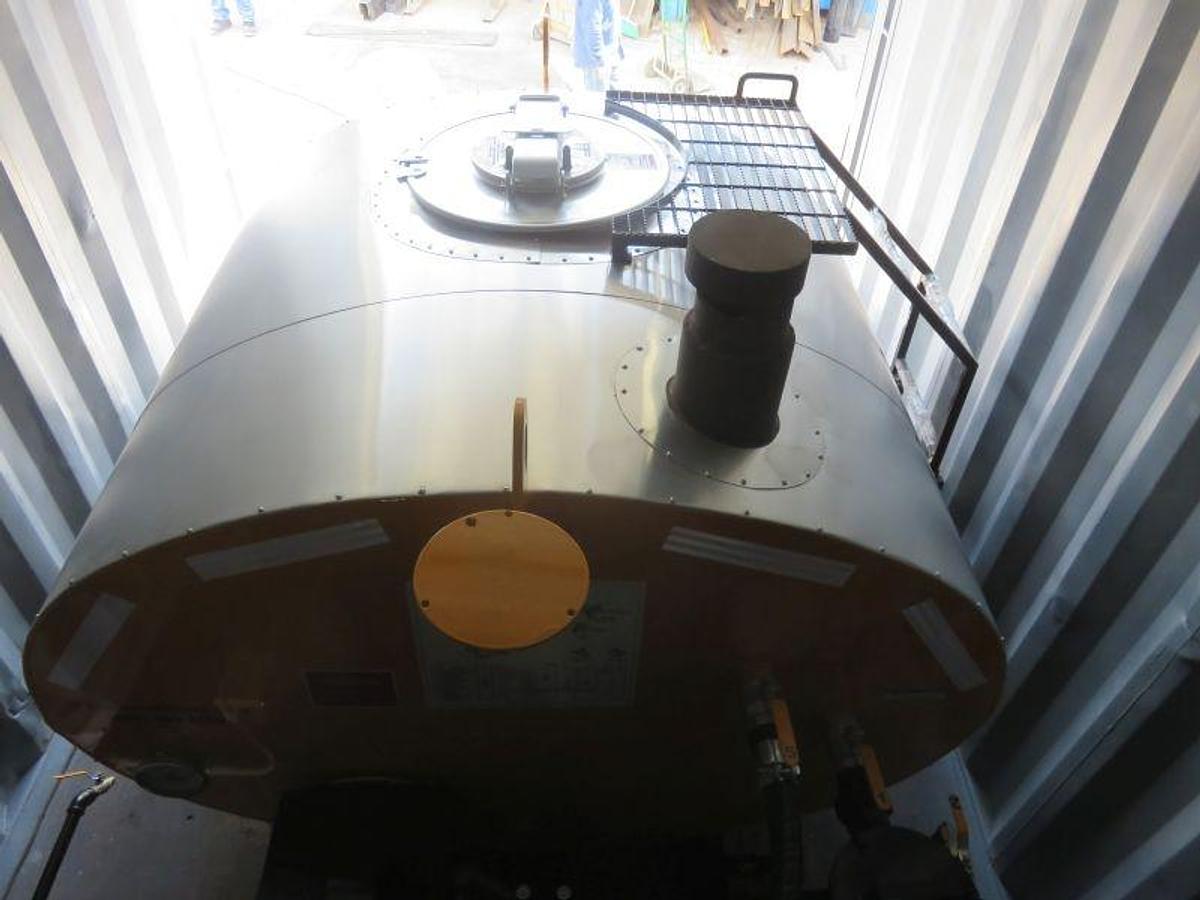

(upgrade) Insulated tank, 2" ceramic wool, aluminum wrapped.
(downgrade) 32 GPM Viking pump, 6.5 hp Briggs Vanguard gas engine, electric start +pull start, 20 amp charging circuit, 2" plumbing
(downgrade) 1/2" hose, 50', with 1/2" hand wand and valve
8' Spray Bar, adjustable height, 12" cut-offs, (or 6" cutoffs requires 60gpm pump)
12' Spray Bar, adjustable height, 12" cut-offs (or 6" cutoffs, requires 60gpm pump)
14' Spray Bar, adjustable height, 6" cut-offs (requires 60gpm pump)
Remote spraybar on/off controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
Overnight heat maintainer (6kW, 220V, 2 phase), thermostat controls
Strobe light (LED, amber, mounted)
Custom color
DIMENSIONS WEIGHT: L 119" (129" with spraybar option) x W 63" x H 59"
DMS-2000- GVWR of 33,000lb
DMS-1500- GVWR of 26,500lb
DMS-1000- GVWR of 19,500lb -26,500lb
DMS-600- GVWR of 16,500lb
DMS-400- GVWR of 16,500lb
