Our STRATOS DMT-400 is a trailer mounted tack sprayer specifically designed to spray over 35 different tack coat emulsion products. Some customers call us a tack wagon or a tarbuggy. Others call us a tar sprayer or a tack sprayer. We call ourselves STRATOS! Your distributor trailer comes standard with a 50'hose and applicator wand, electric start Honda, diesel Beckett burner, automatic material temperature controls. Options include a spraybar 8', 12' or 14', insulation, remote operator controls, a computer monitoring for preciseapplication rates and more. With STRATOS you get a high-quality build at an affordable price. It almost makes chip sealing fun! Join our400+ customers who appreciate the simplicity. Call today 518-218-7676

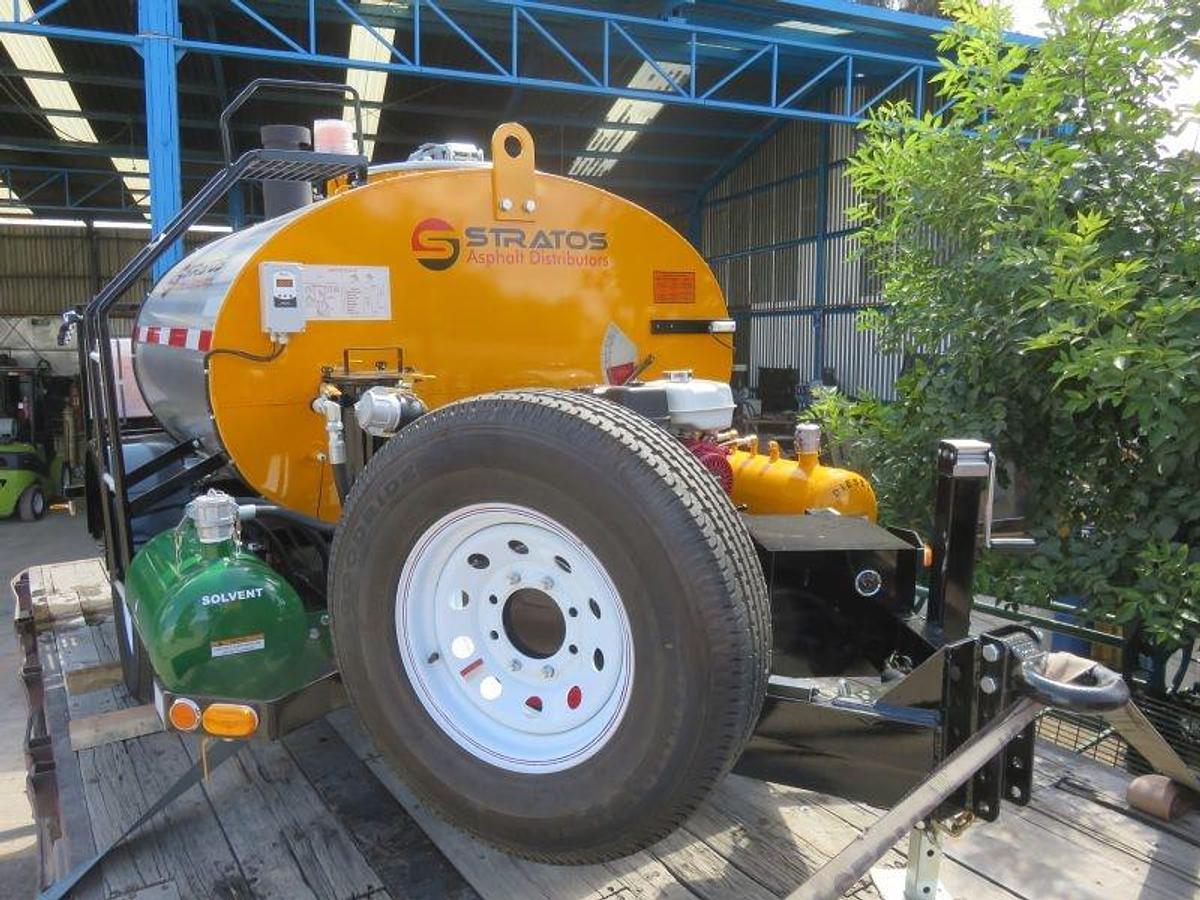

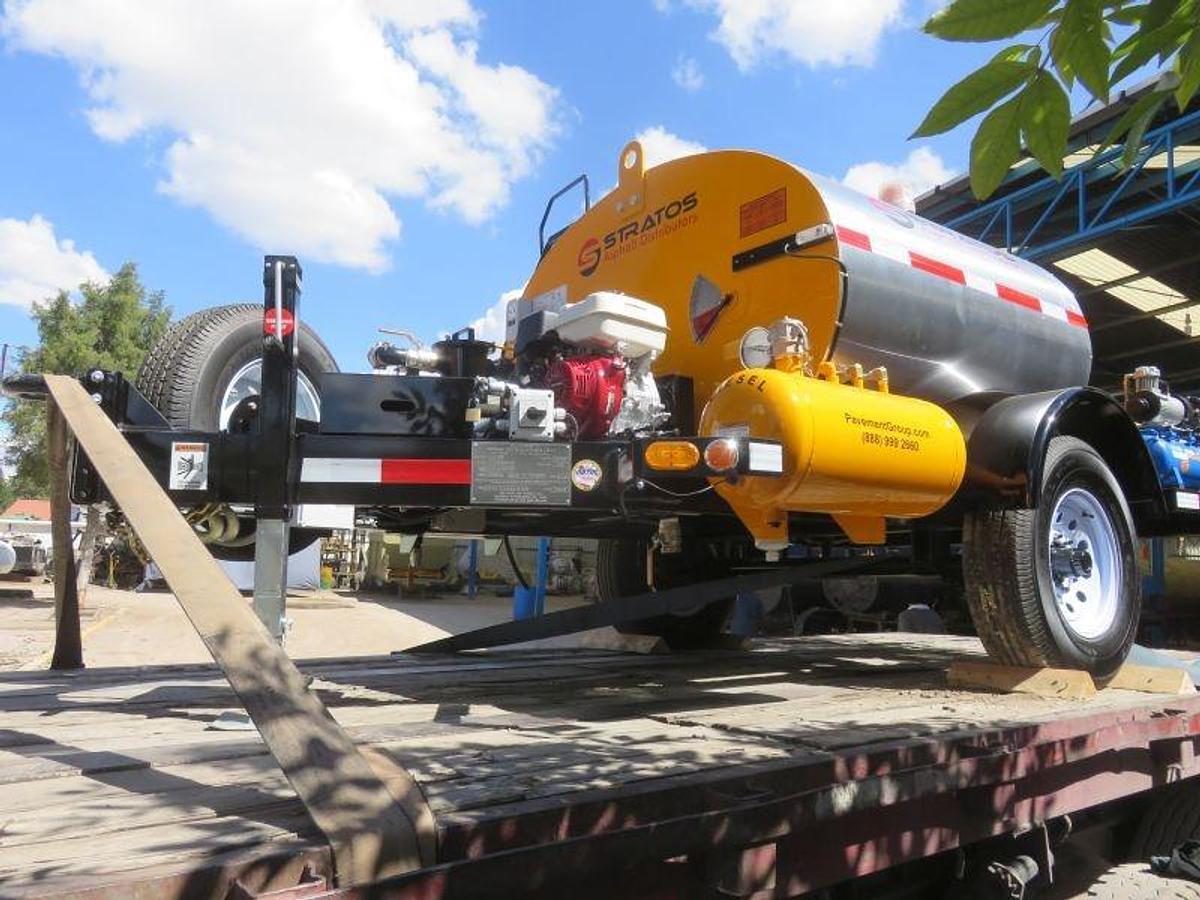

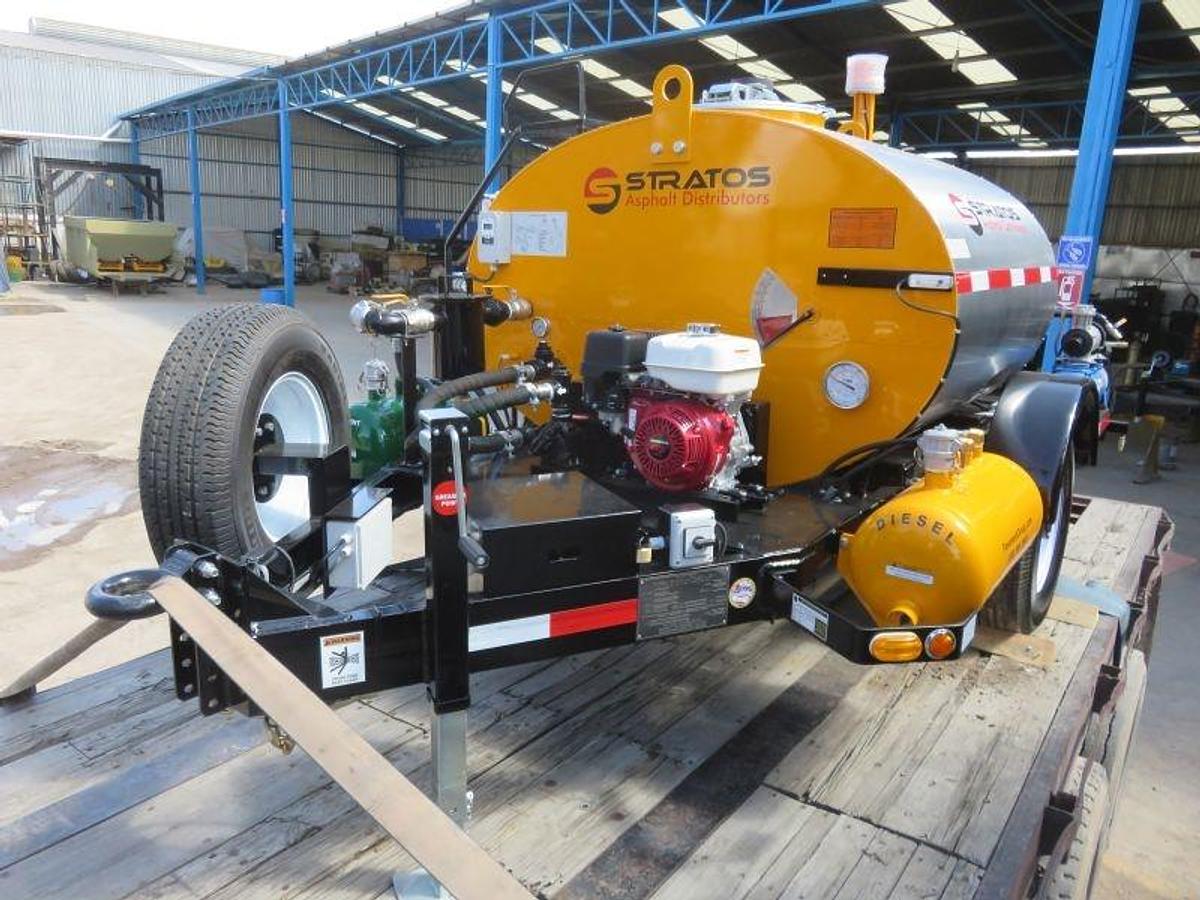

PavementGroup STRATOS DMT-400 gallon Asphalt Distributor Trailer
Standard Features Include:
400 gallon capacity
Elliptical tank, baffled, low center of gravity

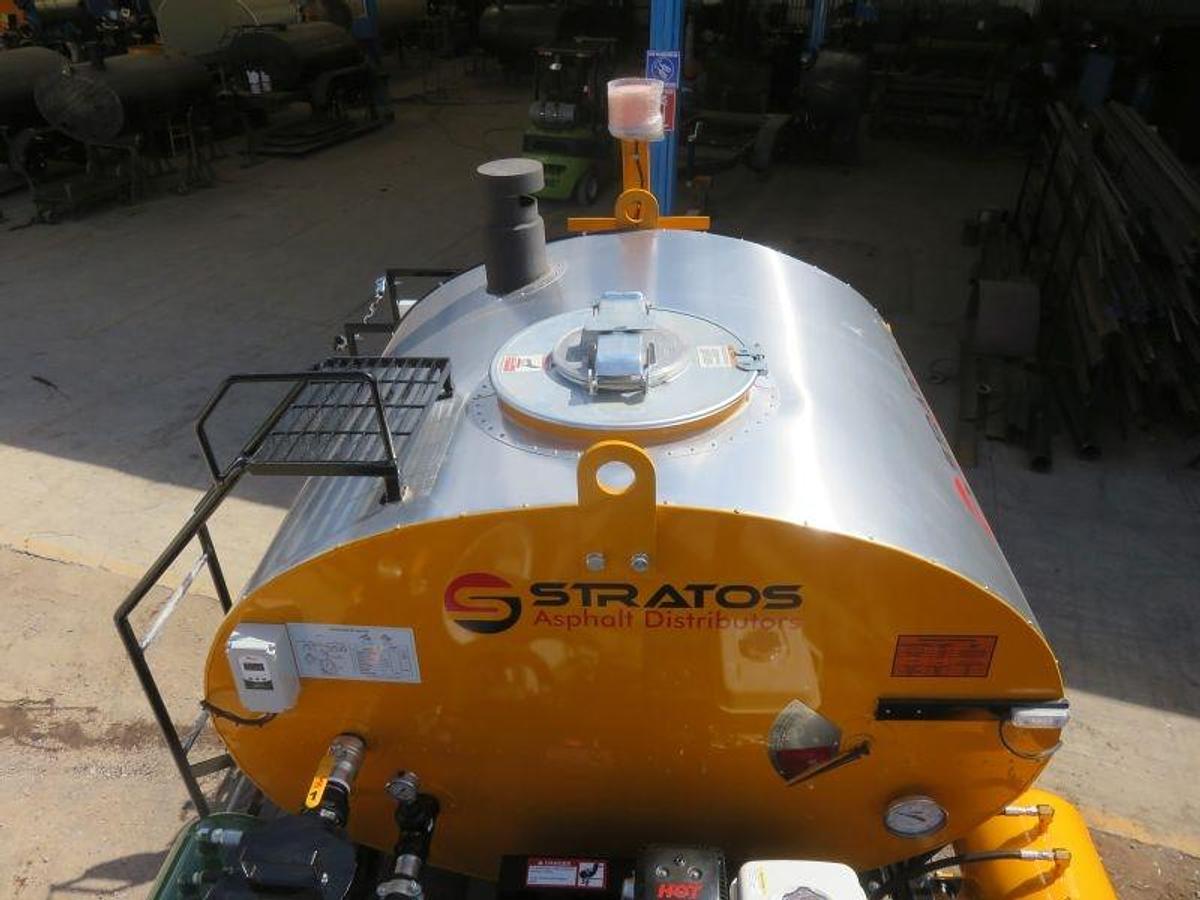

Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow

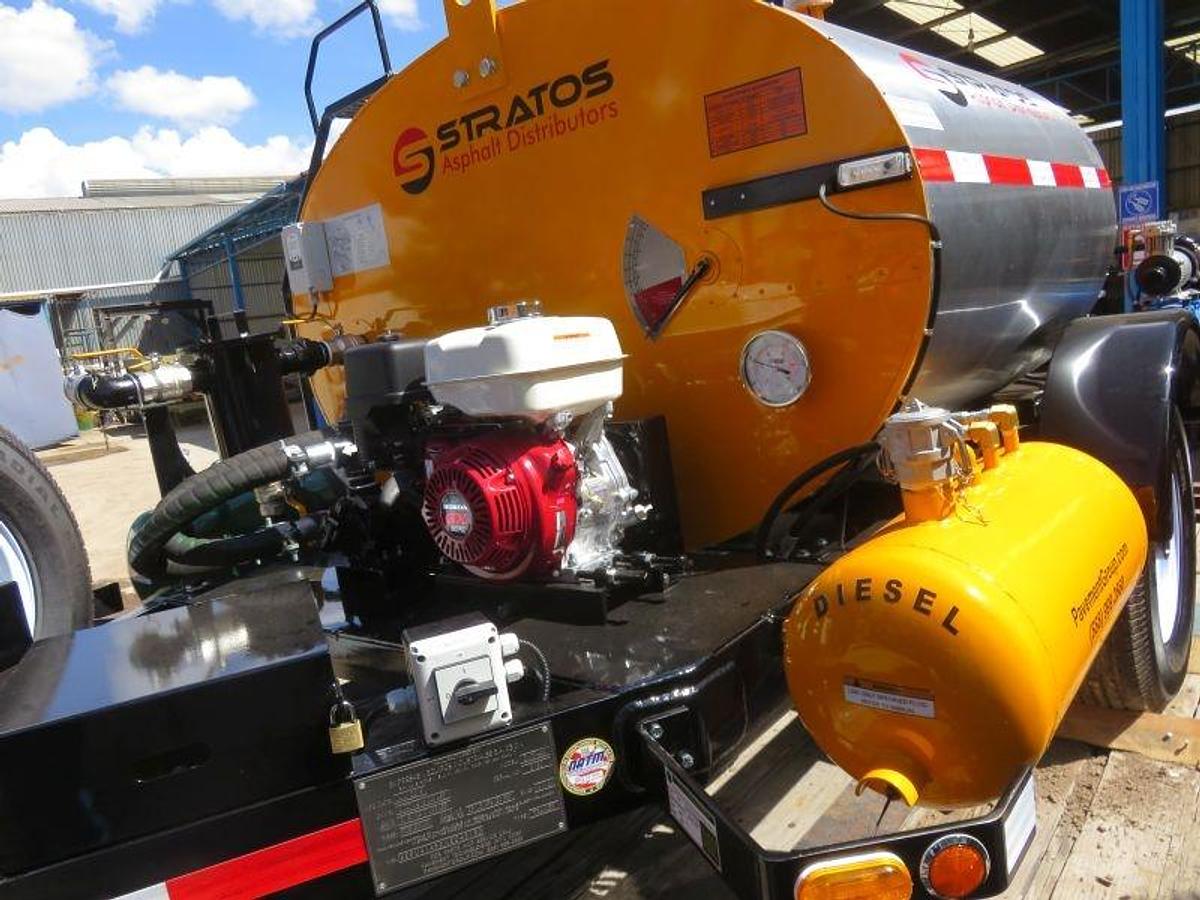

Diesel fired burner, Beckett burner heating system (350,000 BTU burner)

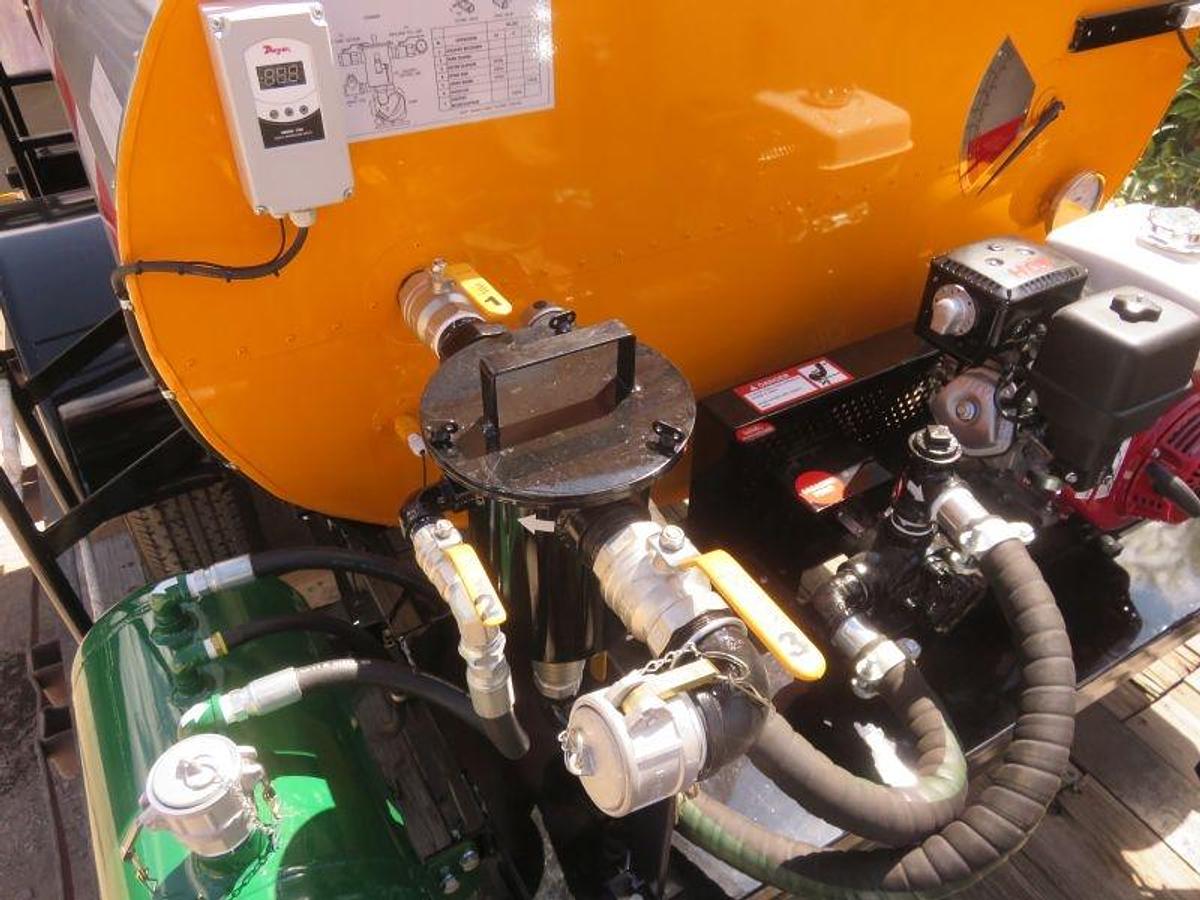

Thermostatic material controls, digital, set high-low, view current temp
Temperature sensor gauge, analog

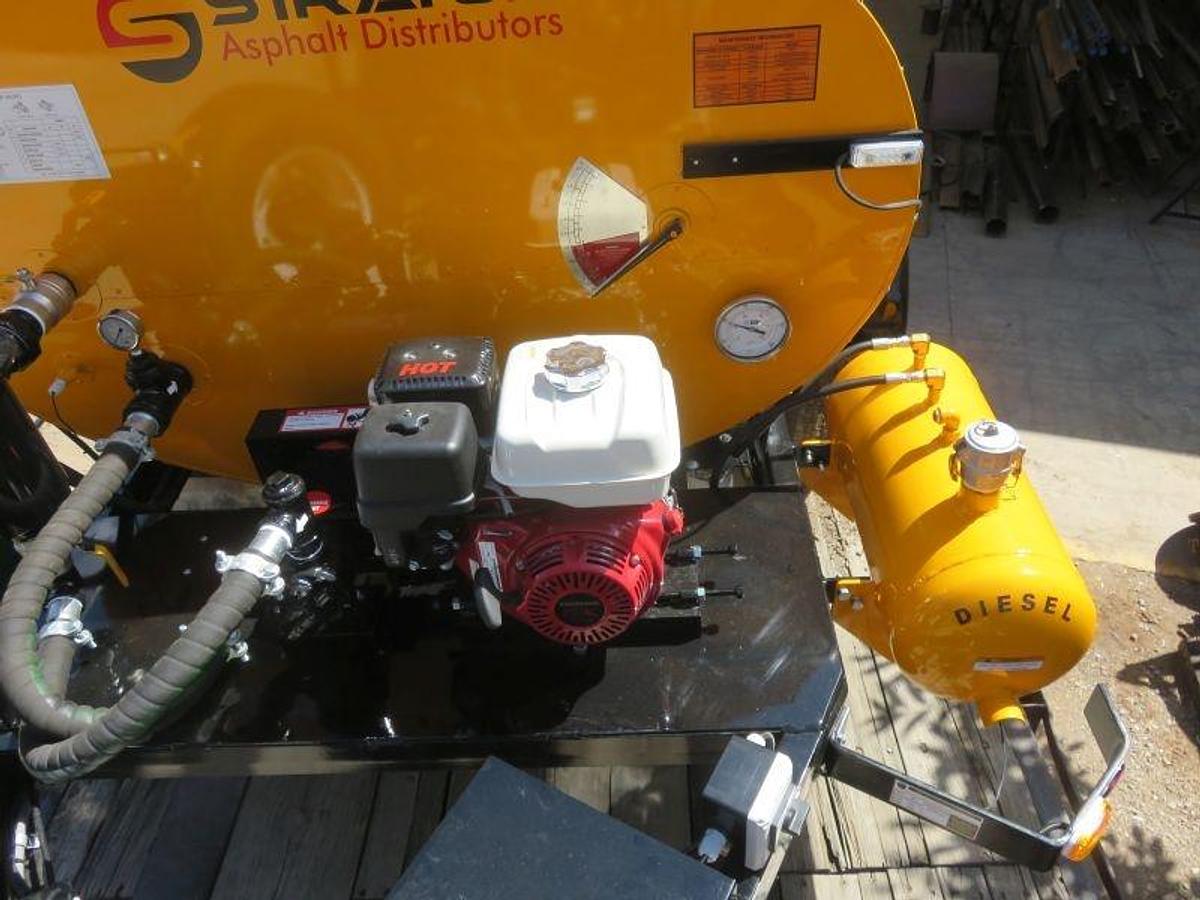

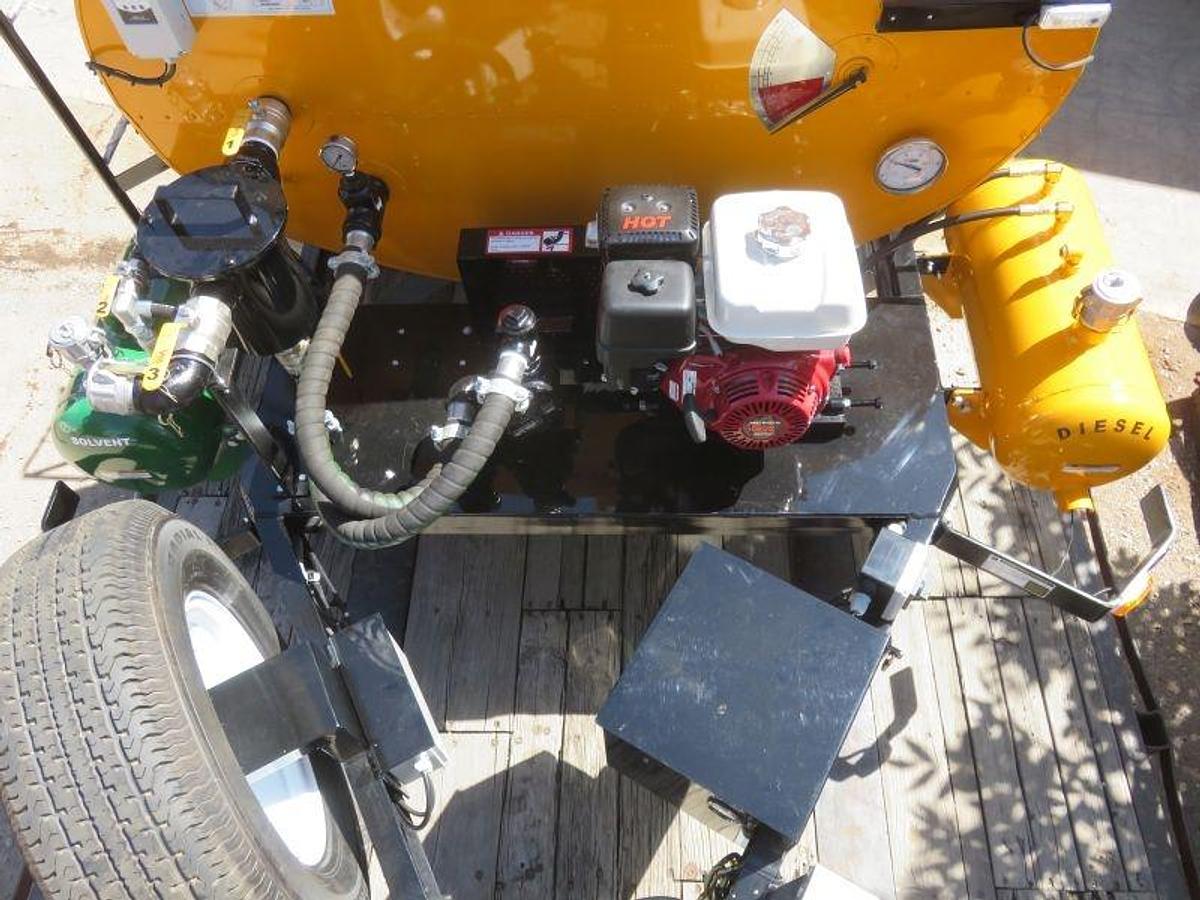

32 GPM Viking pump, 6.5 hp Briggs Vanguard gas engine, pull start, 2" plumbing

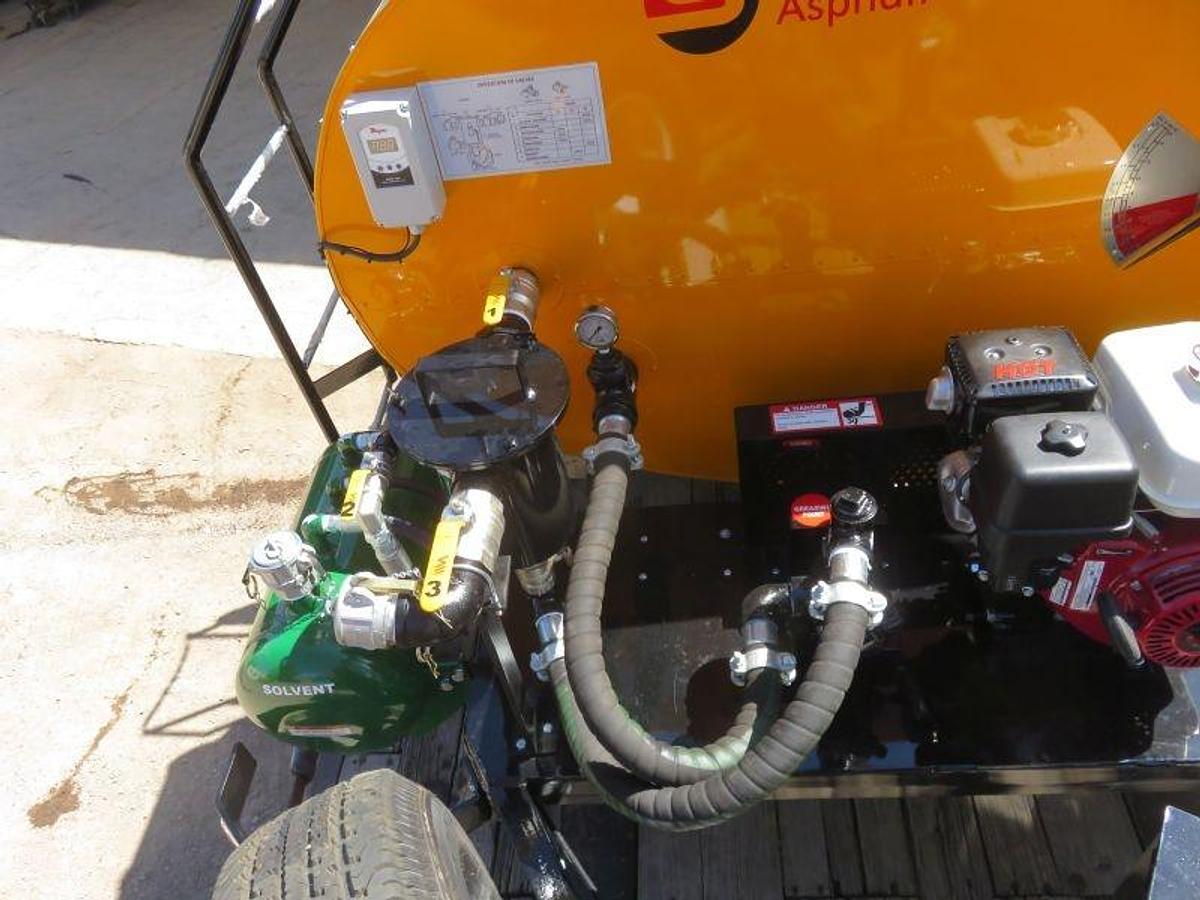

In-line strainer basket for easy cleanout
Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
Applicator hand wand, on/off valve and foot valve Material level gauge indicator

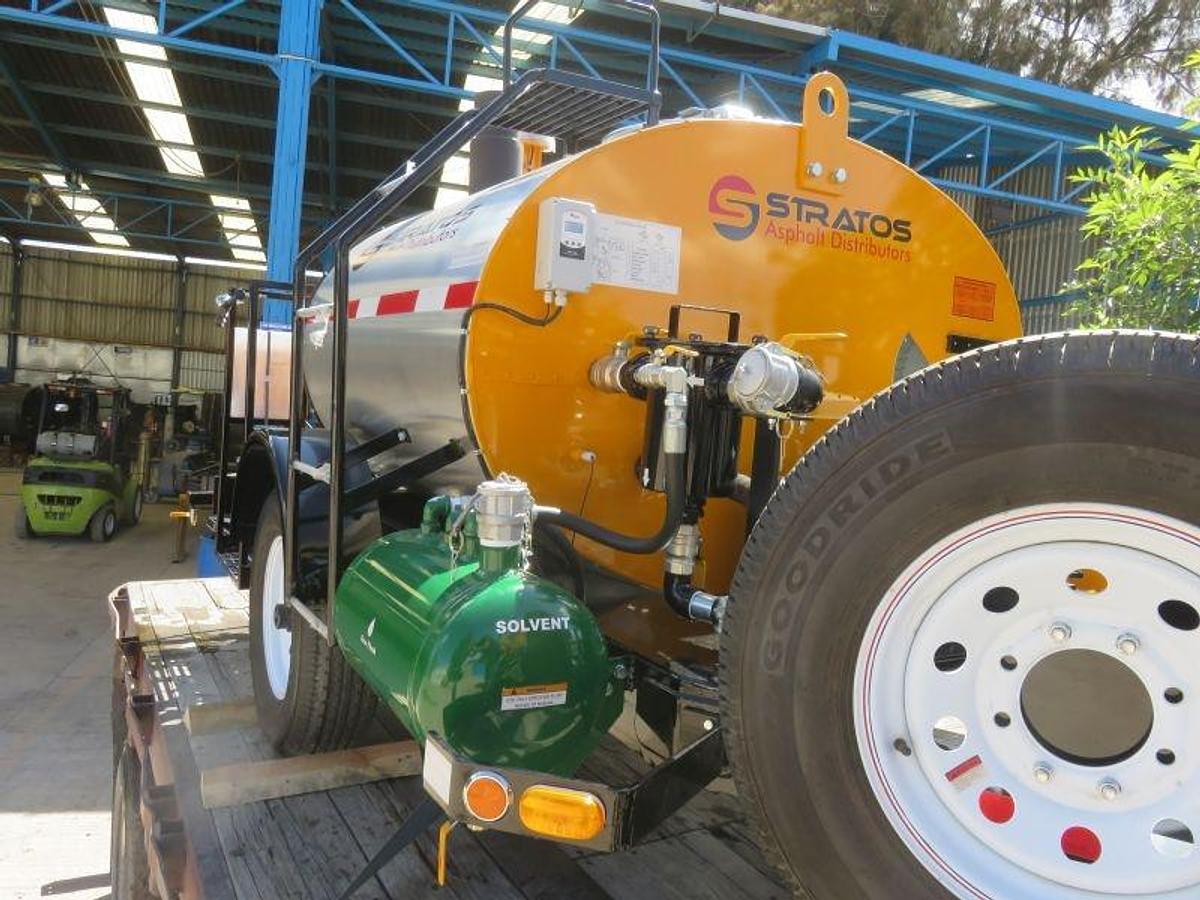

Flush tank system, 10-gal tank
Paint yellow tank, black trailer
Ladder, side mounted

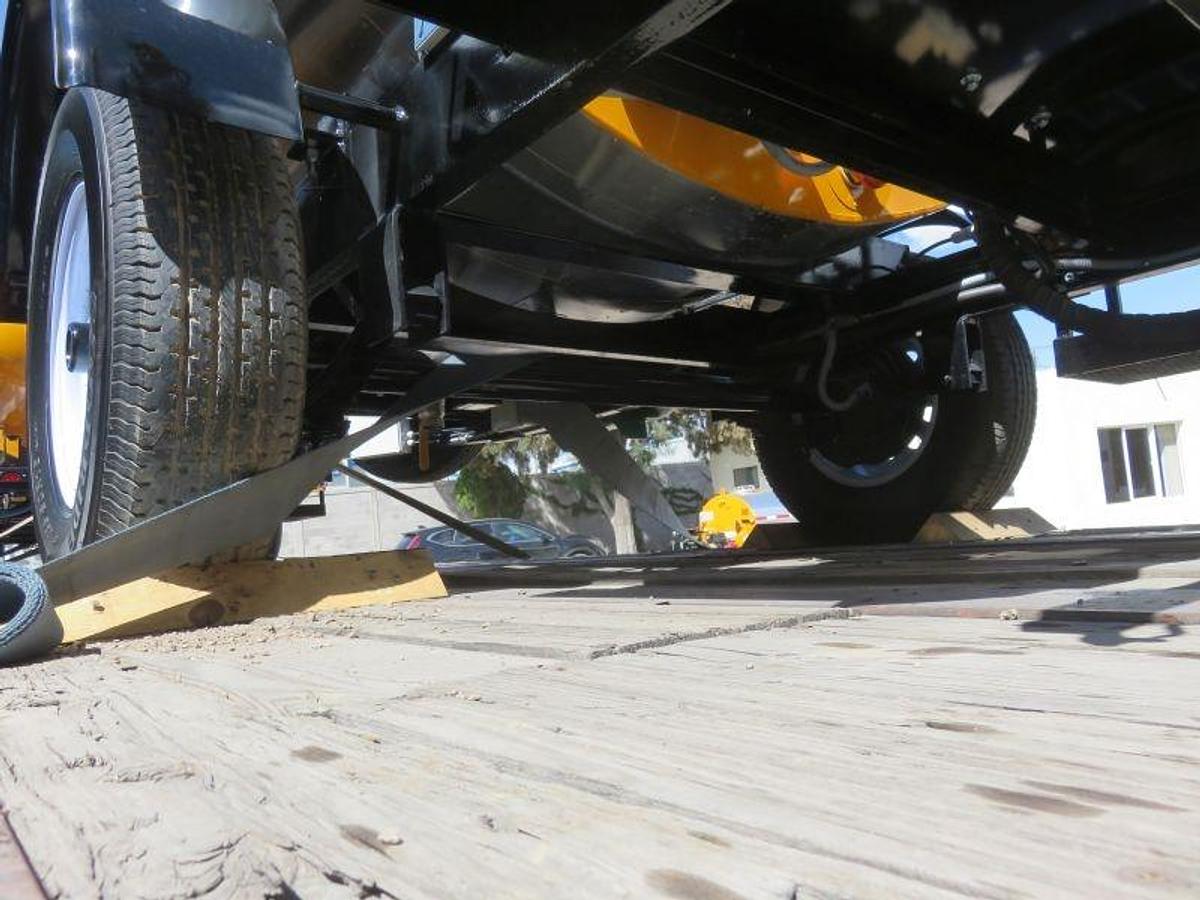

Trailer, single axle, 7000 lb axles
GVWR 6,000 lbs / GAWR 7,000 lbs
DOT compliant LED lighting (brake, turn, running), flush mounted into fenders
Electric brakes on both axles, with break-away kit
Heavy duty, adjustable height tongue jack
Hitch plate, 12", 5-position adjustable up to 29" tow height
Pintle ring
NATM, National Association of Trailer Manufacturers compliant (exceeds DOT requirements)
Paint: Yellow Tank, Black Trailer (aluminum if insulated)
NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved model of our machinery. Photos may show equipment with optional equipment.
WARRANTY: 18-MONTH Industry Leading EQUIPMENT WARRANTY
OPTIONS:
Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)
Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.
(upgrade) Viking 60GPM material pump electric start +pull start, 20 amp charging circuit, 2" plumbing
Deep-cell battery package, battery box, voltage meter

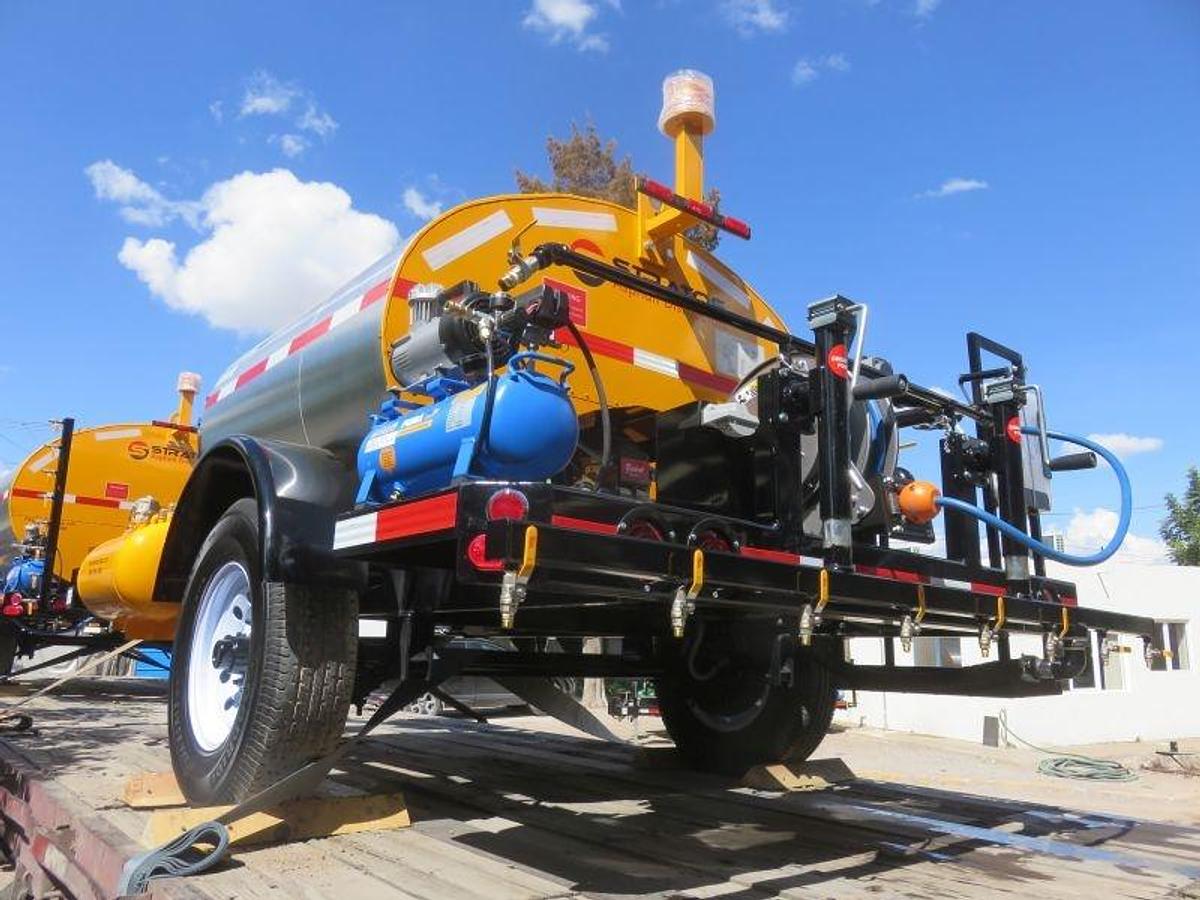

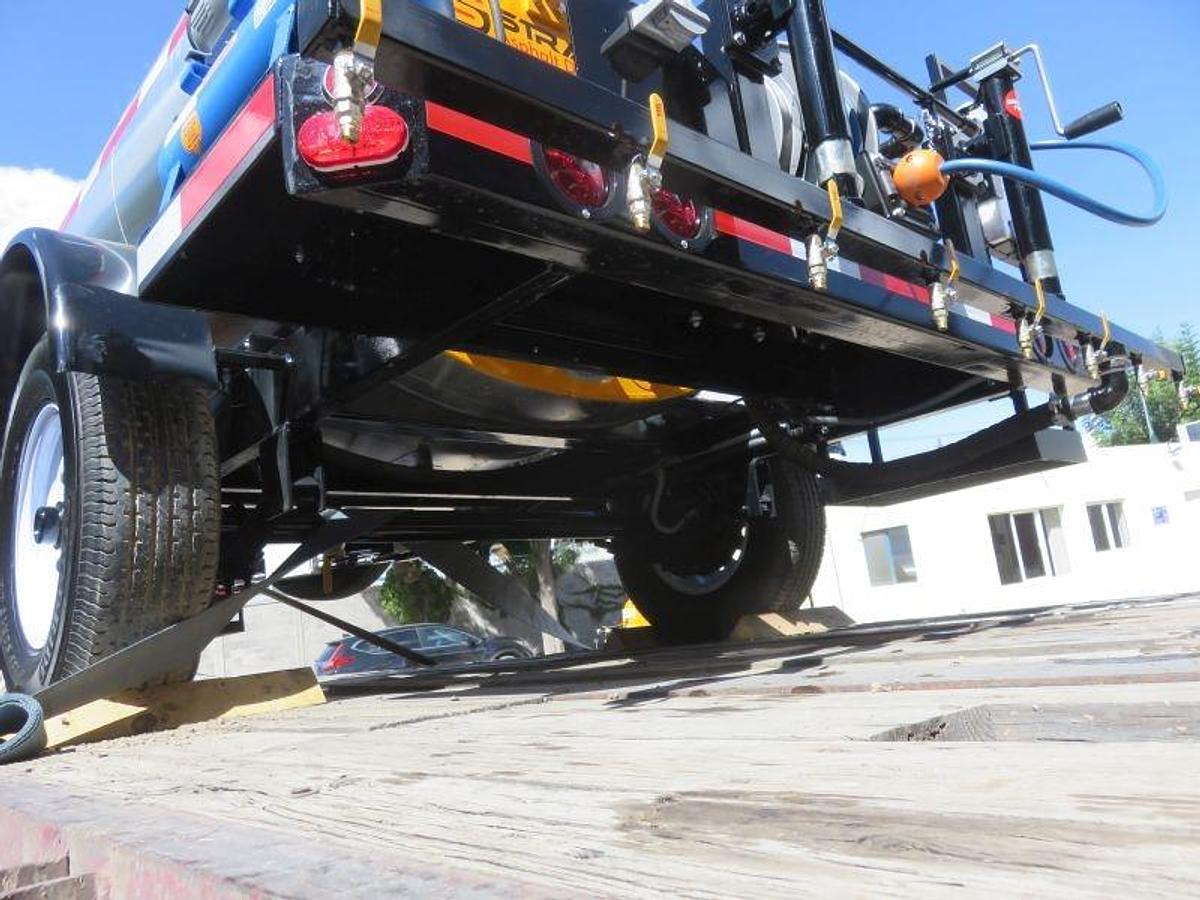

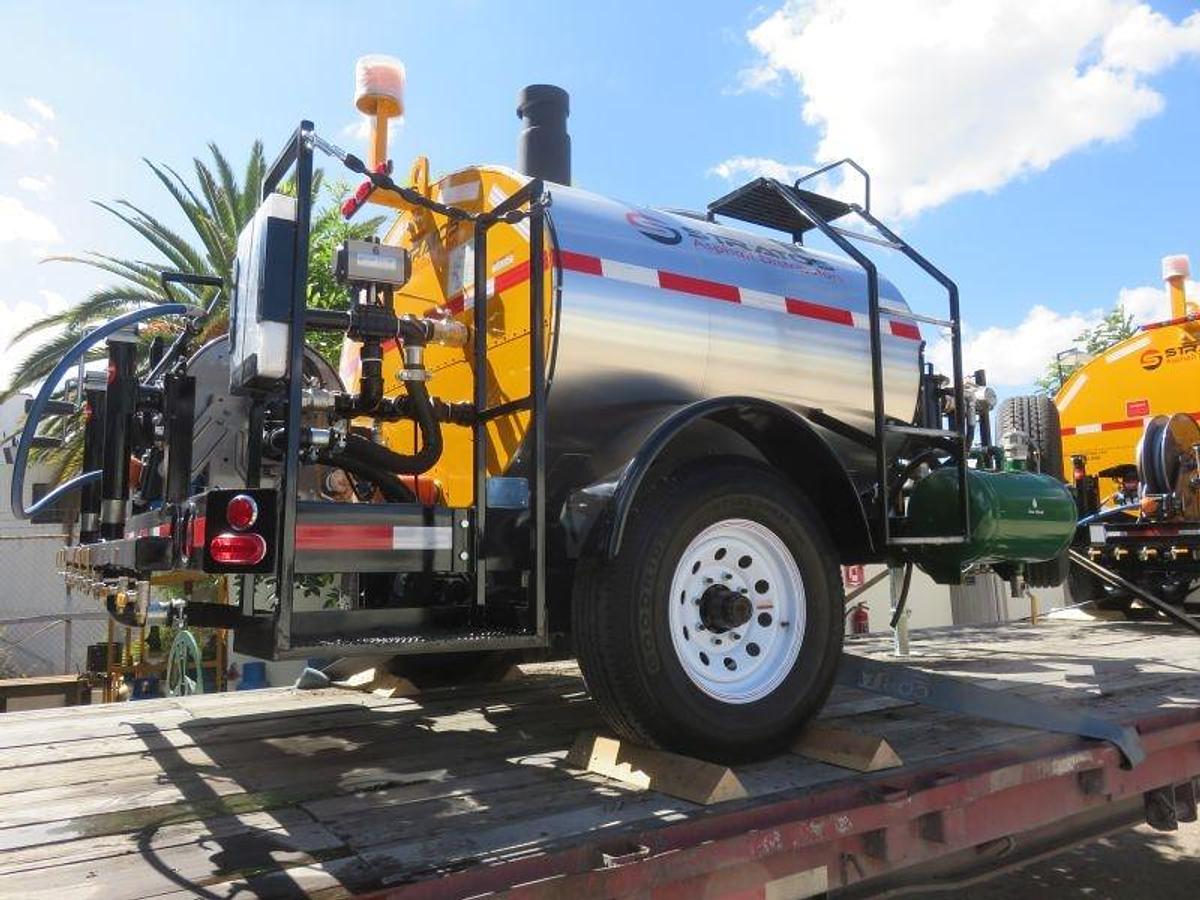

8' Spray Bar, adjustable height, 12" cut-offs, operator platform, railing and safety chain
12' Spray Bar, adjustable height, 12" cut-offs (6" cutoffs when using 60gpm pump) operator platform, railing and safety chain
14' Spray Bar, adjustable height, 6" cut-offs, operator platform, railing and safety chain
Remote spraybar controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
Hydraulic Brakes
Hitch Extension, 3'
Overnight heat maintainer (6kW, 220V, 1 phase) thermostatic control
Strobe light (LED, amber, mounted)
Spare Tire, mounted
Custom color
DIMENSIONS WEIGHT: L 165" (with optional spraybar) x W 84" x H 77", Weight 2665 lb (1208 kg)
