Our 2000 gallon hot tack sprayer is skid-mounted and designed to spray 35+ varieties of emulsion productsfor chip sealing, foundationcoating spraying and other applications. Ouroptional COMPUTER lets you monitor ground speed and application rate in gallons per minute. Get anindustry leading 18 month warrantyandsuper quick turn-around time. Join our evergrowing list of satisfied customers, 400 plus and counting. Don't pay Etnyre or Rosco prices. Let us showyou how PavementGroup canstartsaving you money, while providingexceptional performance.Call us at 1-518-218-7676

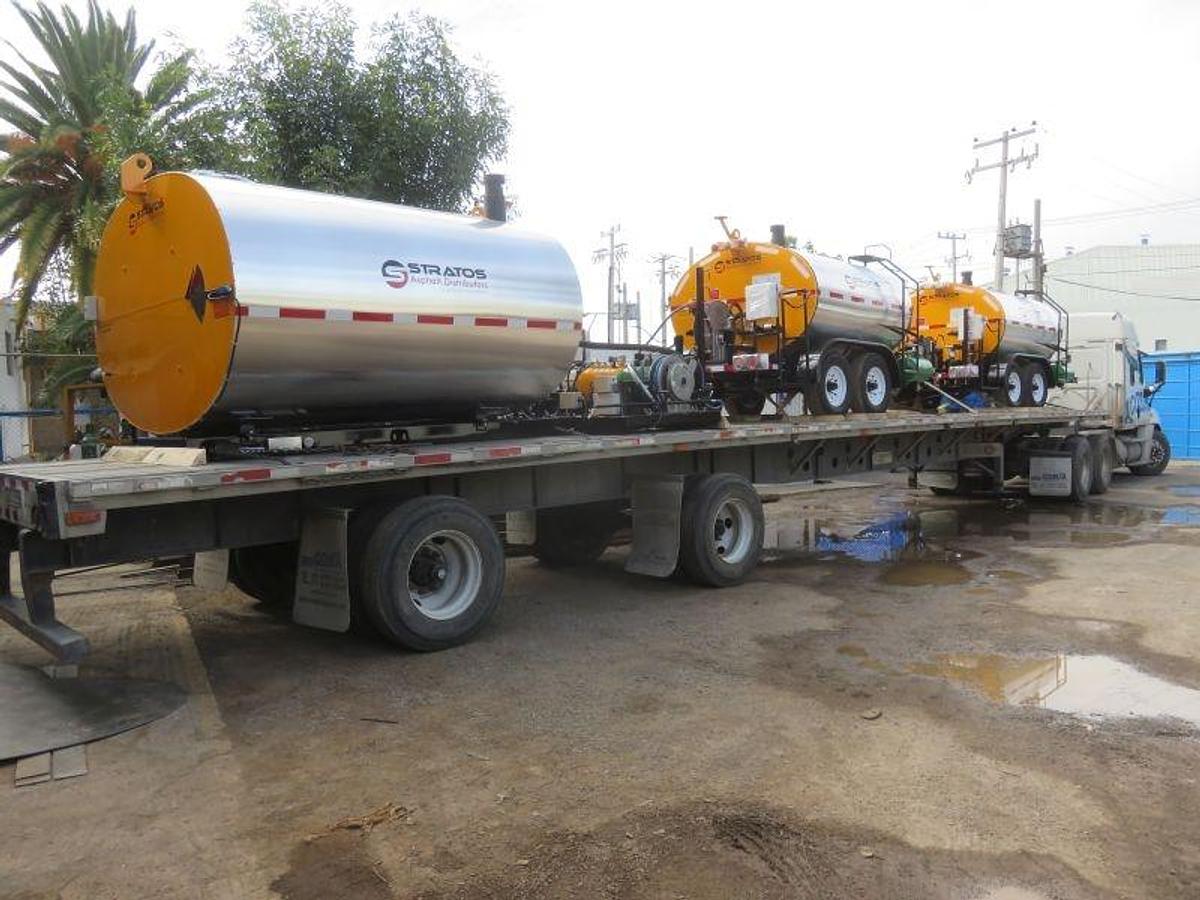

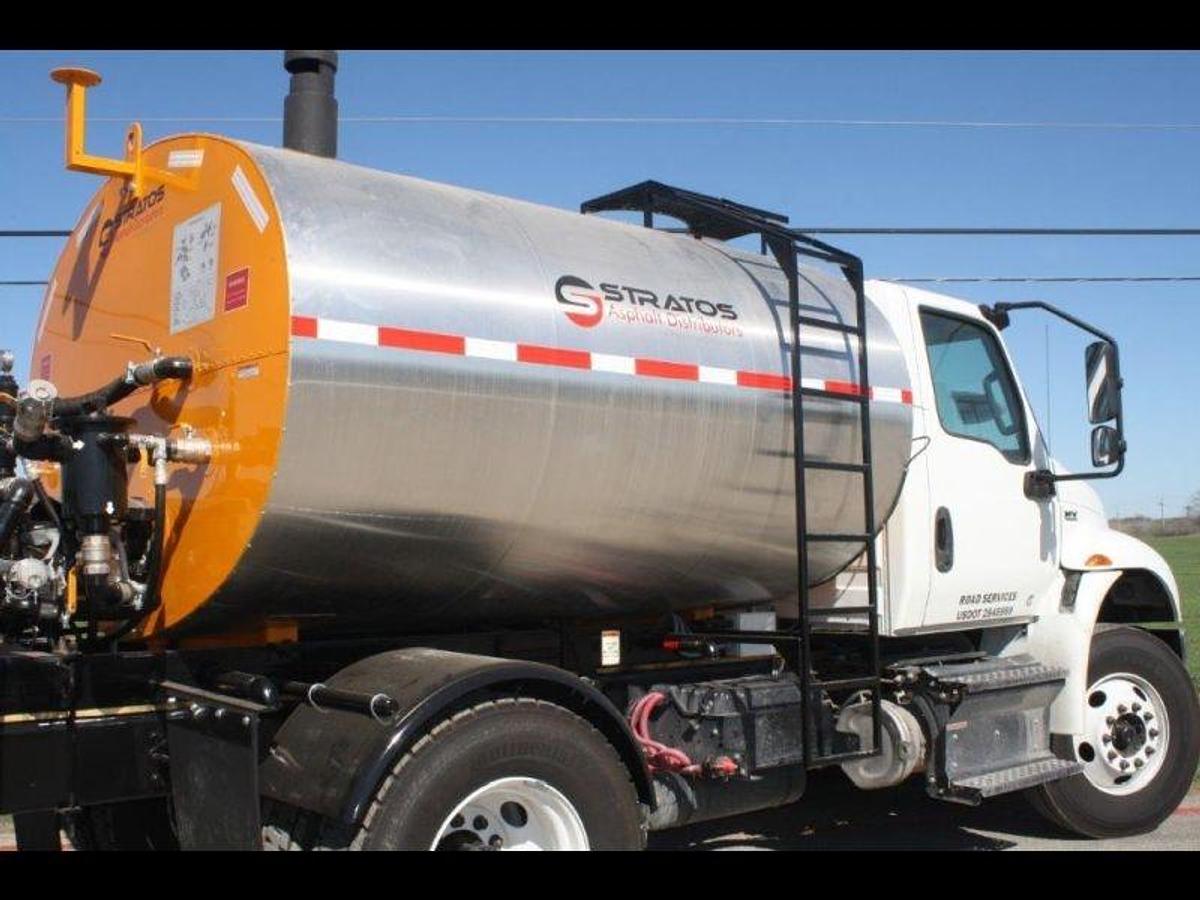

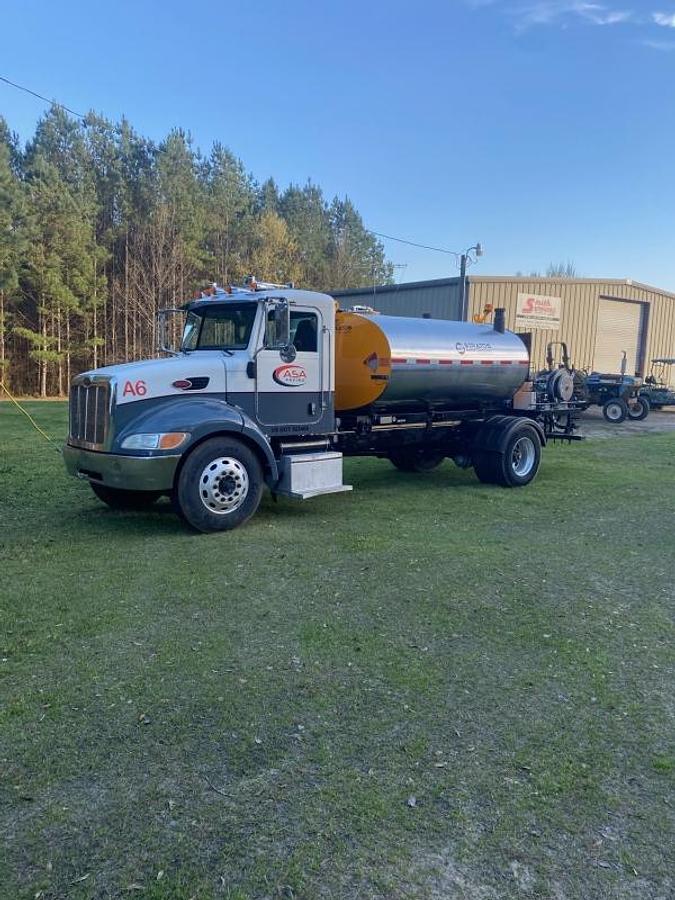

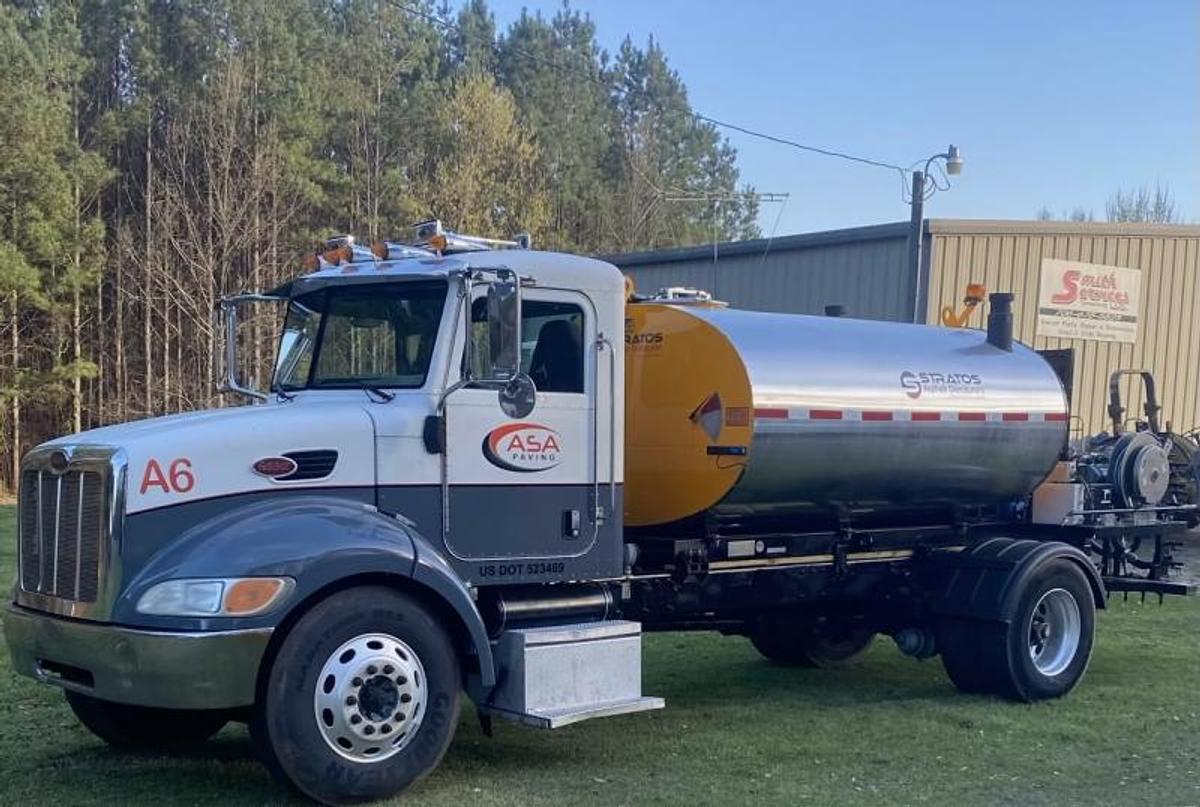

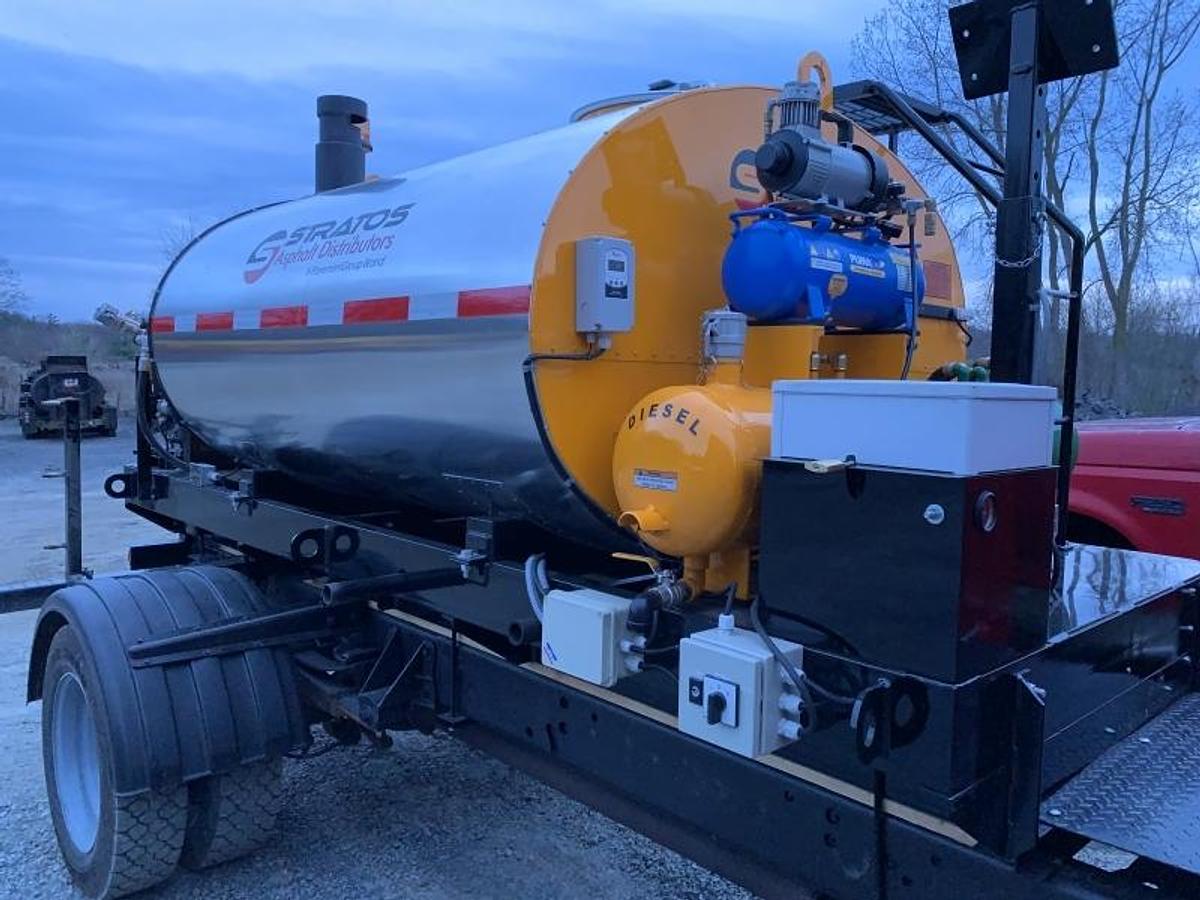

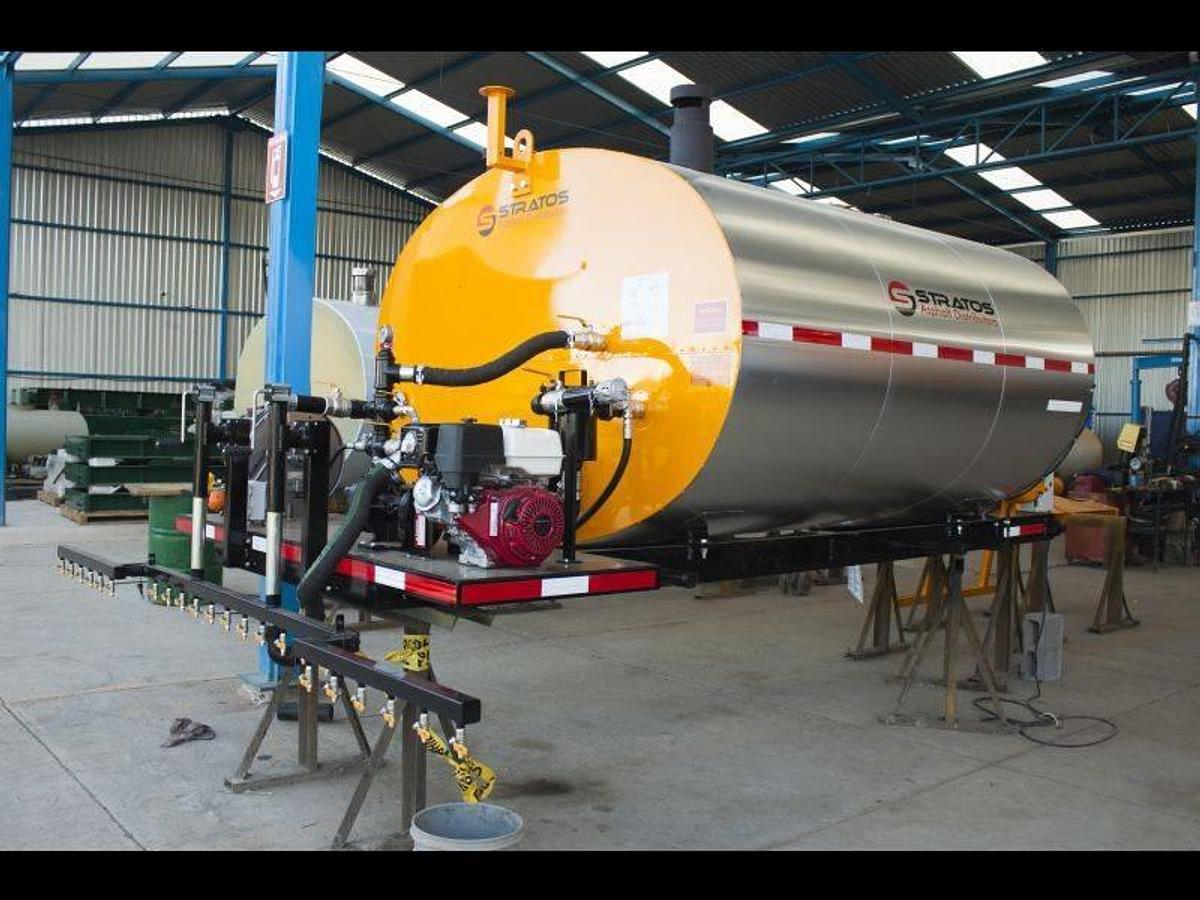

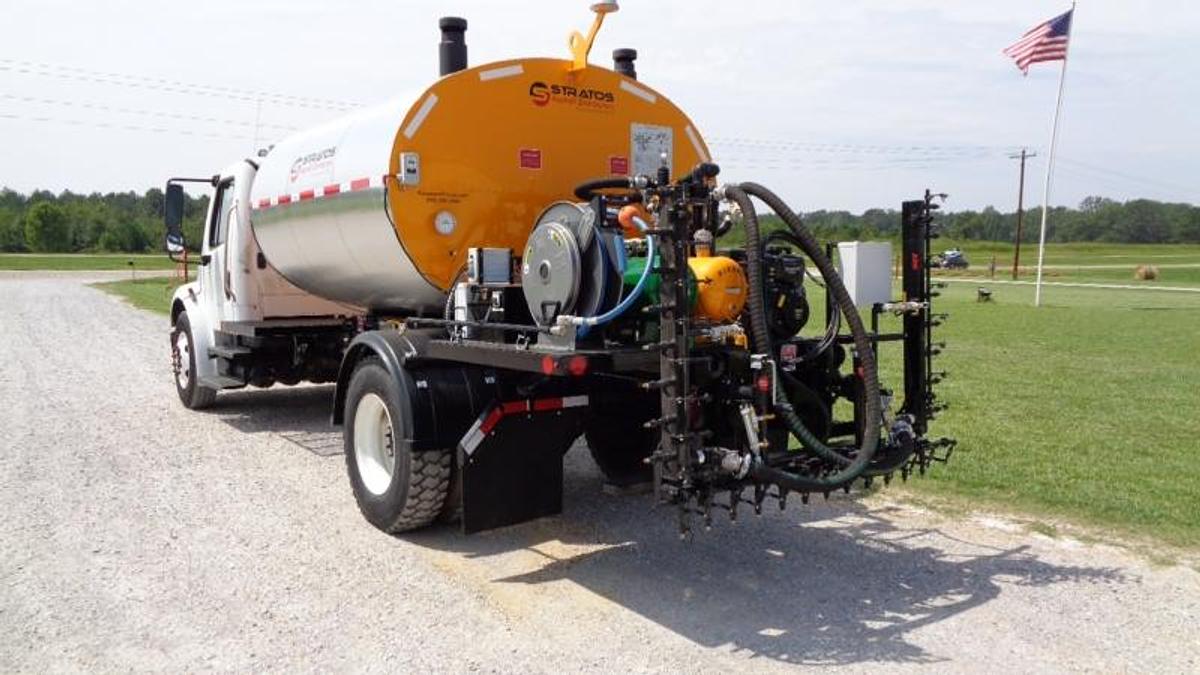

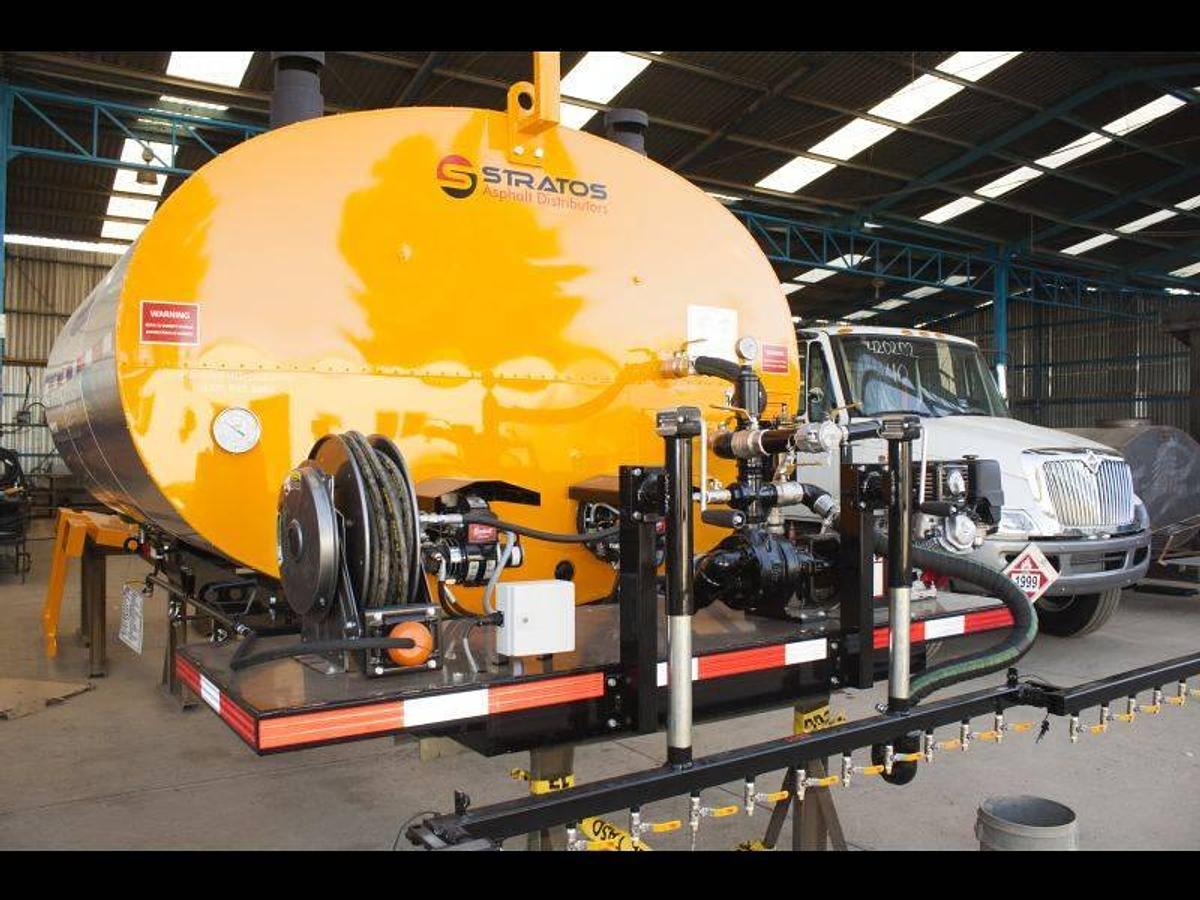

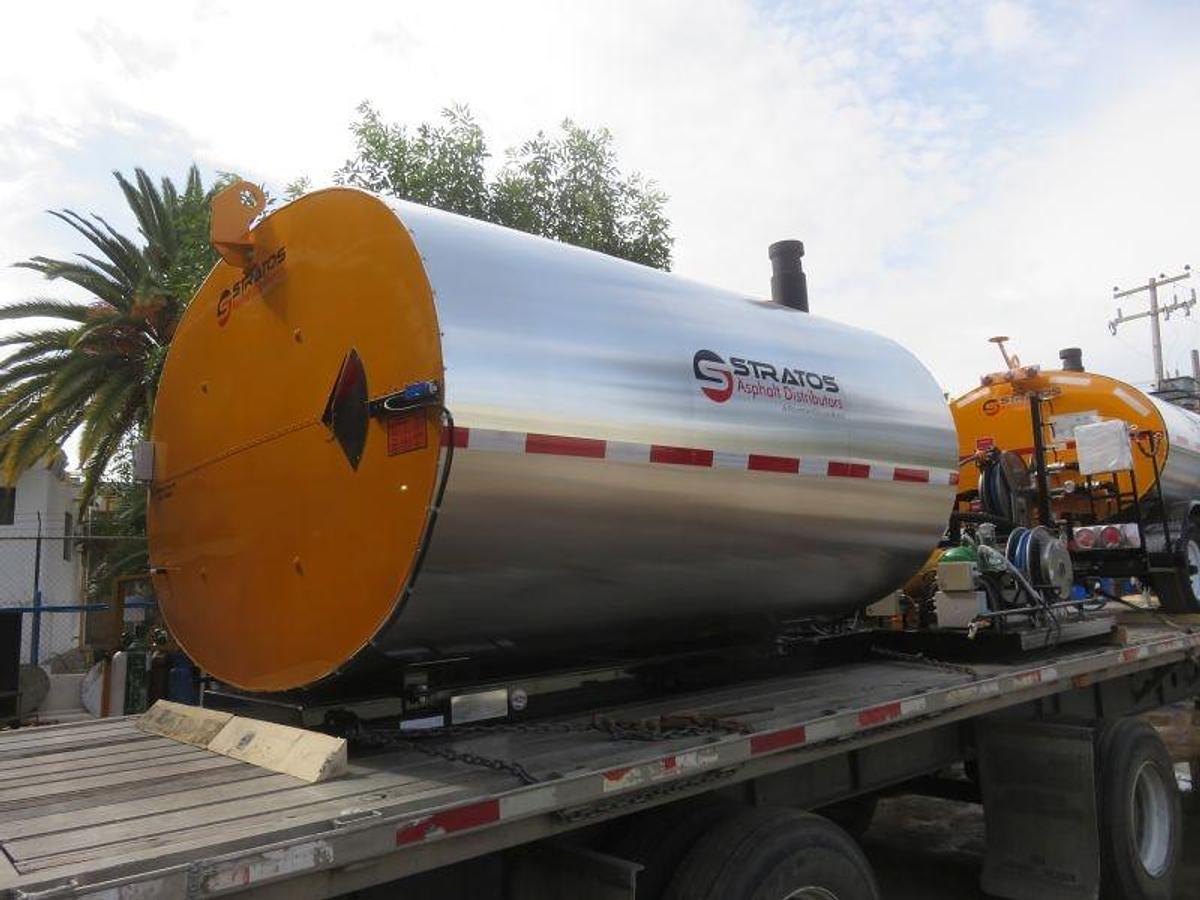

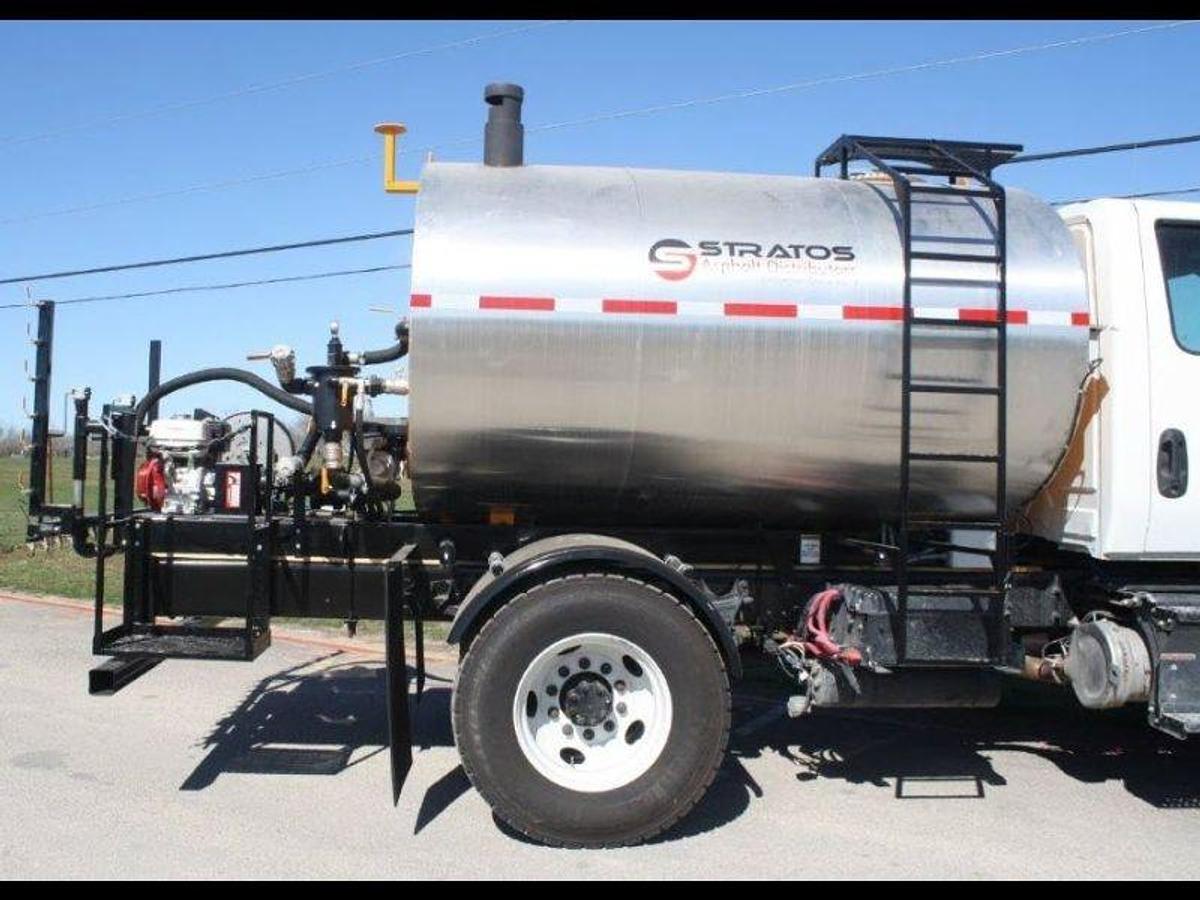

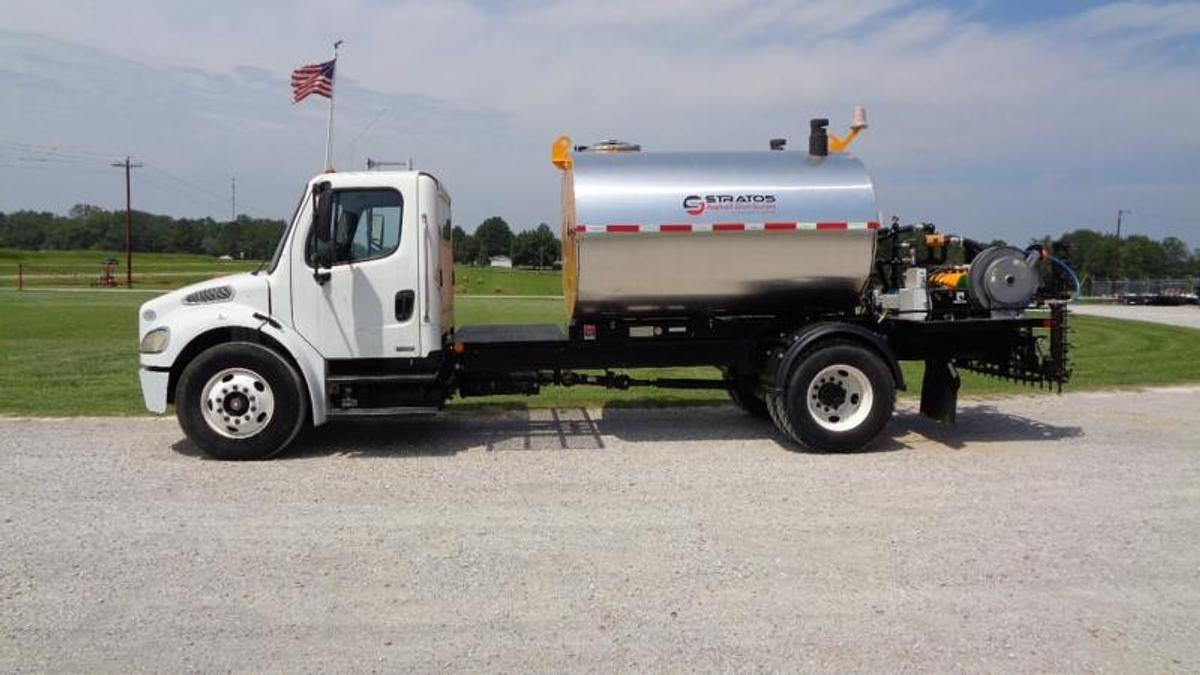

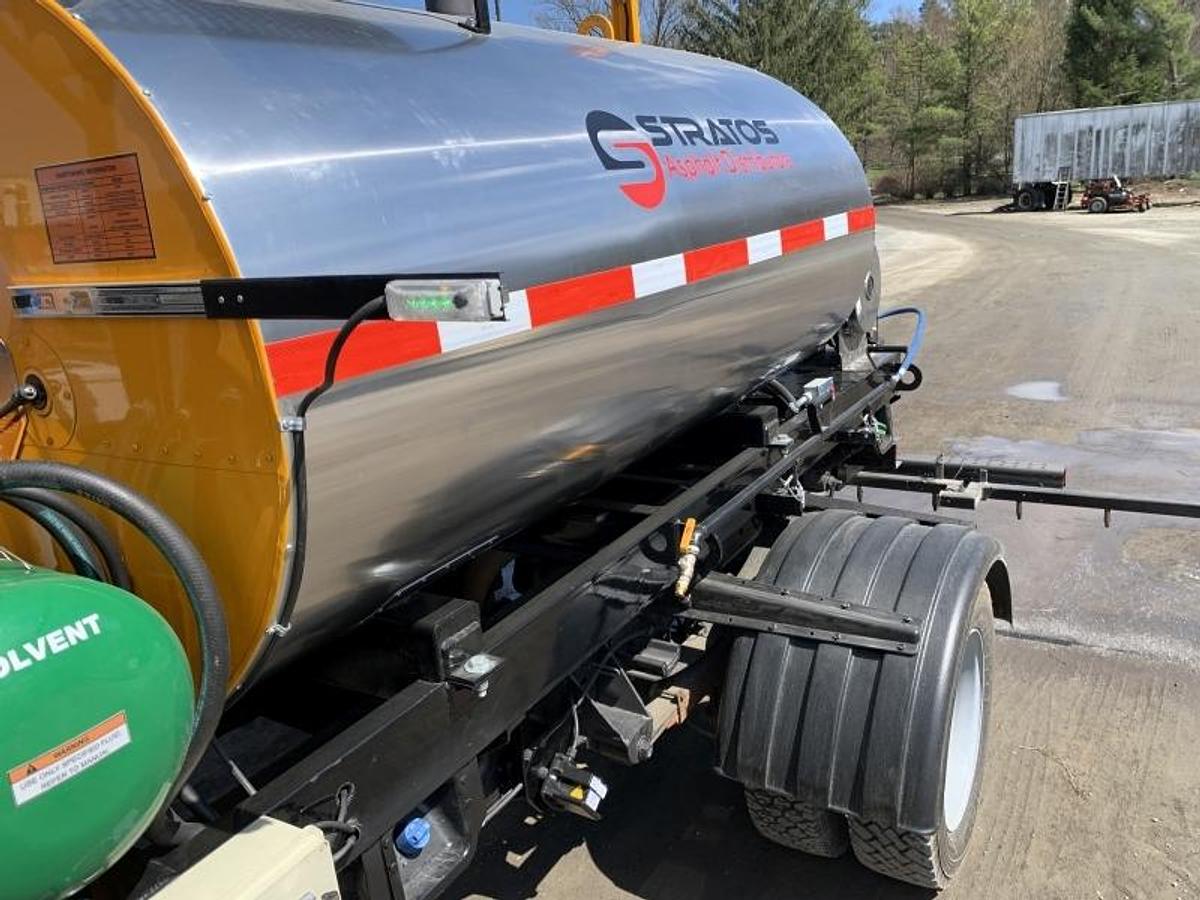

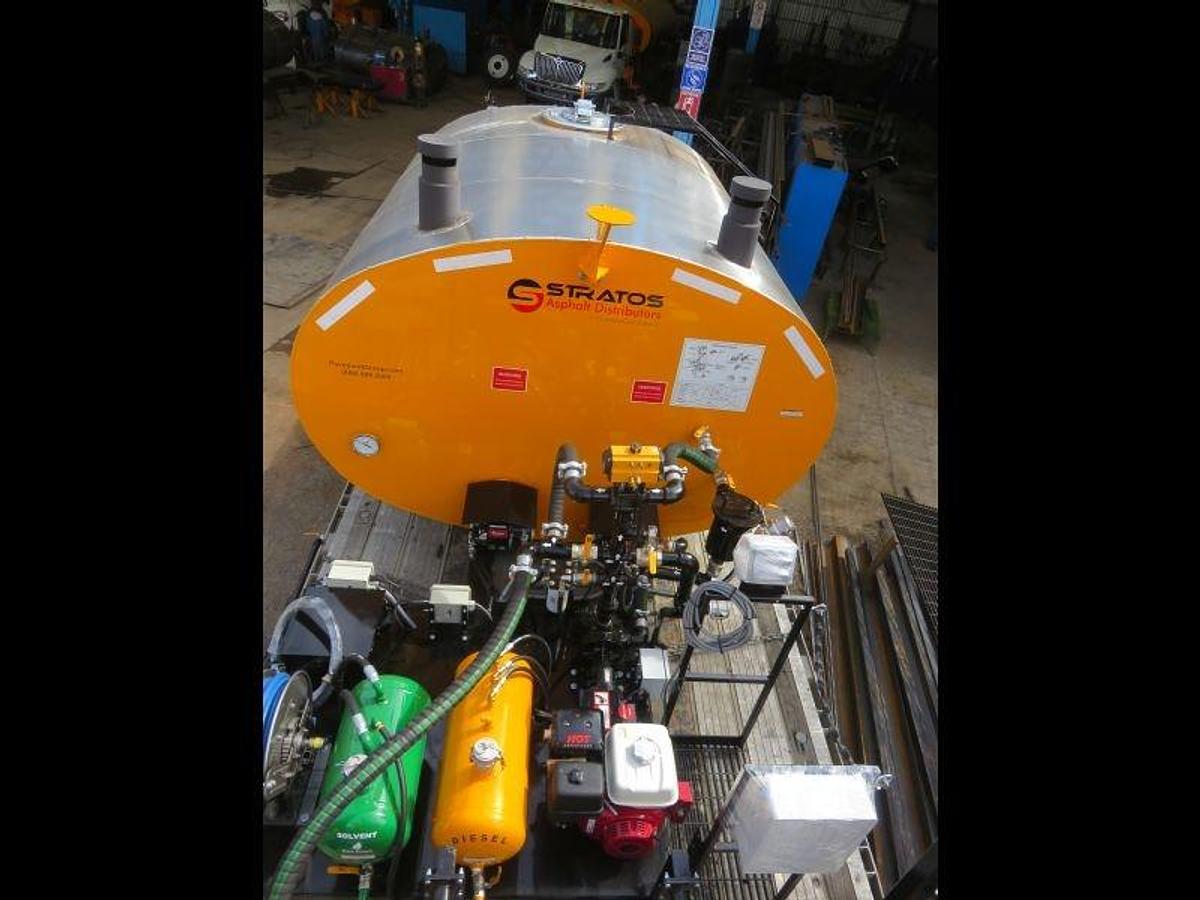

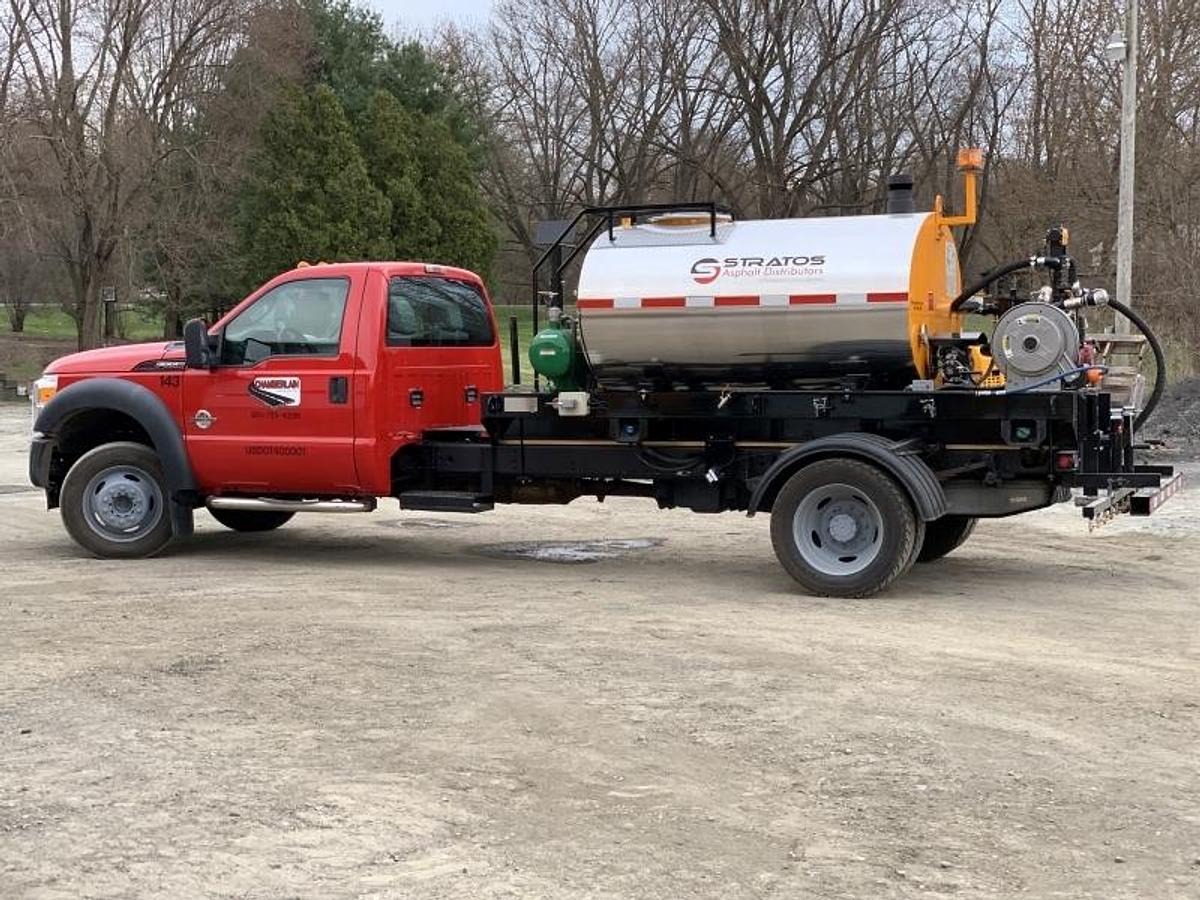

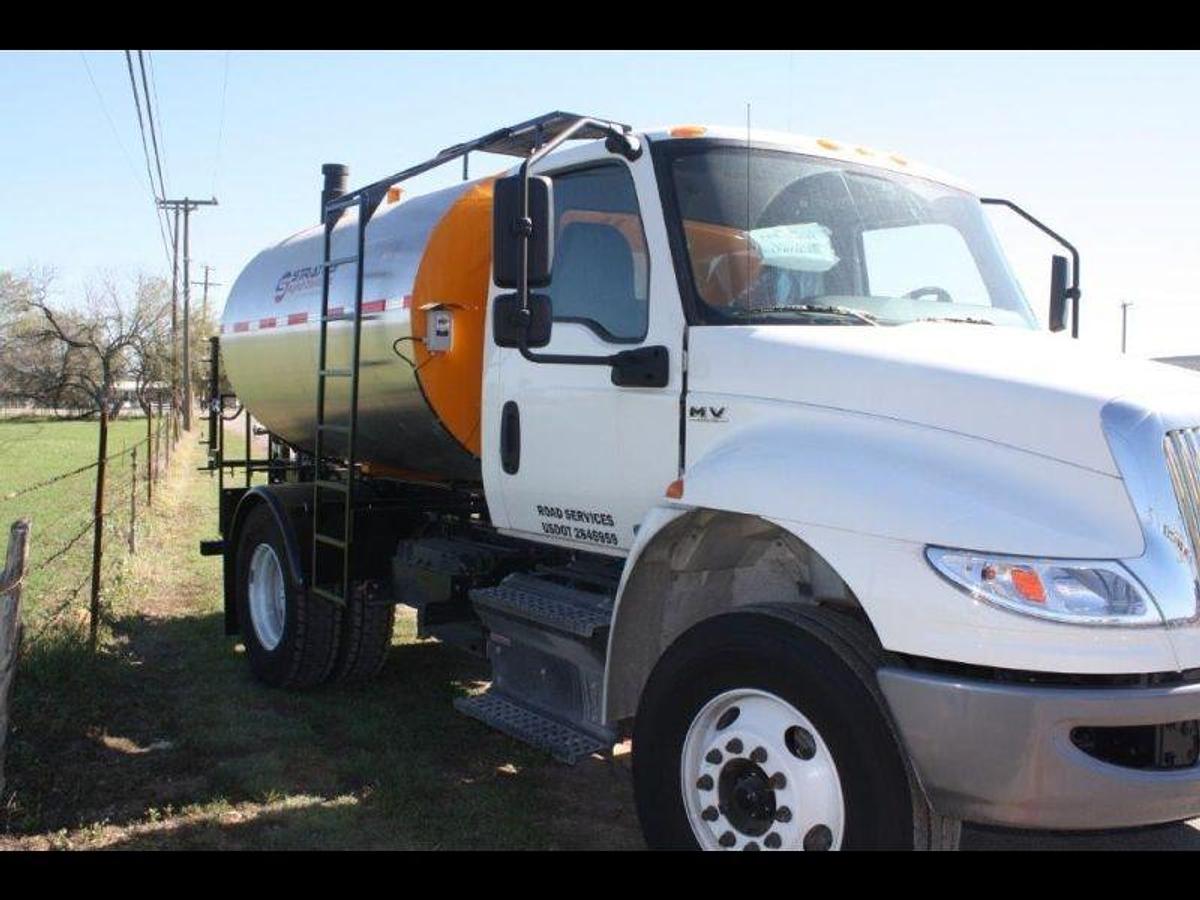

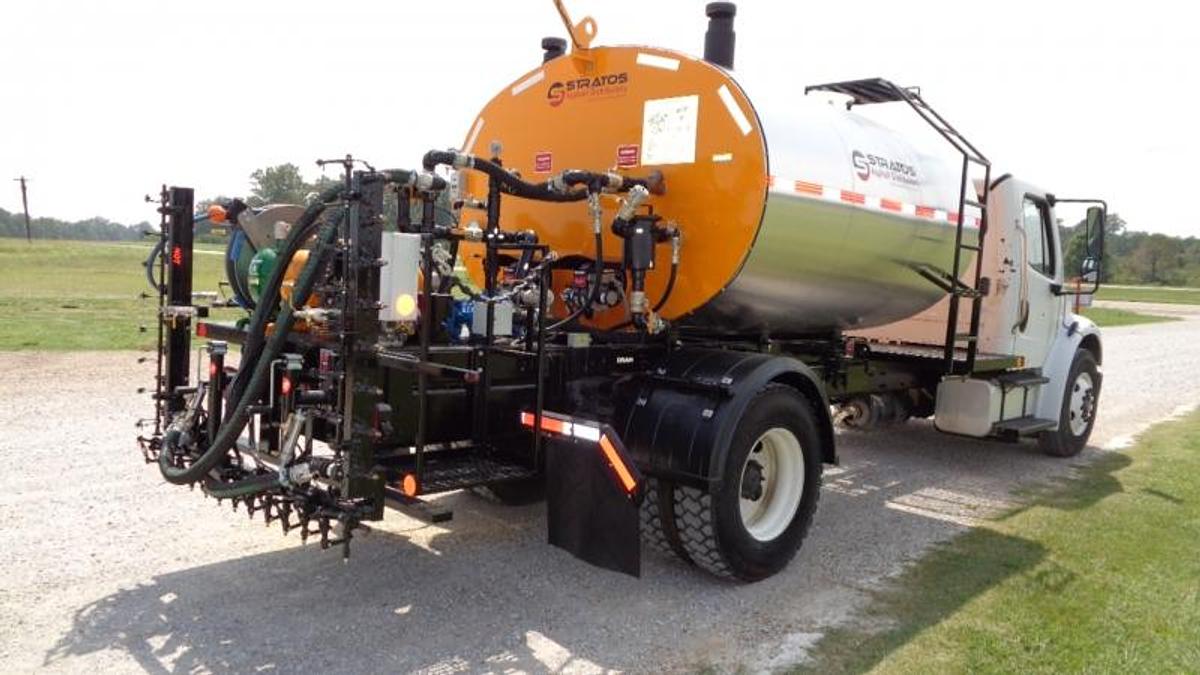

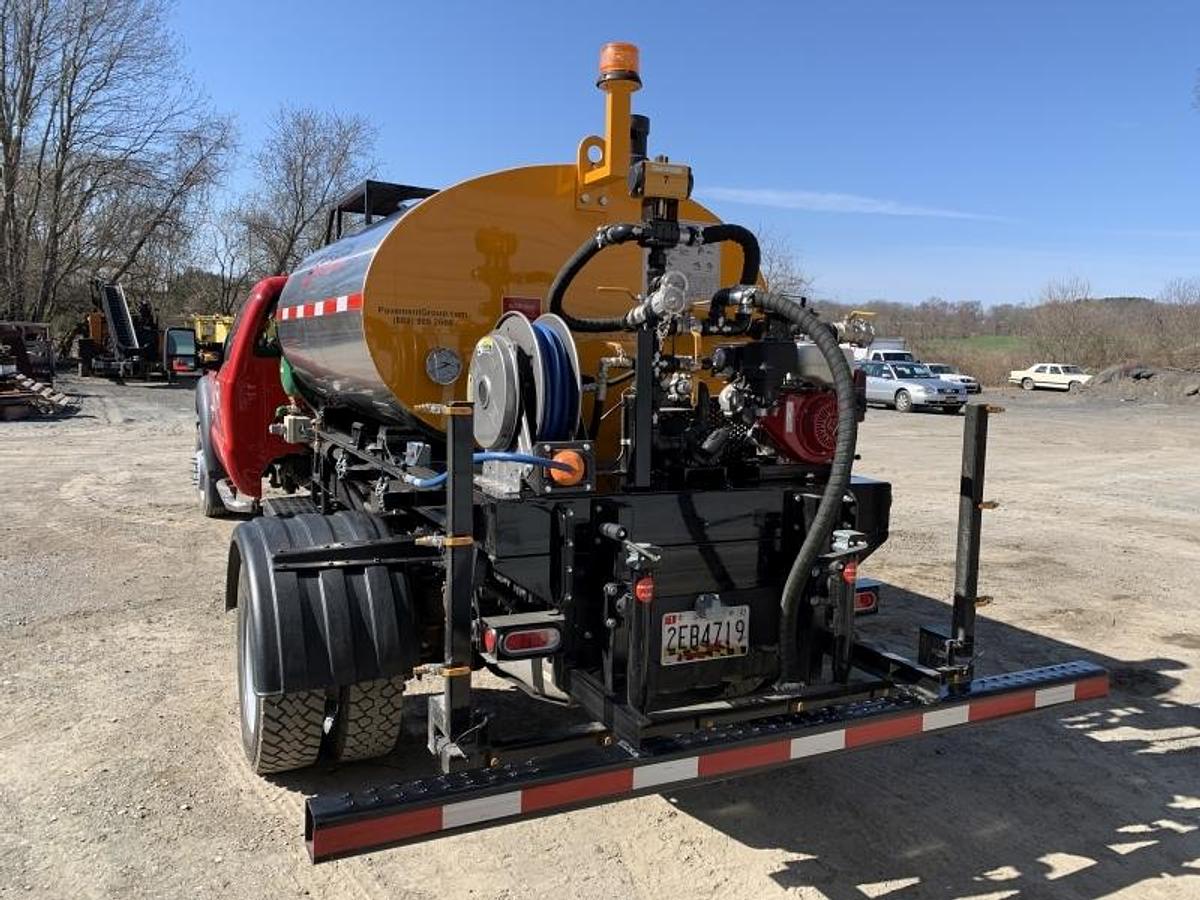

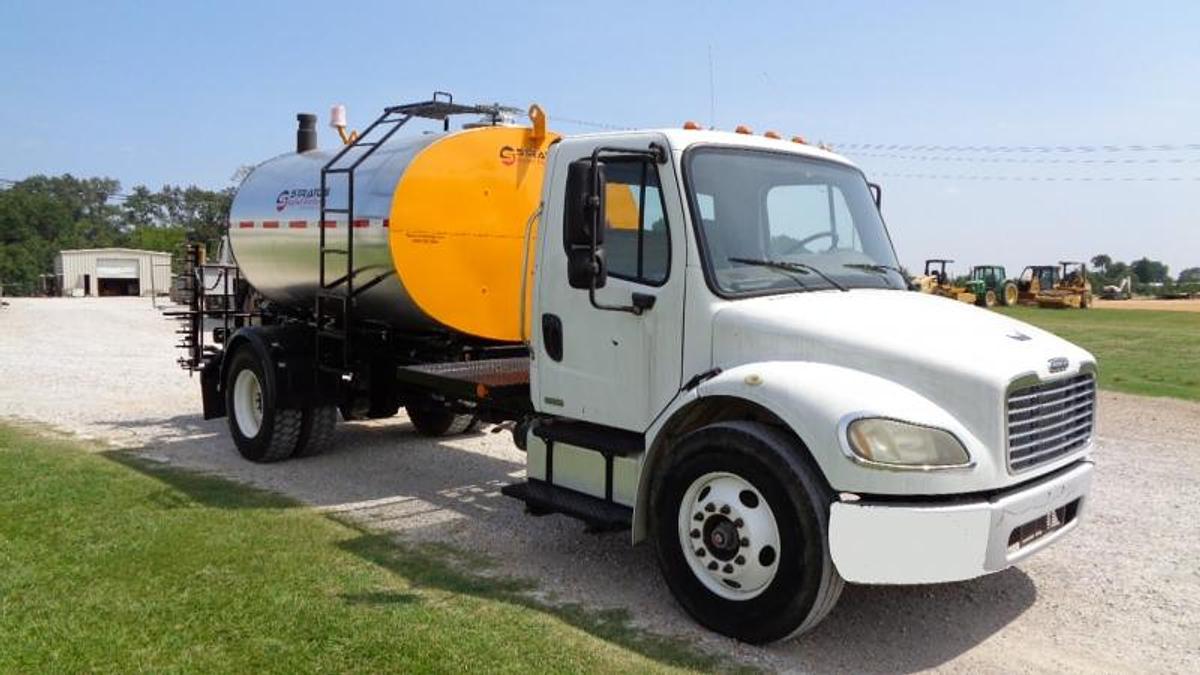

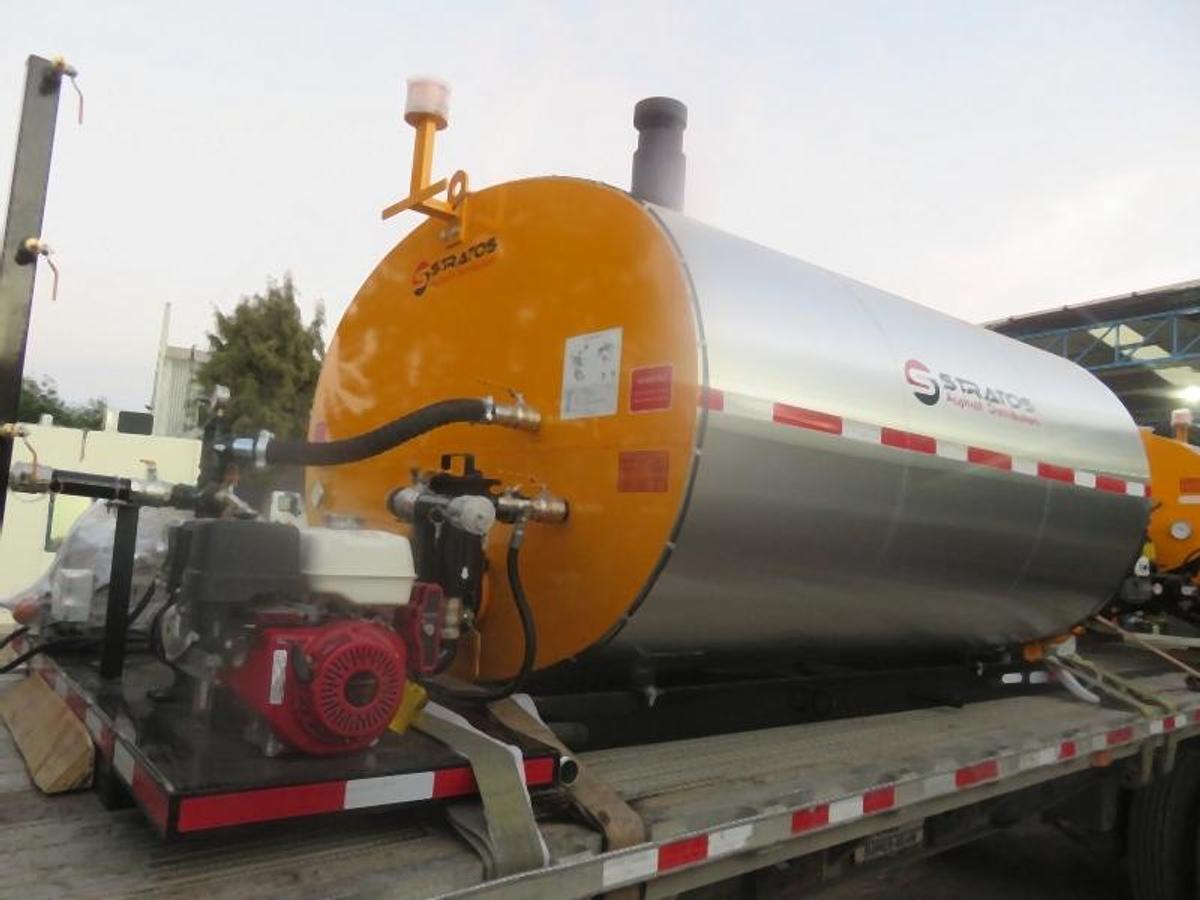

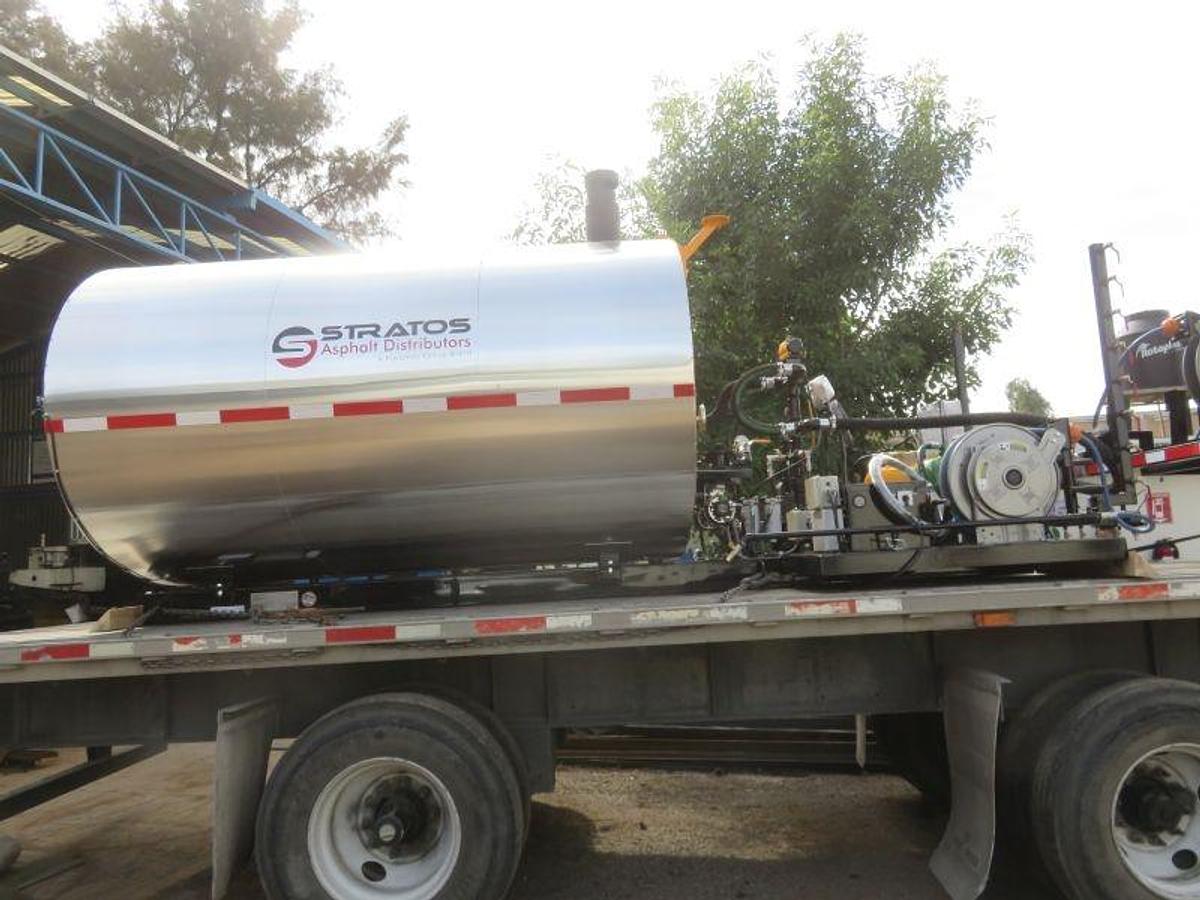

PavementGroup STRATOS DMS-2000 Asphalt Distributor, Skid Mounted
Standard Features Include:
2000 gallon capacity

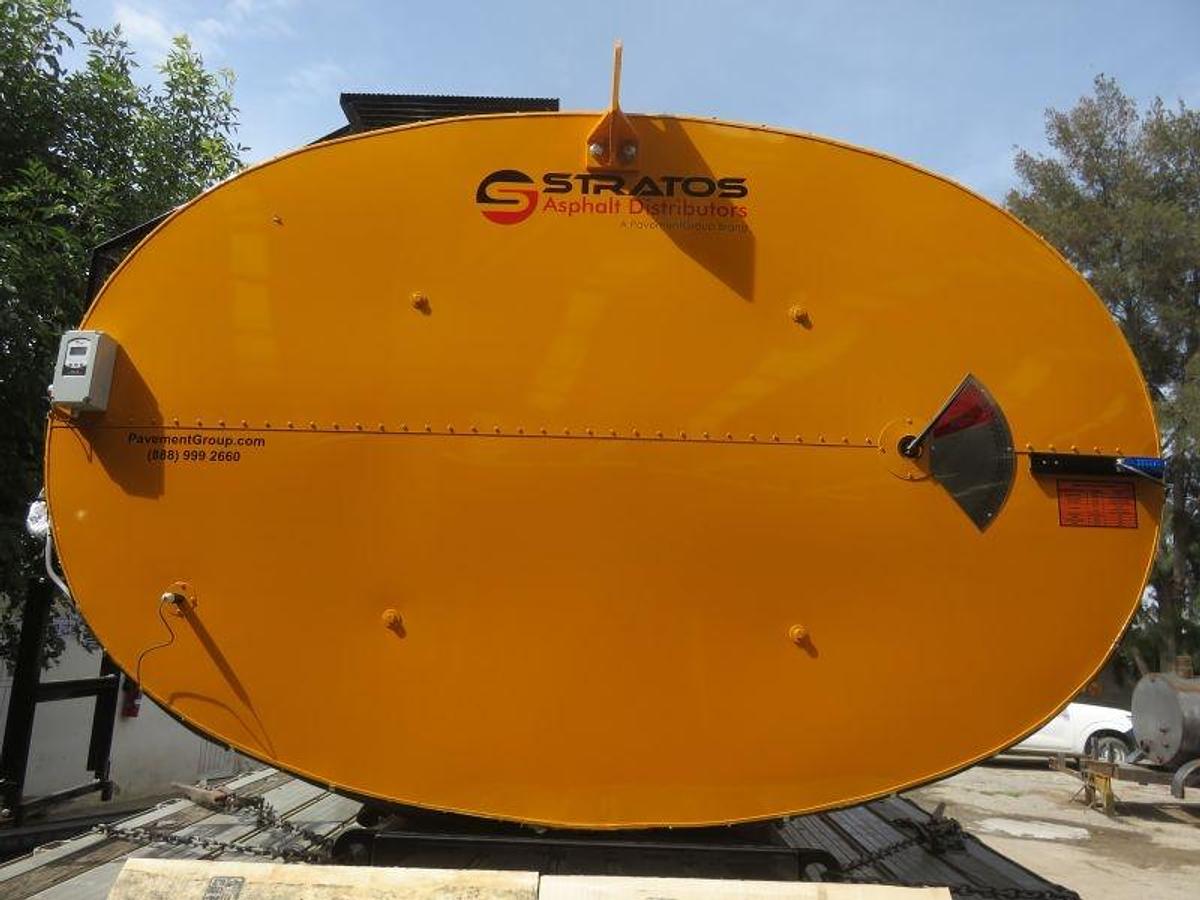

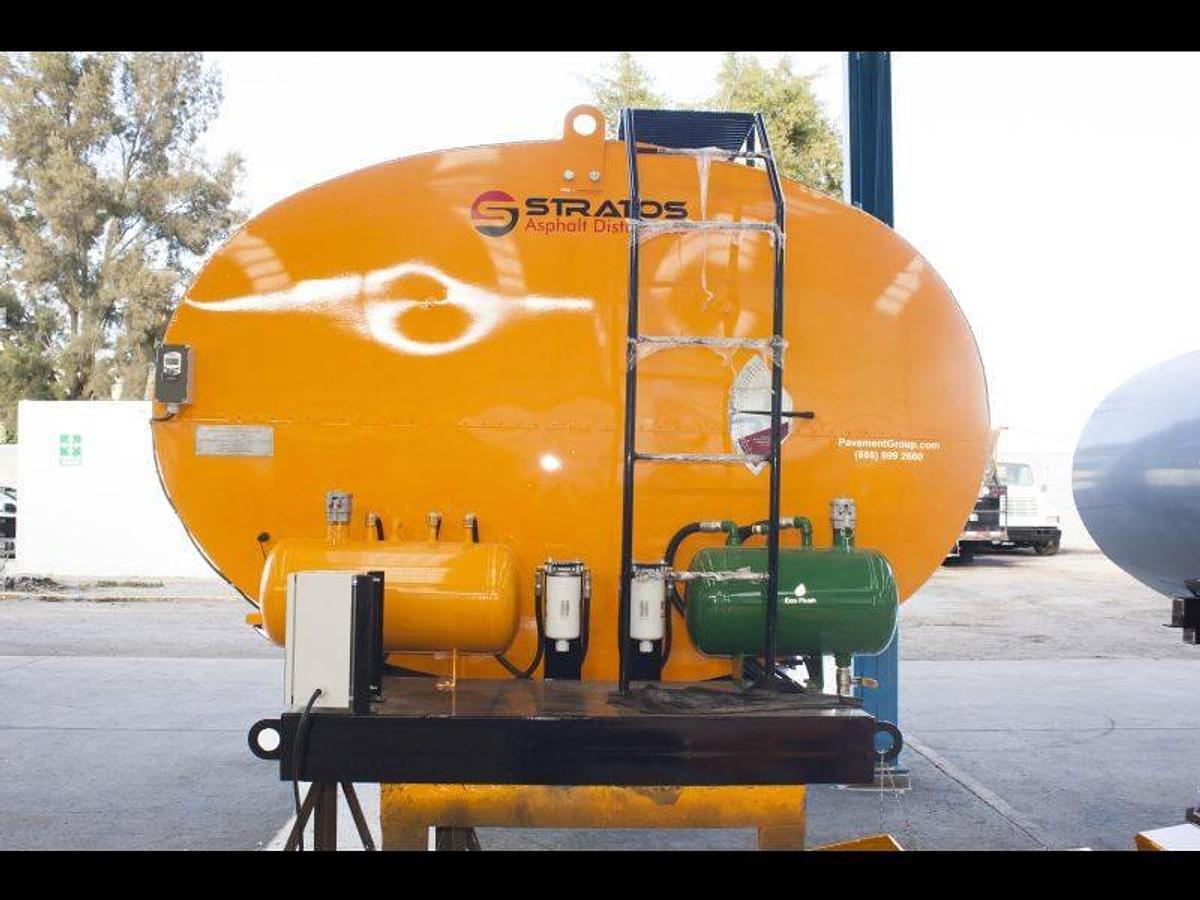

Elliptical tank, baffled, low center of gravity

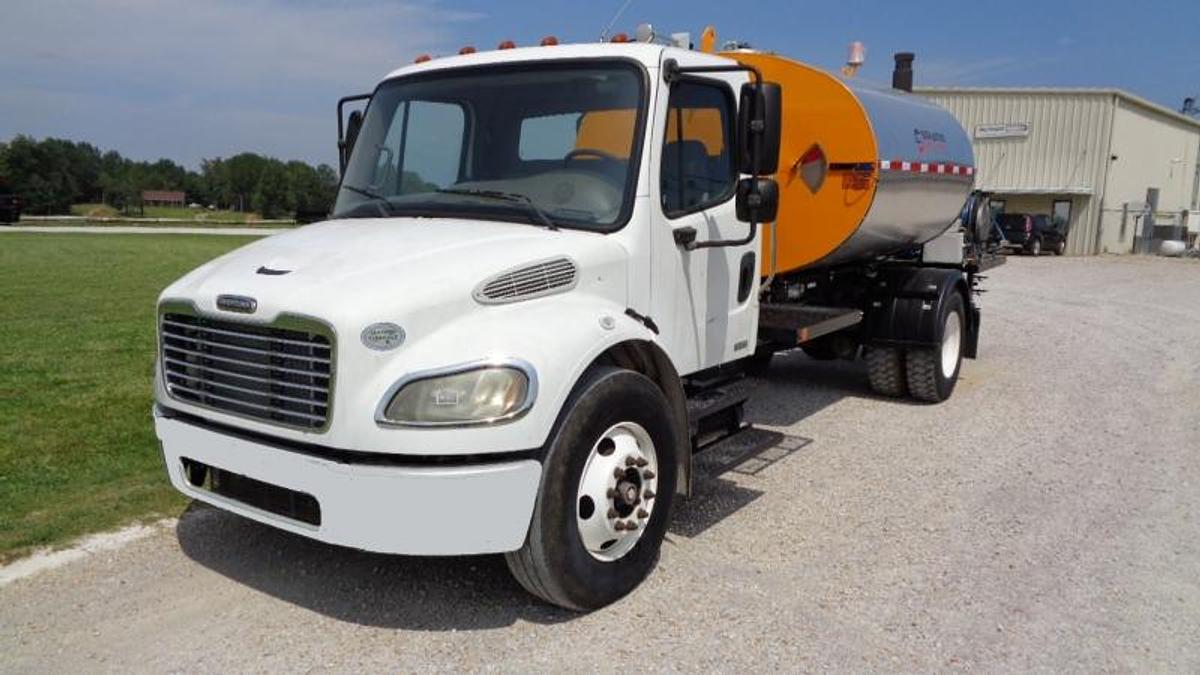

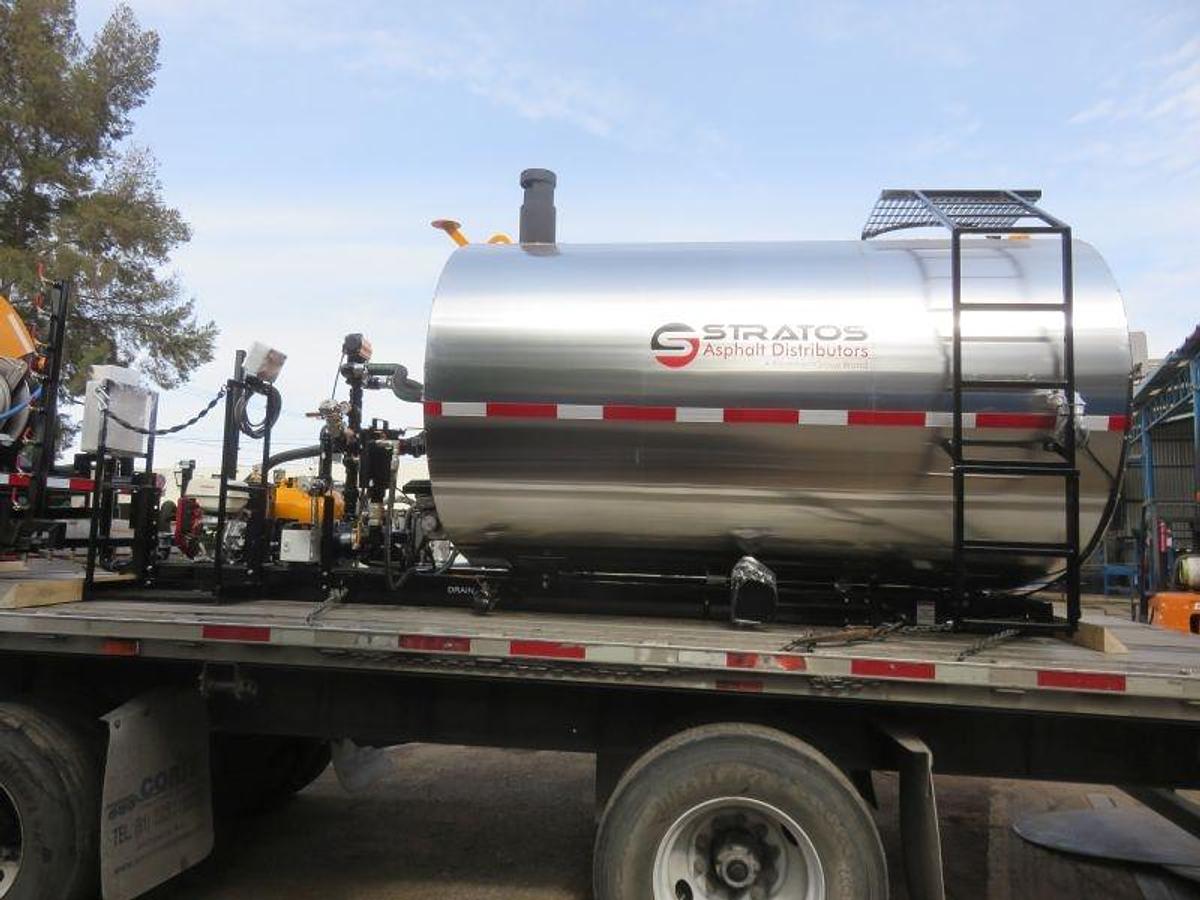

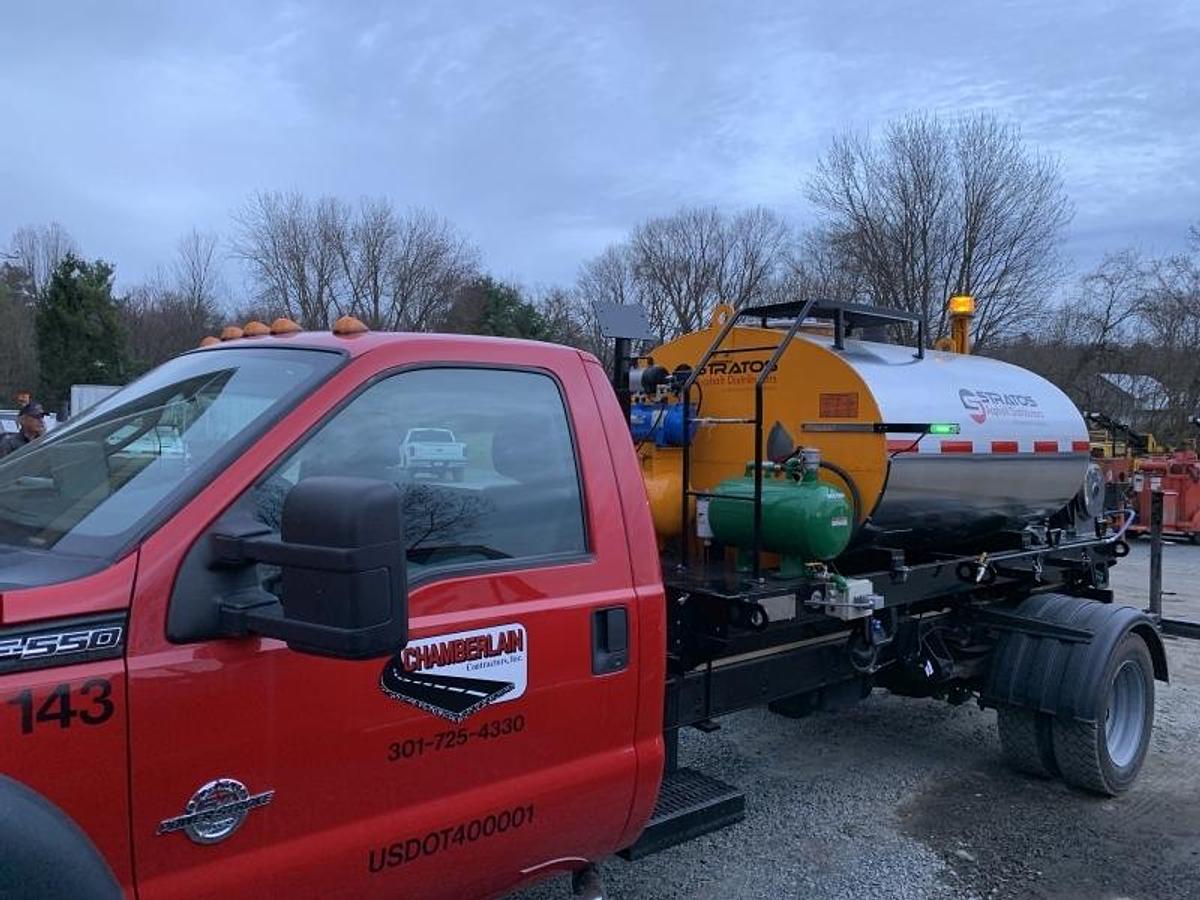

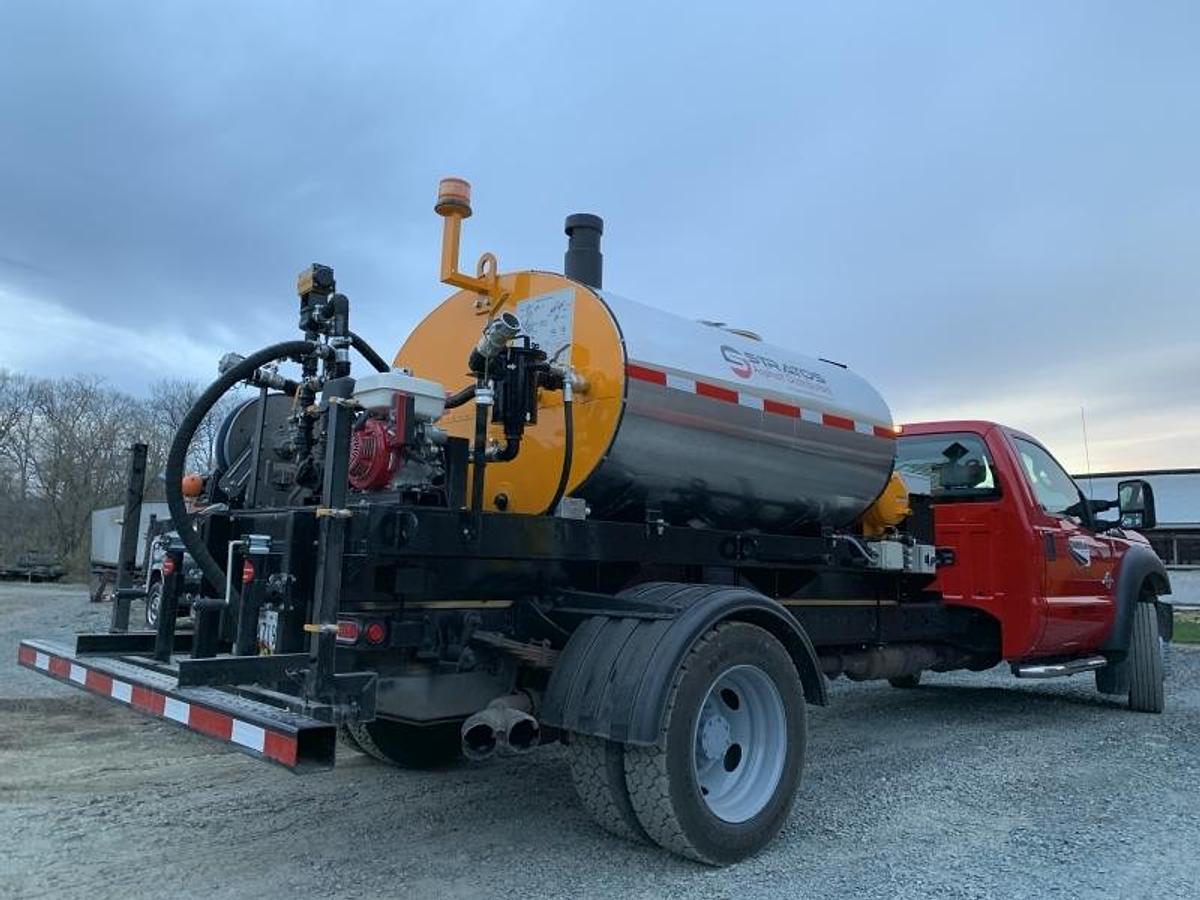

Skid frame for quick mounting to flatbed or your truck chassis' frame-rails
Insulated tank, 2" ceramic wool, aluminum wrapped
Manway, DOT compliant, double folding sealed hatch with strainer and expansion overflow
Twin diesel fired Beckett burners, 350,000 BTU each
Thermostatic material controls, digital, set high-low, view current temp
Temperature sensor gauge, analog

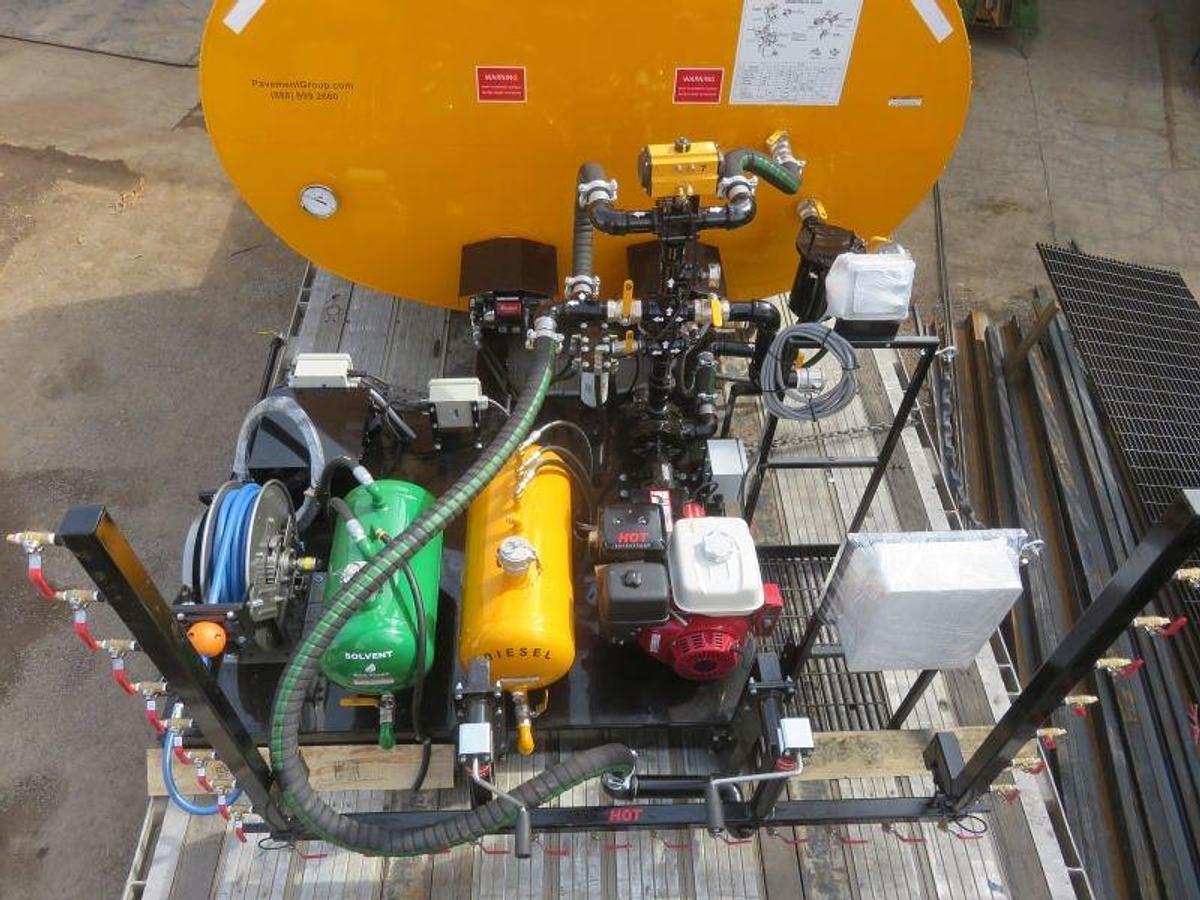

Briggs Vanguard 14hp gas engine, 20amp charging circuit, electric start +pull start
Deep-cell battery package, battery box, voltage meter
Viking 60GPM material pump
In-line strainer basket for easy cleanout
Hose reel by Hannay, spring wound, 3/4" hose, 50’ long
Applicator hand wand, on/off valve and foot valve
Material level gauge indicator
Flush tank system, 10-gal tank
Paint yellow tank, black trailer

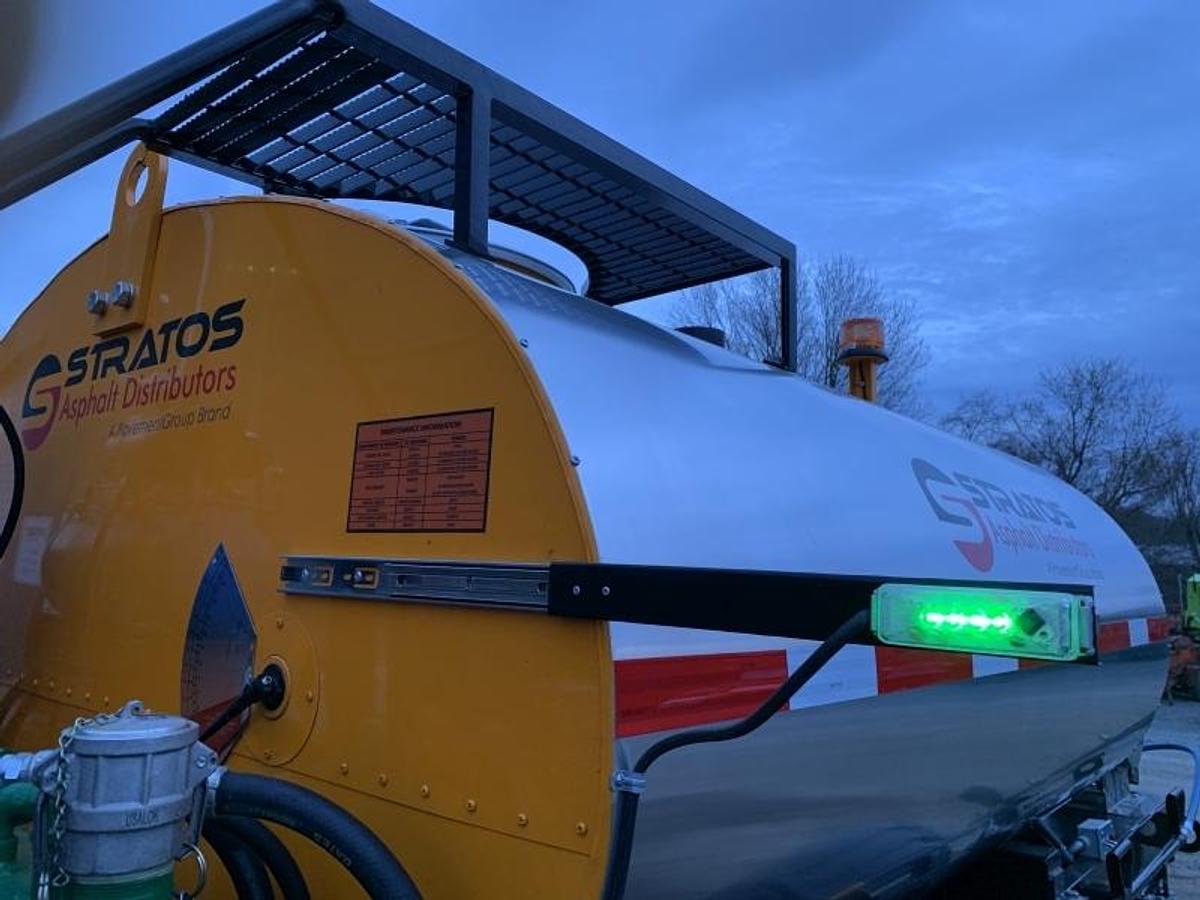

NEW: Side-mounted ladder for a tight fit to the cab
NOTE: Specifications are subject to change without notice. Photos may not reflect the latest configuration, components, paint colors and features of this product. What you'll receive from us is always the latest, most improved STRATOS model. Photos may show equipment with optional equipment.
WARRANTY: 18-MONTH Industry Leading Tank and Frame Warranty
OPTIONS:

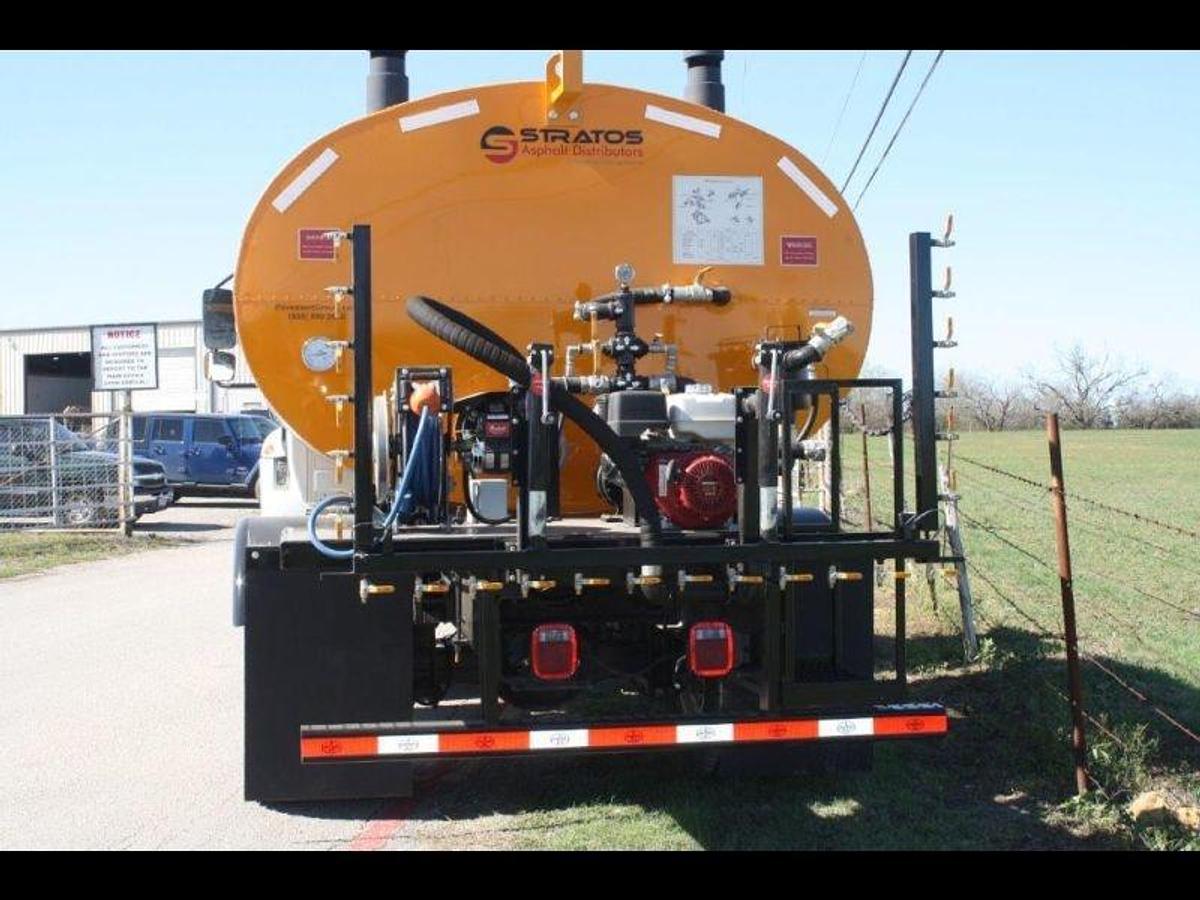

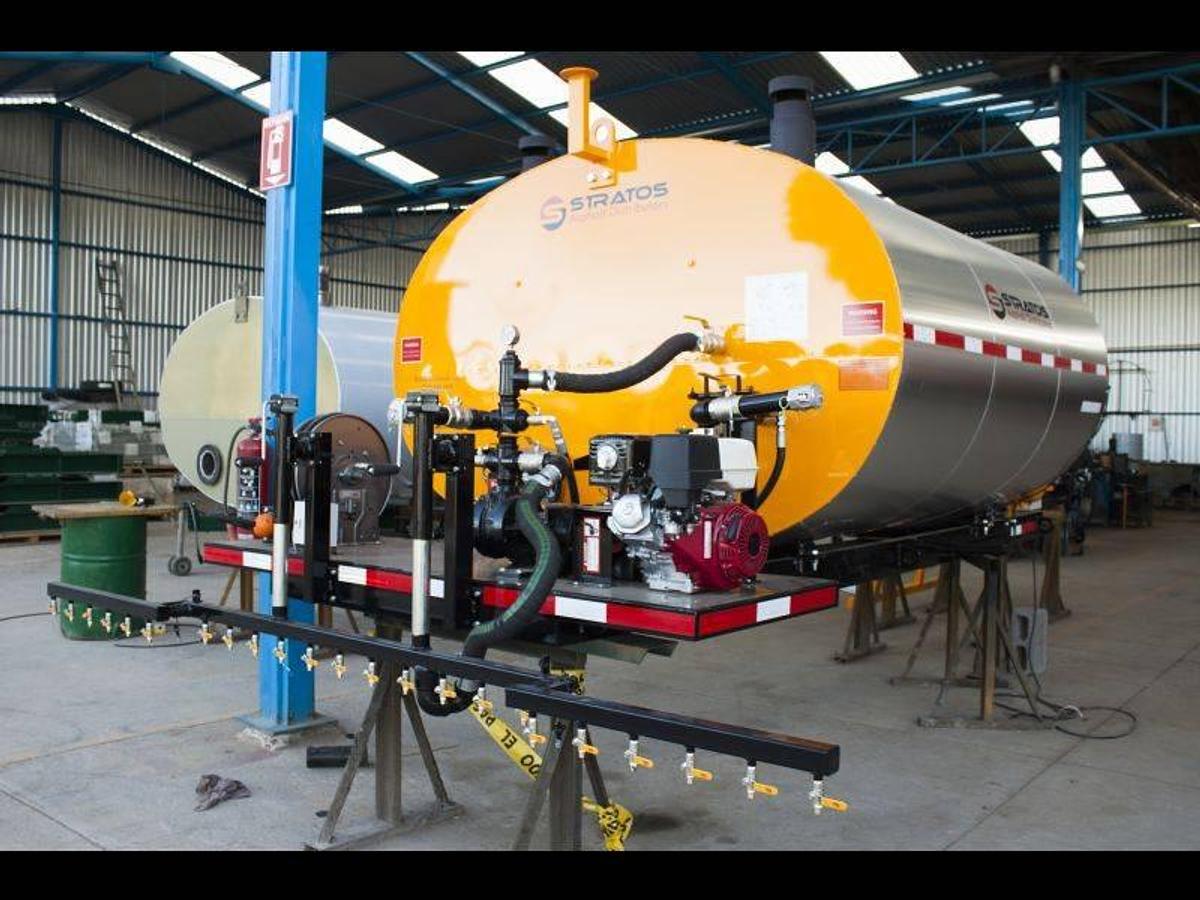

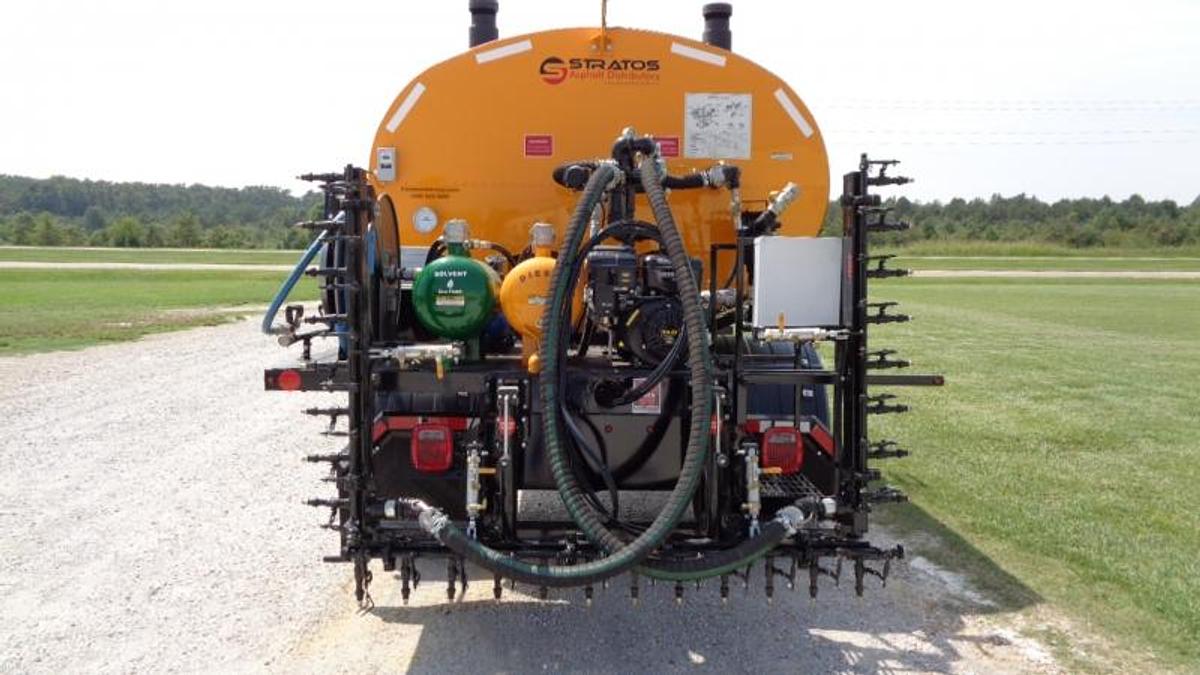

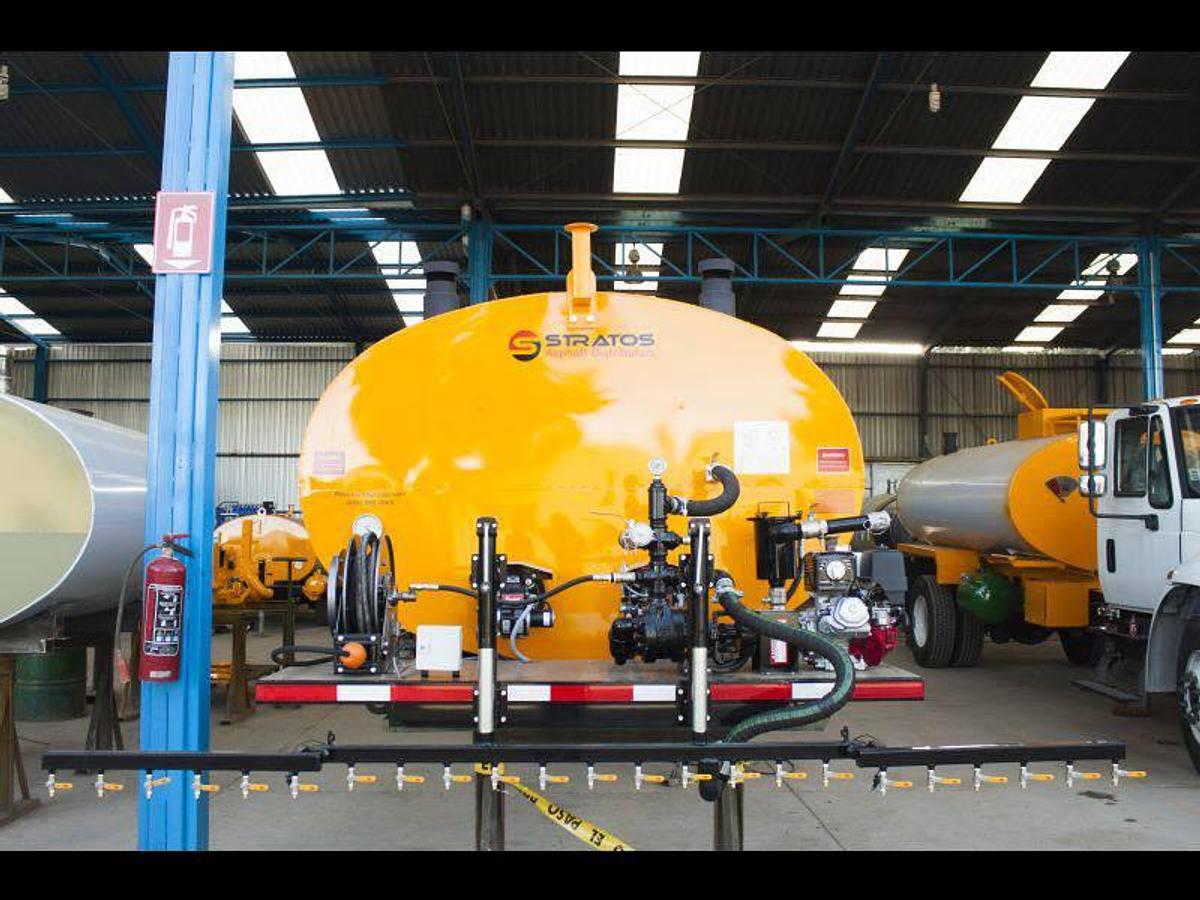

Full Circulating Spray Bar with Dual-Flo and 4 Air-Operated Valve Banks provides you with precise spraying pressure across the tips and instant on/off at the spray tip (Available on Stratos with 60gpm pump, remote control, air brakes or air compressor)

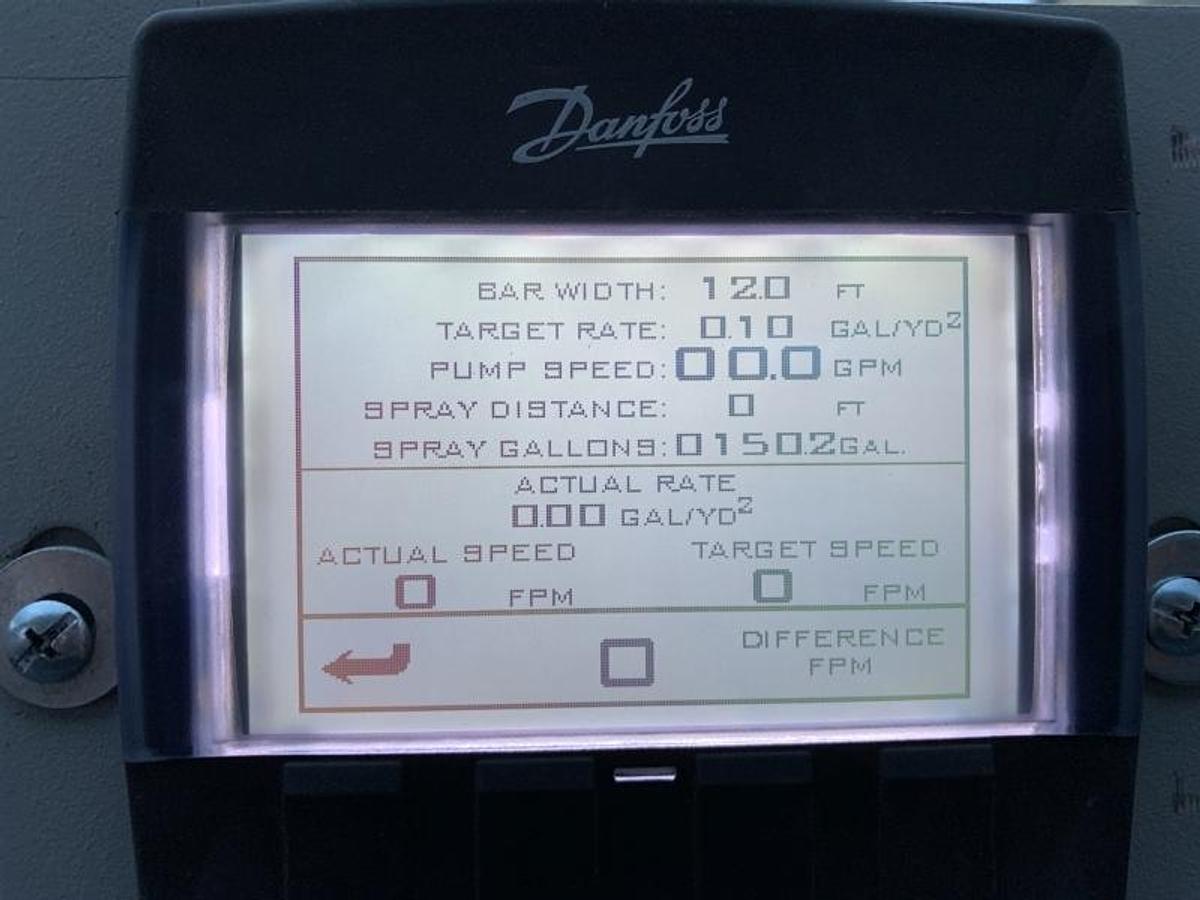

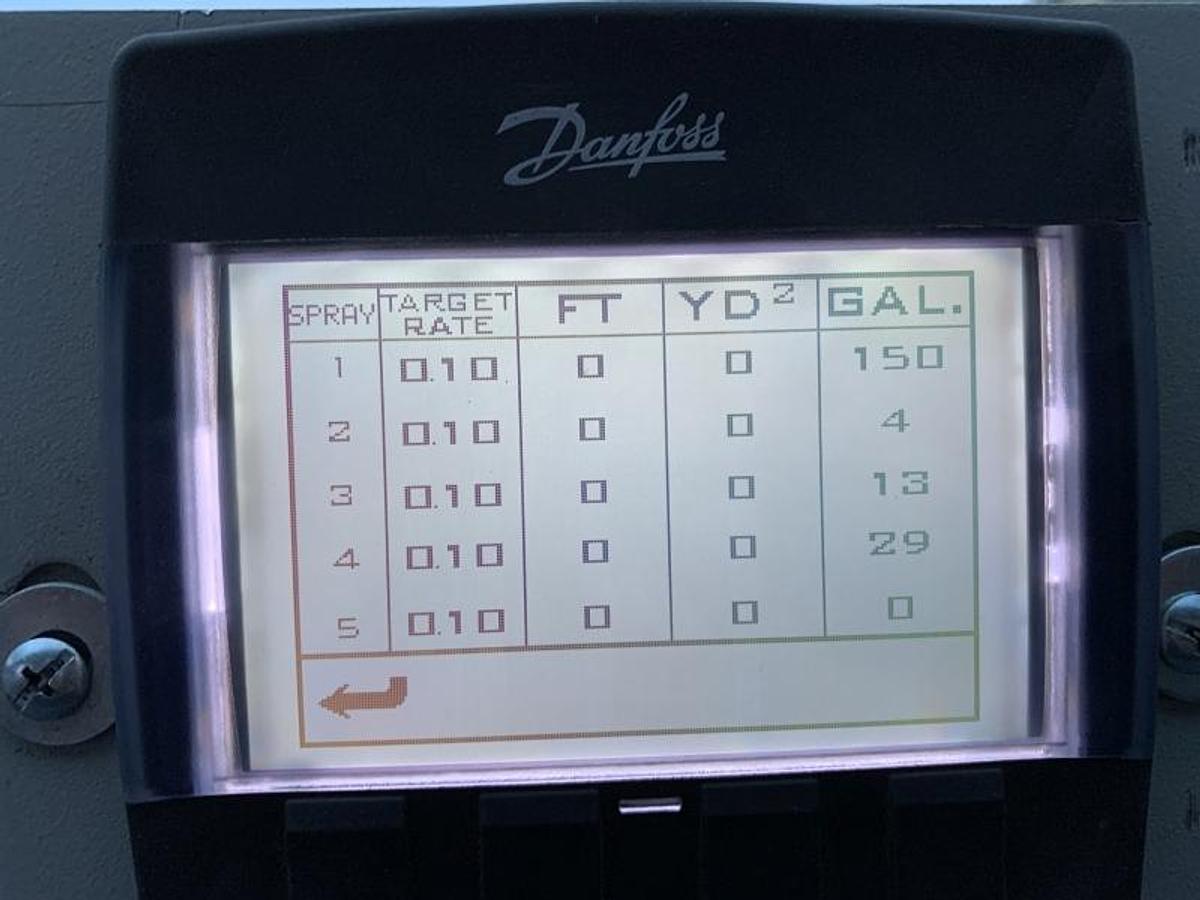

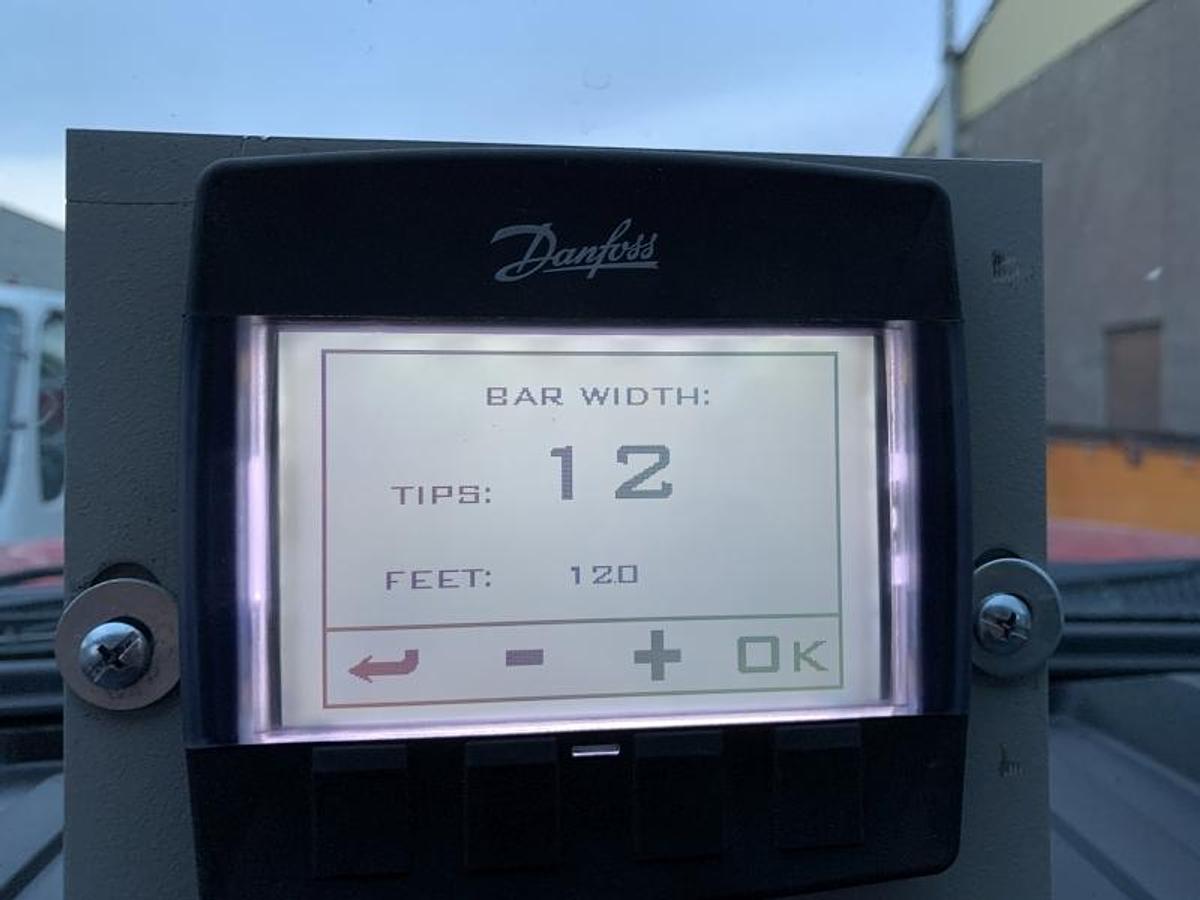

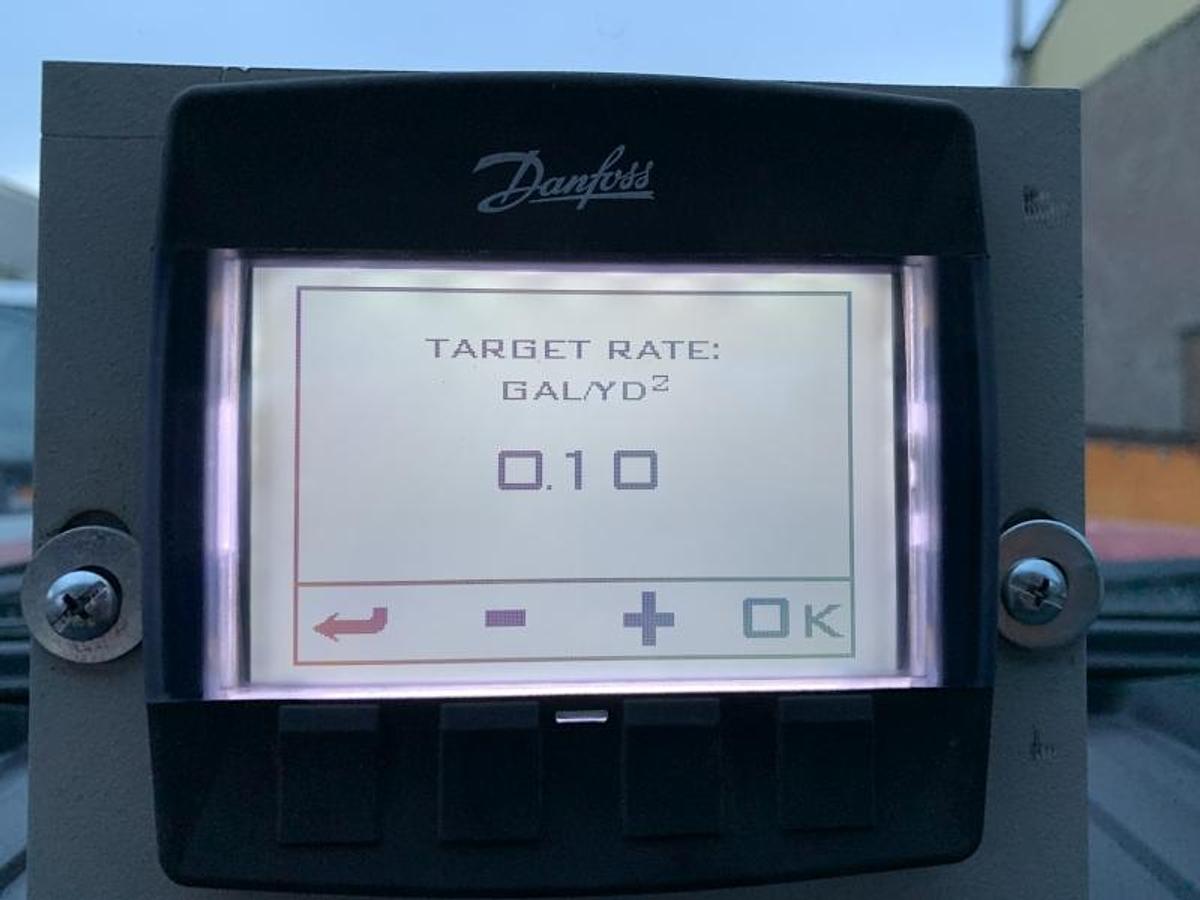

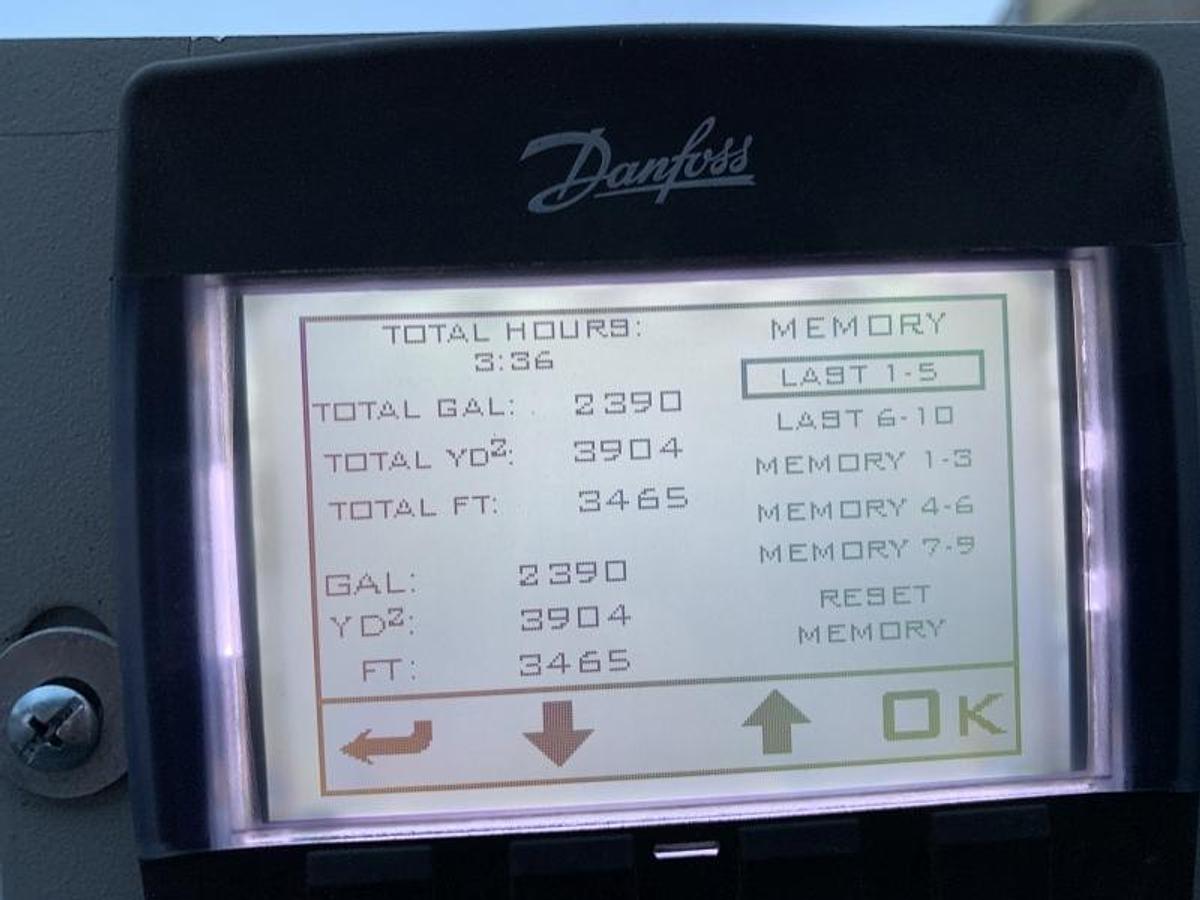

Computer Monitor: Cab mountable digital monitor; on/off spray-bar switch; provides gals/min, gals applied, speed; real-time data and historical data screens. More Details: Our simple to use Danfoss DM430E computer allows the operator to monitor critical functions in real-time; gallons/SY, gallons discharged, trailer speed and distance traveled. The computer also records the last 10 spray operations and the cumulative historical output of spray operations. Spray bar on/off can be toggled directly from the controller. The operator simply inputs the length of spray bar (# of tips) being used to receive real-time volumetric material output reading and ground-speed. The operator can adjust the vehicle speed, as per the computer, for a precise application rate. The monitor includes a 25' cable extension (to reach the truck cab) for in cab mounting.

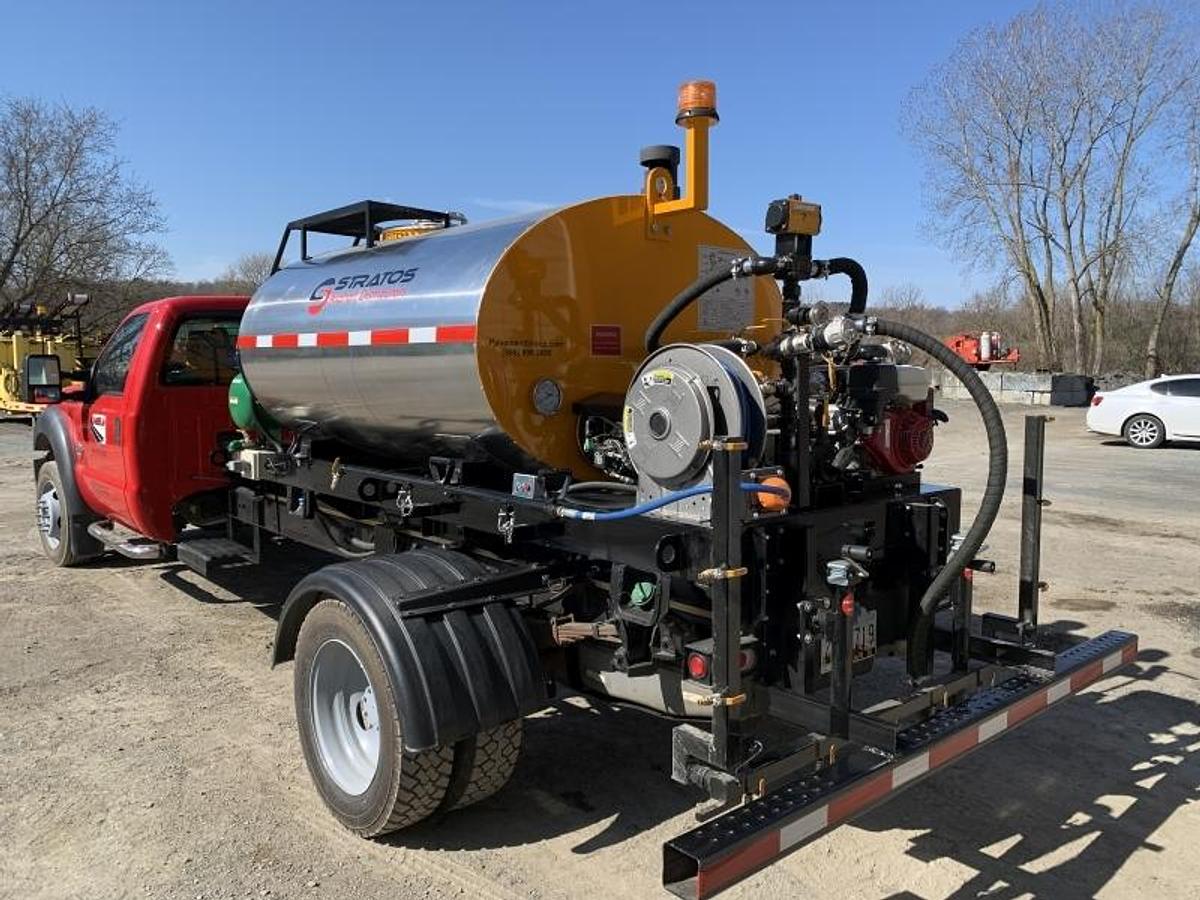

8' Spray Bar, adjustable height, 12" cut-offs, (or 6" cutoffs requires 60gpm pump)
12' Spray Bar, adjustable height, 12" cut-offs (or 6" cutoffs, requires 60gpm pump)
14' Spray Bar, adjustable height, 6" cut-offs (requires 60gpm pump)
Remote spraybar on/off controller package: remote control fob, electrically-activated pneumatic-valve, air compressor, air tank
Overnight heat maintainer (6kW, 220V, 2 phase), thermostat controls
Strobe light (LED, amber, mounted)
Custom color
DIMENSIONS WEIGHT: L 174" (184" with spraybar option) x W 98" x H 92"
DMS-2000- GVWR of 33,000lb
DMS-1500- GVWR of 26,500lb
DMS-1000- GVWR of 19,500lb -26,500lb
DMS-600- GVWR of 16,500lb
DMS-400- GVWR of 16,500lb
Call Today! Pavementgroup.com: 8am-6pm (M-F) 518-218-7676After hours and weekends: call Devin at 330-835-7742
Our equipment is also available through TIP's "The Interlocal Purchasing System." For more information, please visit our listing on TIPS's website. Click here to learn more!
