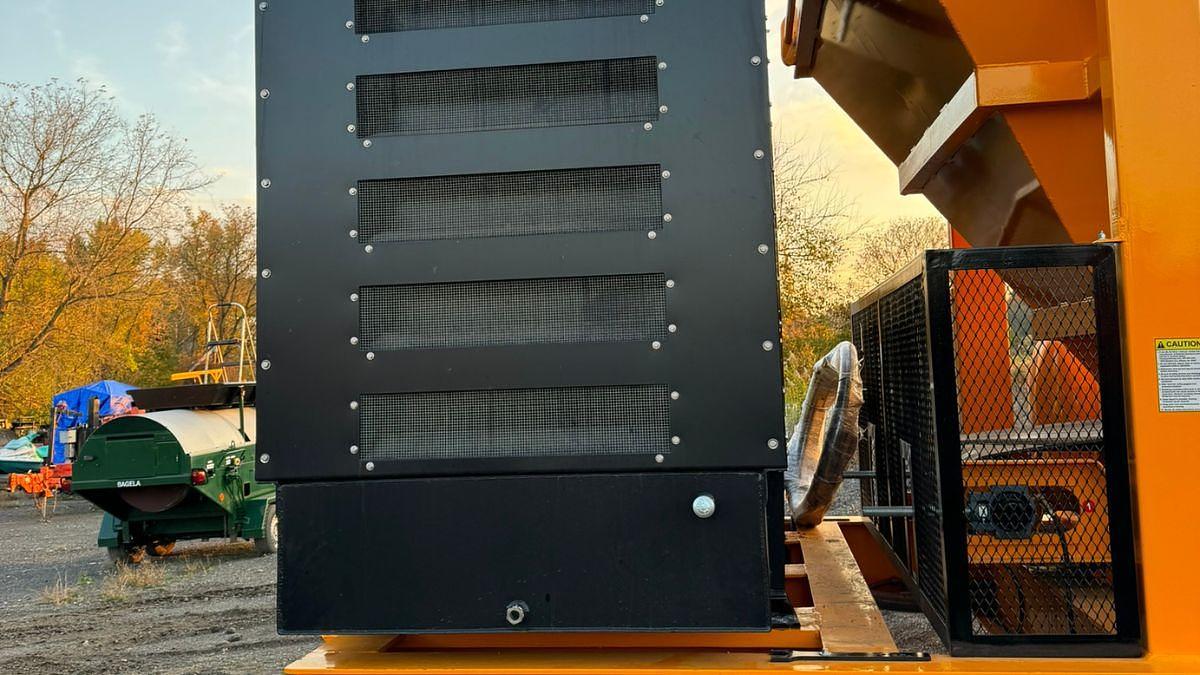

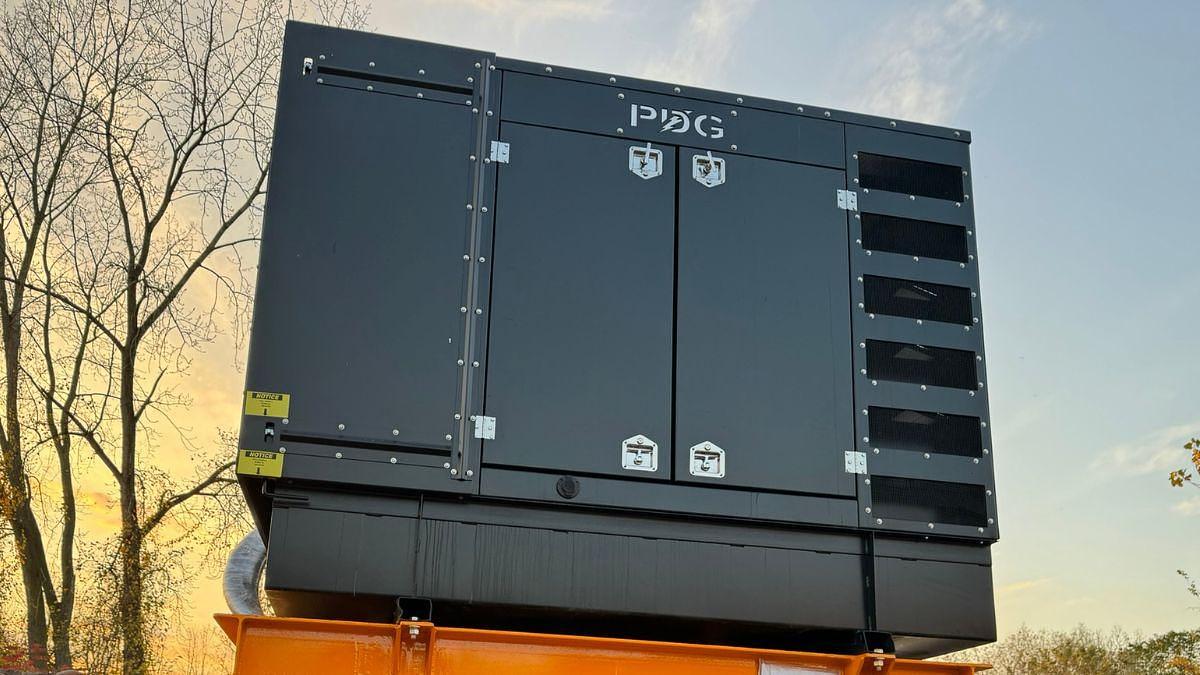

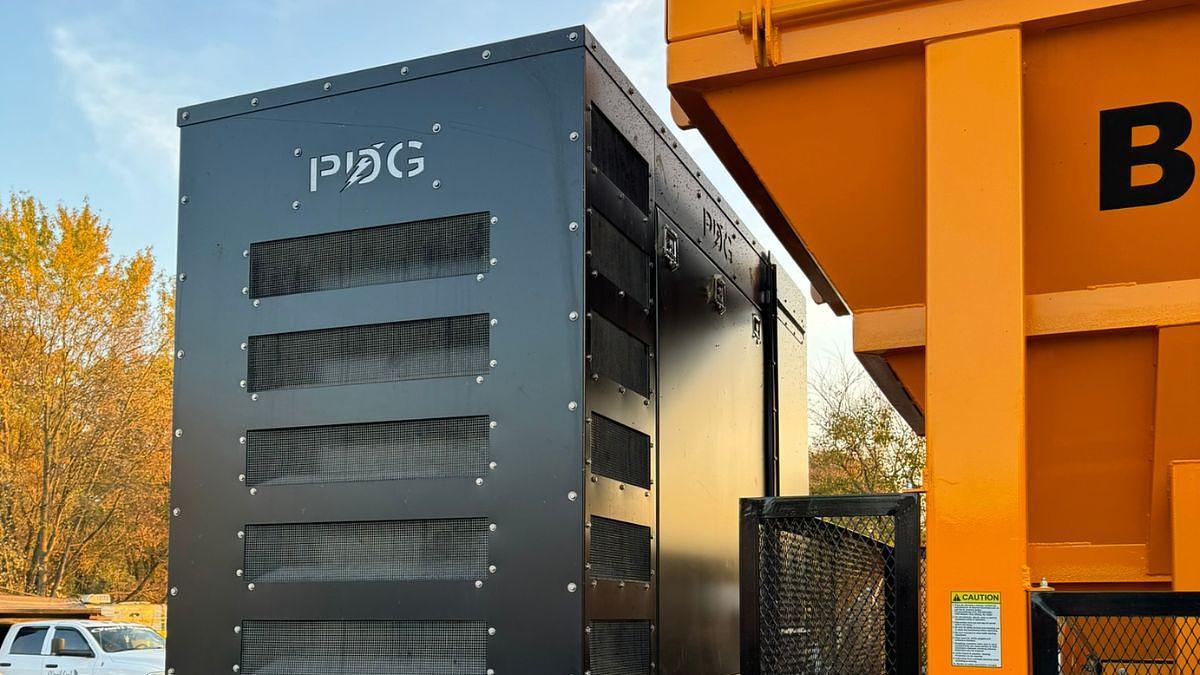

PDG 100 kW Three Phase Enclosed Diesel Generator (Perkins Engine)

PDG 100 kW Three Phase Enclosed Diesel Generator EPA Certified Tier 4 Final

• Hours: 240 Original Hours
• Year: 2023
• PERKINS 1204J-E44TTA Turbo After Cooled Diesel Engine
• Tier 4 Auto Controller Installed & Programmed
• Remote Oil Drain Valve Installed with Hose
• CK-4 Spec 15-40 Diesel Oil & 50/50 Engine Coolant Included
• 1000 Amp Marine Grade Battery
• Residential Grade Aluminized Automotive Muffler
• Assembled, Wired, & Mounted on a Steel Skid with Anti-Vibration Motor Mounts
• Low Oil Pressure & High Coolant Temp Shutdowns are Standard
• 3 Phase Alternator to be Wired for 277/480
• Main Disconnect Breaker - 150 Amp
• 3 Pole
• 480 Volt
• NEMA 1 Installed, Wired
• Battery Charger – 9 Stage Genset Battery Charger / Maintainer 6 Amp 12 V
• Installed Enclosure – Level 1 Acoustic
• A4 Acoustic Enclosure Featuring Echo-X ™ Technology
• Industrial Grade Powder Coated Aluminum Enclosure with Steel Skid
• UL-94, MVSS 302, & HF-1 Certified, Foil Backed, Level 1 Sound Attenuating Acoustic Foam Installed.
• Large Access Doors with Locks for Security and Ease of Maintenance
• All Stainless-Steel Latches and Hardware
• Includes Locking Door for Key Start or Auto Controller
• Attenuator Slide Out
• Fuel Tank - 200 Gallon Double Wall
