Olympus Mini-HERCULES pugmill system - IN STOCK

Olympus Mini Hercules 80 TPH portable pugmill for sale.

Demo Unit in very good condition

Manufactured 2022

Location Selkirk, NY 12158

Lightly used

Fully serviced

PavementGroup Certified Pre-Owned

30 Day Parts Warranty

For more information or to set up a site visit give us a call at 518-217-7676

Night and Weekends call Devin: 330-835-7742

General Information related to Olympus, model: min-HERC pugmill:

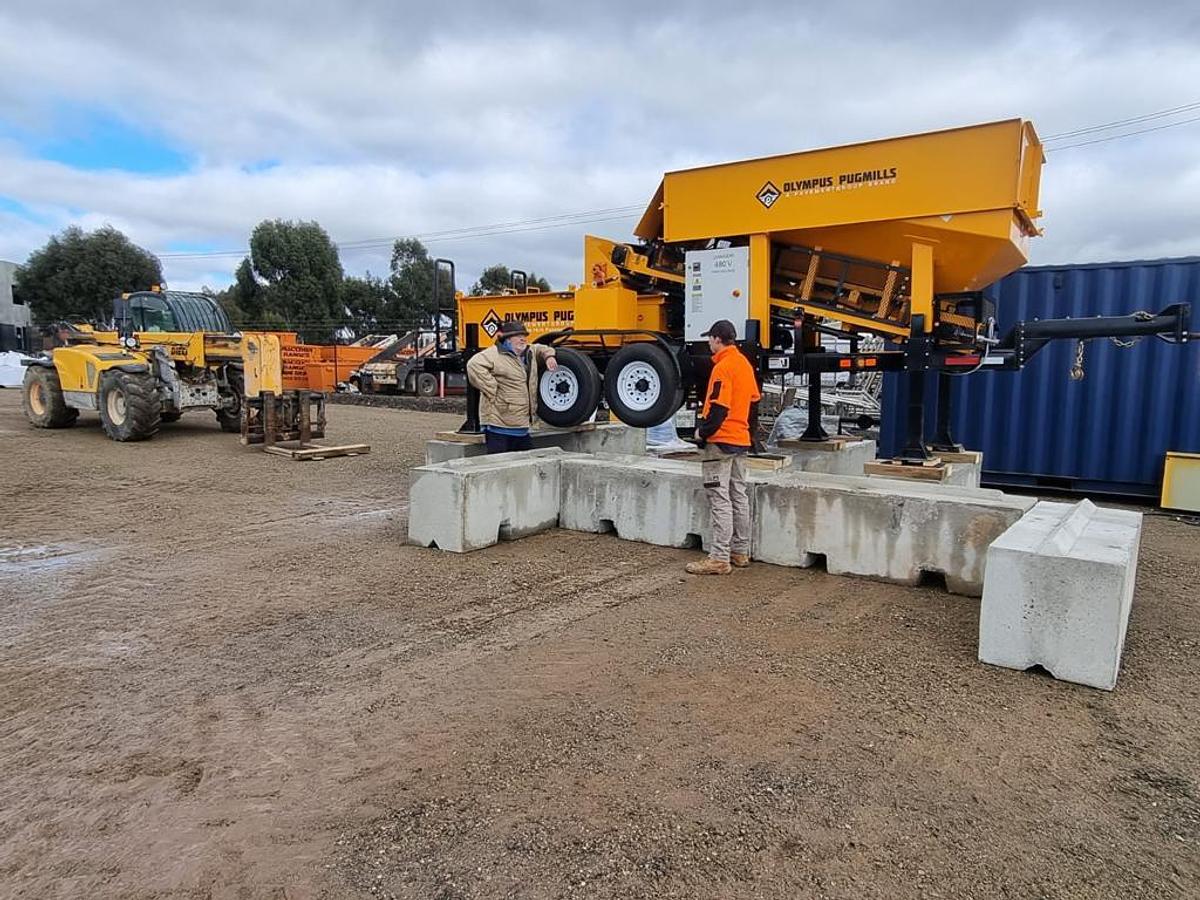

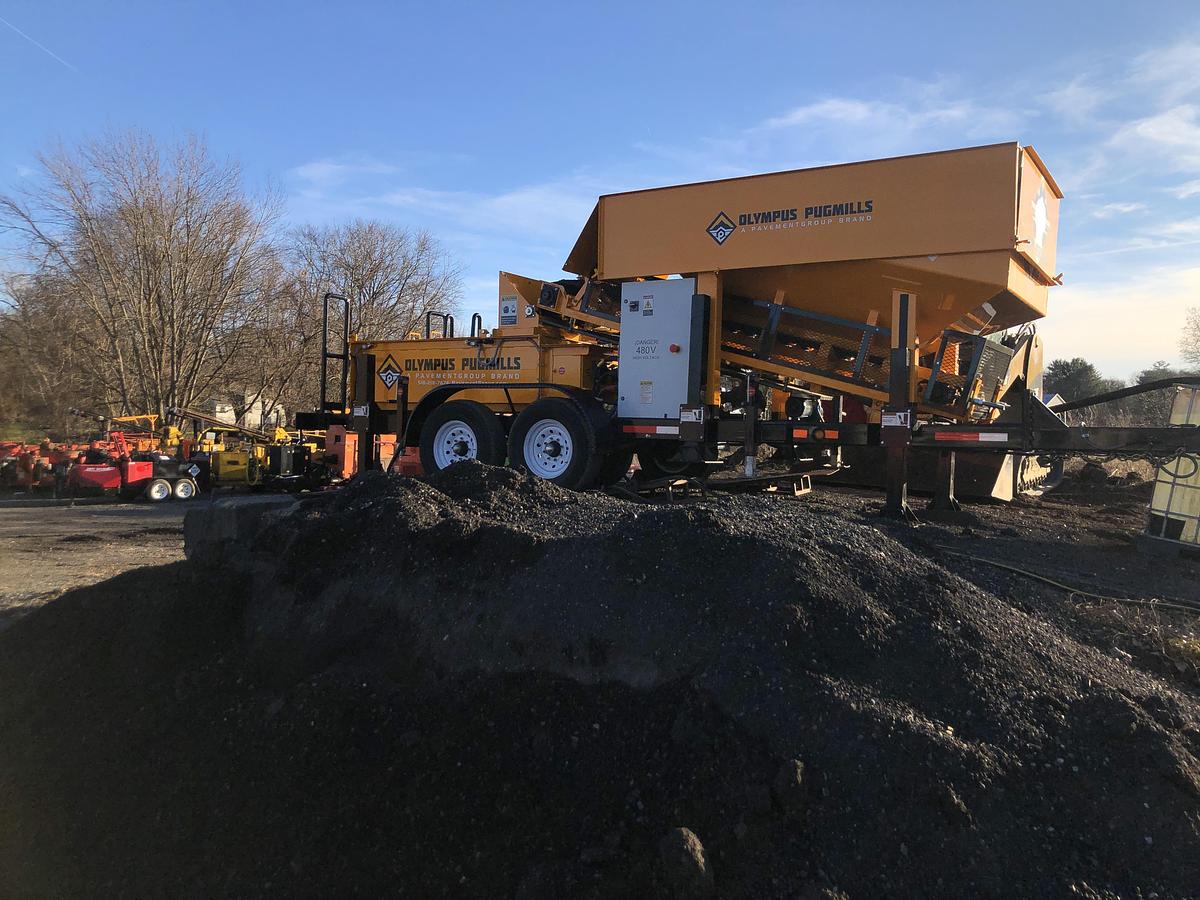

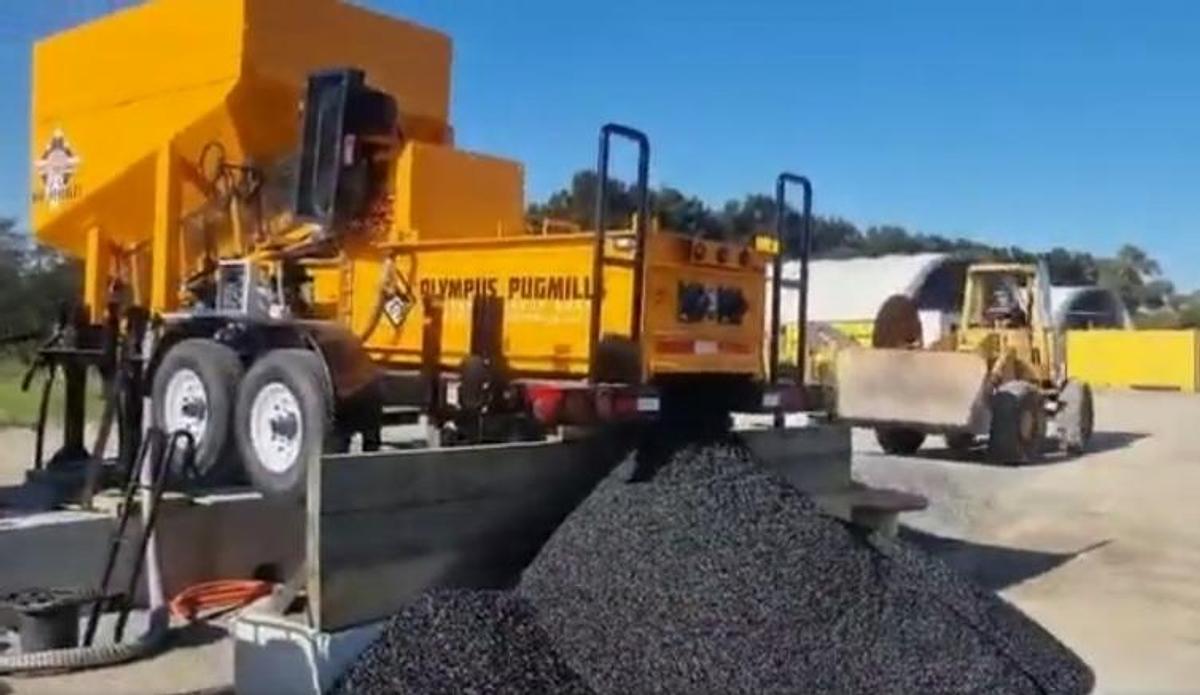

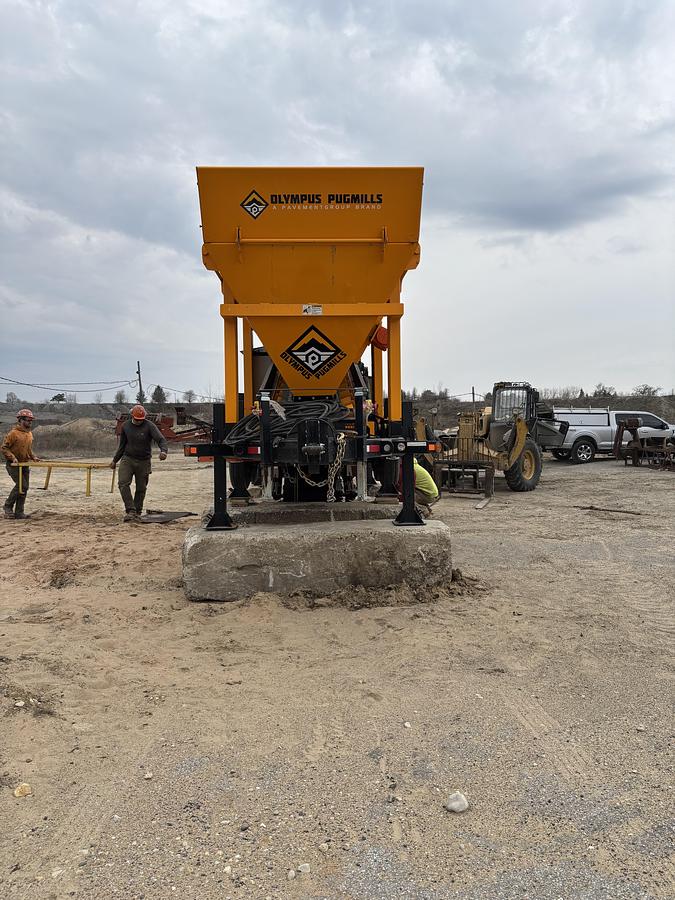

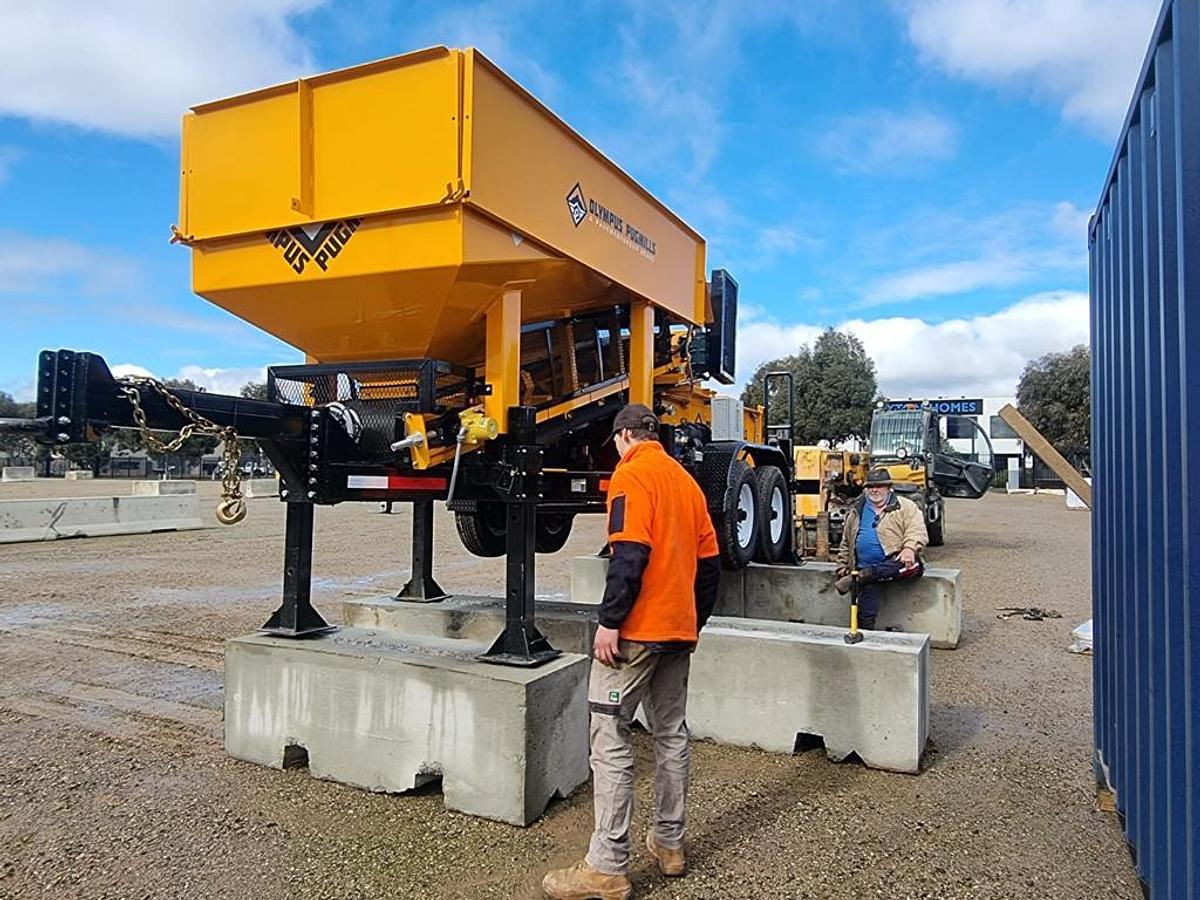

The Olympus Mini-HERCULES Portable Pugmill System is a compact, trailer-mounted blending plant built for contractors and producers who need a portable, affordable, and practical solution for on-site mixing.

At about 10,000 lbs., the Mini-HERCULES is designed to be towed by a pickup truck, making it easier to mobilize, position, and transport than larger pugmill systems.

Overview

The Mini-HERCULES combines a twin-shaft pugmill, belt scale, Danfoss monitoring and control system, and a compact cold feed bin with fold-up extensions in a layout designed for portability, controlled blending, and practical field service.

This portable pugmill system is built for contractors who need a machine that can be moved easily, loaded easily, and adjusted for a range of mix designs without the footprint or transport burden of a larger plant.

Standard Equipment

• Variable 40–80 TPH nominal output
• Twin-shaft pugmill
• Adjustable bin gates
• Reversible chromium paddles
• Replaceable Hardox liner
• 24" vulcanized collecting conveyor belt
• Troughed idlers
• Belt scraper
• Martin Engineering belt skirt system
• 20 HP pugmill drive motor
• 7.5 HP collecting conveyor motor
• Belt scale / load cell system
• Danfoss monitoring and control system
• Cold feed bin with fold-up extensions
• Tactile operator controls with clean, simple switchgear and potentiometer-style adjustment
• Pintle ring hitch with adjustable height channel
• Adjustable landing legs
• Dual axles with ABS
• Marathon electric motors
• Dodge reducers
• Pugmill door limit switches
• Emergency stop buttons
• Lockout / tagout safety provisions
• Rock and rain guards over control panels
• Covers over motors and pumps
• Safety guards over belts

Cold Feed Bin

The cold feed bin is designed to stay compact for transport while still providing practical loading capacity on site.

• Approx. 4 cubic yards capacity with extensions down
• Approx. 7.8 cubic yards capacity with extensions raised
• Fold-up extensions for compact towing
• Can be loaded from ground level with 3 sides up
• Suitable for loading with a skid steer or full-size loader

Controls and Proportioning

The onboard Danfoss monitoring and control system is designed to be intuitive and easy to use without unnecessary complexity. For operators who prefer tactile controls, the Mini-HERCULES layout also uses straightforward switches, forward/reverse controls, and potentiometer-style adjustment for key functions.

Operators can:

• Enter material density
• Set bin gate opening
• Adjust belt speed
• Adjust water percentage
• Adjust emulsion percentage
• Adjust efficiency calibration—after matching belt scale to truck scale readings—to correct variance.

This gives the operator practical control over proportioning and helps improve production consistency in the field.

Pugmill Blending System

The pugmill uses reversible chromium mixing paddles with abrasion-resistant surfaces mounted on twin shafts and driven by a high-torque electric motor. The replaceable Hardox liner helps extend wear life and supports long-term serviceability.

Applications

The Mini-HERCULES is suited for a range of blending and mixing applications, including:

• Cold mix asphalt production
• Soil cement
• Lime treated base
• Cement treated base
• Soil blending
• Soil stabilization
• Base stabilization
• RAP cold mix production
• Fly ash blending
• Flowable backfill
• Environmental remediation
• Salt blending
• Sand blending
• Colored or dyed sand for athletic fields
• Specialty material mixing

Warranty

• 18-month warranty on bins and frame
• OEM component warranties apply to eligible third-party components as provided by their respective manufacturers

Larger Olympus HERCULES Portable Pugmills

For higher production requirements, PavementGroup also offers larger Olympus HERCULES portable pugmill systems in nominal capacities from 100 to 750 TPH.

Speak With a Pugmill Specialist

For pricing, questions and availability, call today: 518-218-7676

After hours and weekends call: C: Devin 330-835-7742 or Mark C: 518-577-9975

Frequently Asked Questions

Can the Olympus Mini-HERCULES pugmill be towed by a pickup truck? Yes. The Mini-HERCULES weighs about 10,000 lbs. and is designed to be towed by a pickup truck.

What is the nominal output of the Mini-HERCULES? The Mini-HERCULES offers variable 40–80 TPH nominal output, depending on material and operating conditions.

Can the Mini-HERCULES produce cold mix asphalt? Yes. The Mini-HERCULES is designed for cold mix asphalt production and can also be configured for water and asphalt emulsion proportioning with optional equipment.

What materials can the Mini-HERCULES blend? The system is suited for cold mix asphalt, soil cement, lime treated base, cement treated base, sand blends, colored or dyed sand for athletic fields, and other specialty material blending applications Are larger Olympus pugmill systems available? Yes. Larger Olympus HERCULES portable pugmill systems are available in nominal capacities from 100 to 750 TPH.
