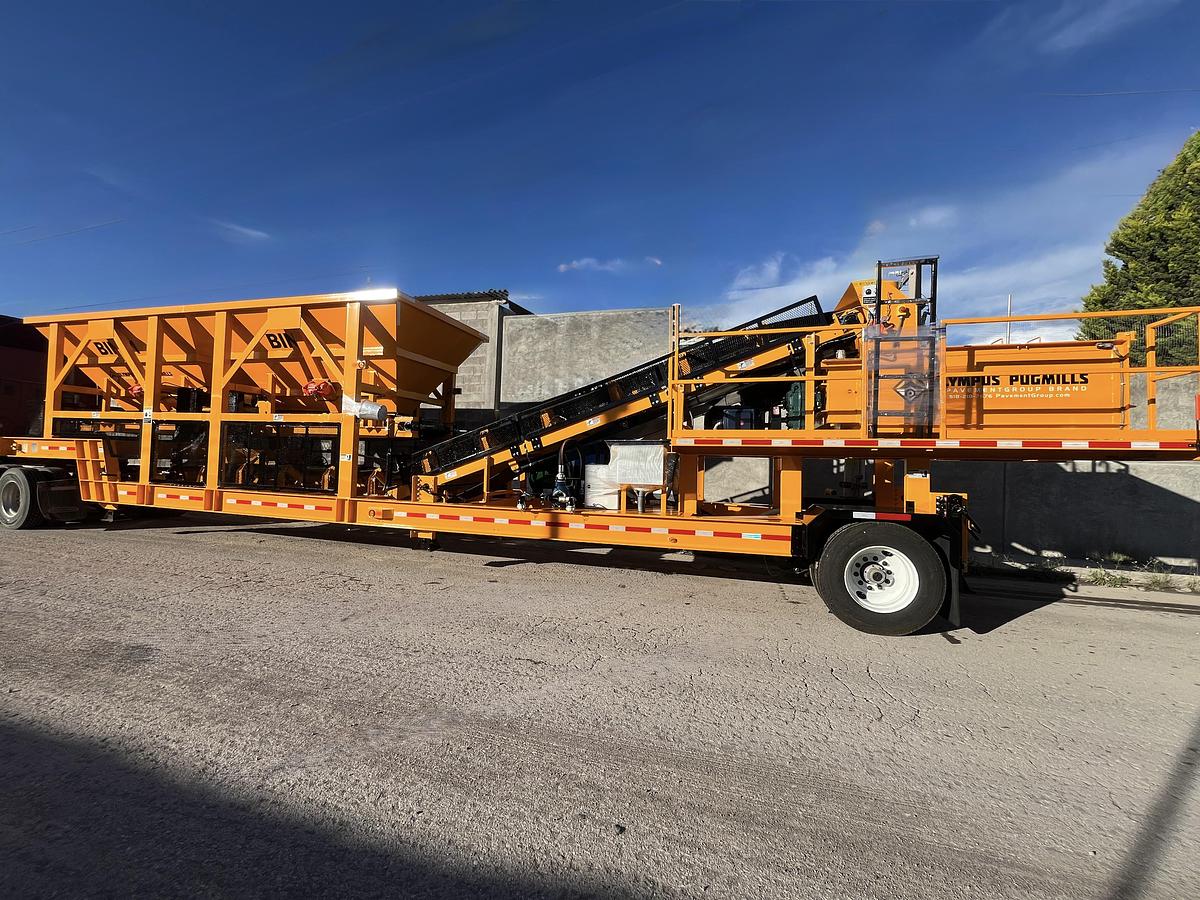

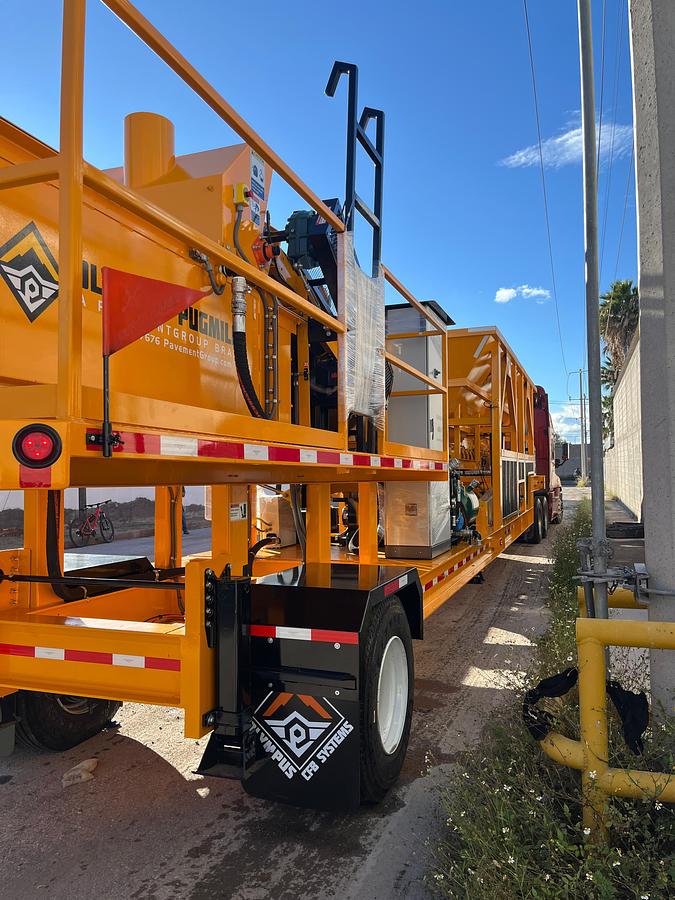

Olympus 300 TPH Portable Pugmill Plant

Our most popular configuration for field-proven production

The Olympus 300 TPH Portable Pugmill Plant is a continuous twin-shaft mixing system built for producers, contractors, and agencies requiring controlled blending in a portable configuration. Designed for practical field operation, the 300 TPH model emphasizes dependable service access, proven OEM components, and straightforward Danfoss-based controls without unnecessary complexity. Standard nominal capacities across the line range from 100 to 750 TPH.

These plants are in service with leading U.S. contractors, producers, and public agencies, including Phillips & Jordan, All States Materials Group (Gorman Brothers), Pilot Rock, and Jennings County, Indiana.

Standard Features

Pugmill

• Nominal Output: 300 TPH
• Pugmill: Twin-shaft continuous mixer
• Mixer Dimensions: 7' L x 3'7" W x 2'10" H
• Chamber: A-36 1/4" steel pugmill chamber
• Liner: 1/4" Hardox 500 replaceable bottom liner plates

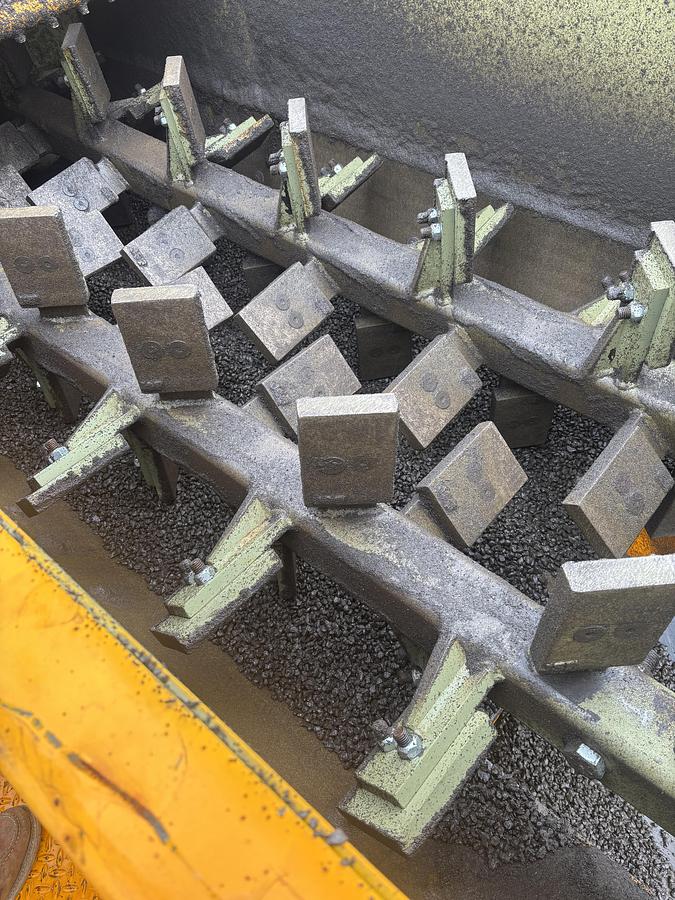

• Shafts / Paddles: Twin shafts with reversible steel-chrome paddles
• Pugmill Drive: 60 HP electric motor with Dodge reducer

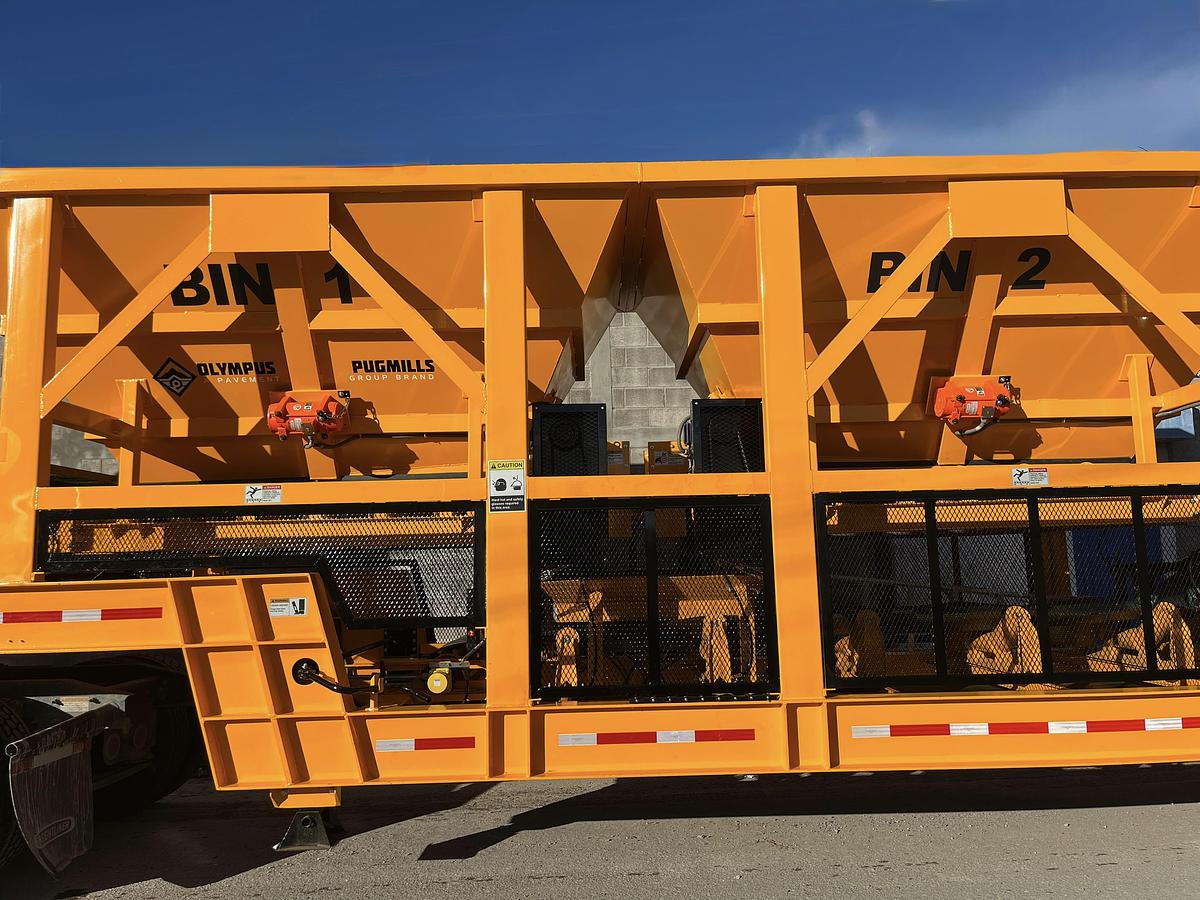

Bins / Feed System

• Primary Bin: 7.8 yd³
• Additional Bins: 7.8 yd³
• Bin Belts: 24" triple-ply vulcanized feeder belts
• Bin Drives: 5 HP electric motor-reducer on each bin with frequency inverter

Collecting Conveyor

• Collecting Conveyor: 30" triple-ply vulcanized main conveyor
• Collecting Conveyor Drive: 10 HP electric motor with frequency inverter
• Skirting: Martin Engineering skirt system
• Collecting Belt Scraper: Self-adjusting belt scraper
• Belt Calibration Weight System: Built in

Controls / Electrical

• Controls: Danfoss DM430E PLUS+1 monitor / control system
• Control Panel: Digital monitor with system readings and tactile individual component controls
• Electrical System: NEMA IP65 enclosure for drives and frequency inverters
• Power: Shore power hookup
• Electrical Cabinet Protection: Rock and rain covers on all electrical cabinets
• Motor / Pump Protection: Protective covers on motors and pumps

System Features

• Pump Feed Lines: Dual-side feed lines for water and emulsion pumps
• Spray Bar: Spray bars top mounted, entry-side of pugmill

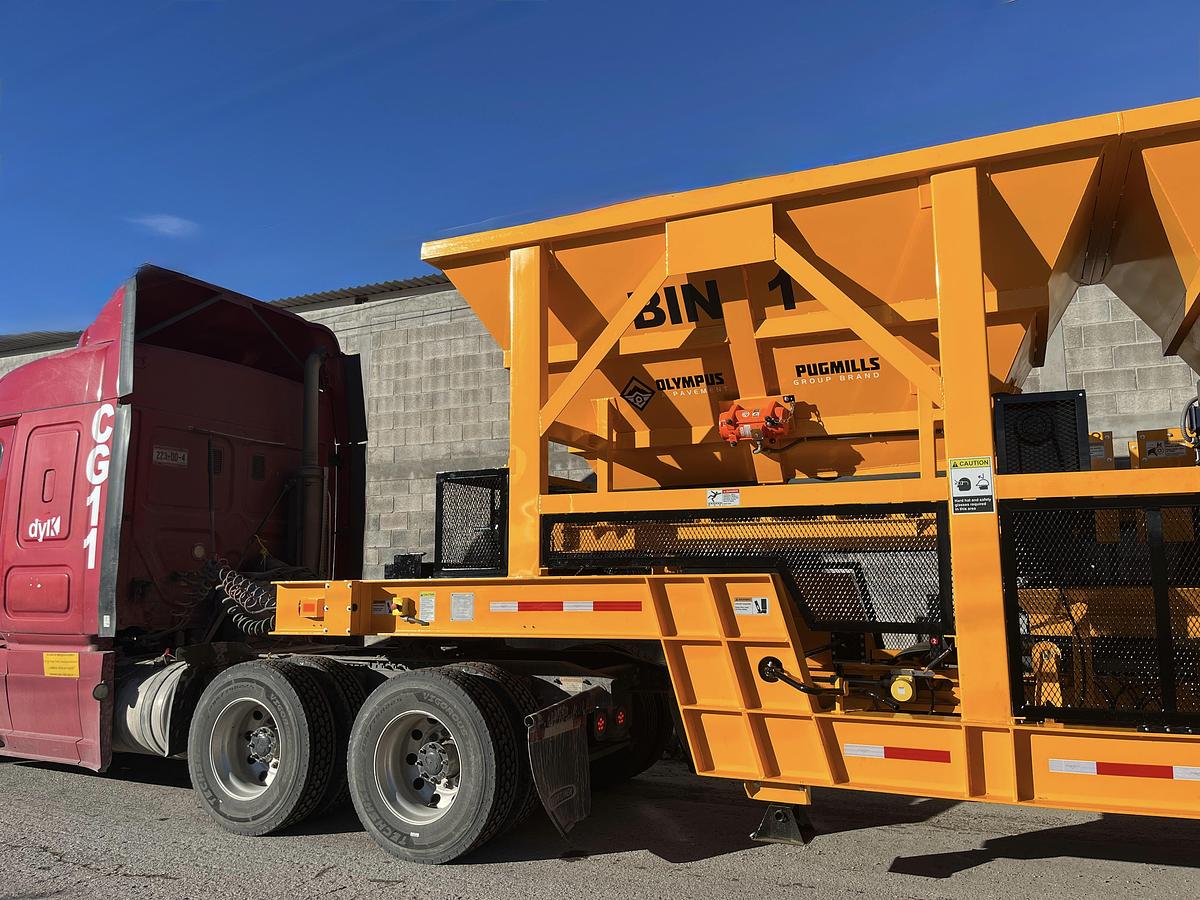

Portability

• Trailer: Tandem axle portable trailer
• ABS: on all axles
• Tow Setup: 5th wheel with king pin
• Landing Legs: Adjustable landing legs

Safety

• Safety: (5) E-stops, safety guards, limit switch for mixing chamber covers, safety decals, and railing along pugmill catwalk

Available Configurations and Options

Configurations

• 1-bin, 2-bin, 3-bin, and skid-mounted configurations
• Olympus pugmill systems available in 100, 200, 300, 500, and 750 TPH nominal capacities
• 12' bins on 1-bin, 2-bin, and 3-bin configurations

Drive / Capacity Upgrades

• Higher-capacity 7.5 HP bin belt drive motors
• Higher-capacity 15 HP collecting conveyor drive motor

Liquid / Additive Systems

• Water pump and metering package
• Asphalt pump package
• Flush tank system
• Coriolis metering system
• Horizontal cement silo with feeder and Danfoss tie-in

Conveyor Options

• Belt scales / weigh bridge system
• Discharge / stacking conveyor
• Collapsible discharge conveyor
• Hydraulic controls for collapsible discharge conveyor
• Backstop on discharge conveyor to prevent rollback and spillage beneath conveyor

Additional Options

• VIBCO vibrators with timers
• Bomb-bay bottom cleanout doors on pugmill
• Low bin level indicators
• Disc-style return rollers
• Self-cleaning tail pulley
• Onboard generator
• Remote operator controls / customer control station tie-in
• Optional PLC-based automation package (coming soon)
• Additional configurations, options, and custom setups available

Typical Applications

Roadway / Base / Asphalt

• Cement-treated base
• Lime stabilization
• Fly ash stabilization
• Cold mix asphalt
• RAP blending
• Flowable fill

Soil / Environmental / Industrial

• Roller compacted concrete
• Soil cement
• Soil stabilization
• Soil remediation
• Salt and aggregate blending
• Sludge solidification
• Industrial and municipal material mixing

Warranty

• 18-month warranty on bins and frame. OEM waranty on components.
