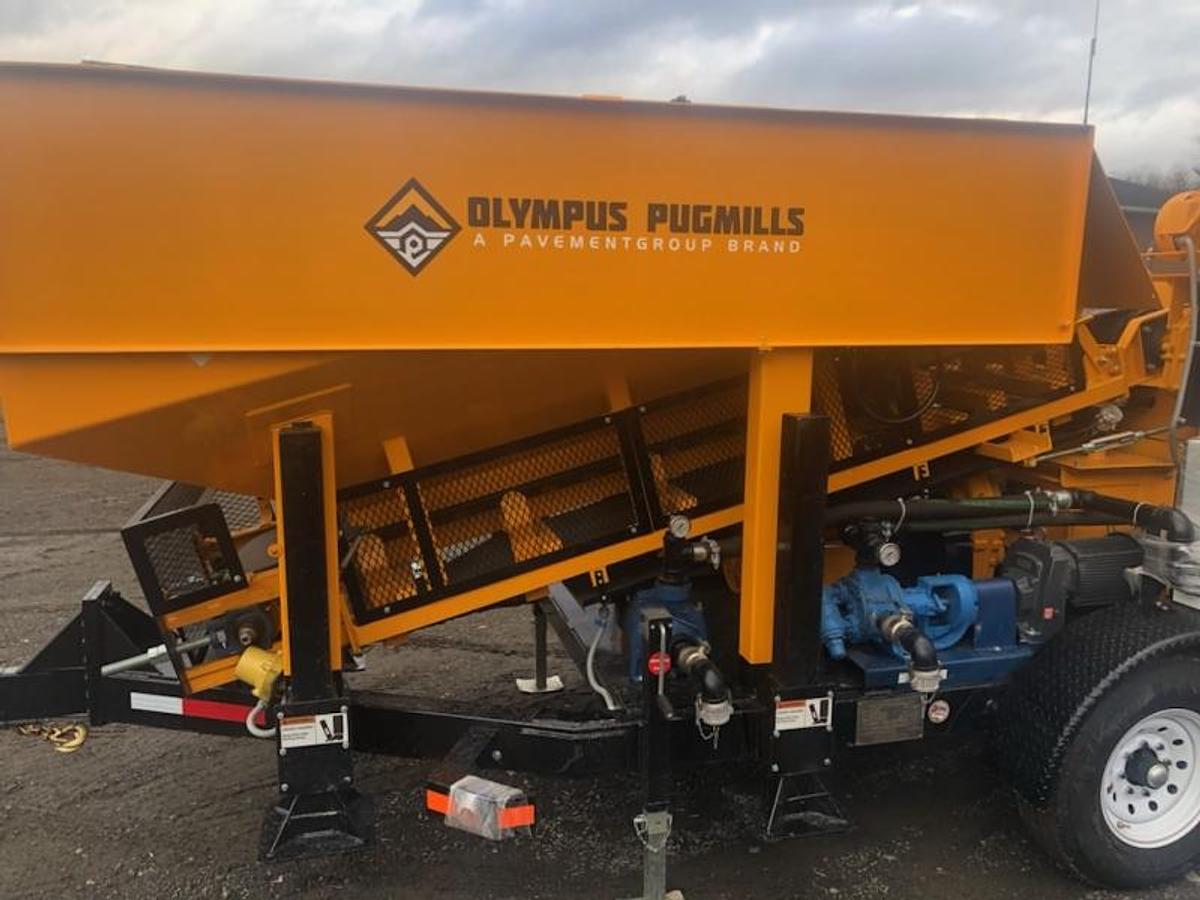

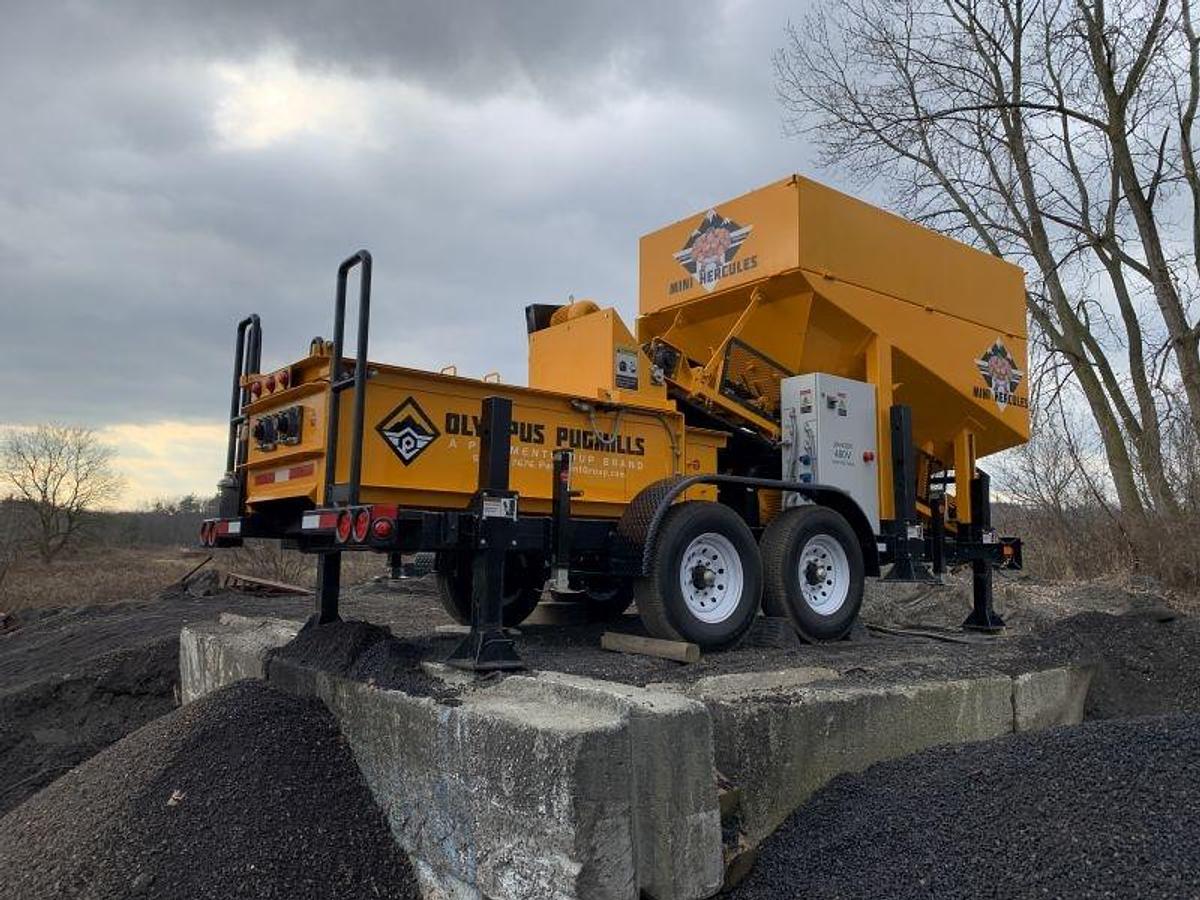

Olympus Mini-HERCULES pugmill system

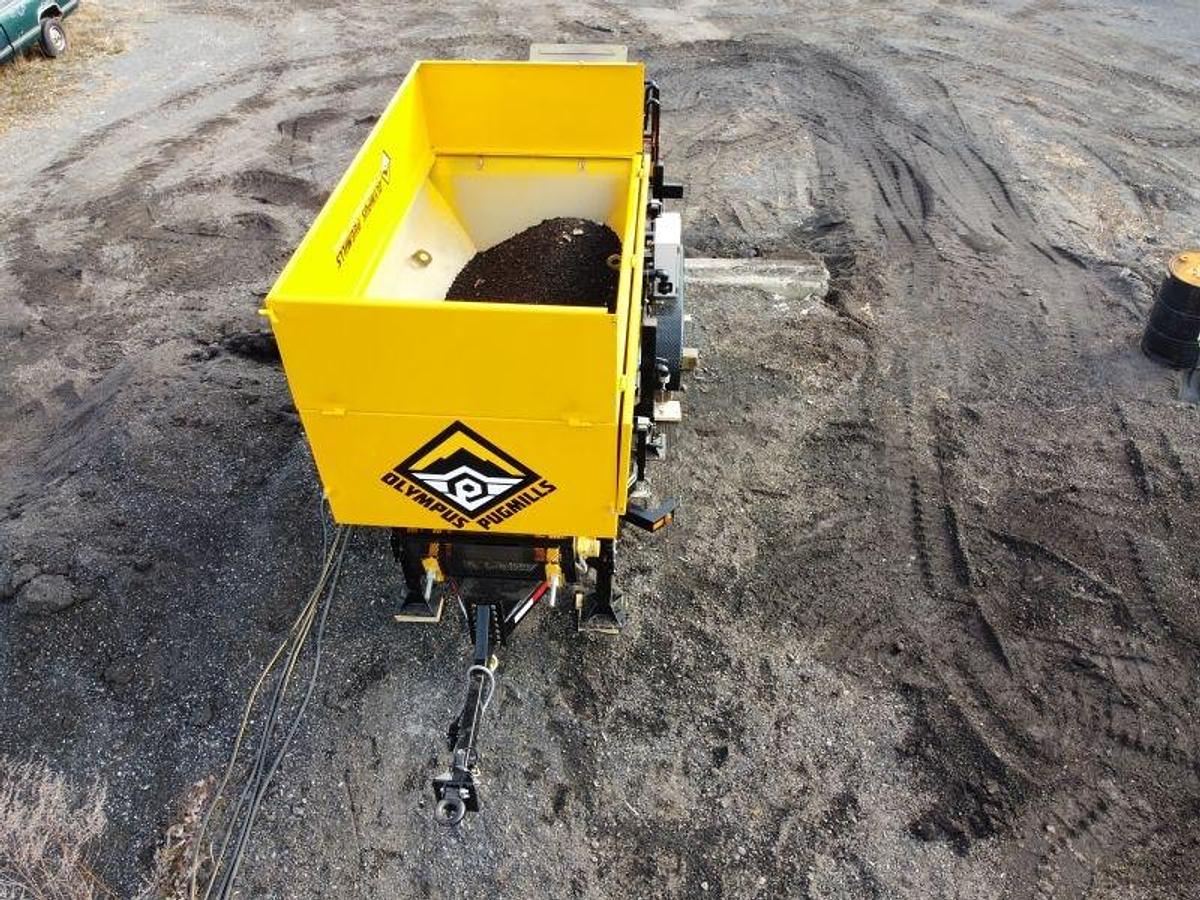

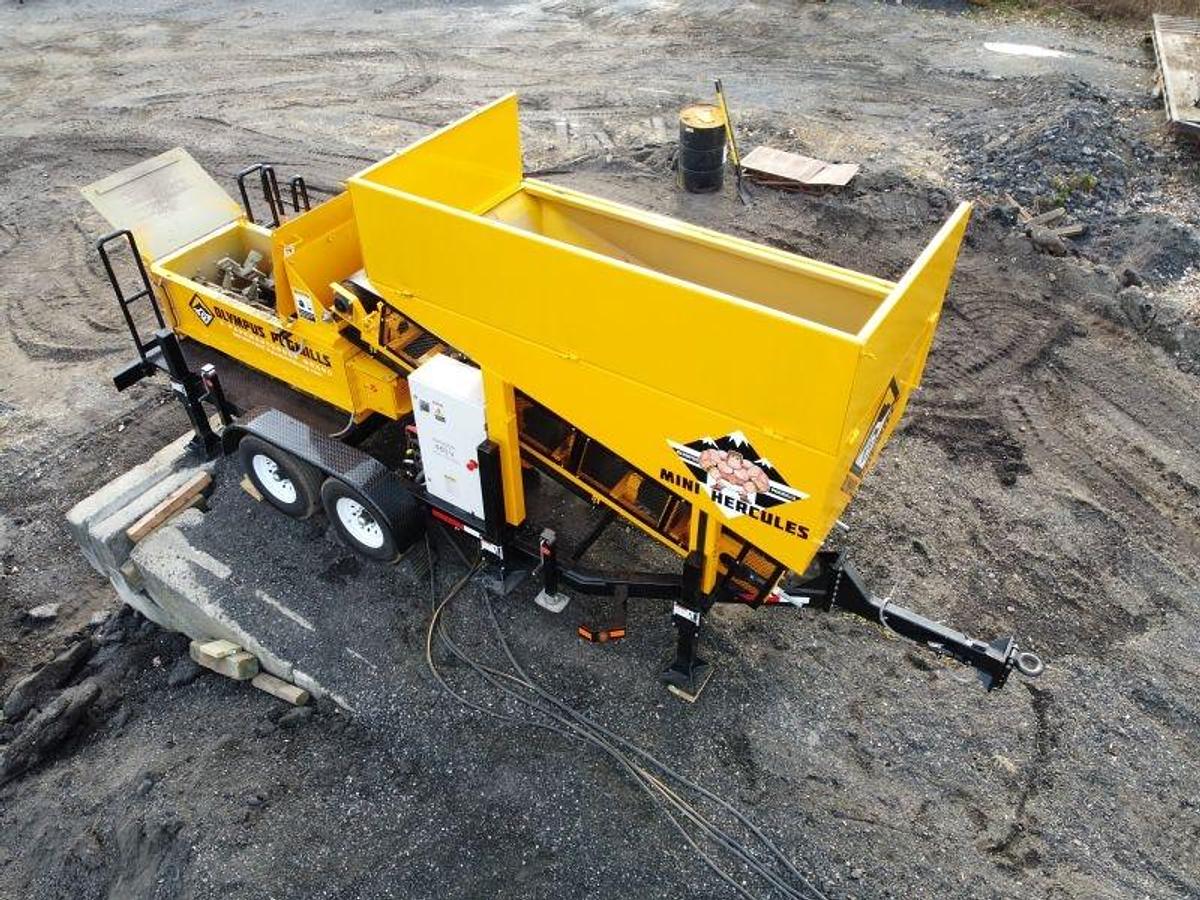

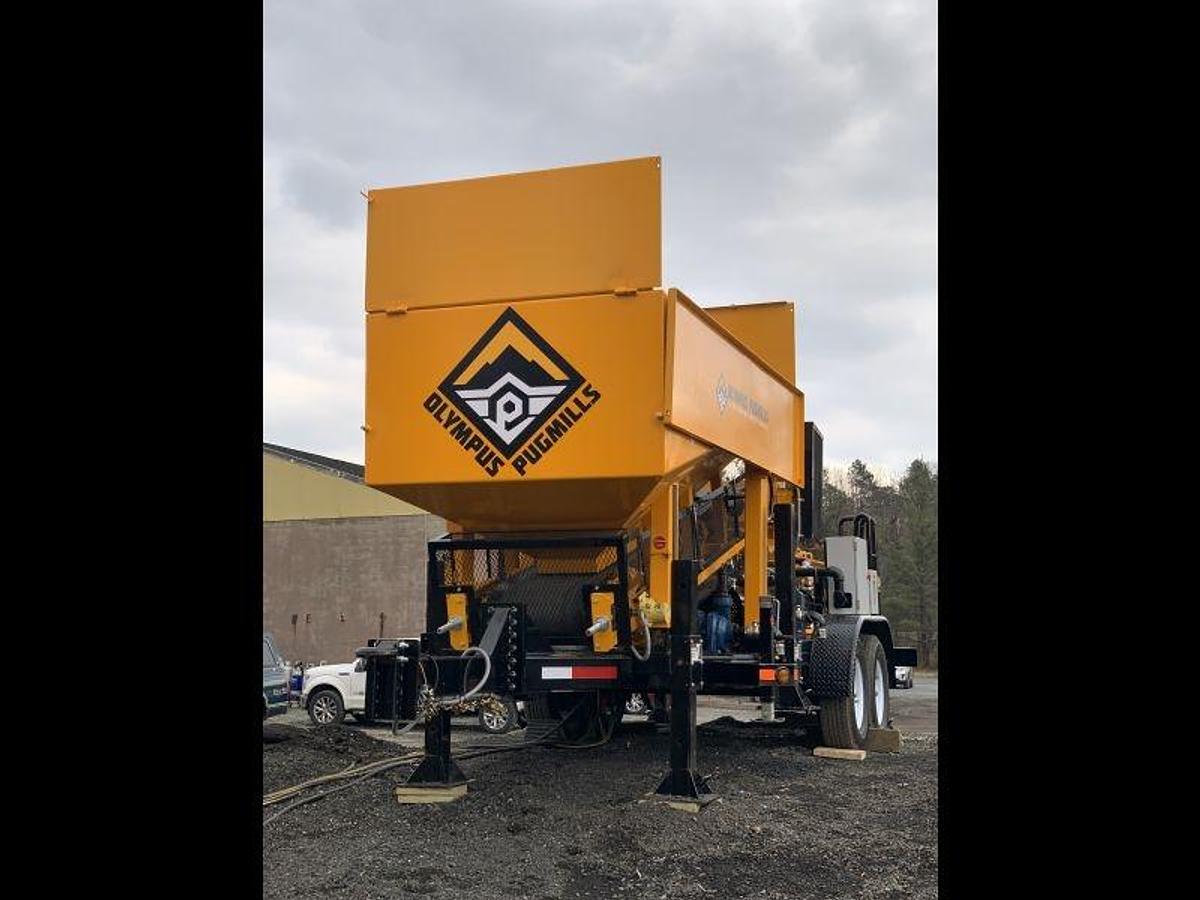

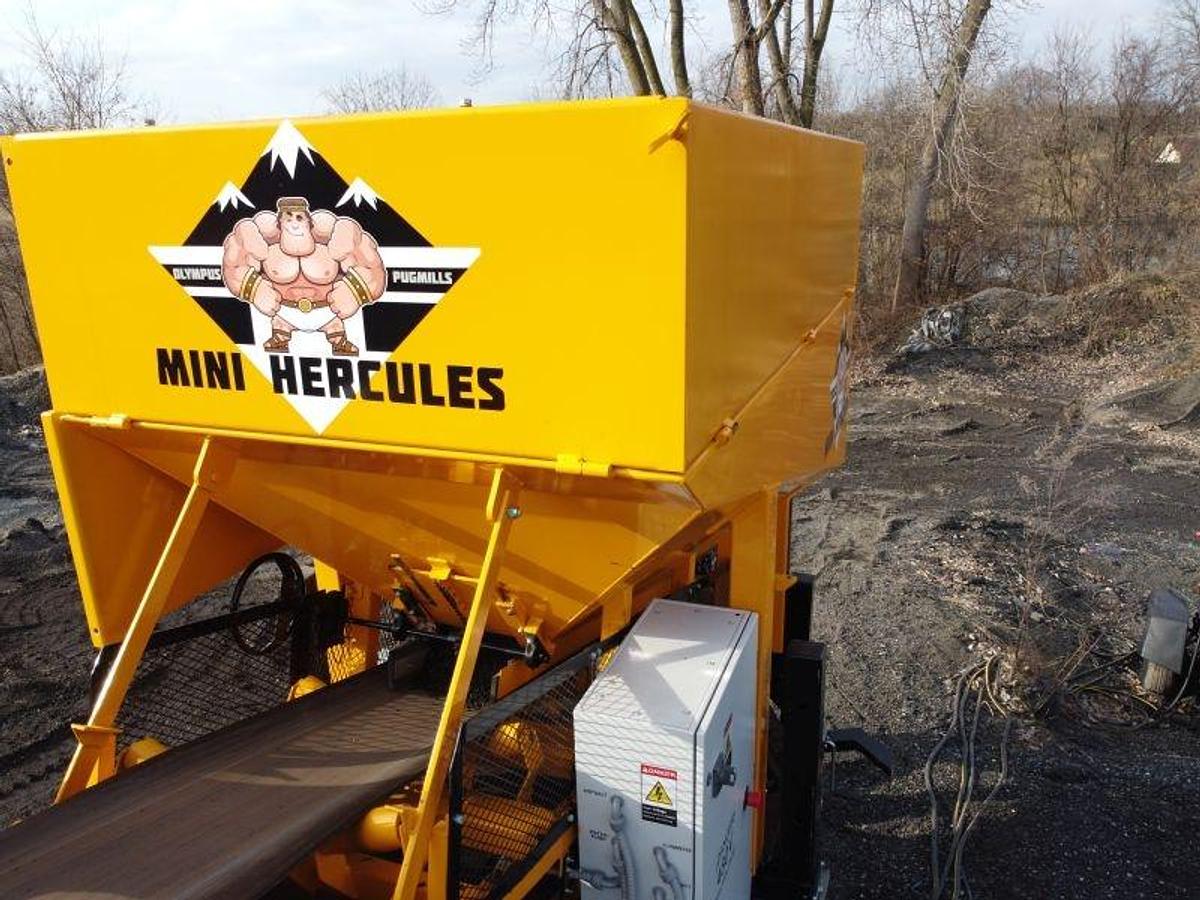

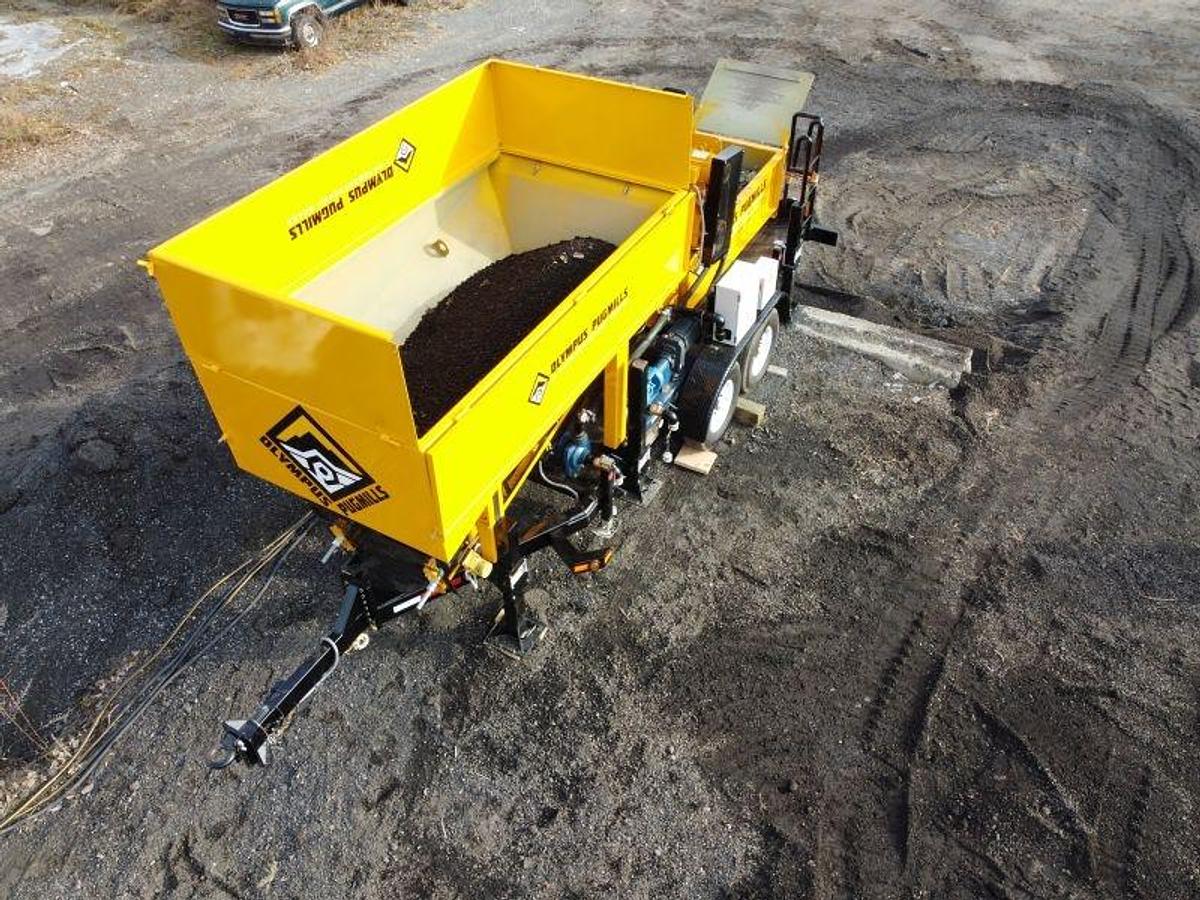

The Olympus mini-HERCULES pugmill system weighs in at about 10,000Lbs. Tow it with a pickup truck! The compact design makes the mini-Hercules pugmill highlymaneuverable and easy to tow, without the need for a CDL driver. Standard features include a variable 1-100tph output from the pugmill system, a belt scale and Danfoss computer for precise output. Options include a water pump, flow meter and an asphalt pump. The uniquely engineered cold feed bin incorporates fold up extensions in the compact design, providing 7.3cy of capacity when raised, 4cy when down, and theability to easily load from the ground with 3 sides up using a skidsteer. The one of a kind design delivers a solid, rugged build with top engineering forease of use, dependability and serviceability..........Need something bigger? The Olympus line is offered in 100, 200, 300, 500, 750, and 1000 tph nominal output capacities. Olympus Pugmills are exceptionally well built with expert engineering and superior build quality! We provide customers with top-quality pugmills at a price they can afford. Call us Today at 518-218-7676 or Devin 330-835-7742 after hours.

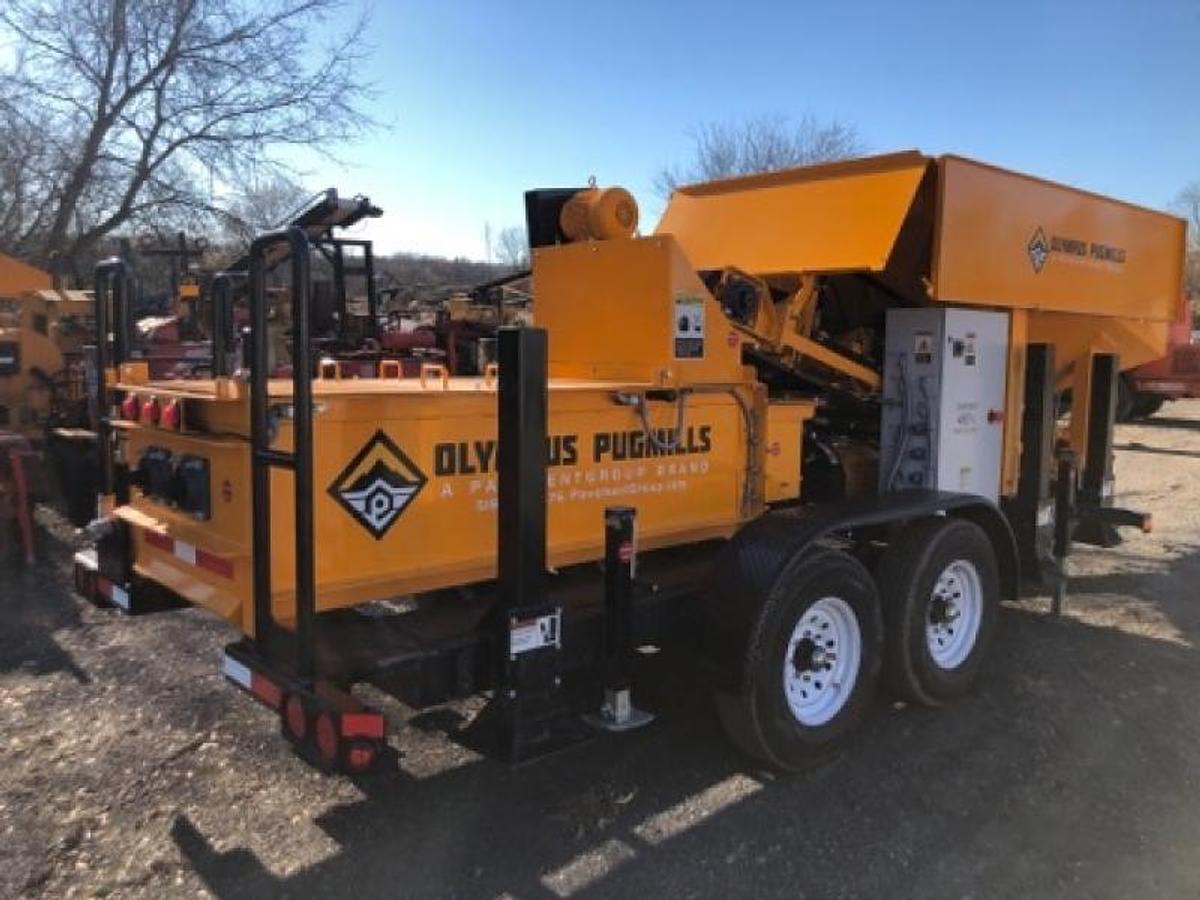

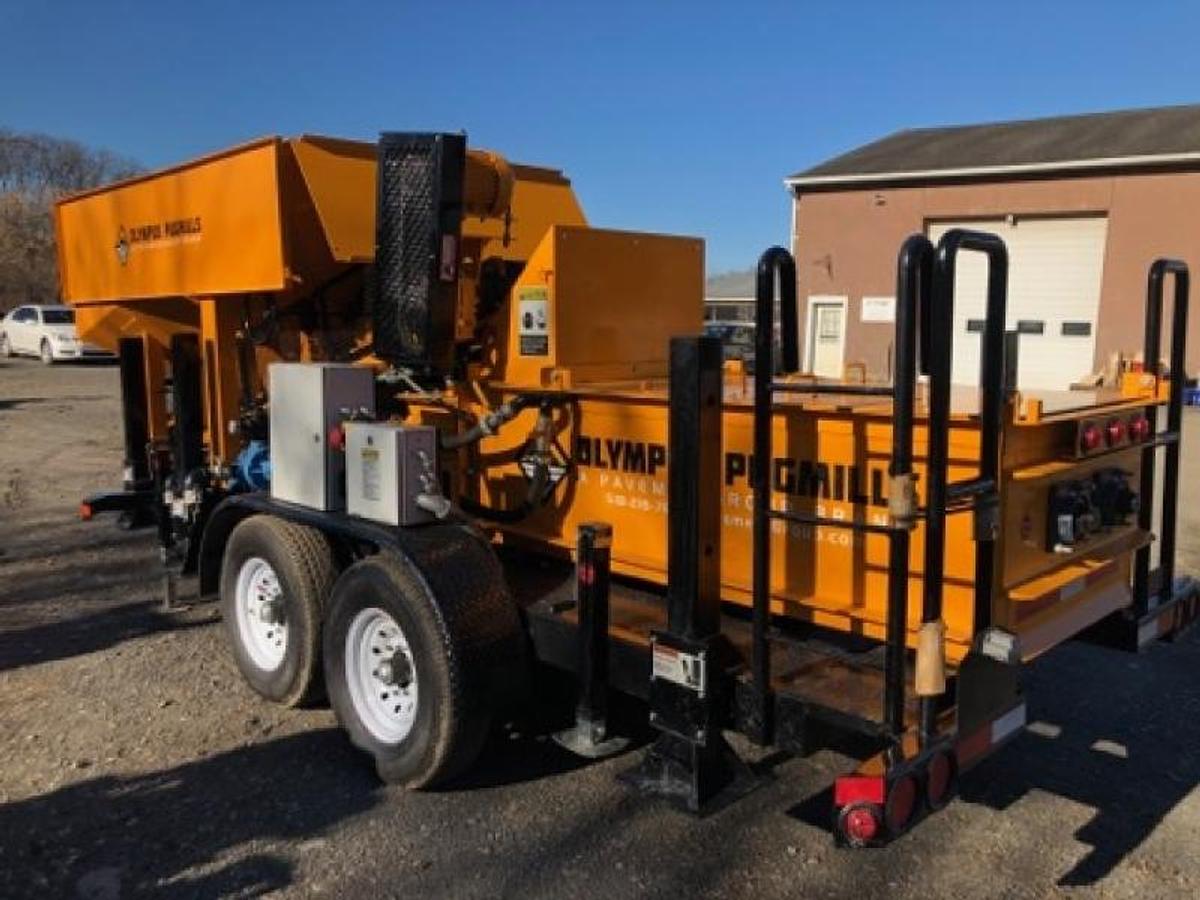

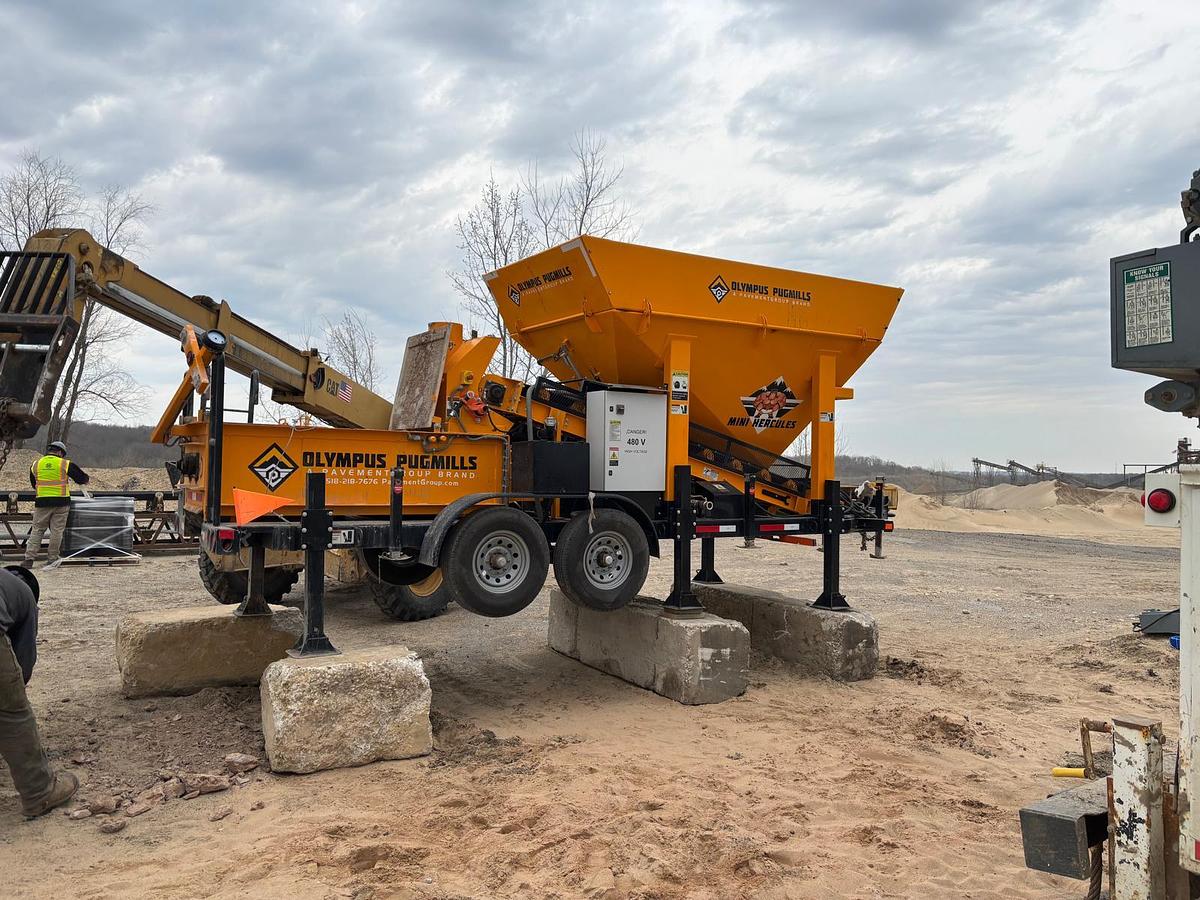

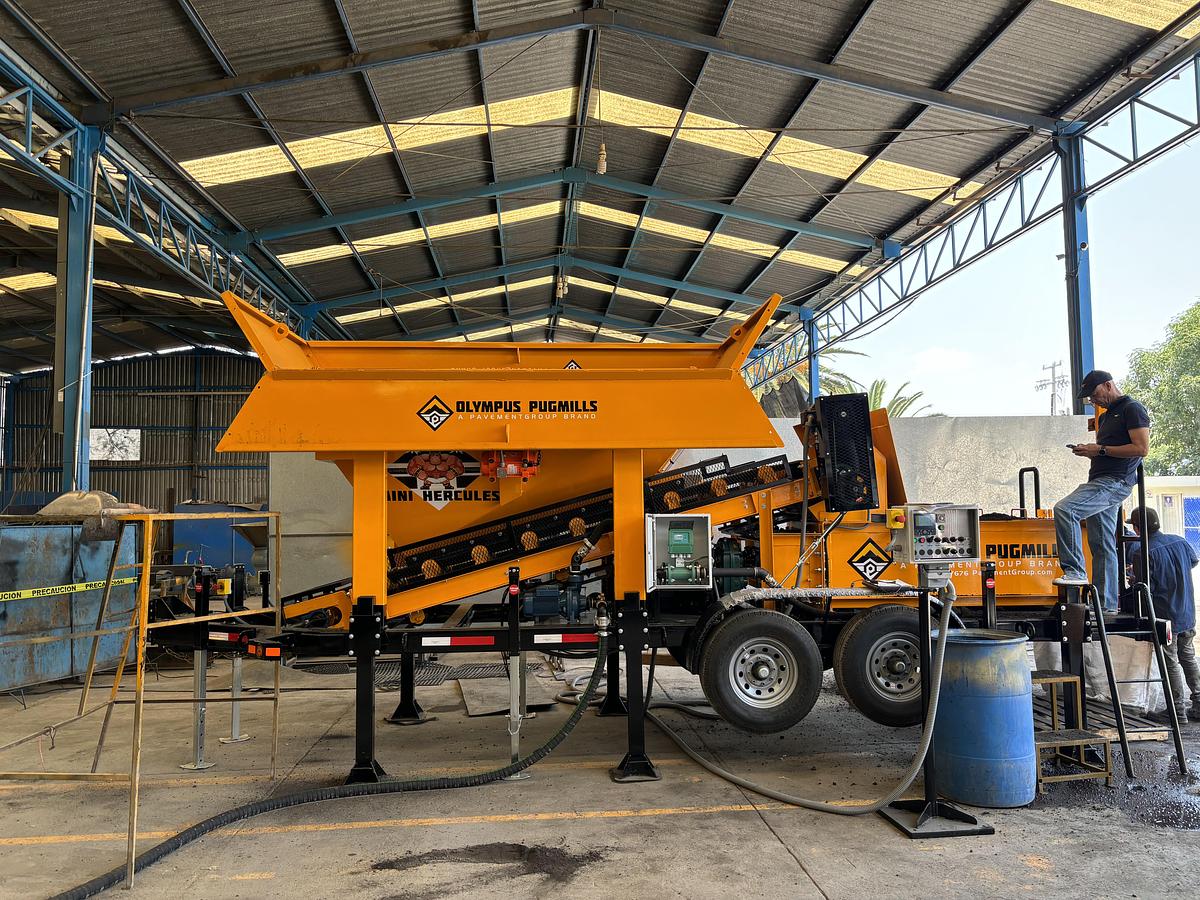

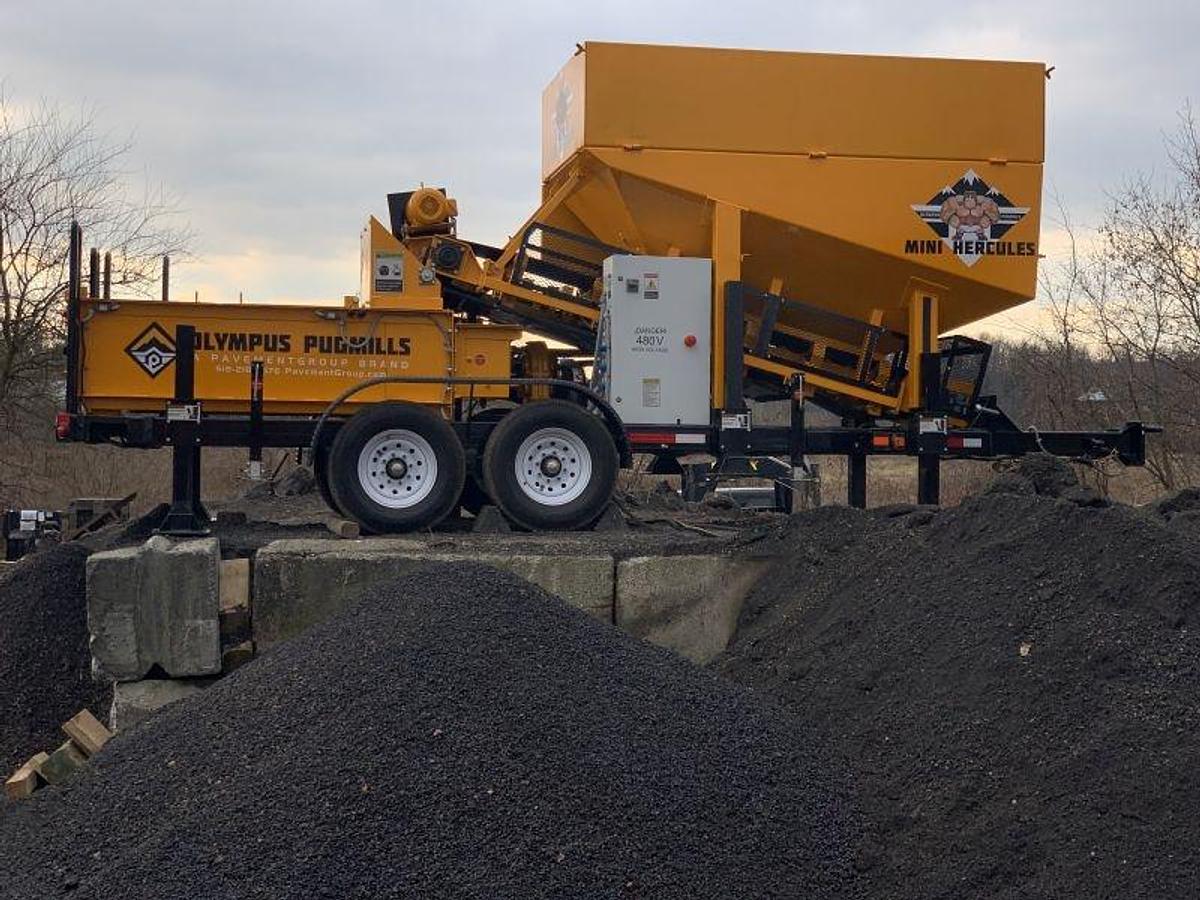

Olympus Mini-HERCULES Portable Pugmill System

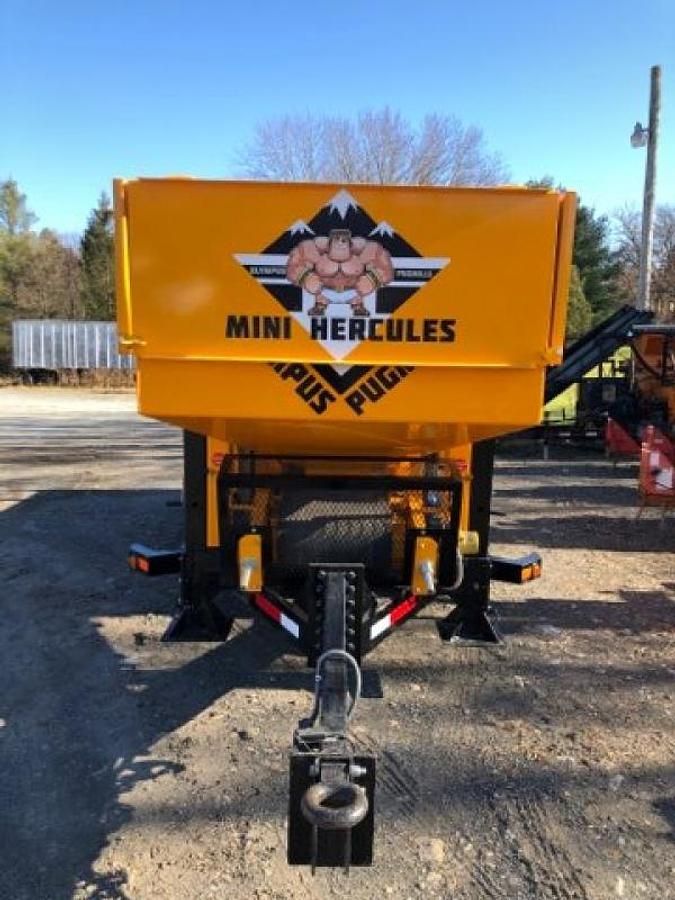

Tow it with your pickup truck!

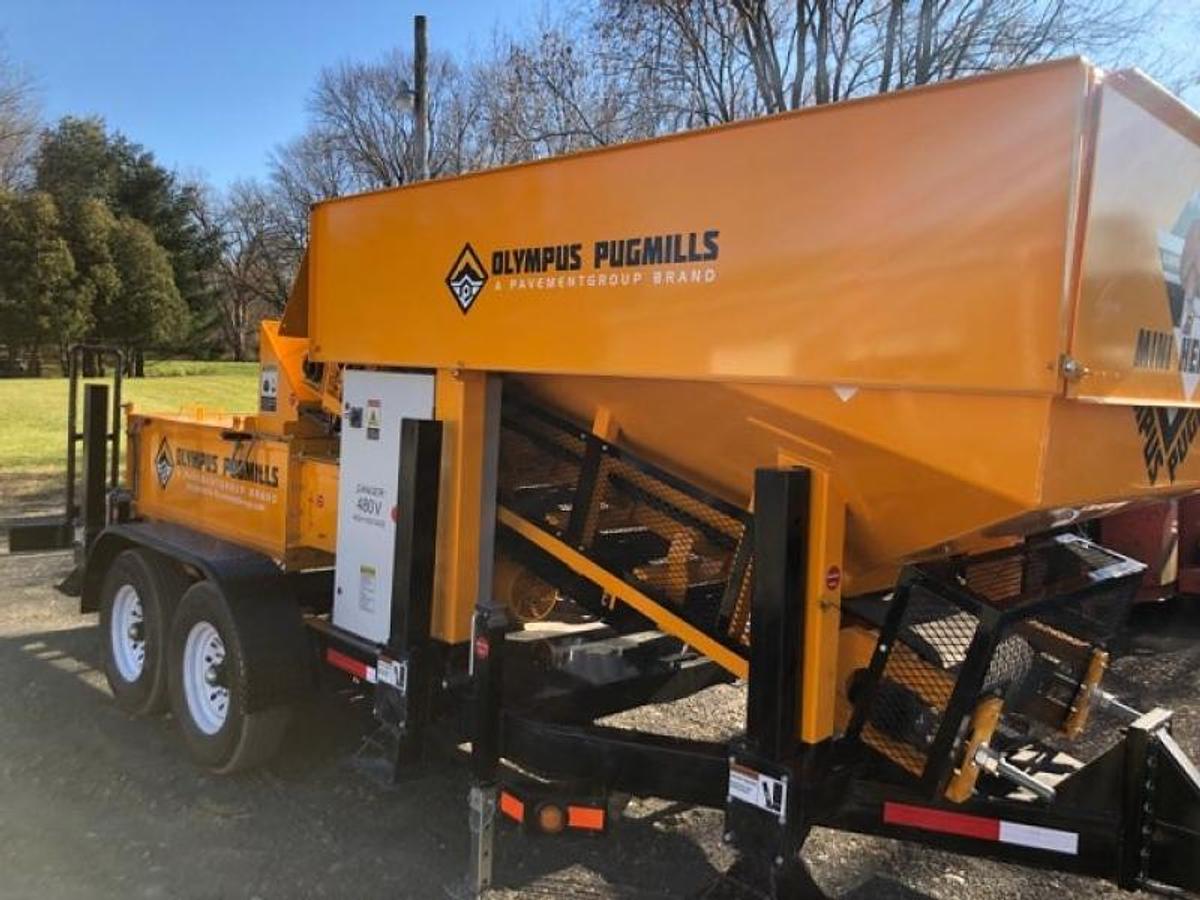

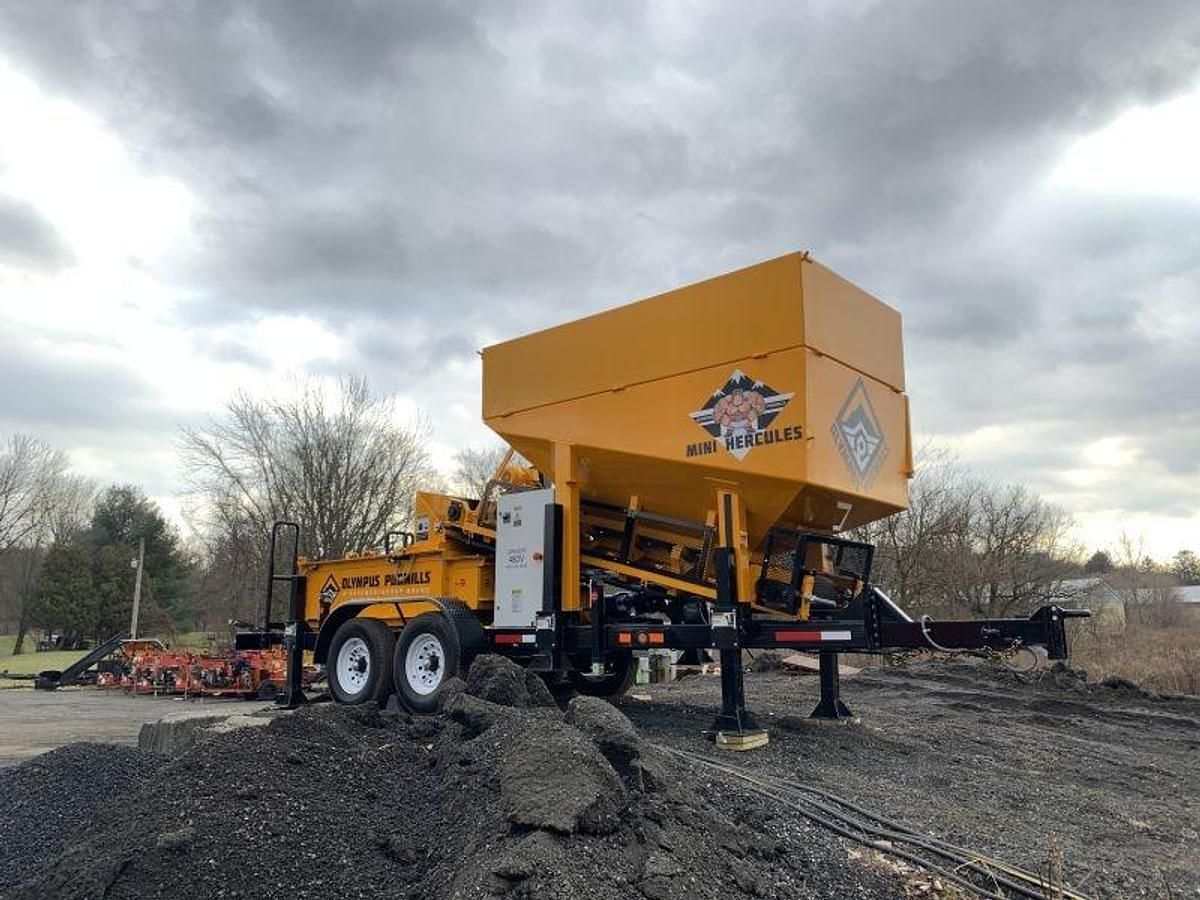

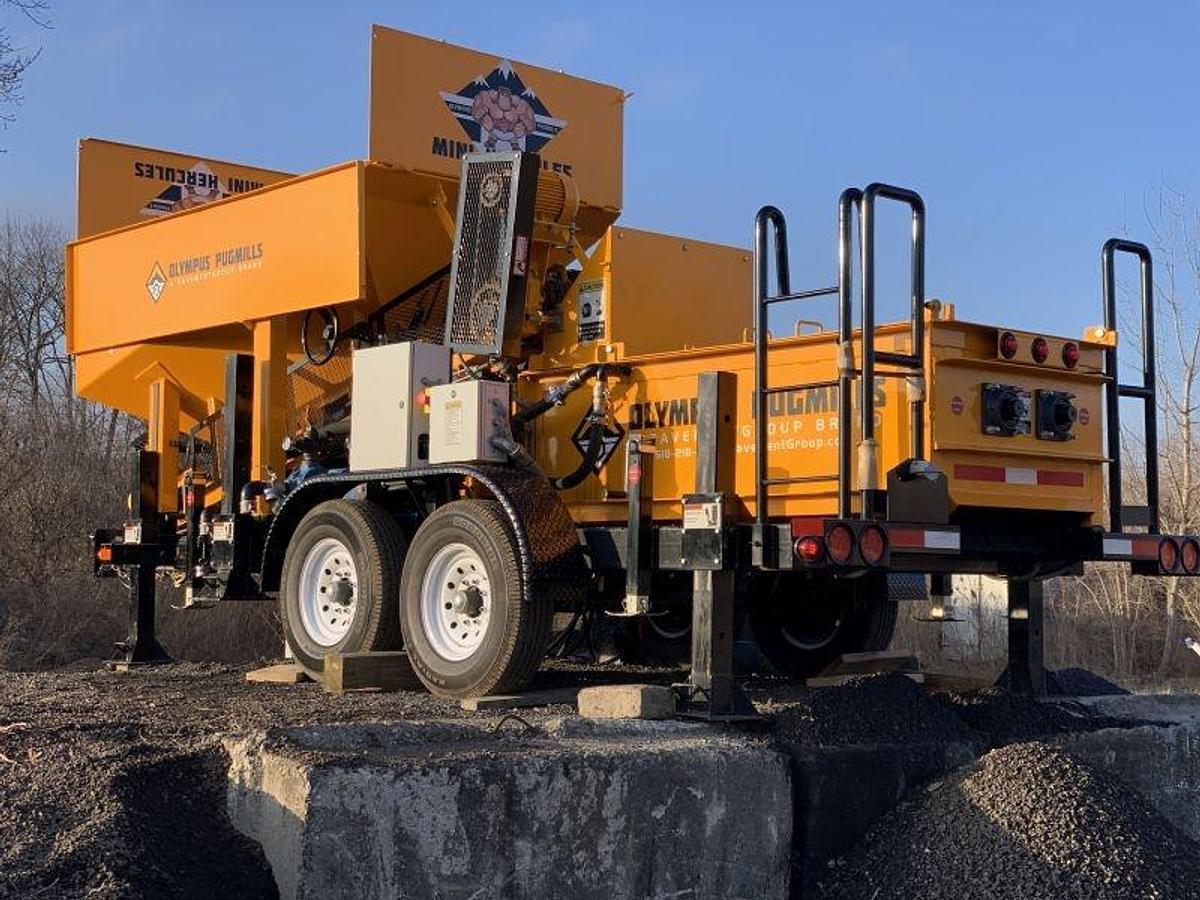

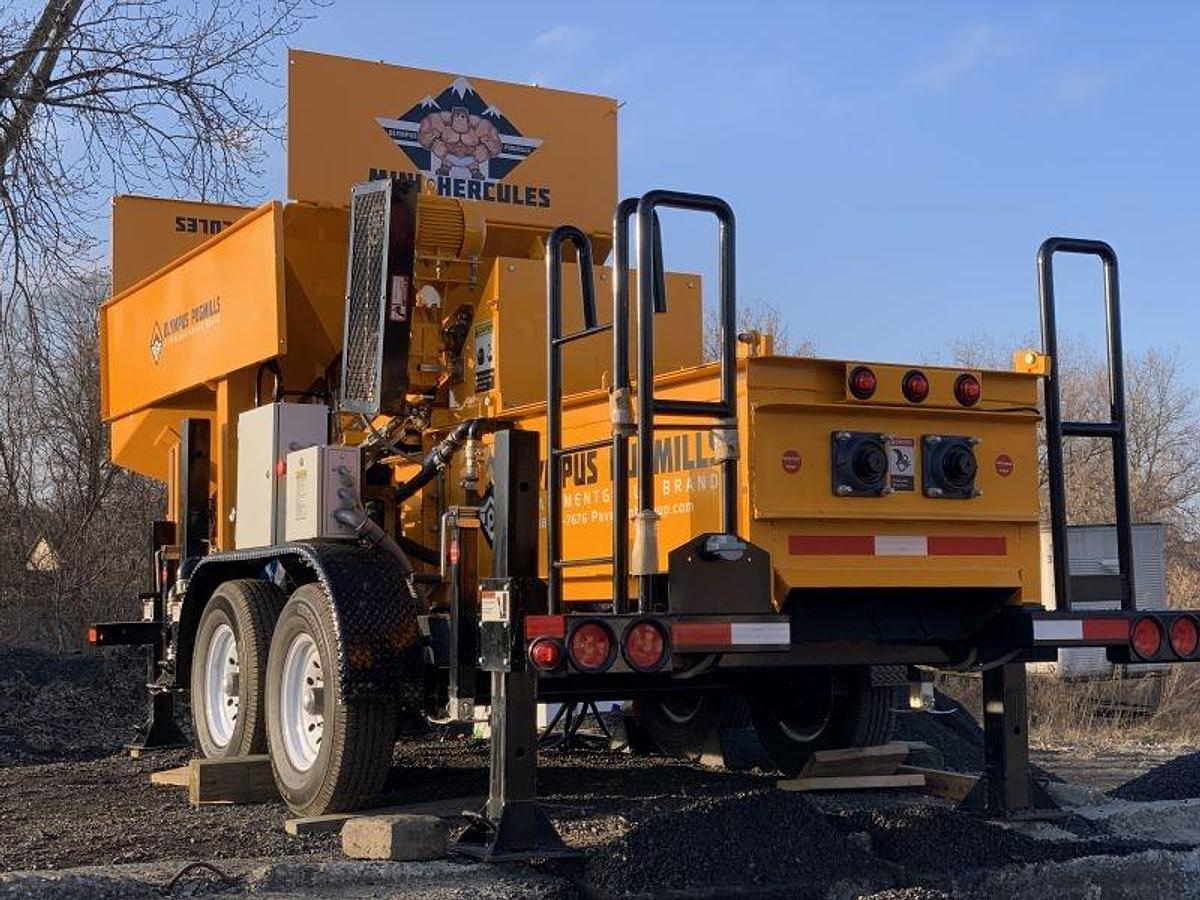

The mini-HERCULES pugmill system by Olympus is a compact and powerful solution for a variety of applications, including cold mix asphalt production, soil cement production, lime treated base, cement treated base, and more. Weighing in at under 11,000 lbs., the mini-Hercules pugmill mixer can be towed by a 3/4 ton pickup truck, making it highly portable.

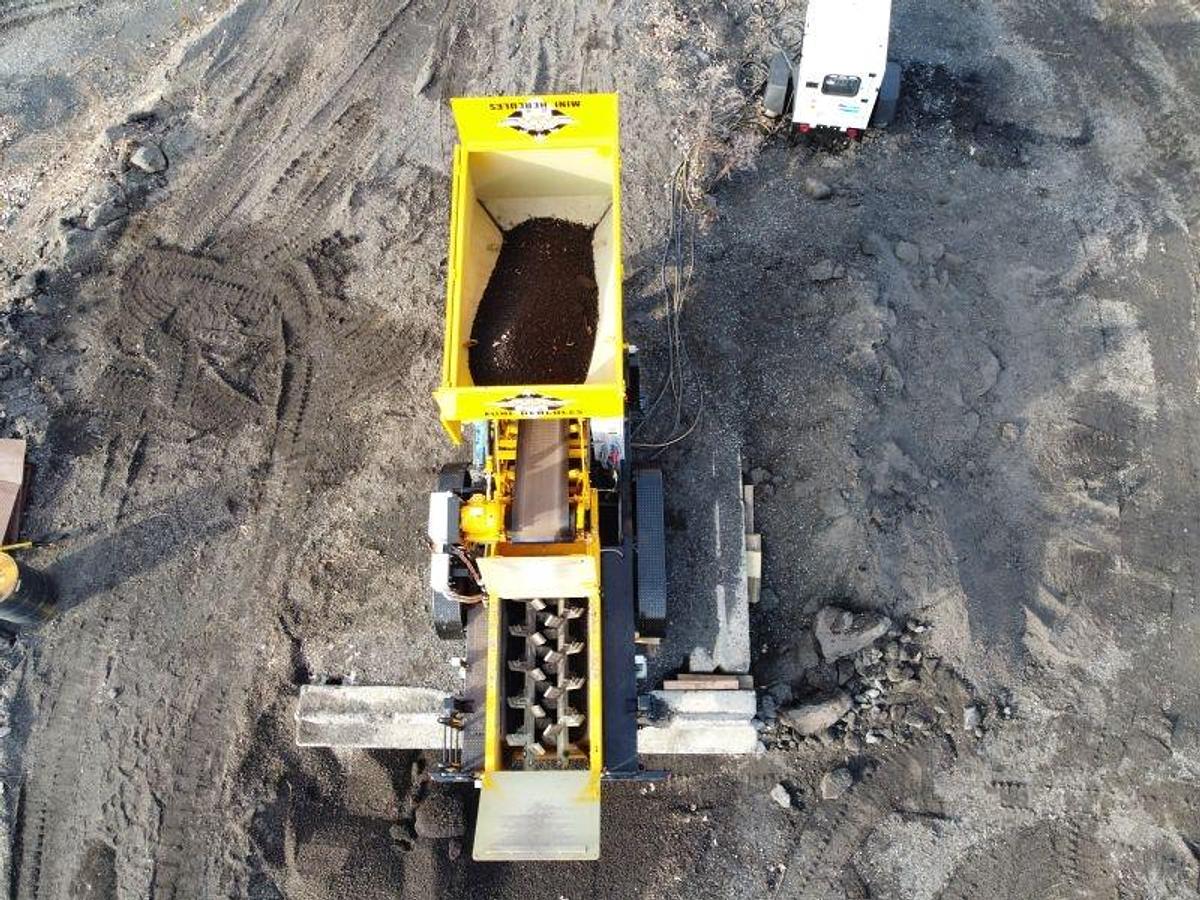

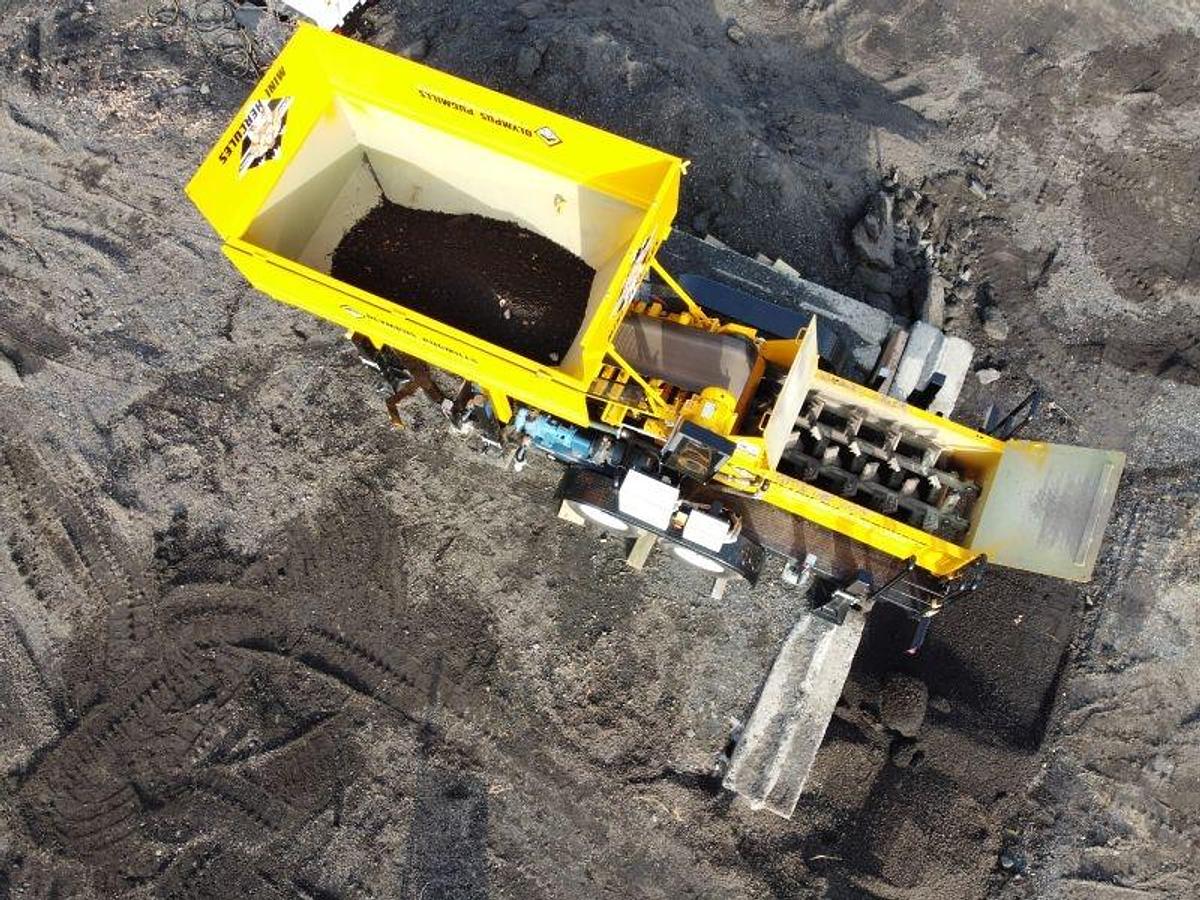

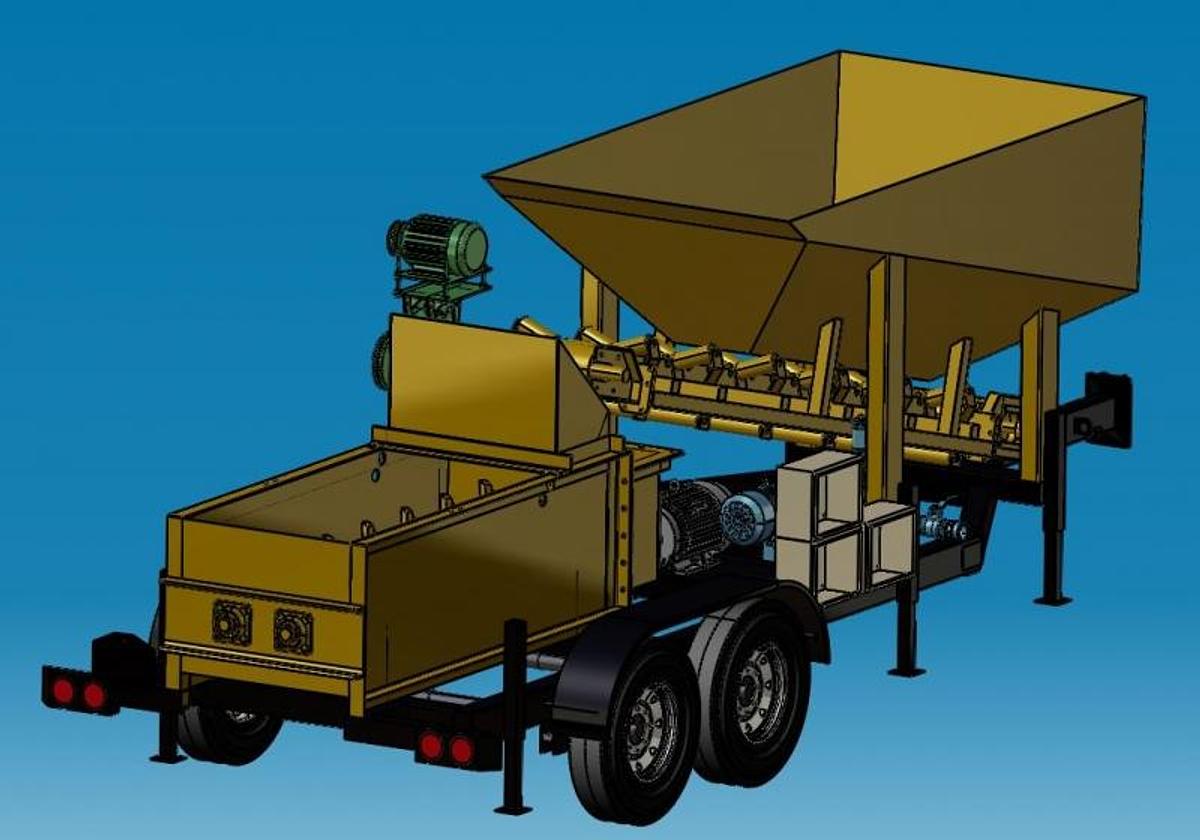

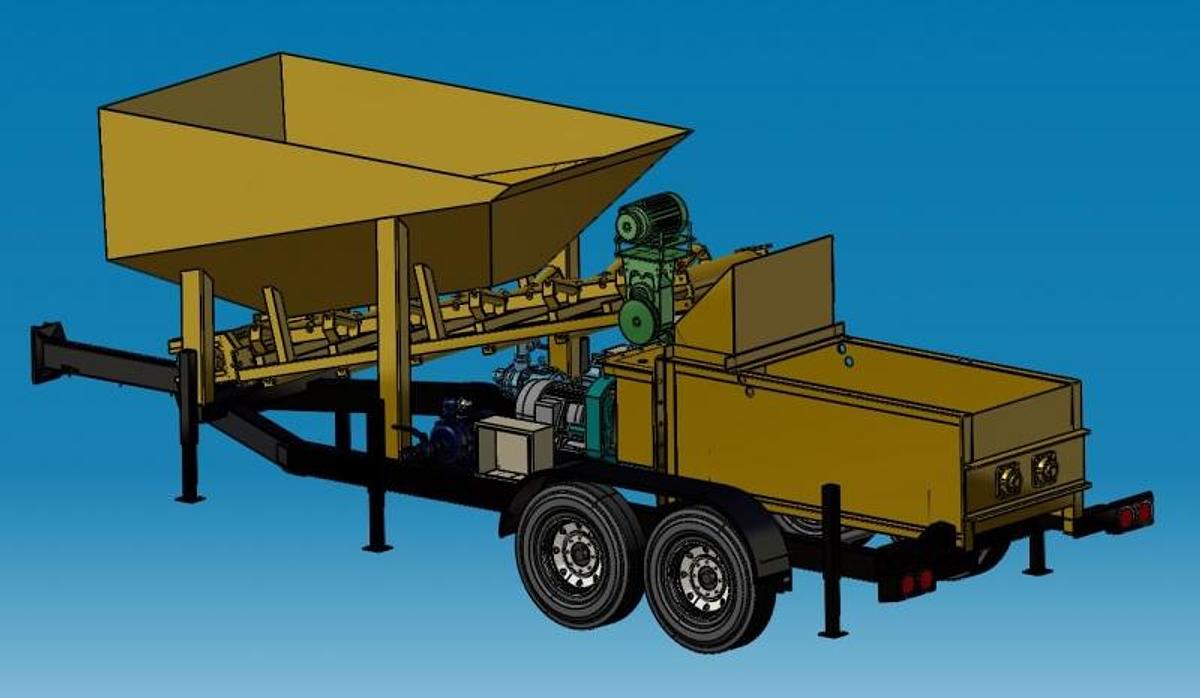

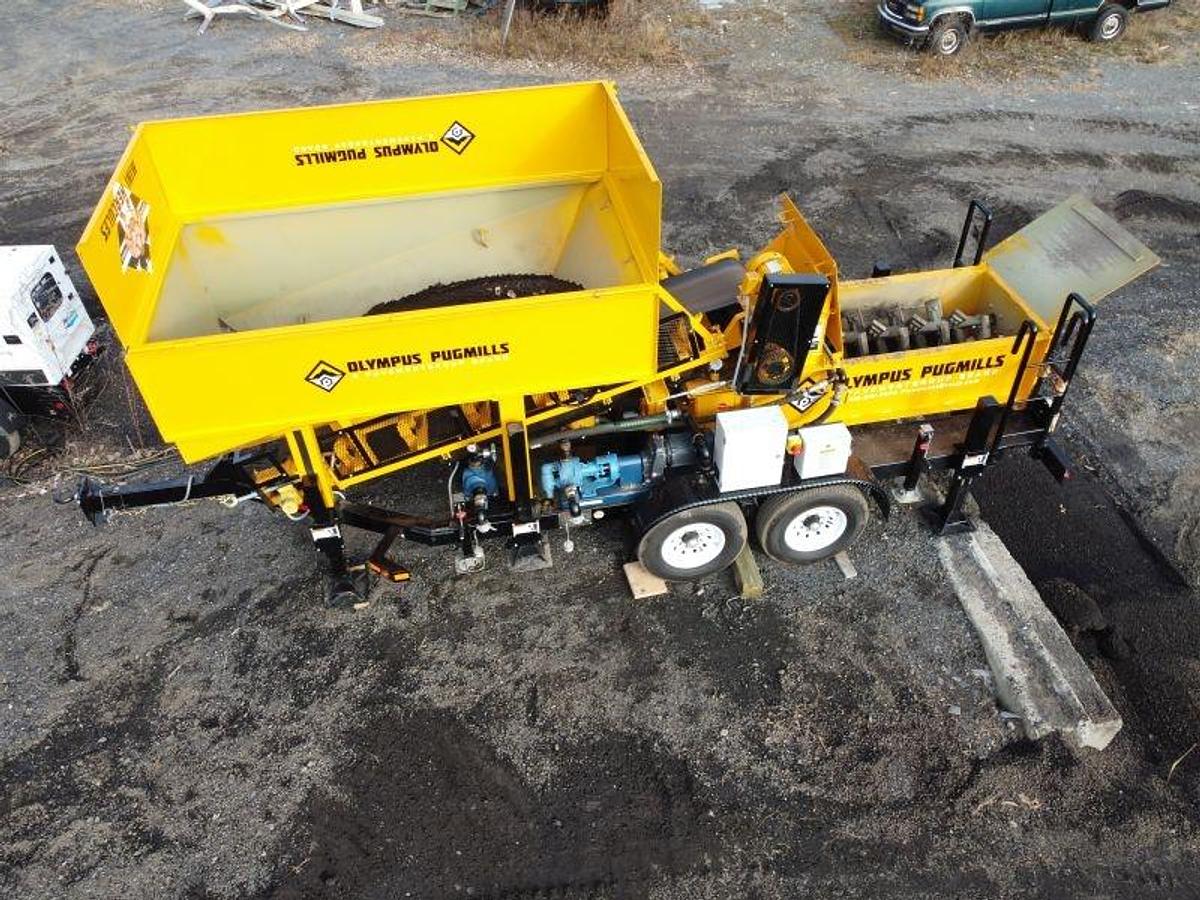

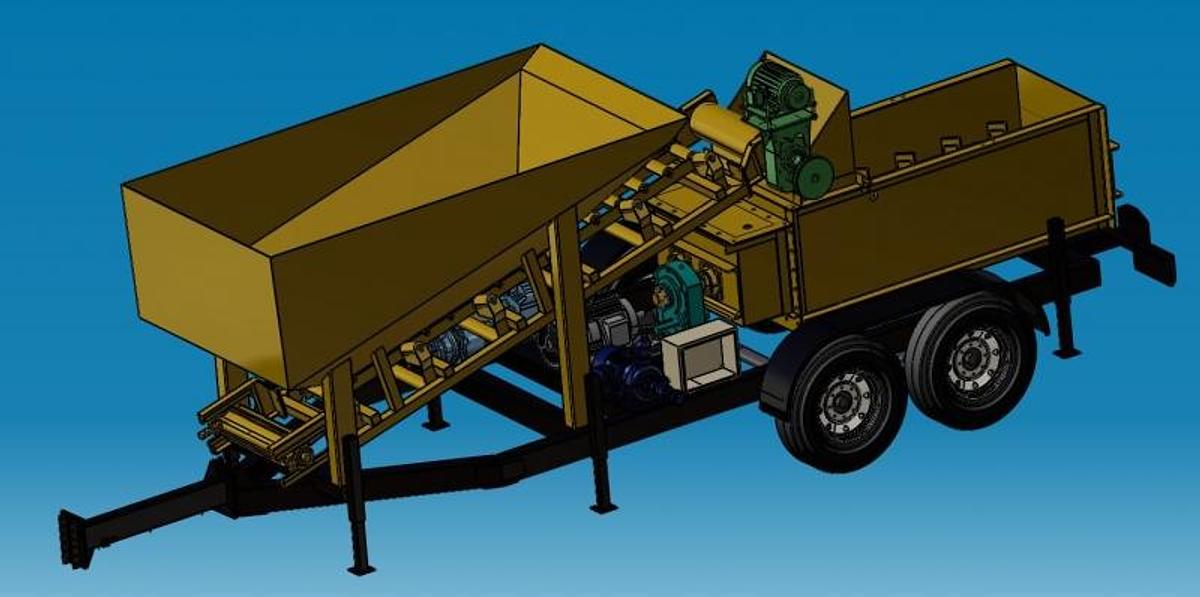

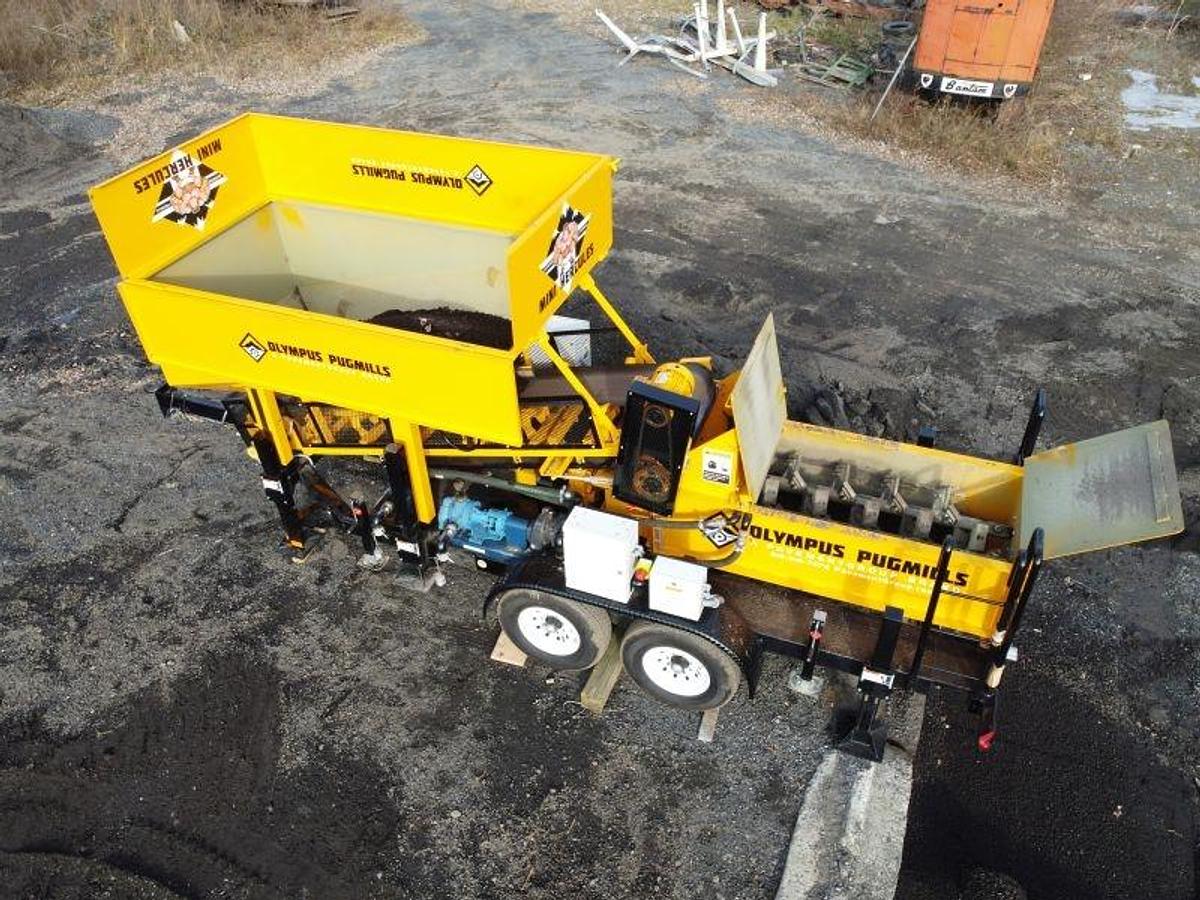

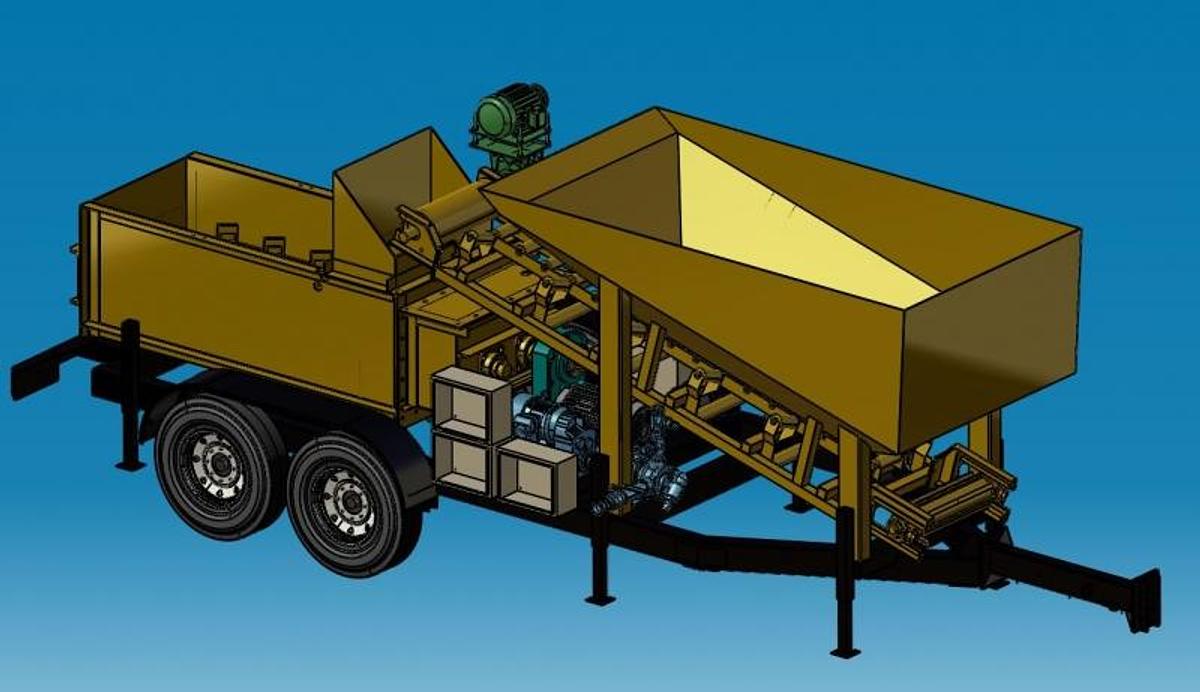

The pugmill mixer includes a twin shaft pugmill mixer, bidirectional pugmill, reversible chromium paddles, replaceable Hardox liner for the pugmill mixer, 24" vulcanized belt, troughed idlers, belt scraper, 30hp motor, linear actuator-controlled bin gate door, and a 7CY cold feed bin with a 9'4" loading height, all mounted on a double axle trailer.

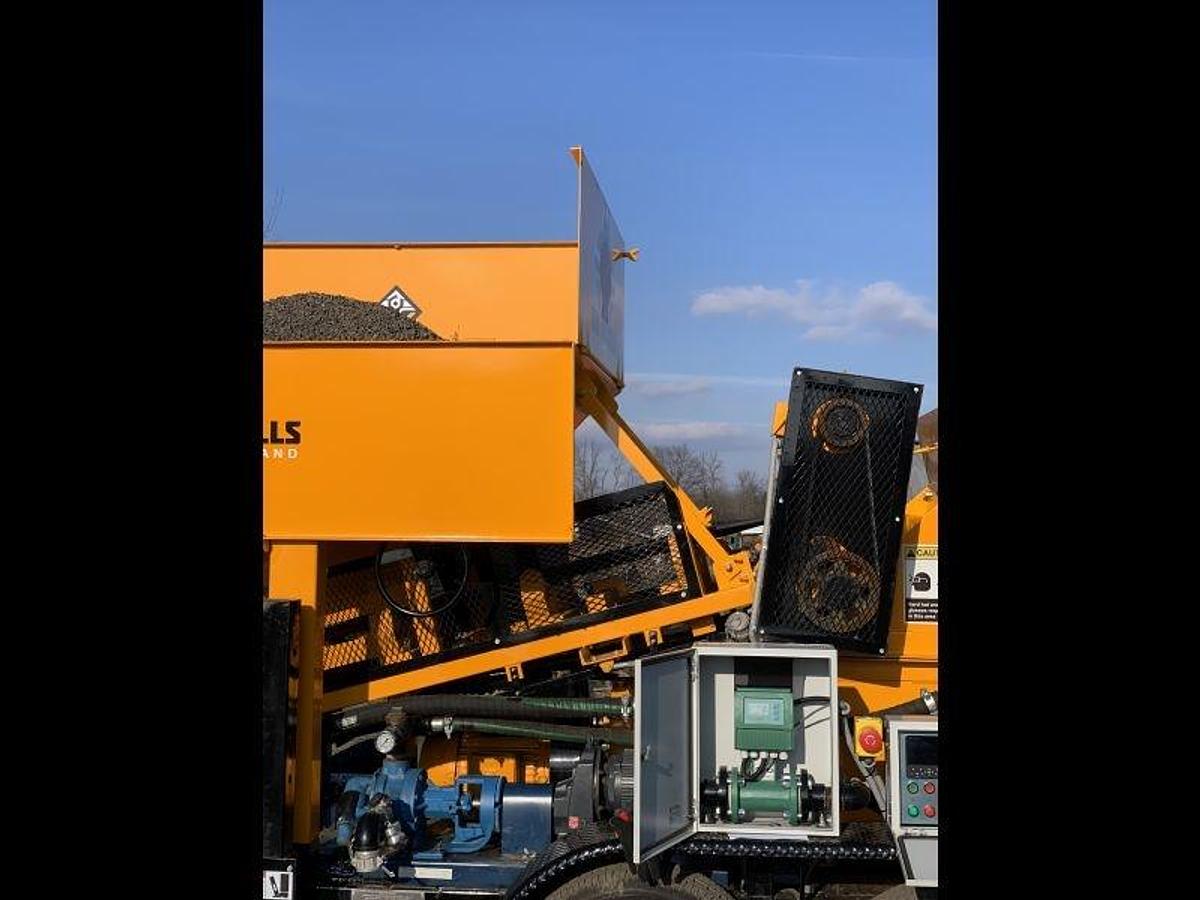

The onboard Danfoss control system is user-friendly, allowing the operator to enter the density of the material(s), set the bin-gate opening controlling the volume of material that flows from the bin, adjust the belt speed, and adjust the percentages of water and/or emulsion. The mini-HERCULES also offers several optional features, including a split bin, split gate, water pump, water meter, asphalt pump with filter cleanout system, Coriolis meter, return scraper, wrap drive system for CTB, snub pulley, cement feed port, impact rollers, self-cleaning tail pulley, and low pickup return rollers. For more information and pricing, please call 518-218-7676, visit PavementGroup.com, or check out the mini-HERCULES page at https://www.pavementgroup.com/pugmills/olympus-mini-hercules-pugmill-system/.

Mini-HERCULES pugmill mixer applications:

* Cold Mix asphalt production* Soil cement production* Lime treated base* Cement treated base* And many other applications

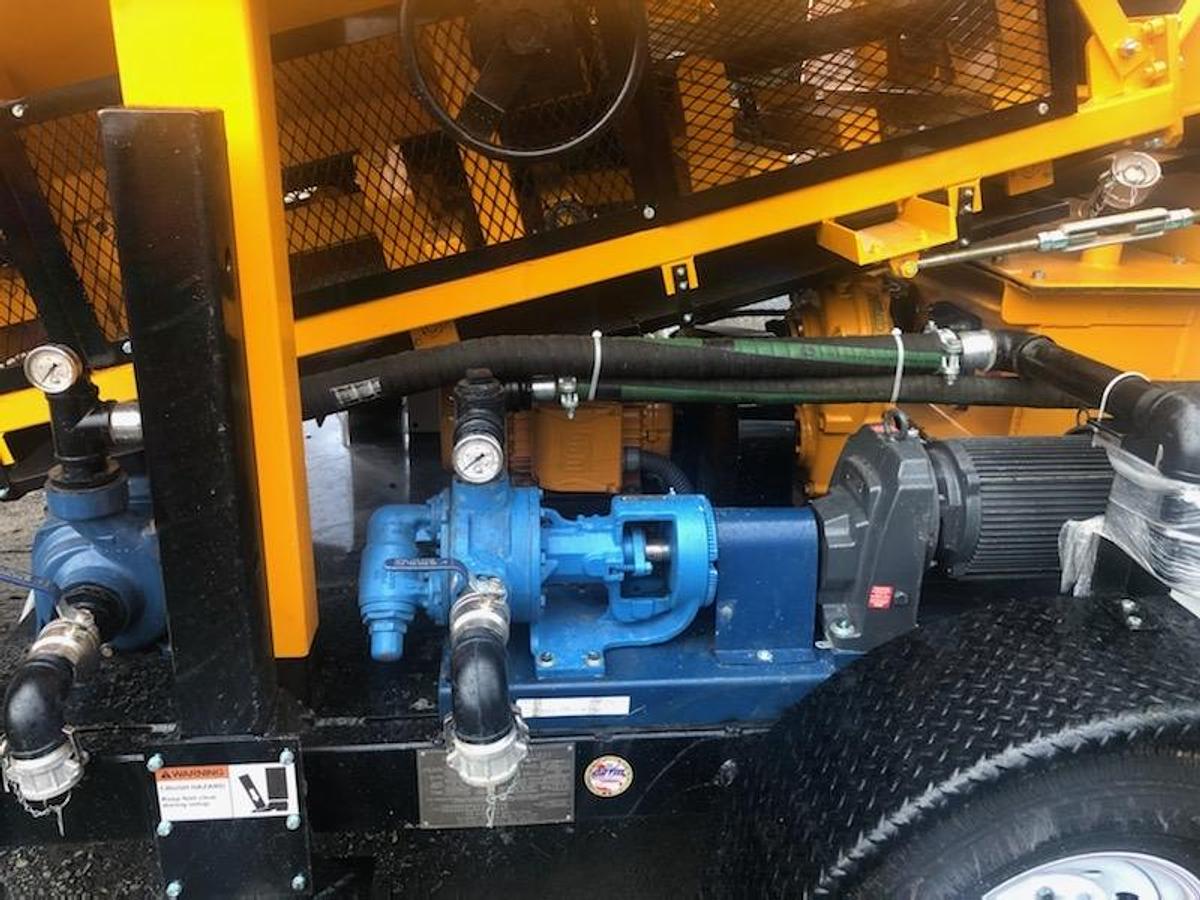

OPTIONAL EQUIPMENT:* Split bin, split gate* Water pump* Water meter* Asphalt pump with filter cleanout system* Coriolis meter* Return scraper* Wrap drive system for CTB* Snub pulley* Cement feed port* Impact rollers* Self-cleaning tail pulley* Low pickup return rollers

Call 518-218-7676 (evenings and weekends, ask for Devin)

Visit PavementGroup.com or visit the mini-HERCULES page https://www.pavementgroup.com/pugmills/olympus-mini-hercules-pugmill-system/

SPECIFICATIONS:

Olympus Pugmill Applications: cold patch, RCC, fly ash, cement treated base, lime treated base, soil blending, environmental remediation, dust-suppression on oil-field sites, pre-coating aggregates, fertilizer production, mulch blending, sand blending and much more.

WARRANTY: 18-month Warranty on bins and frame

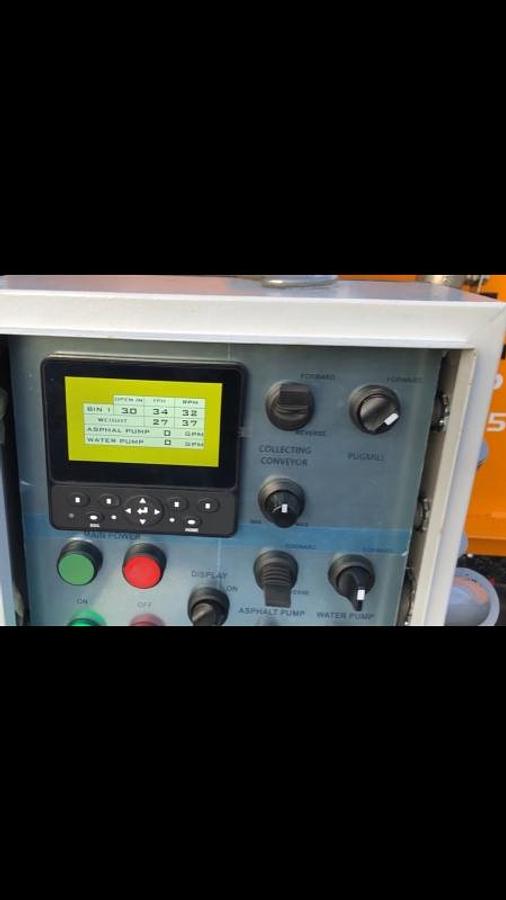

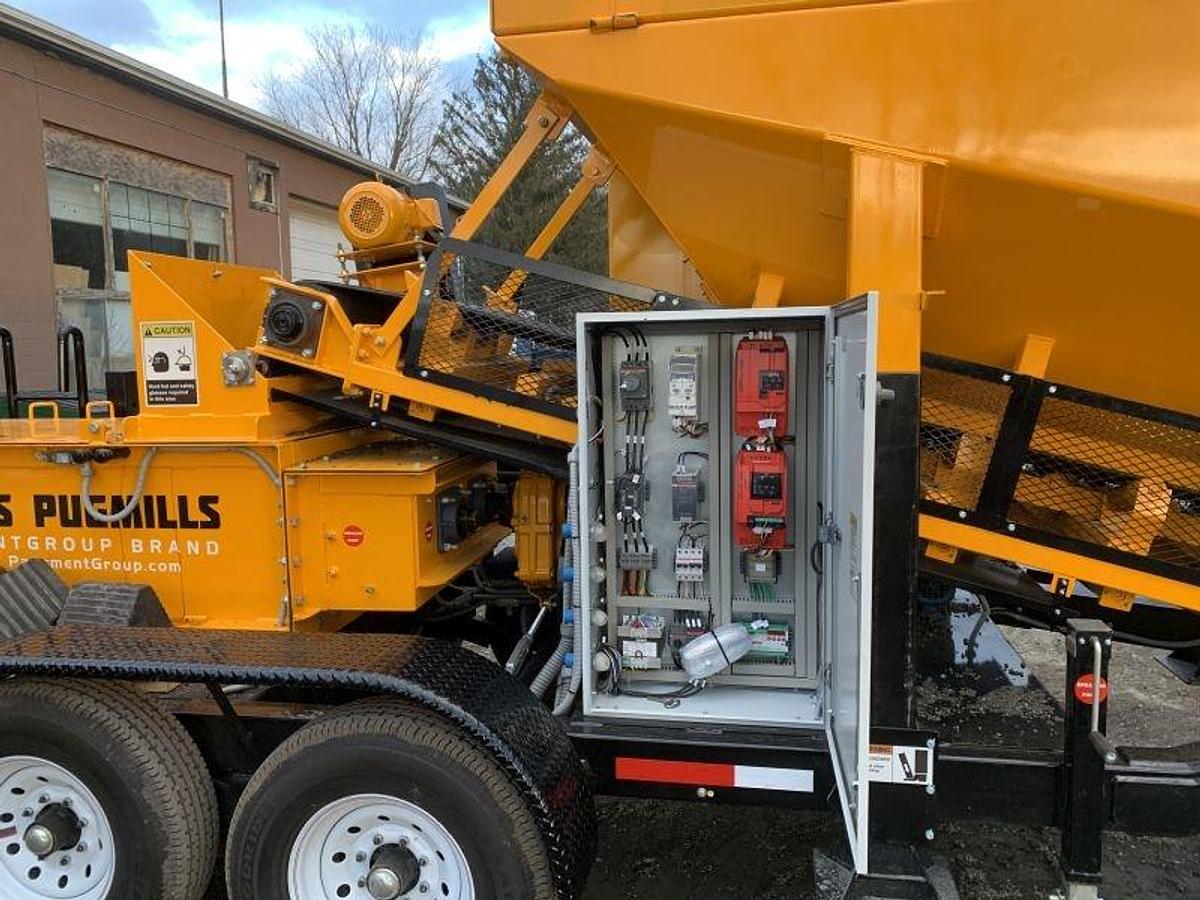

DANFOSS DM430E PLUS+1 MONITORING & CONTROL SYSTEM

Reliable and proven monitor and control system for accurate feeds and loadout. Simple, user friendly control center gives you maximum blending and proportioning control, ensuring the desired consistency of your product, allowing for high performance blending.

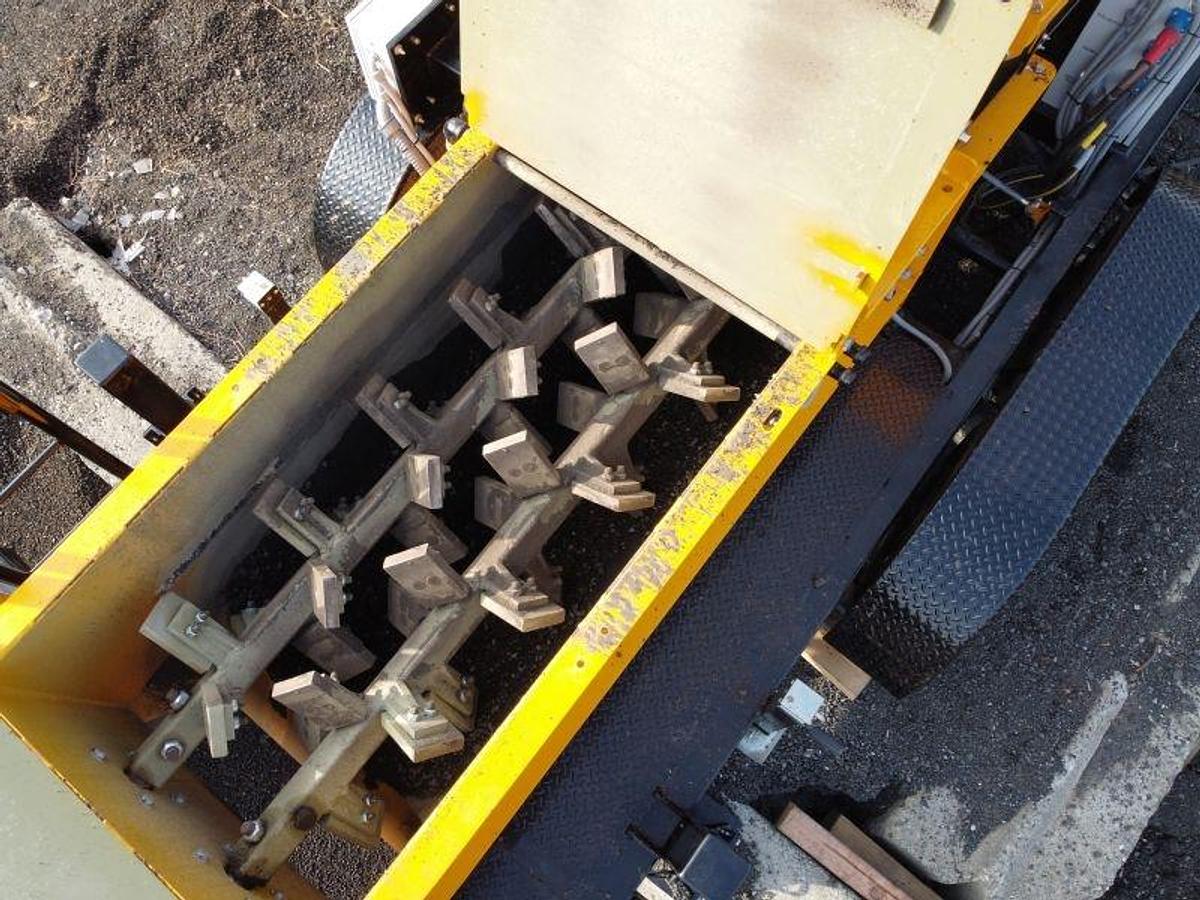

PUGMILL BLENDING SYSTEM

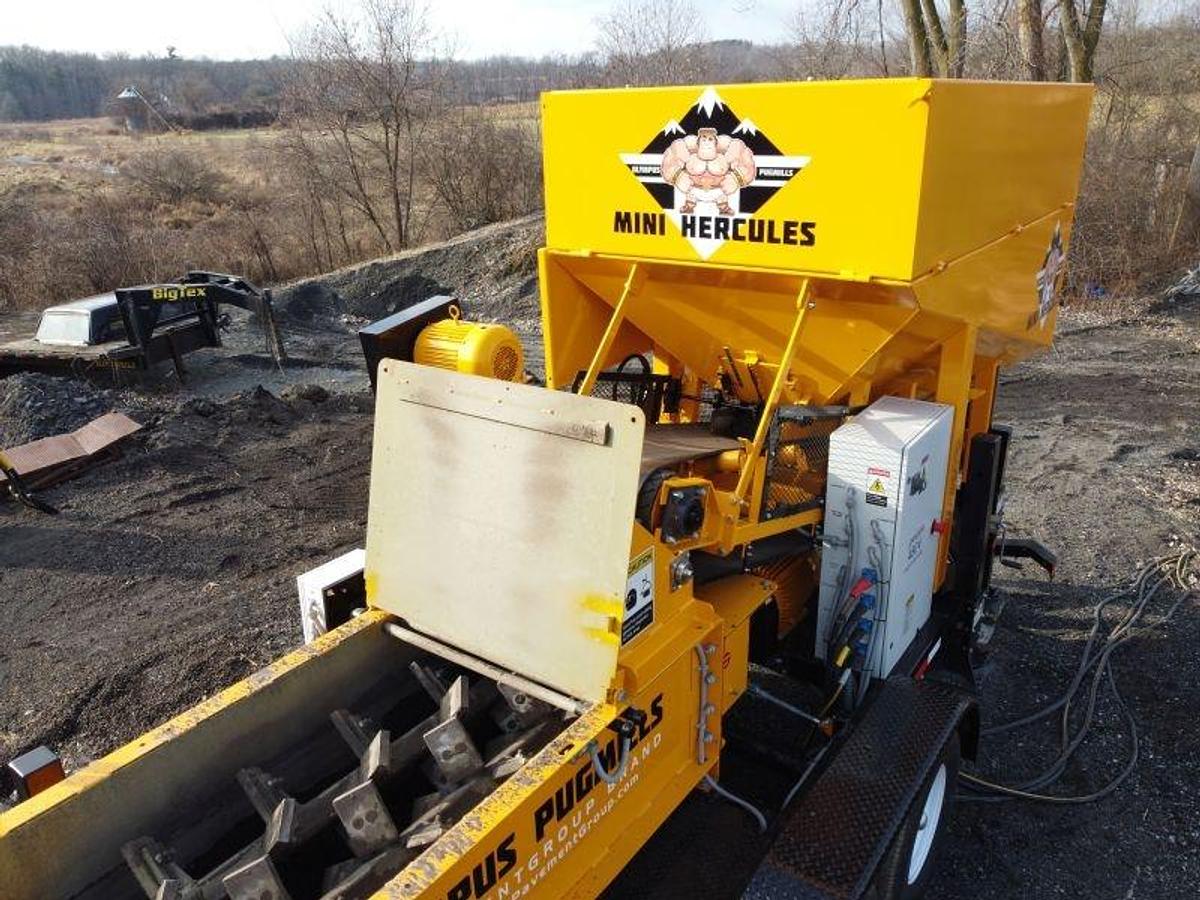

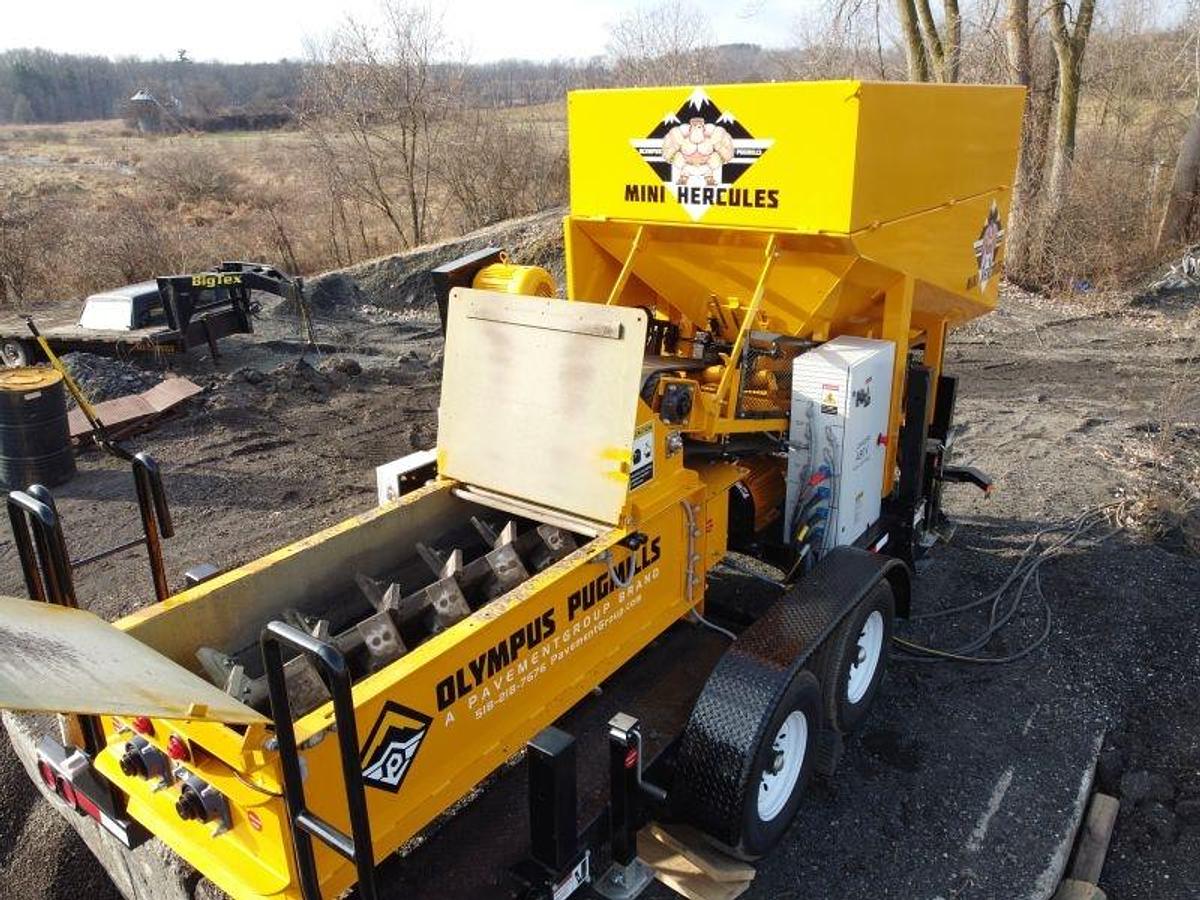

Chromium mixing paddles with reversible, abrasion resistant surfaces, mounted on twin shafts and coupled to a high torque electric motor for reduced wear cost and maximum mixing power. Replaceable Hardox liner.

ELECTRIC SYSTEM

High end electrical components give you high dependability on the job site.

Olympus Pugmill Advantages:

Speak with a pugmill expert, call today 518-218-7676

After hours & weekends Devin (330) 835-7742, Mark (518) 577-9975
