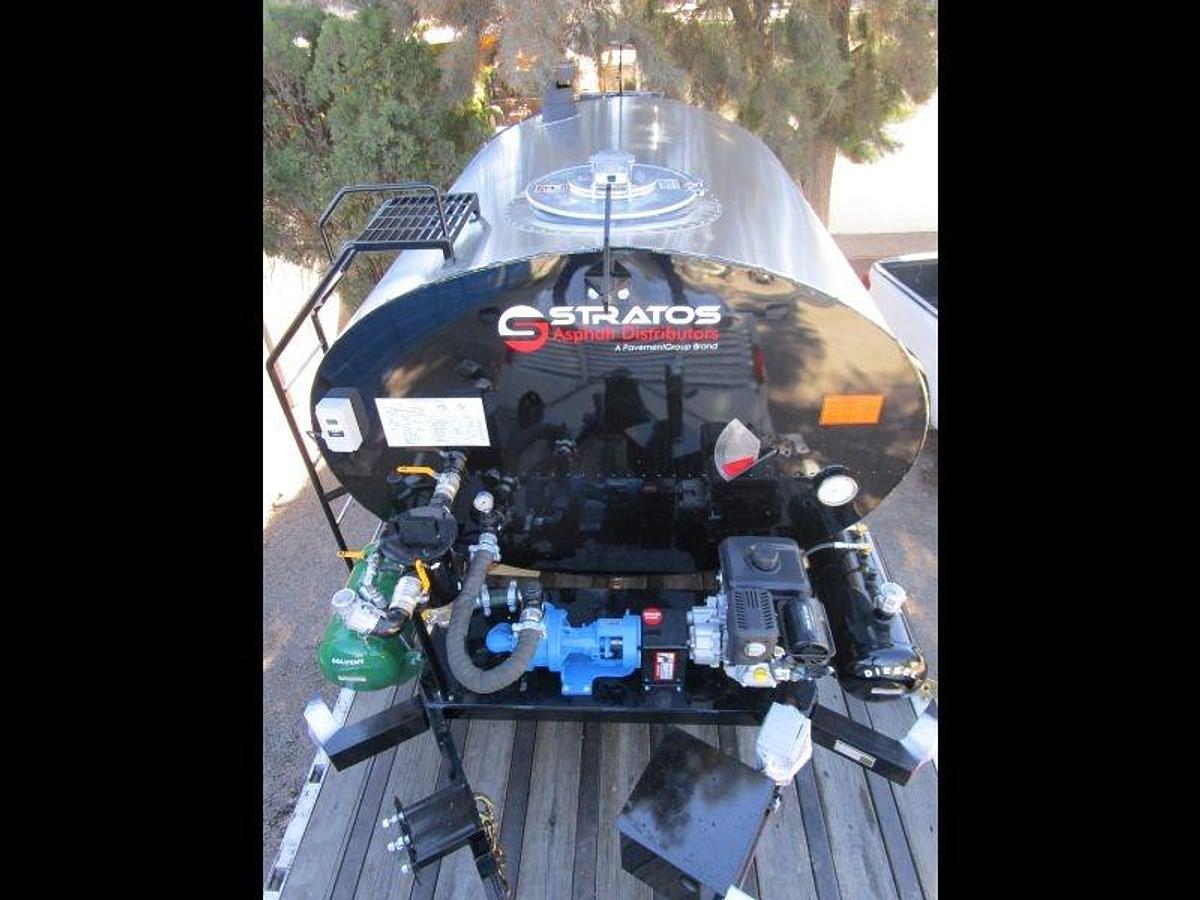

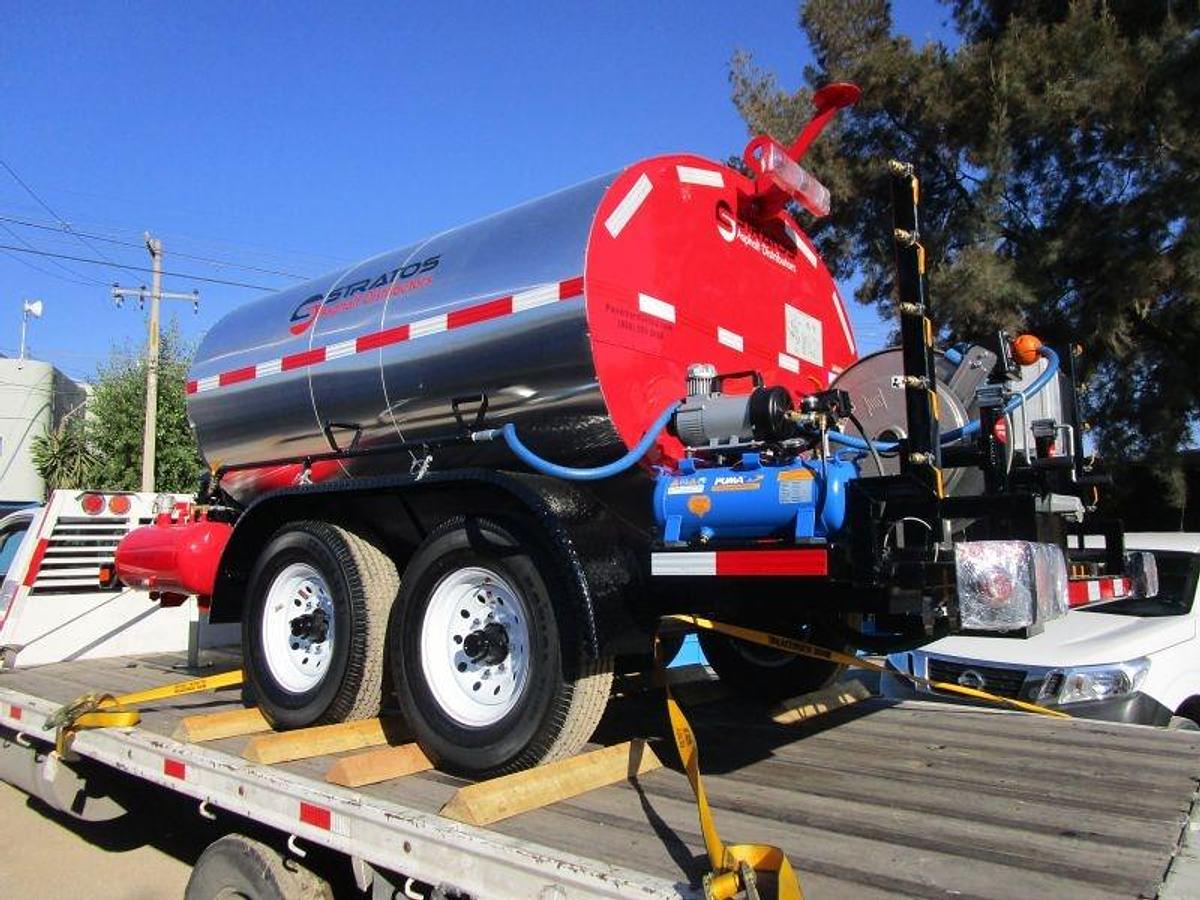

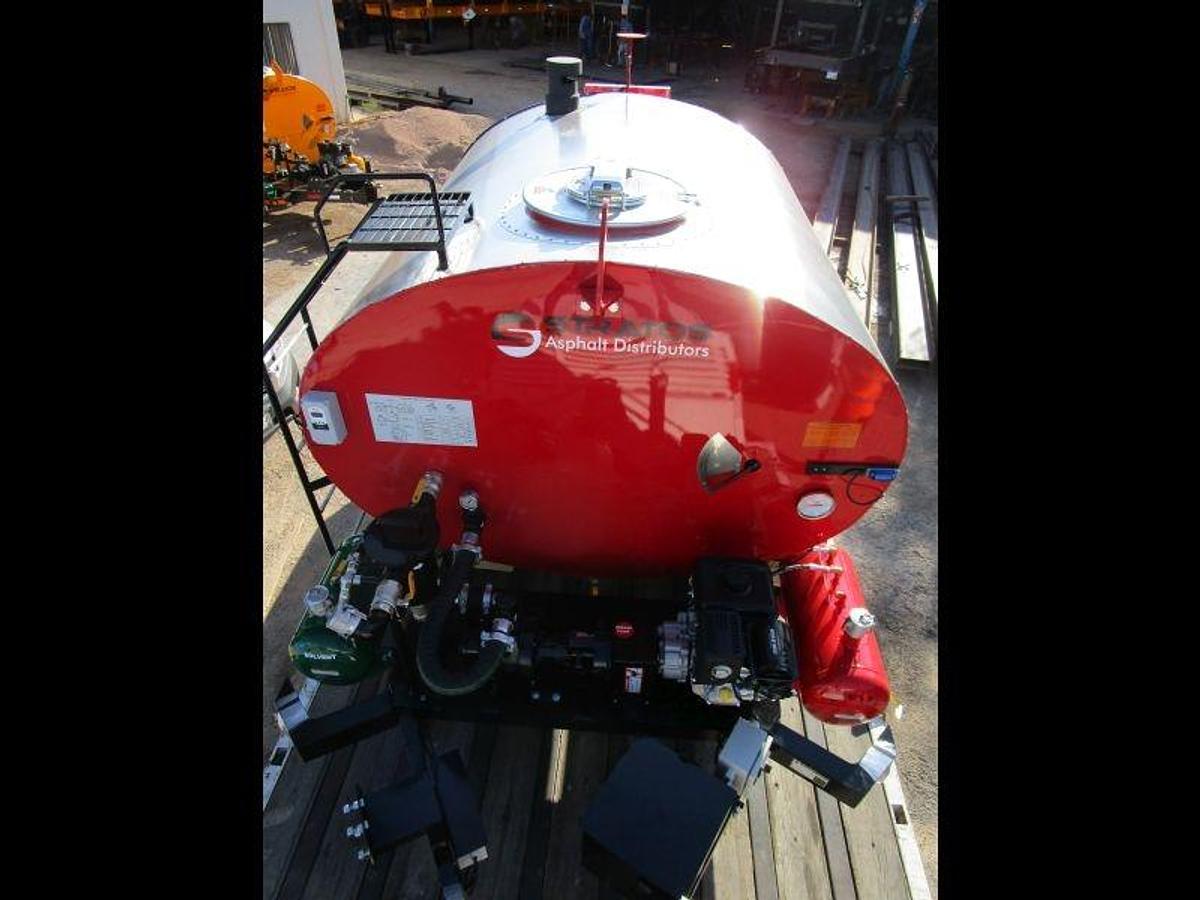

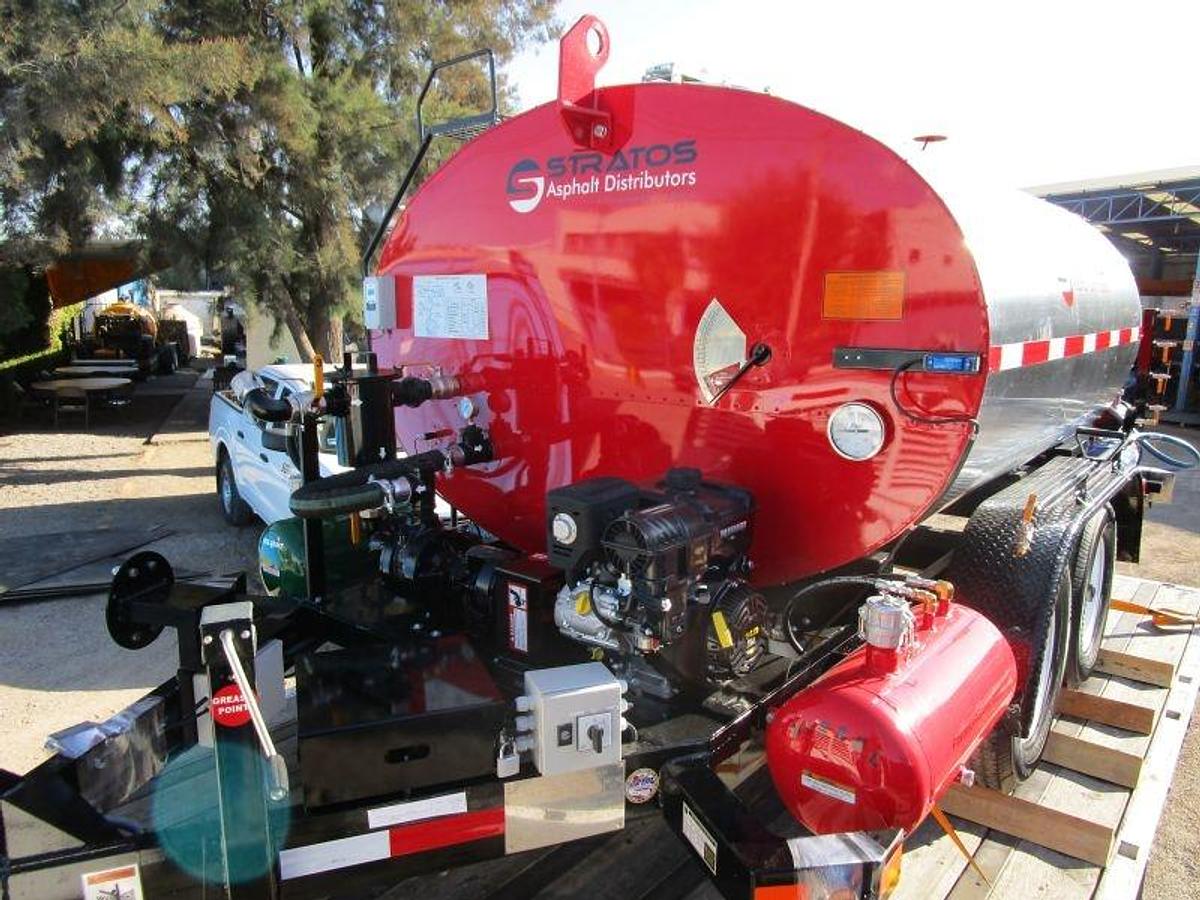

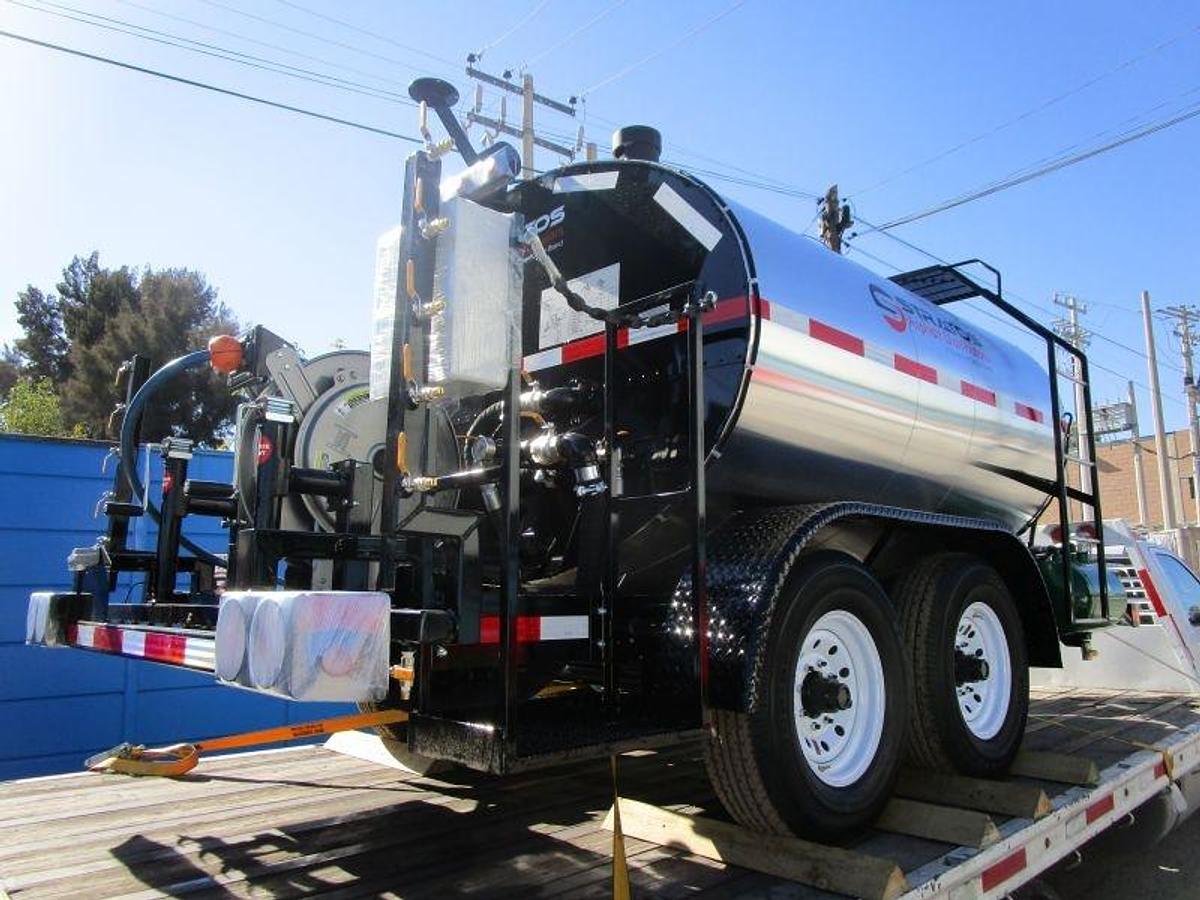

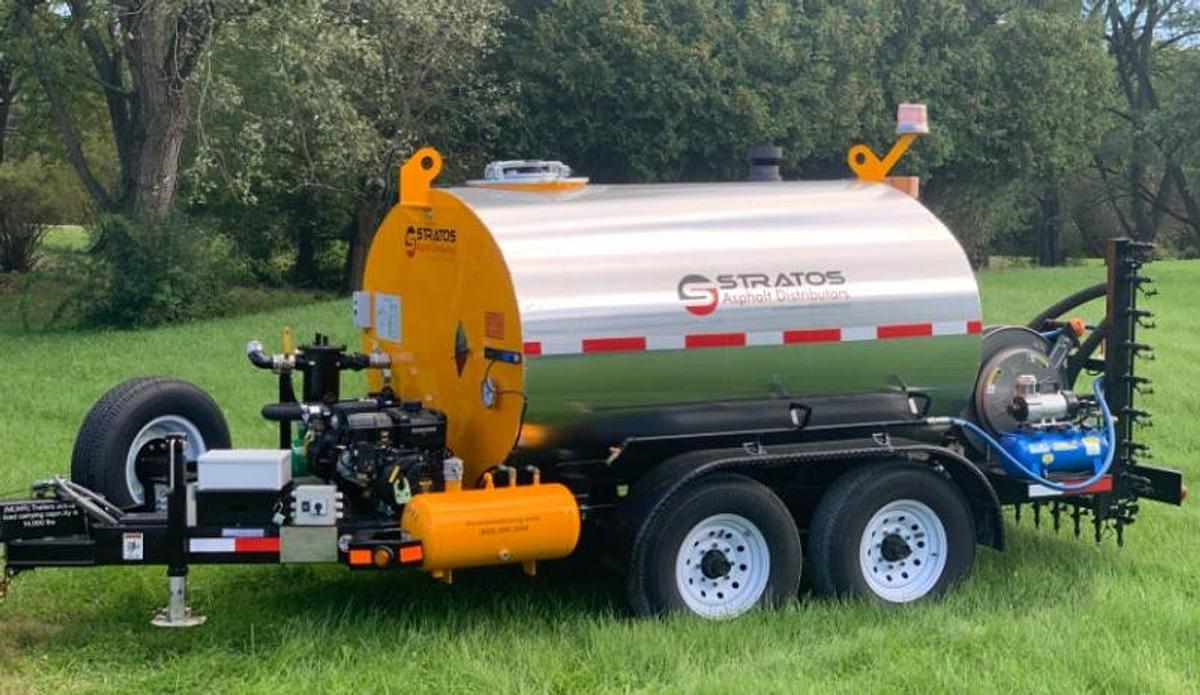

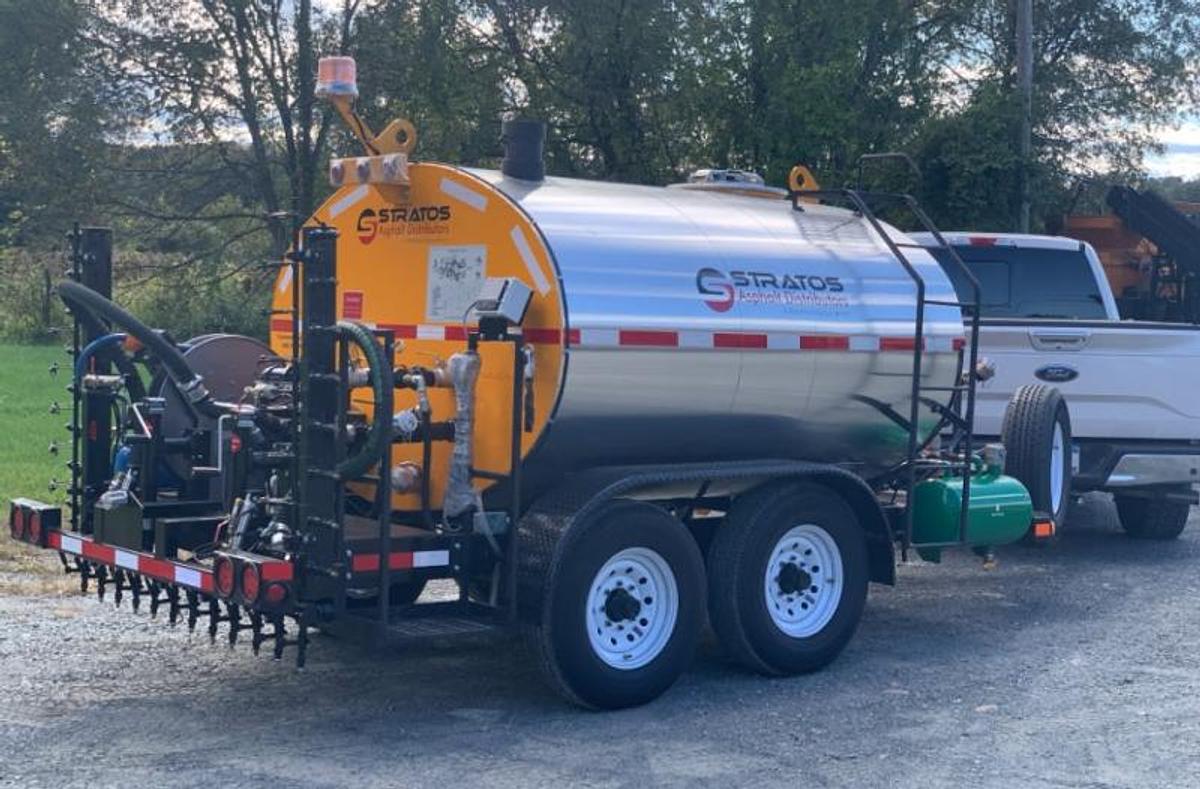

Stratos DMT-1000 Asphalt Distributor Trailer

The Stratos DMT-1000 is a 1000 gallon asphalt distributor trailer built for contractors and agencies that need dependable performance for tack coat, chip seal, prime coat, fog seal, and asphalt emulsion spraying. It is part of the Stratos DMT trailer-mounted distributor line, which includes 400, 600, and 1000 gallon models.

The DMT-1000 gives contractors a meaningful step up from a 600 gallon unit without a major jump in cost. That added capacity means fewer trips to the emulsion supplier, more productive time on the job, and better efficiency on larger paving and maintenance work.

Built to spray more than 35 different emulsions, the DMT-1000 is well suited for tack coat spraying, chip seal work, prime coat application, fog seal work, and other asphalt emulsion applications.

Why contractors choose the DMT-1000

• 1000 gallon capacity for fewer refill trips and longer pulls
• A strong step up from a 600 gallon unit without a major jump in price
• Built for use with more than 35 different emulsions
• Quality build, excellent reputation, top quality OEM components
• Excellent support from start-up, through product lfe
• 18-month equipment warranty

Standard Equipment

• 1000 gallon capacity (actual 995 gallons)
• Elliptical tank, baffled, low center of gravity
• Insulated tank with 2" ceramic wool and aluminum wrap

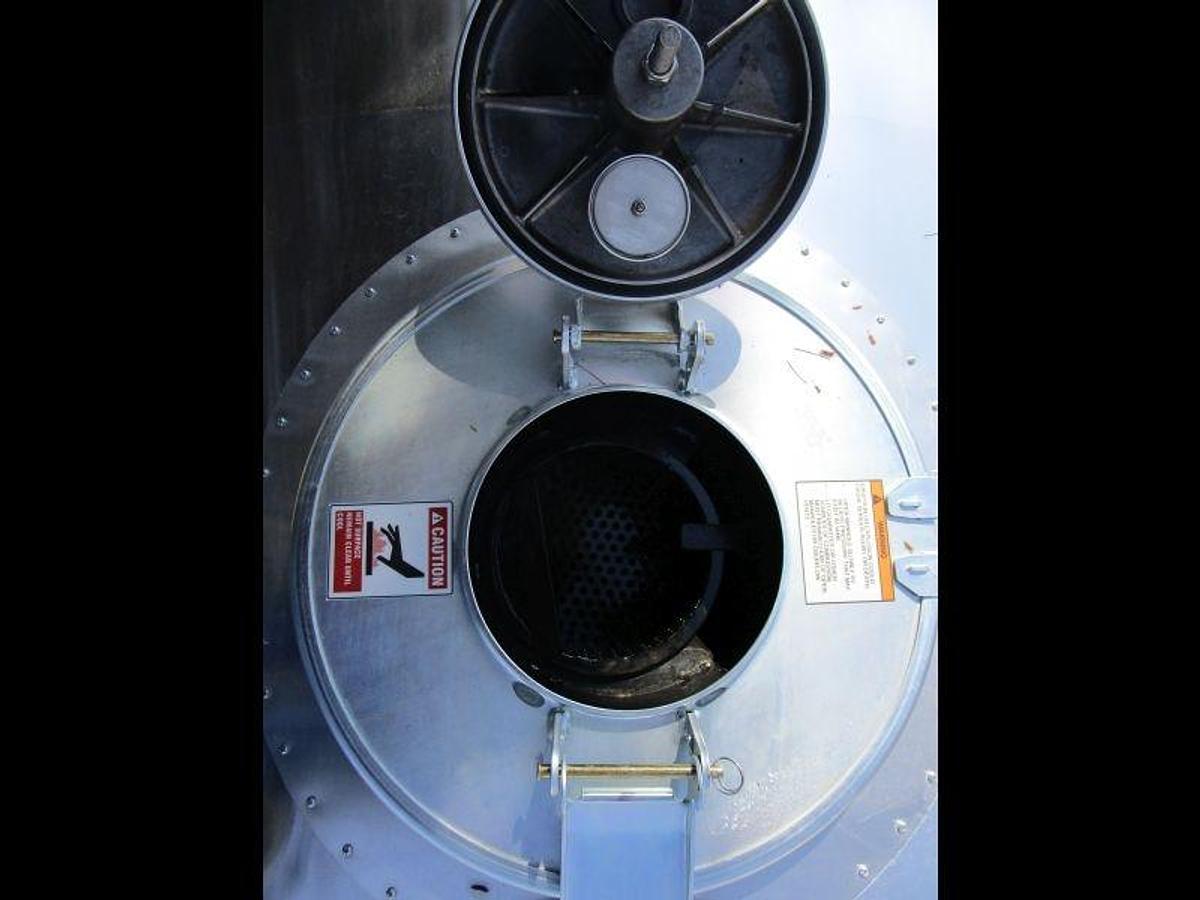

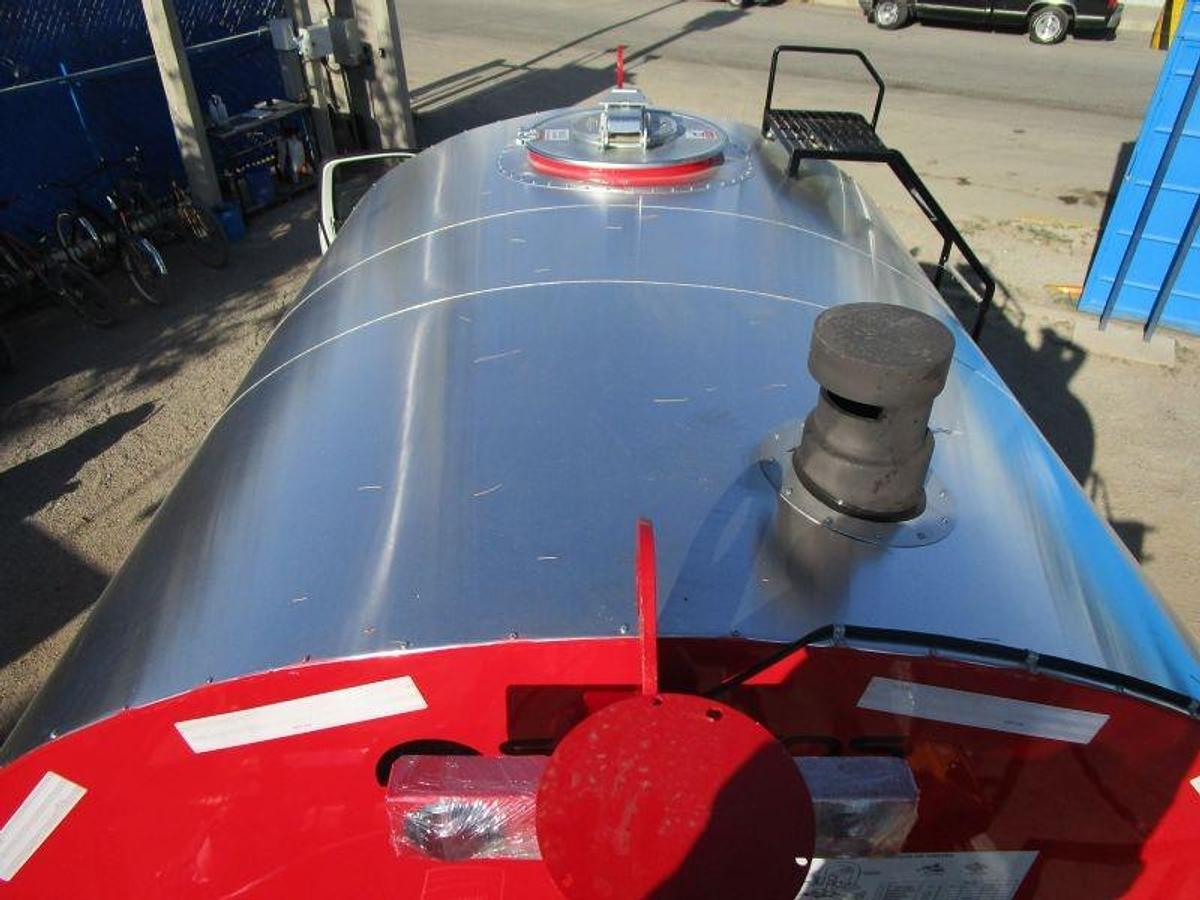

• DOT-compliant, double-folding sealed manway hatch with strainer and expansion overflow
• Diesel-fired Beckett burner heating system, 350,000 BTU
• Digital thermostatic material temperature controls
• Analog thermometer
• Material level gauge indicator
• Backup dip-stick level gauge
• Briggs Vanguard 14 HP gas engine with 20-amp charging circuit
• Electric start and pull start
• Deep-cycle battery package with battery box, voltage meter, and amp meter
• Viking 60 GPM material pump
• 50' hose, hand wand, on Hannay spring-wound hose reel
• Applicator hand wand with on/off valve and foot valve
• Inline strainer basket for easy cleanout
• Filter/flush system
• Removable hoses with camlock ends
• Inline material pressure gauge
• Fuel pressure gauge
• 10 gallon solvent tank for cleaning out the lines
• Side-mounted ladder
• Operator platform with railing and safety chain
• Tandem axle trailer with 7,000 lb axles
• Heavy-duty diamond plate fenders
• 16" wheels, 8-lug rims, ST235/80R16 load range E tires
• Electric brakes on both axles with breakaway kit
• DOT-compliant LED lighting
• Heavy-duty adjustable-height tongue jack
• 12" five-position adjustable hitch plate up to 29" tow height
• Pintle ring
• NATM-compliant trailer construction
• Standard paint: yellow tank, black trailer

Field-Service Features That Matter

Stratos are equipped with field-service features that matter, including an amp meter on the battery box, an analog thermometer to verify material temperature against the thermostat setting, a strainer basket in the manway, a backup dip-stick level gauge, a filter/flush system, removable hoses with camlock ends, an inline material pressure gauge, and a fuel pressure gauge. Together, these features make the unit easier to troubleshoot, easier to service, and easier to keep running on the job.

Spray Bar and Application Control Options

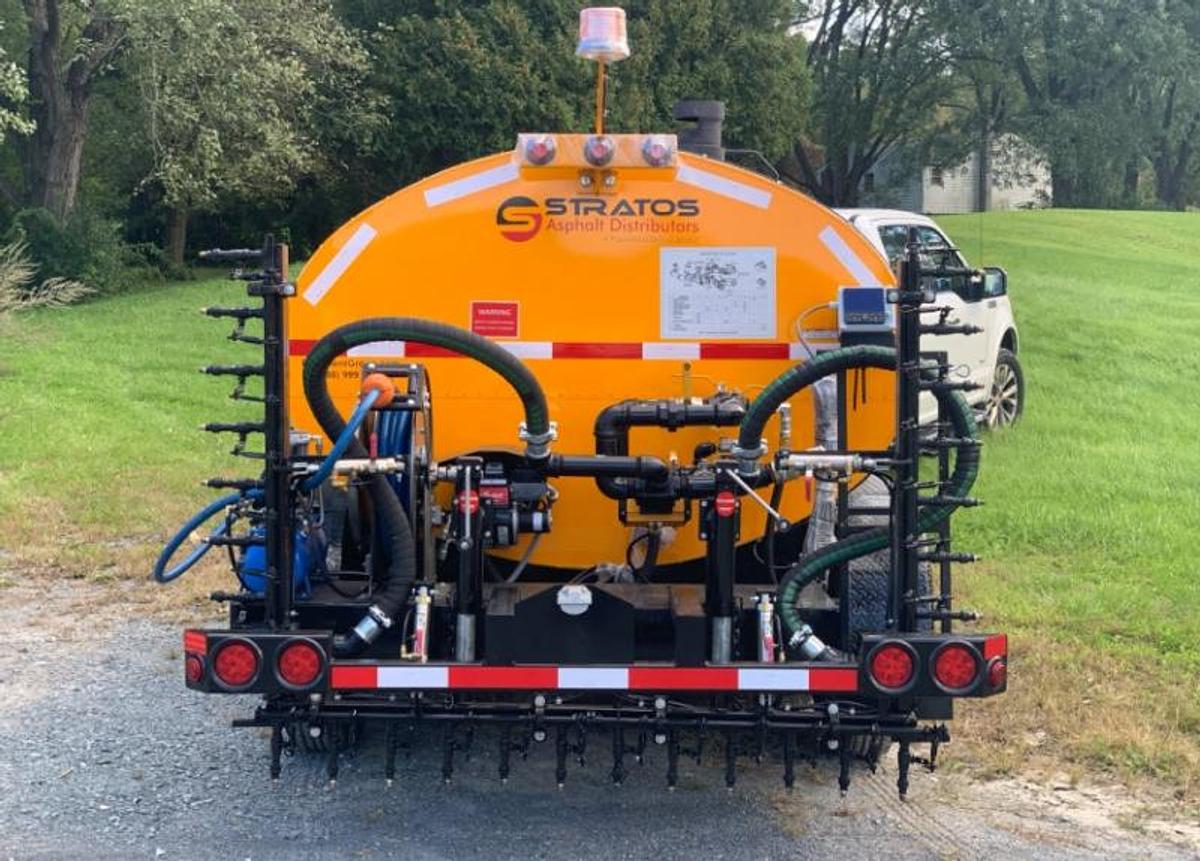

For higher production work, the DMT-1000 can be equipped with your choice of 8', 12', or 14' spray bar.

The optional Dual-Flo full circulating spray bar package includes the electrically activated pneumatic valve, with air compressor/tank. This system is controlled by fob remote control, which sends the signal to open or close the air valve. By default, the spring closes the valve, and a bypass is also included.

An optional Danfoss monitor reads signals from the pump and DICKEY-john radar and other data, helping the operator maintain a more precise application rate and satisfy job specifications calling for monitored rate control, including certain DOT, municipal, and corporate work.

Popular Options

• Choice of 8', 12', or 14' spray bar, adjustable height
• Duo-Flo spraybar, full-circulation, consistent pressure, instant and precise on/off spray
• Danfoss computer rate monitor with DICKEY-john ground radar
• Overnight heater/maintainer, 6 kW, 220V, single phase
• Hitch extension for towing with dump trucks or other vehicles with a large overhang
• Hydraulic brakes
• LED amber strobe light
• Spare tire, mounted
• 3' hitch extension, extended length chains
• Custom color
• No-insulation configuration available

Dimensions and Weight

• Length: 196"
• Width: 84"
• Height: 86"
• Approximate weight: 4,872 lb
• GVWR: 13,216 lb
• GAWR: 14,000 lb

Warranty

18-Month Equipment Warranty

Important Note

Specifications are subject to change without notice. Photos may show optional equipment or prior configurations. Final delivered equipment may vary as product improvements are made.

Stratos DMT-1000 Questions & Answers

What is the advantage of a 1000 gallon asphalt distributor trailer over a 600 gallon unit? The main advantage is added capacity without a major jump in cost. A 1000 gallon unit means fewer trips to the emulsion supplier, longer spray runs, and better efficiency on larger paving and maintenance jobs.

What applications is the Stratos DMT-1000 used for? The Stratos DMT-1000 is commonly used for tack coat, chip seal, prime coat, fog seal, and other asphalt emulsion spraying applications.

How many different emulsions can the DMT-1000 spray? The DMT-1000 is built for use with more than 35 different emulsions.

What spray bar options are available on the Stratos DMT-1000 The DMT-1000 is available with a choice of 8', 12', or 14' spray bar. For higher production work, it can also be equipped with the optional Dual-Flo full circulating spray bar package.

Is a computer rate monitor available Yes. An optional Danfoss computer rate monitor with DICKEY-john ground radar is available to help the operator maintain a more precise application rate.

Can the DMT-1000 help satisfy DOT, municipal, or corporate job requirements? Yes. The optional Danfoss computer rate monitor can help satisfy job specifications or customer requirements that call for monitored application rate control, including certain DOT, municipal, and corporate work.

How many Stratos asphalt distributors are in the field, and who typically buys them? There are more than 400 Stratos asphalt distributors in the field. Typical buyers include paving contractors, chip seal contractors, municipalities, public works departments, airports, and contractors performing asphalt maintenance and emulsion application work.

Do you provide start-up help and support? Yes. Initial start-up and commissioning are often handled successfully by phone, support videos are available, and service and support technicians are available for walk-through assistance. We recommend calling us before first start-up as part of warranty activation and to help your crew get off to a smooth start.

Availability

Stratos distributors are currently in stock.
