Twin Screw Conveyor Bin with discharge screw

Over 50 of these systems were originally built for the oil and gas industry. They were an excellent seller, dependable, with no warranty issues.

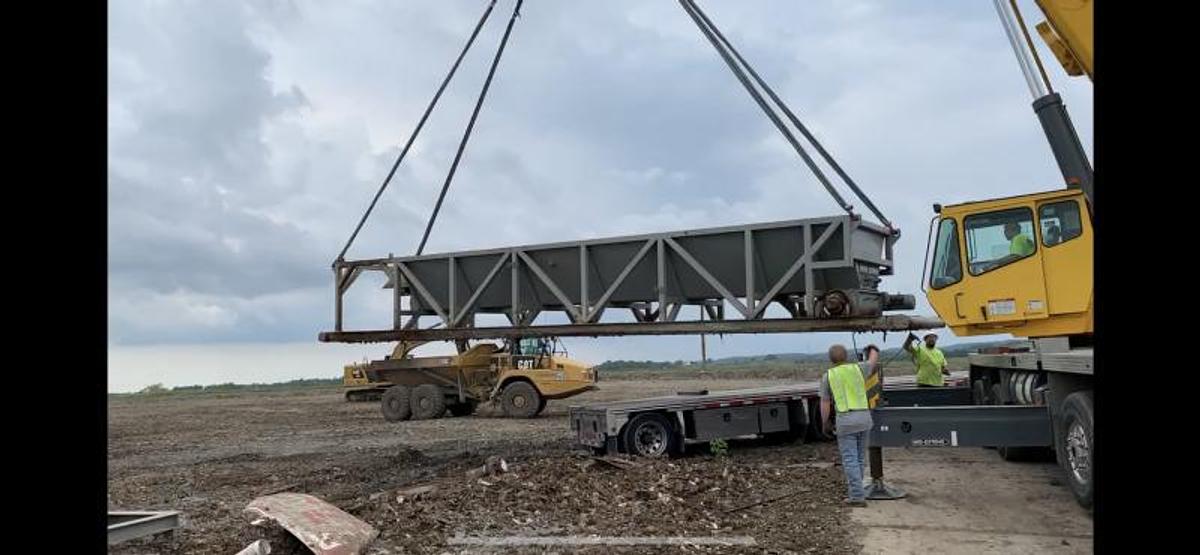

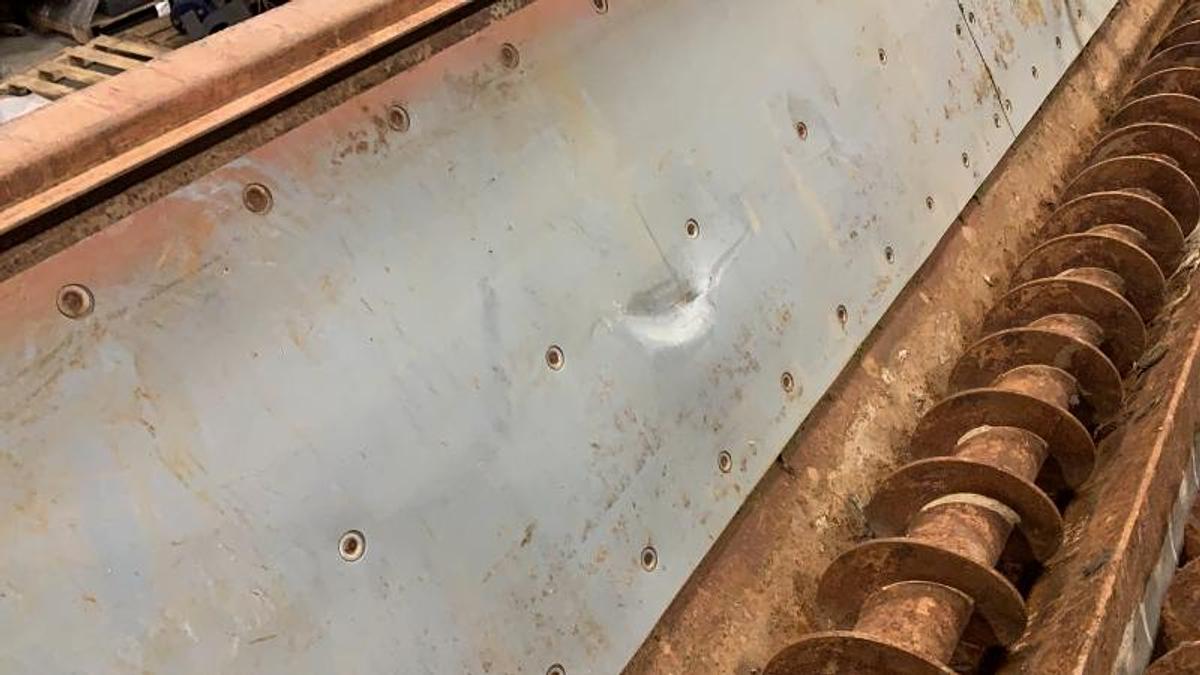

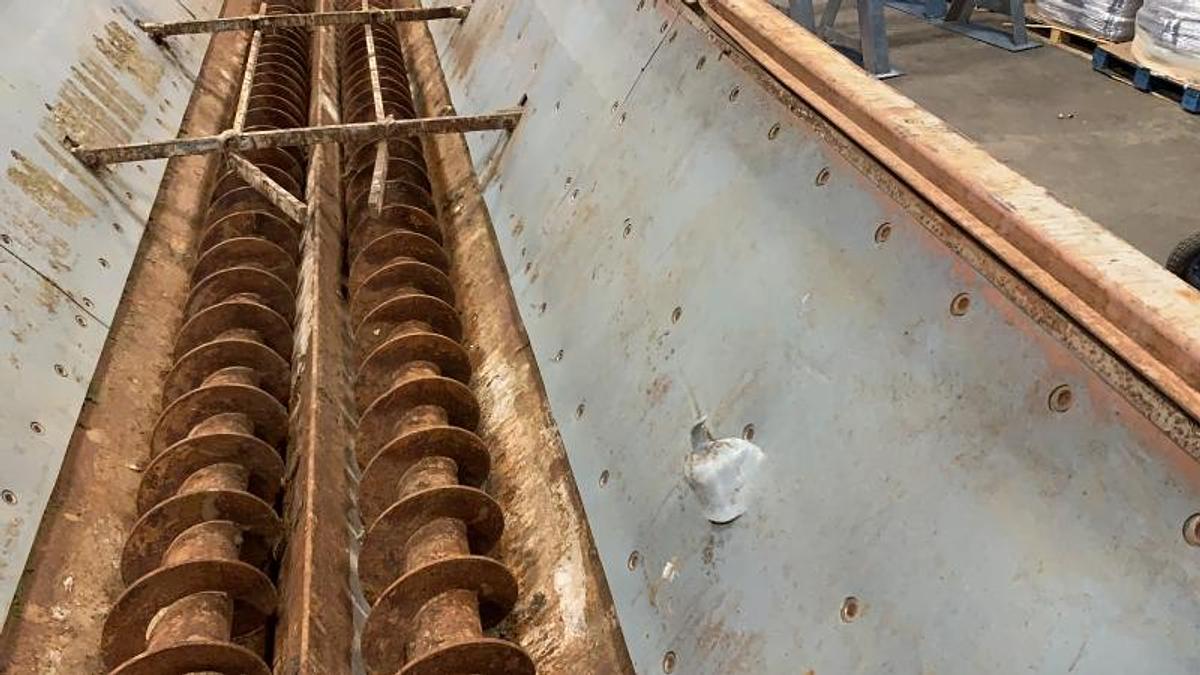

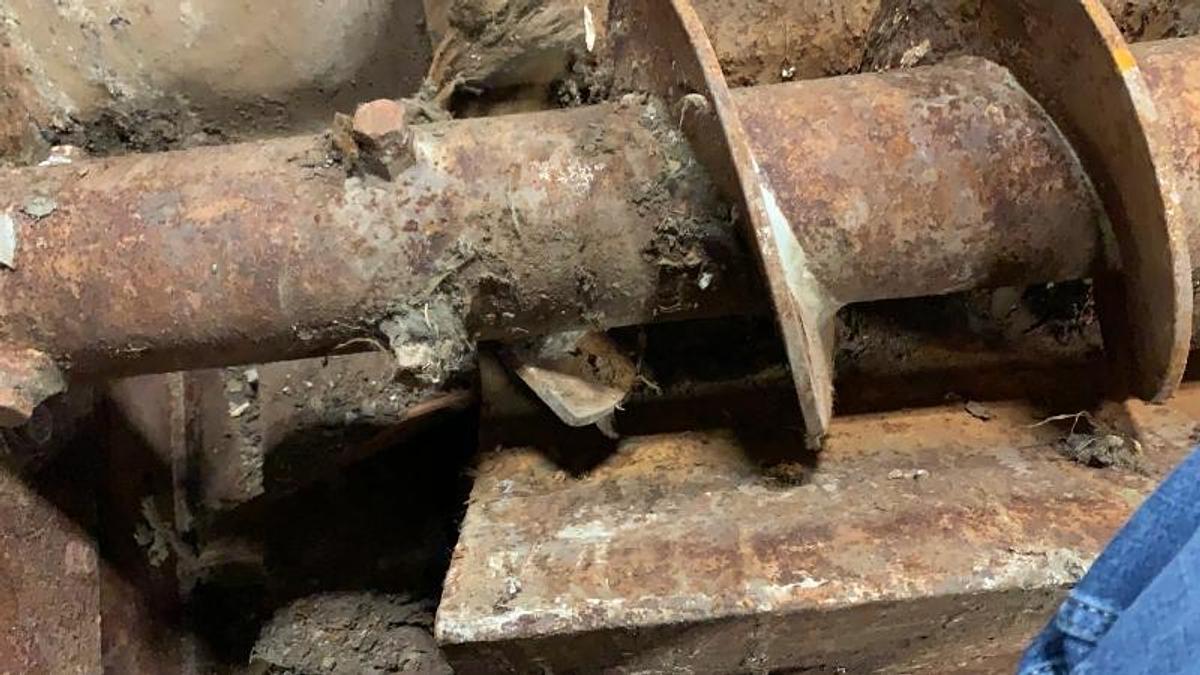

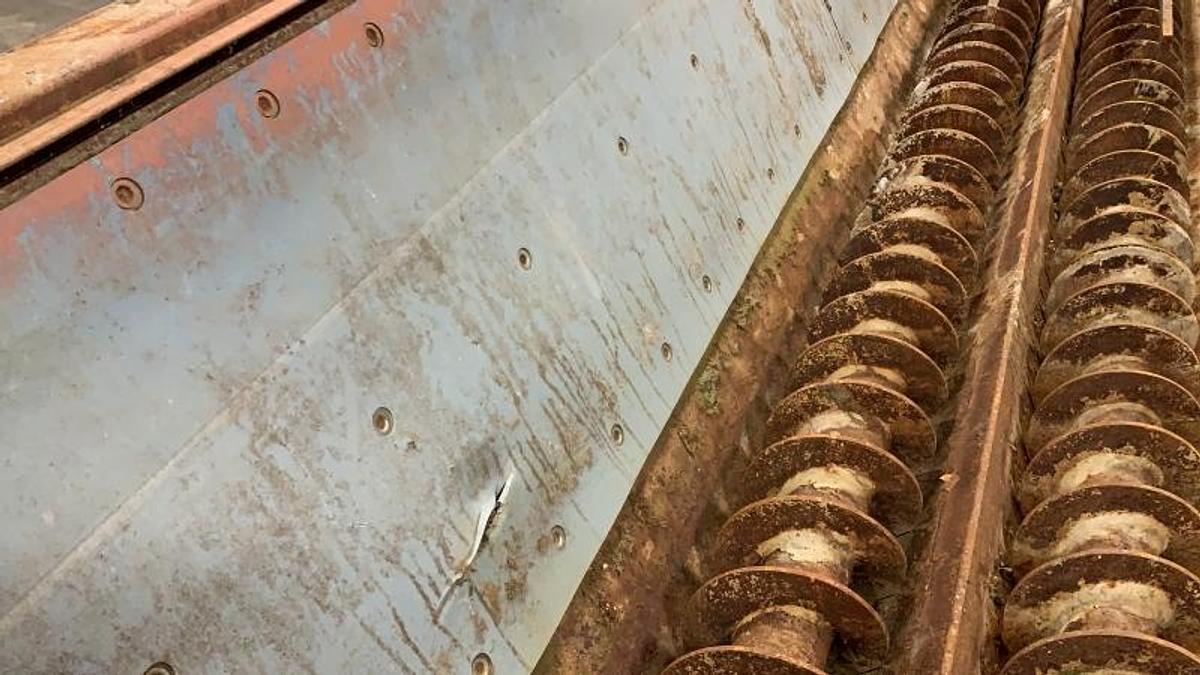

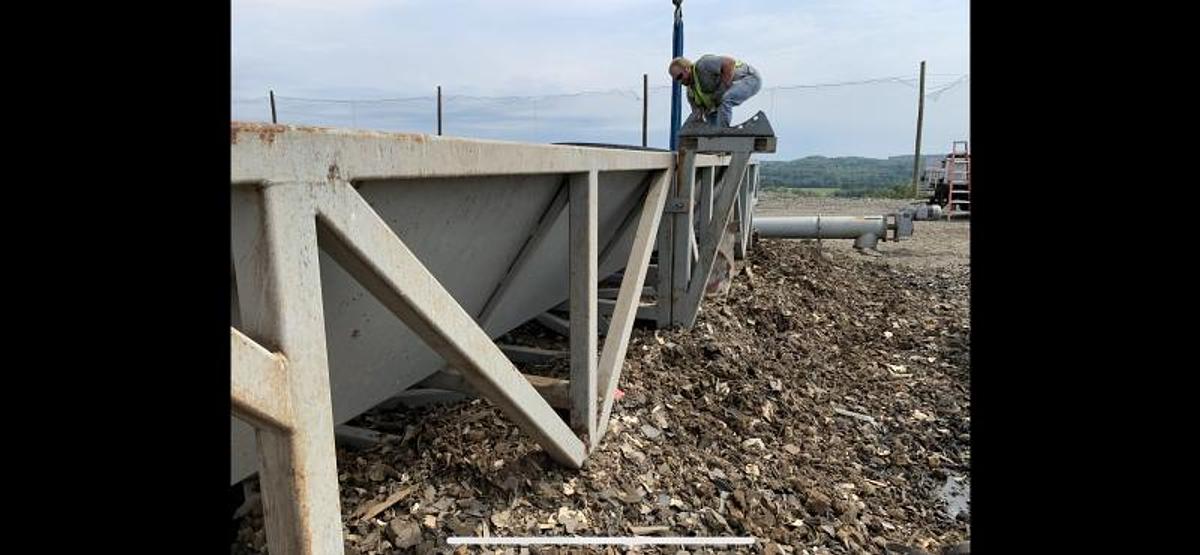

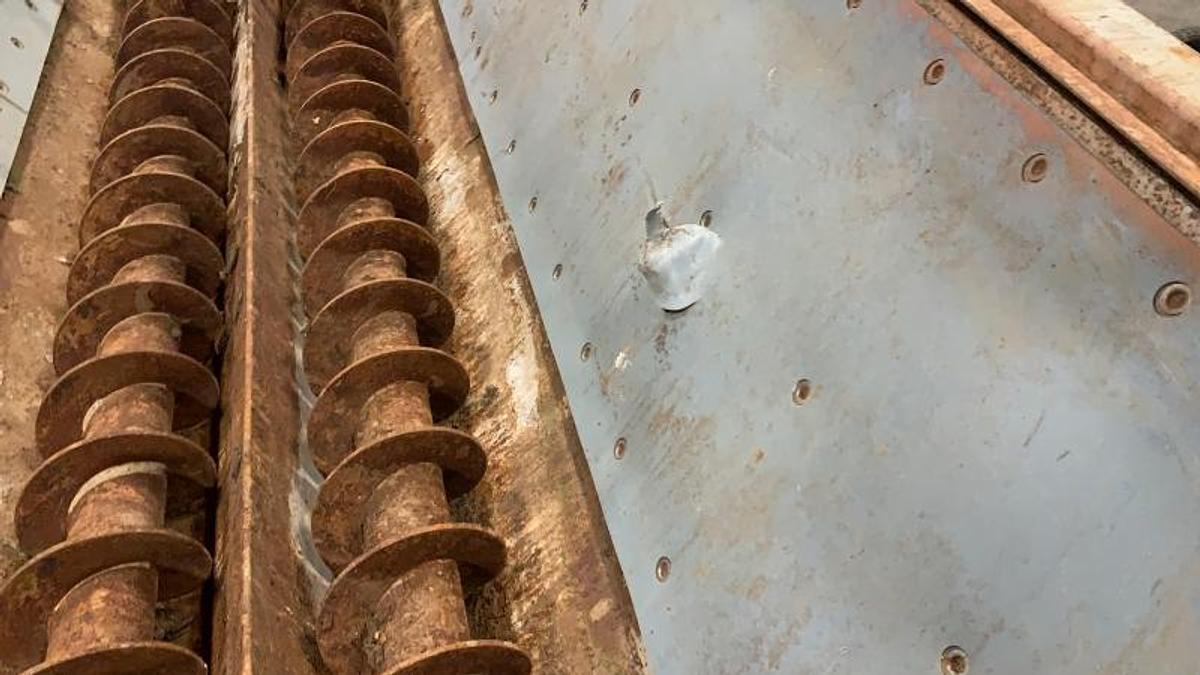

The sludge bin and incline screw which is being sold, was used for 1 season at a Waste Mgt facility for liquid waste solidification. It was used intermitently over a one year period. The overall condition is good. There are a couple of spots where there is a bend in the feed screws. The bins are lined with a polyurethane type protective material which have a couple of holes shown in the photos. The rubber boot which sits inside the tube that connects the bin's output to the incline screw, may have a tear in it. The Nord motors and gear boxes were all fully functional with very low hours at the time the system was removed from service August 2020. Full specifications are below.

LOCATION of equipent: Honeybrook PA (Call to arrange onsite inspection) The equipment is sitting in the original equipment mfg's yard and so any questions about the equipment can be discussed with the manufacturers before or during your inspection.

Mfg: Specifications are below:

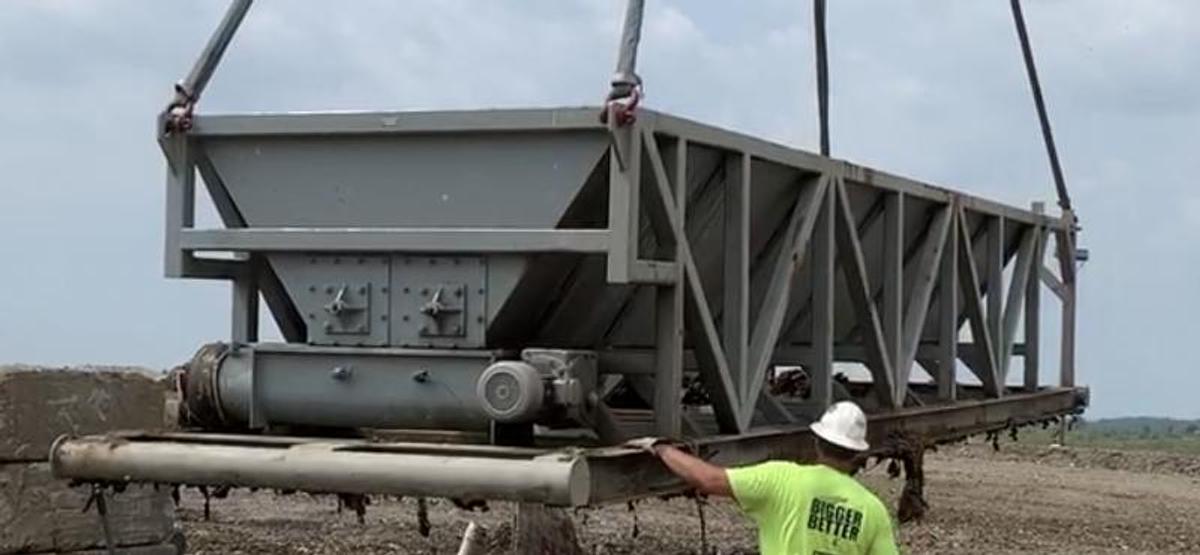

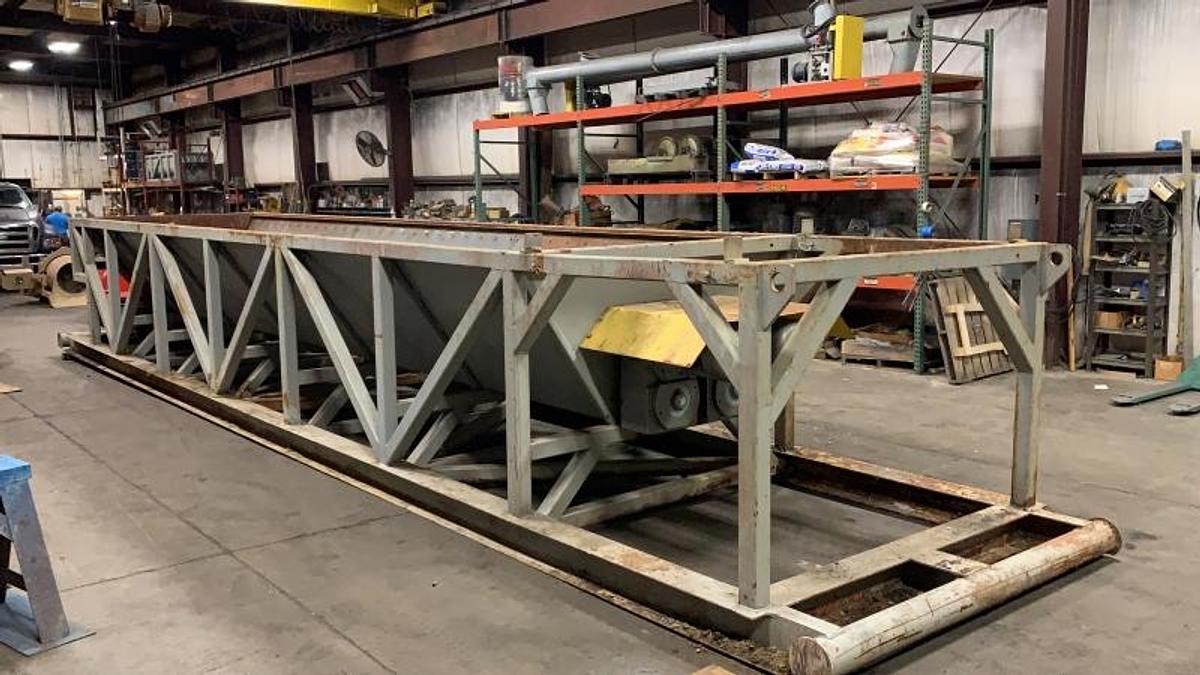

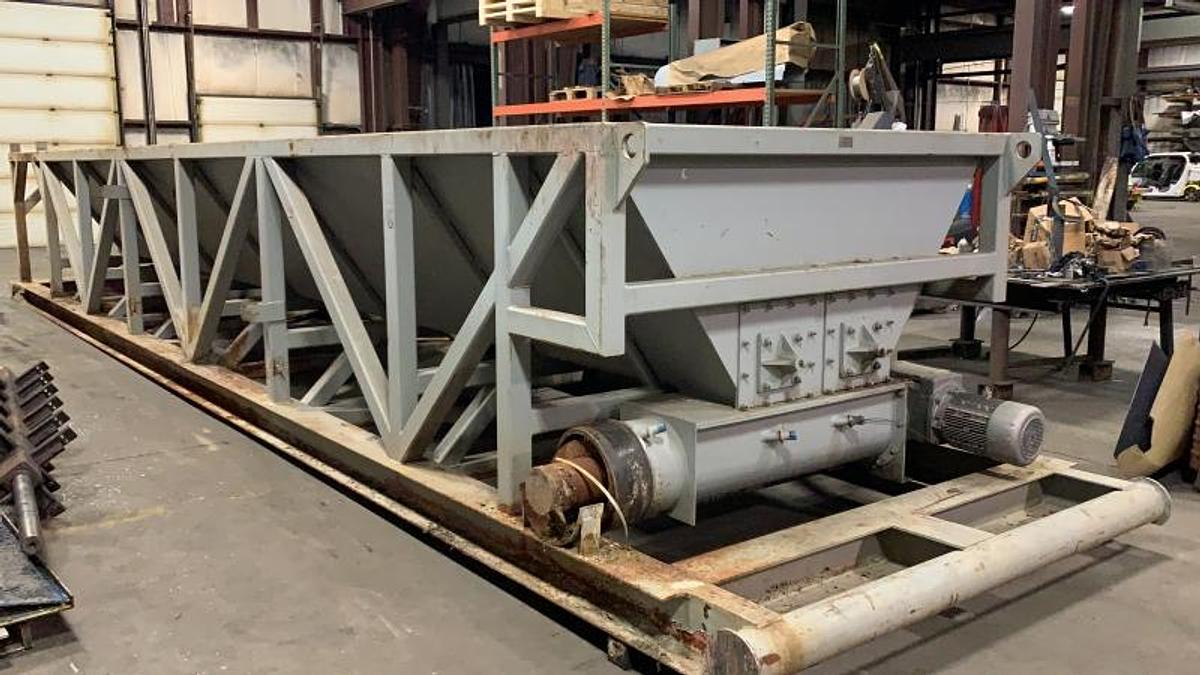

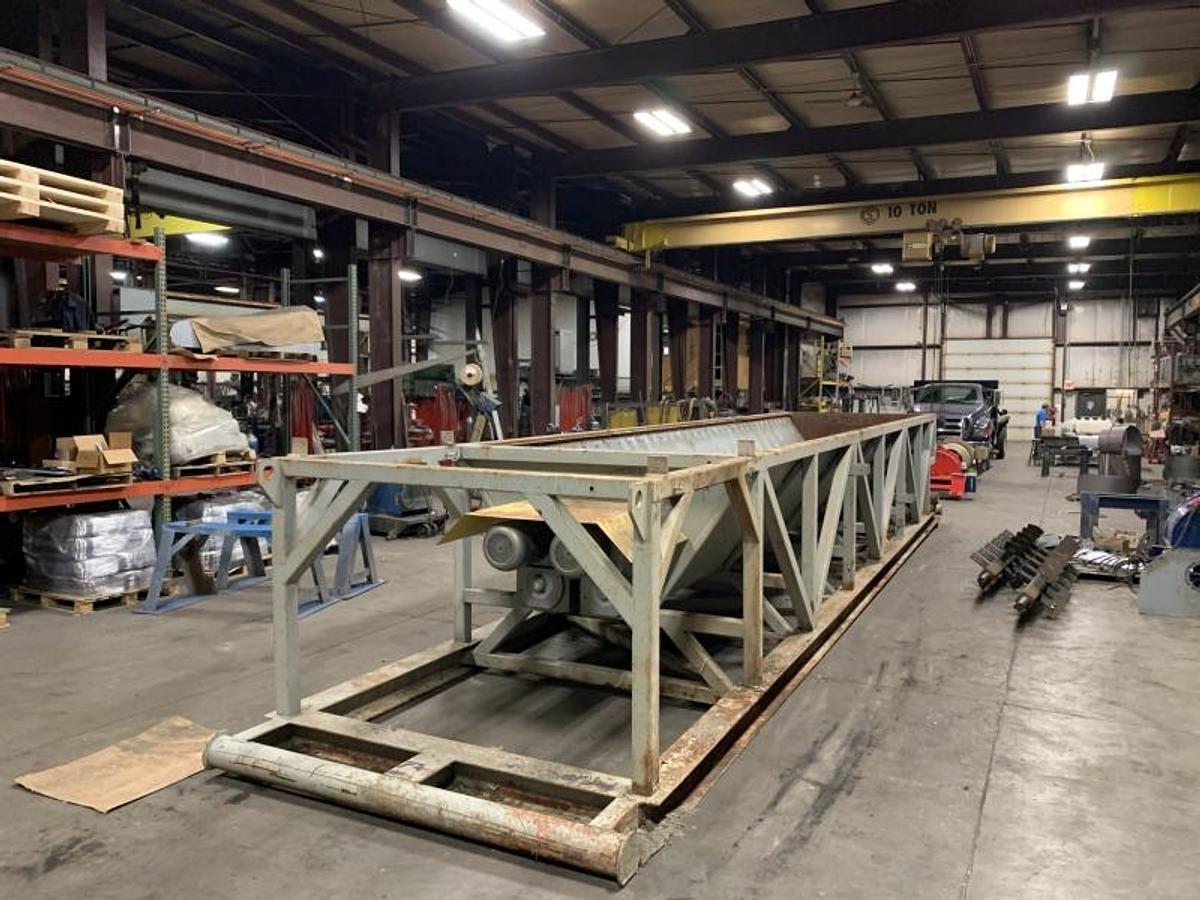

Twin Screw 45CY Live Bottom Hopper with Cross Screw

Bin Length 32 ft inside

Bin Width 7 ft inside

Bin Height 5.5 ft outside

45 cubic yards capacity

Material Sludge (dirt, silt, water, vegetable- and petrol-based lubes)

density: "dry dirt" to "water"

up to 100 tph

Sludge Screw (2) 12" OD x 8" pitch for exit end of screw and 6" pitch on lead off screw on 6" pipe; carbon steel

Sludge Screw Motor (2) Seimens 15 hp, 1800 RPM, 3 phase

Sludge Screw Gear Box (2) Nord Gear Corp

Model #: SK 7382SC-160 M/4

Serial #: 1/811134266600 003

Ratio: 78.81

Torque: 42110 in*lbs

Speed: 22 RPM [motor speed adjusted to meet demand]

Mounting position: M1

Cross Screw 12" OD x 12" pitch on 6" pipe; carbon steel

Cross Screw Motor 7.5 hp; 3 phase

Gear Box Nord Gear Corp

Model #: SK 9042.1SCP-132 S/4 CUS

Serial #: 1/811134265900 001

Ratio: 40.54

Torque: 11039 in*lbs

Speed: 43 RPM [motor speed adjusted to meet demand]

Mounting position: M3

Power Connector Rubber Covered Cord with 480VAC Plug

Controls No (refer to Control House)

Ambient Conditions -10° to +120°F (-23.3° to +48.9°C)

0 to 100% RH

Incline Screw Feed

Screw Diameter 16 in

Inlet to Discharge Length 34.25 ft

Conveyor Angle 12°-15°

Material Sludge (dirt, silt, water, vegetable- and petroleum-based oils)

density: "dry dirt" to "water"

up to 100 tph

Screw 16" OD x 16" pitch on 6" pipe; carbon steel

Motor Nord 15 hp, 30 PRM, Class 2 SC drive

Gear Box Nord Gear Corp

Model #: SK 6382 A2B-160 M/4

Serial #:

Ratio: 59.66

Torque: 31878 in*lbs

Speed: 30 RPM [motor speed adjusted to meet demand]

Mounting position:

Inlet 12" x 12" square

Outlet 16" x 16" square

Power Connector Rubber Covered Cord with 480VAC Plug

Controls No (refer to Control House)

Ambient Conditions -10° to +120°F (-23.3° to +48.9°C)

0 to 100% RH
