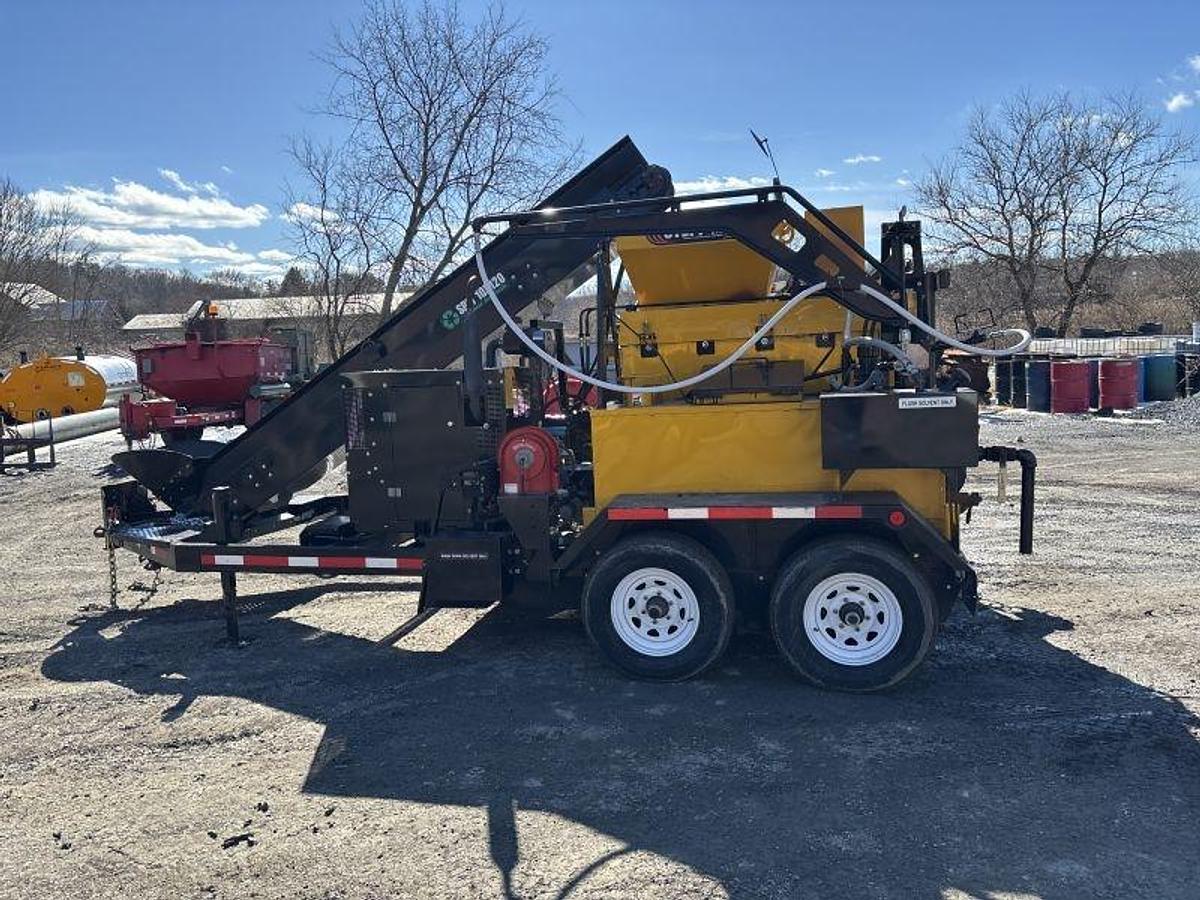

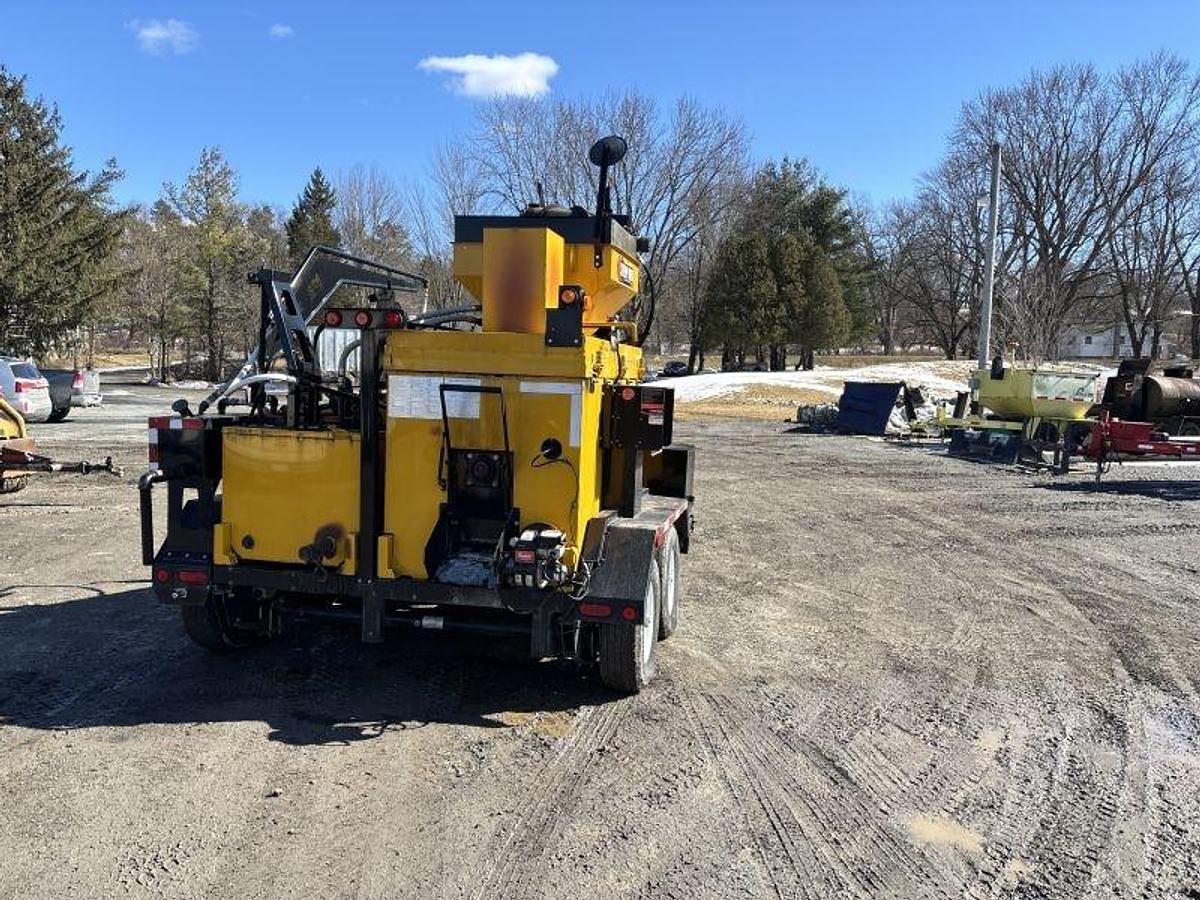

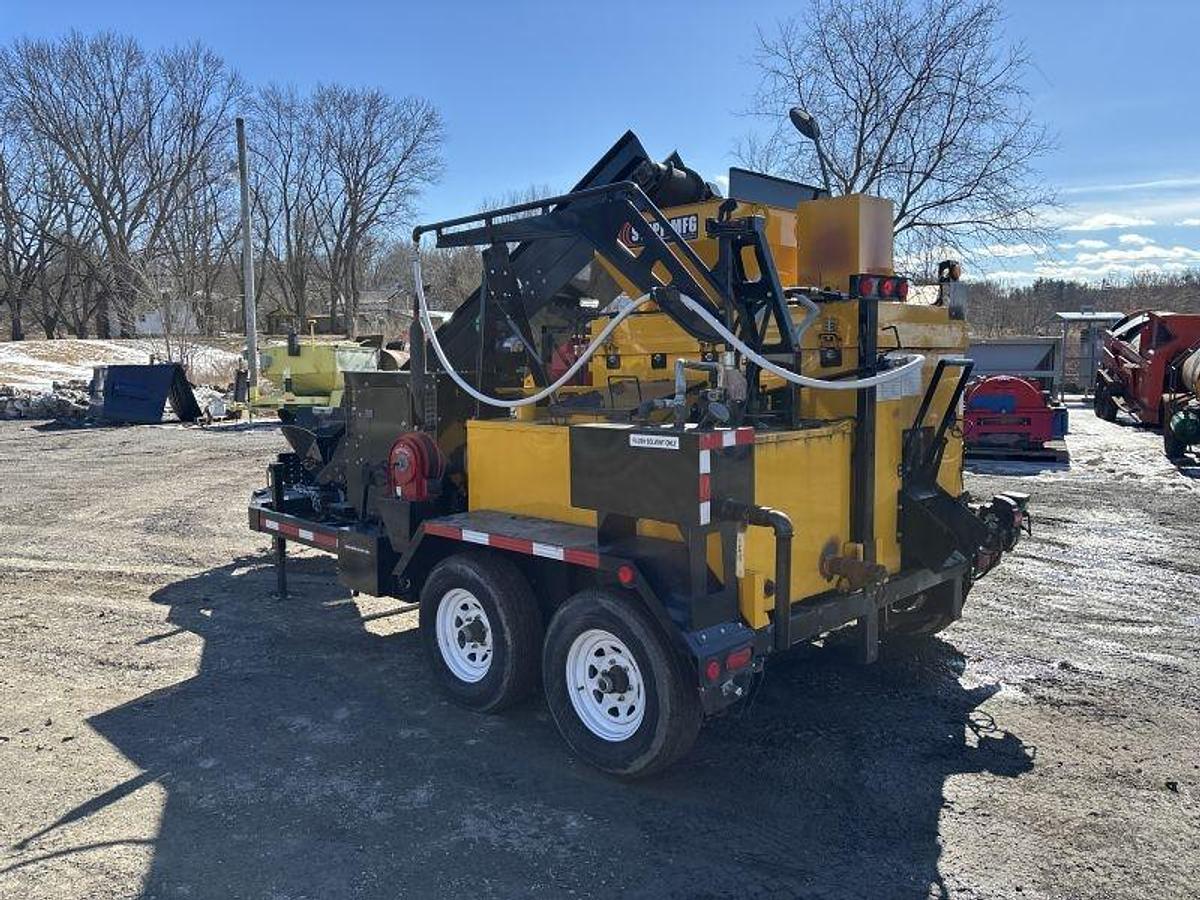

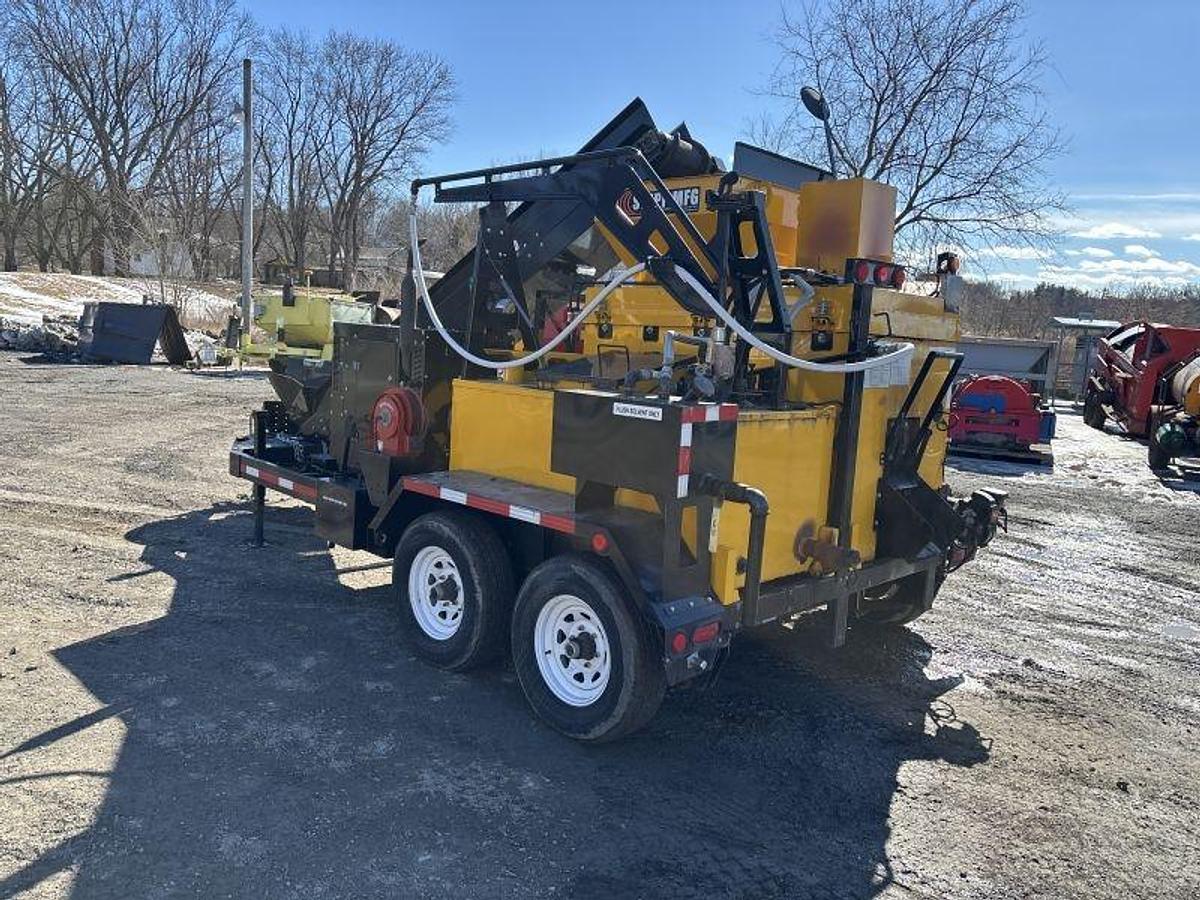

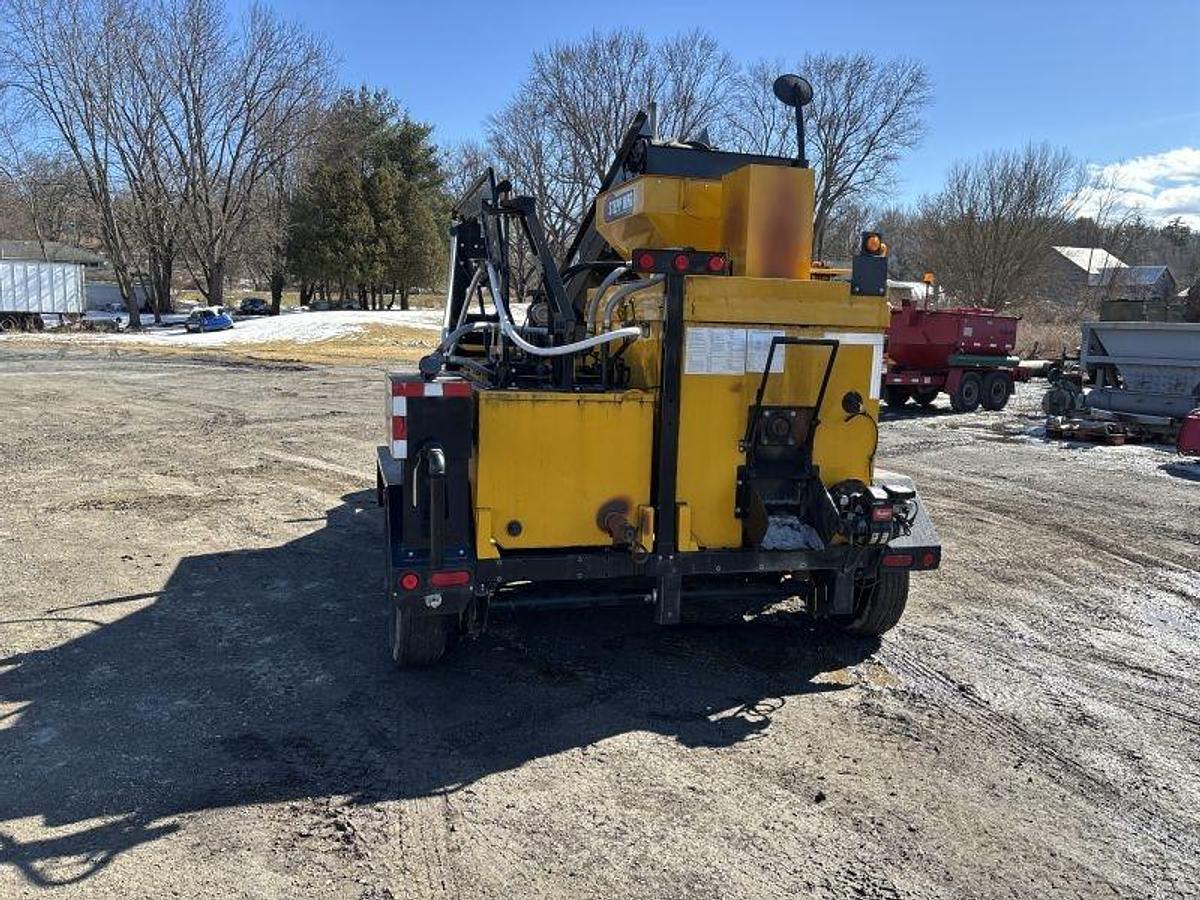

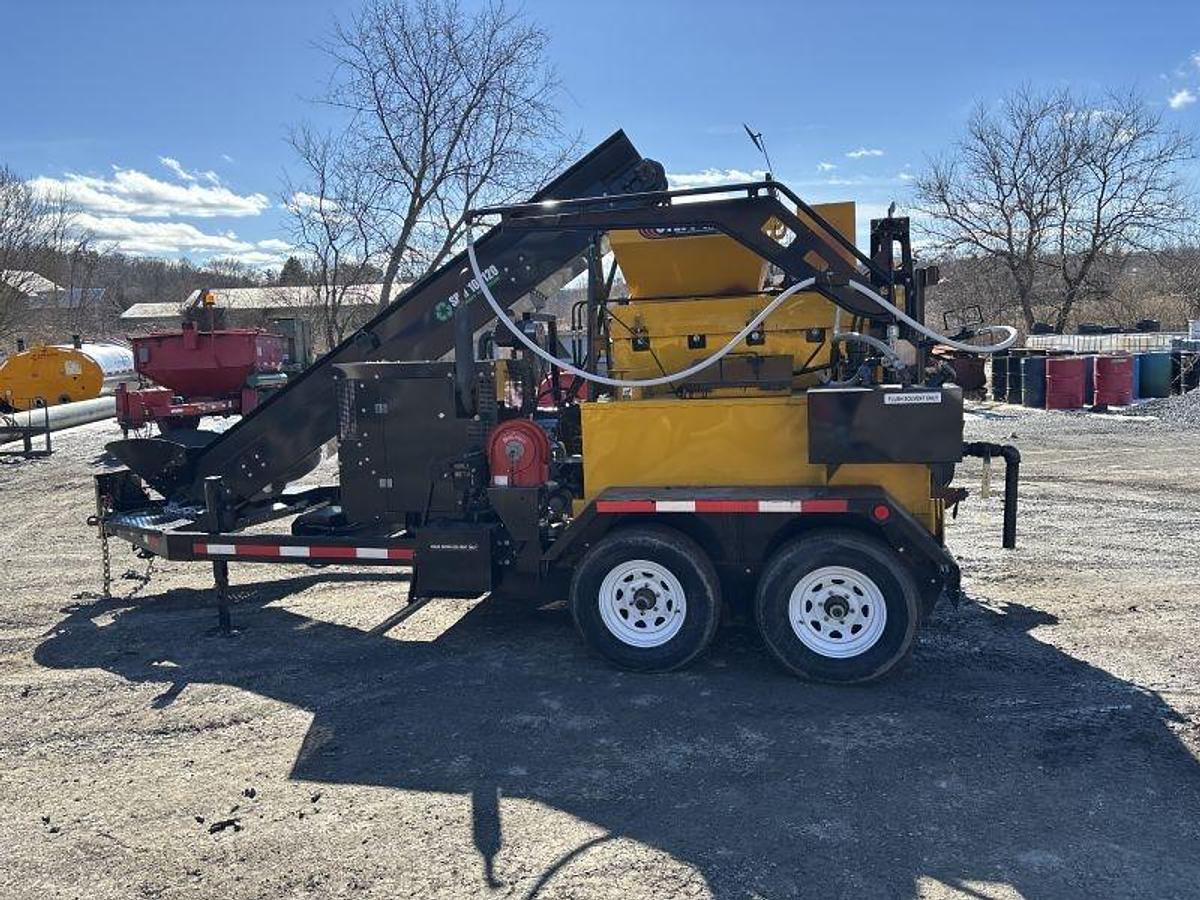

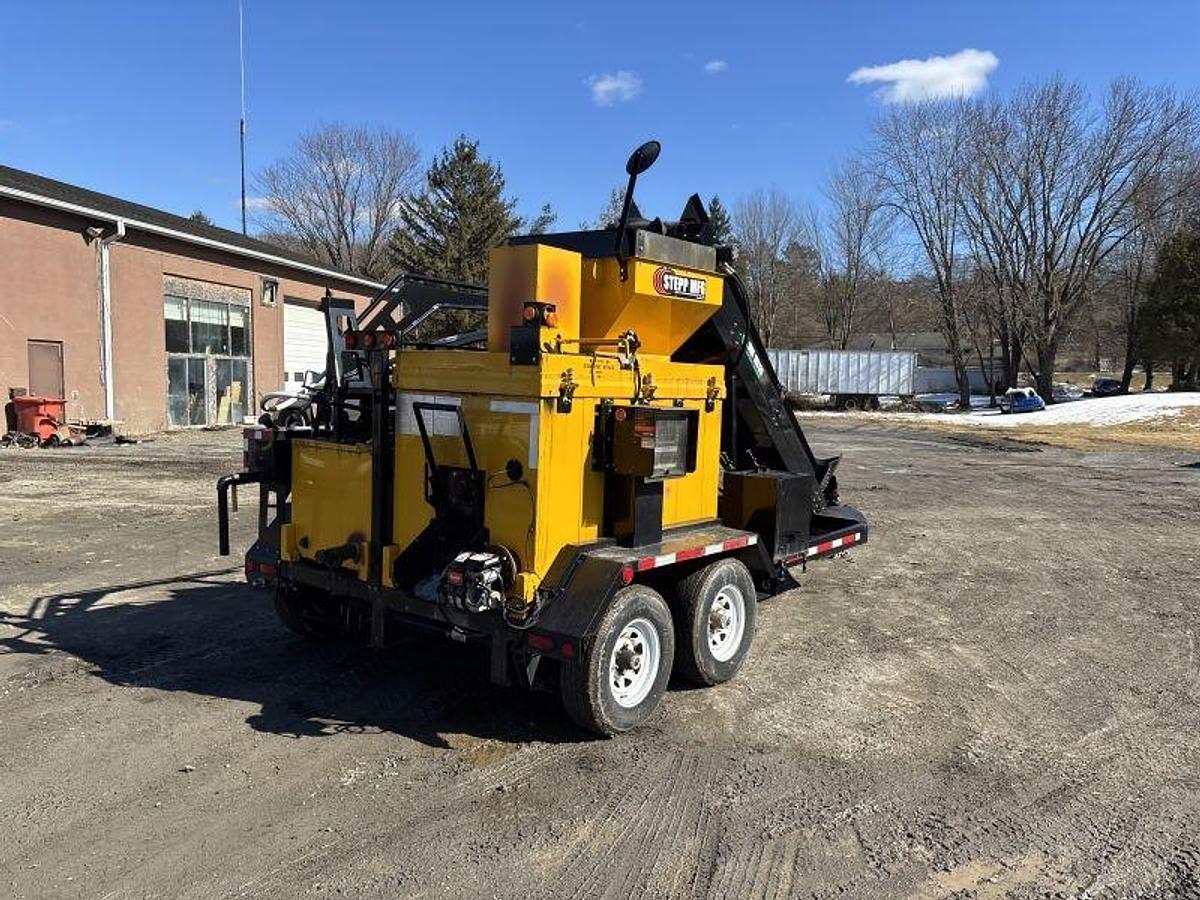

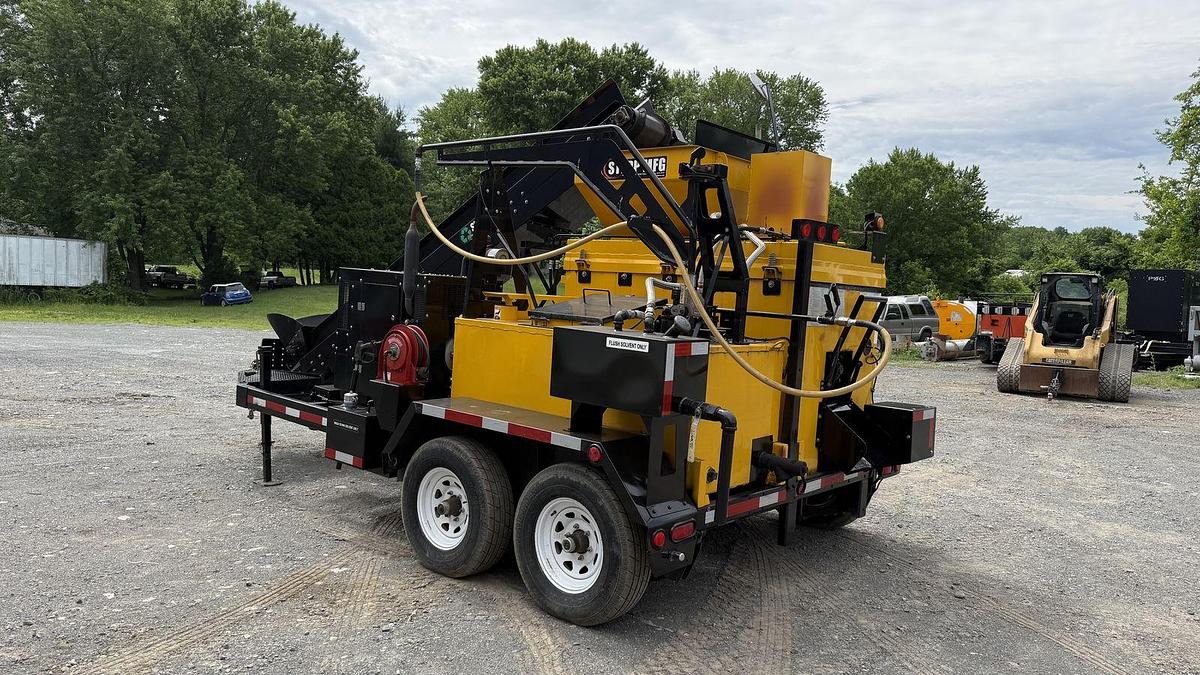

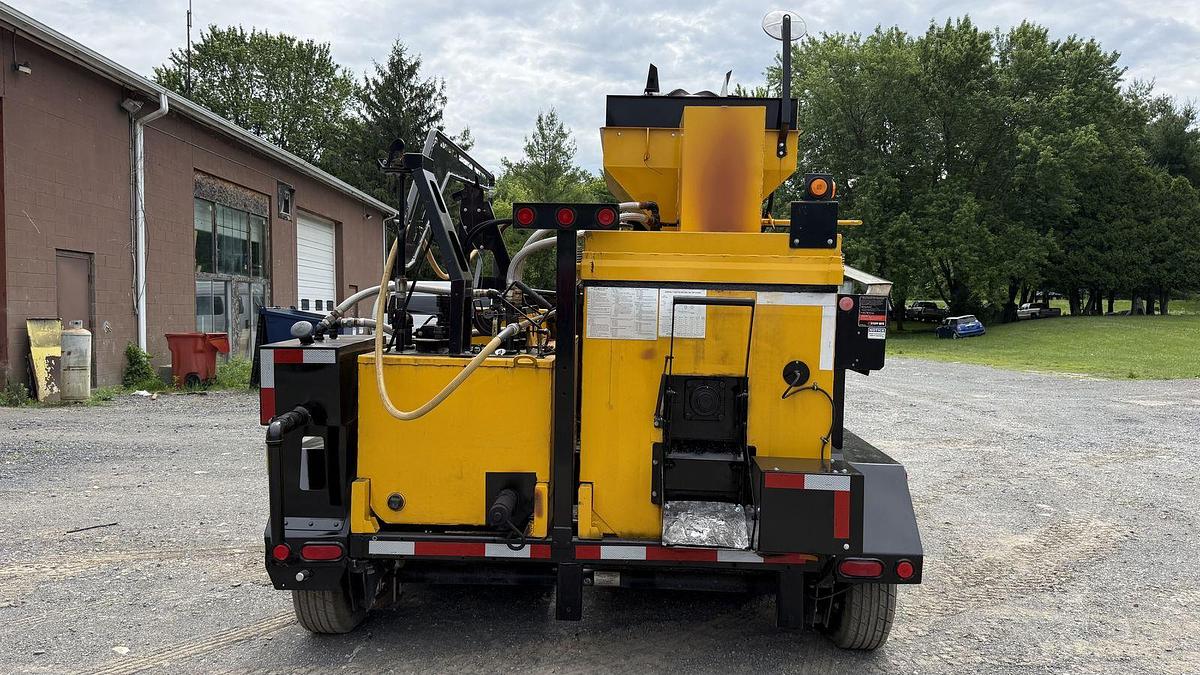

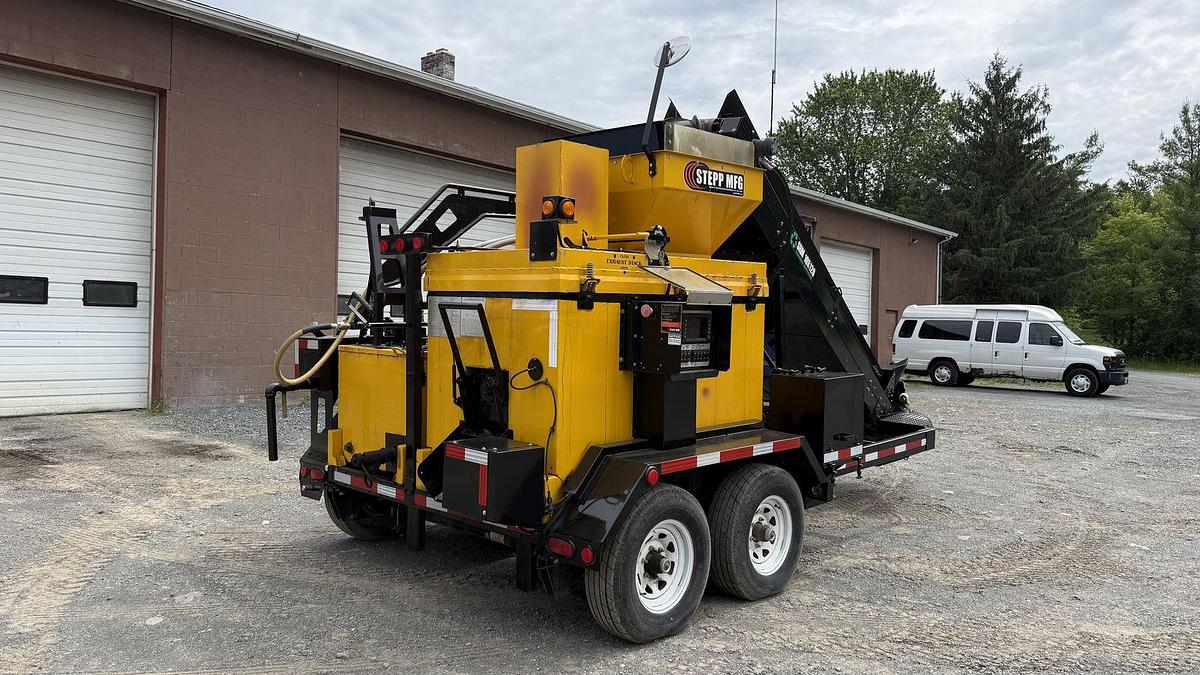

Stepp SRM 10-120 Asphalt Recycler 3/4 ton batch recycler with heated AC tank and wand

Don't miss our Stepp SRM10-120 asphalt recycler for sale, with conveyor (feeds directly fromtruck) recycles 1/2 ton in 8-15 mins, PavementGroup Certified Pre-Owned! 2017, only 90 Hrs!,1/2 ton batch in 8-15 minutes, recycles chunks and millings. Includes a 90 day parts WARRANTY Call 518-218-7676

Stepp SRM 10-120 Asphalt Recycler (hotmix asphalt all year long, for pothole repairs and patching) Includes 110 gallon heated tack tank and electrically heated spray wand

2017

ONLY 90 HOURS

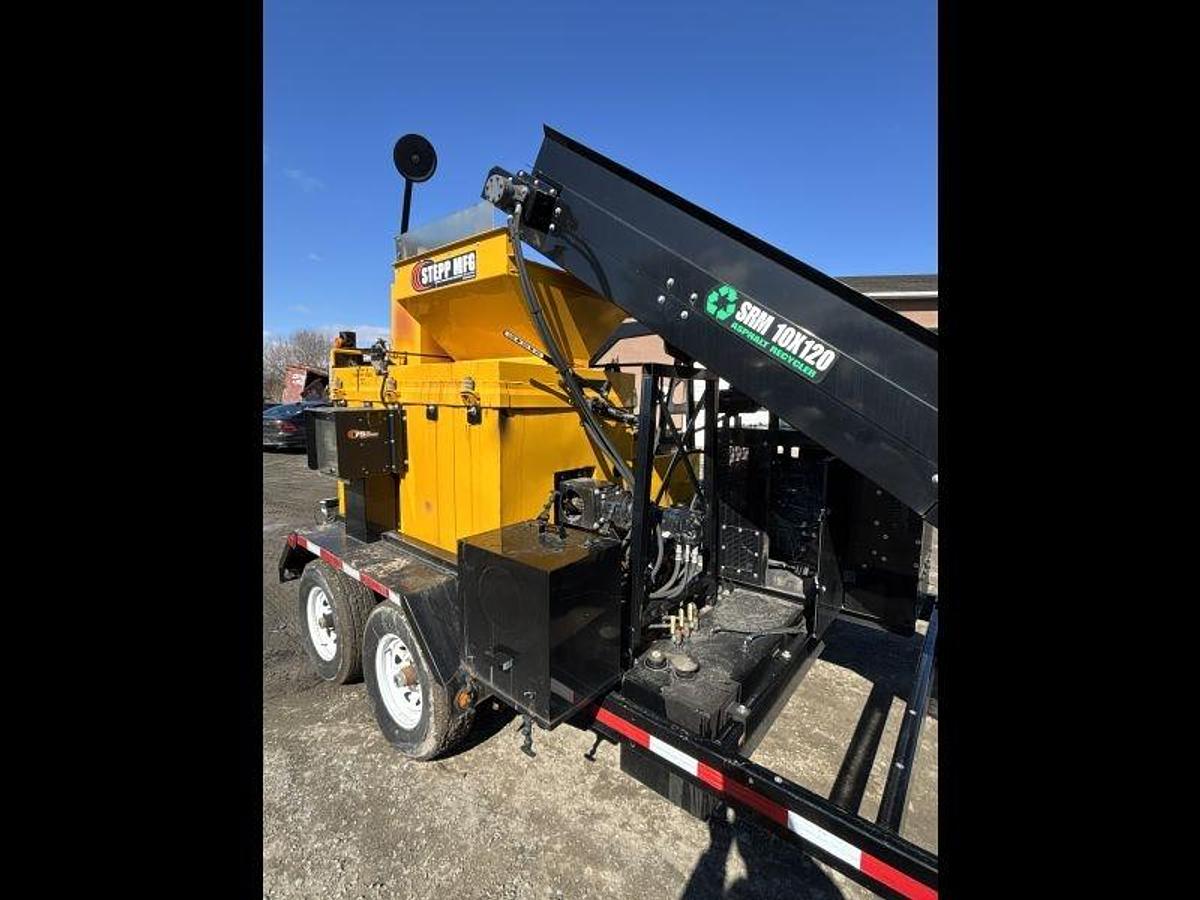

Stepp Mfg Model: SRM 10-120

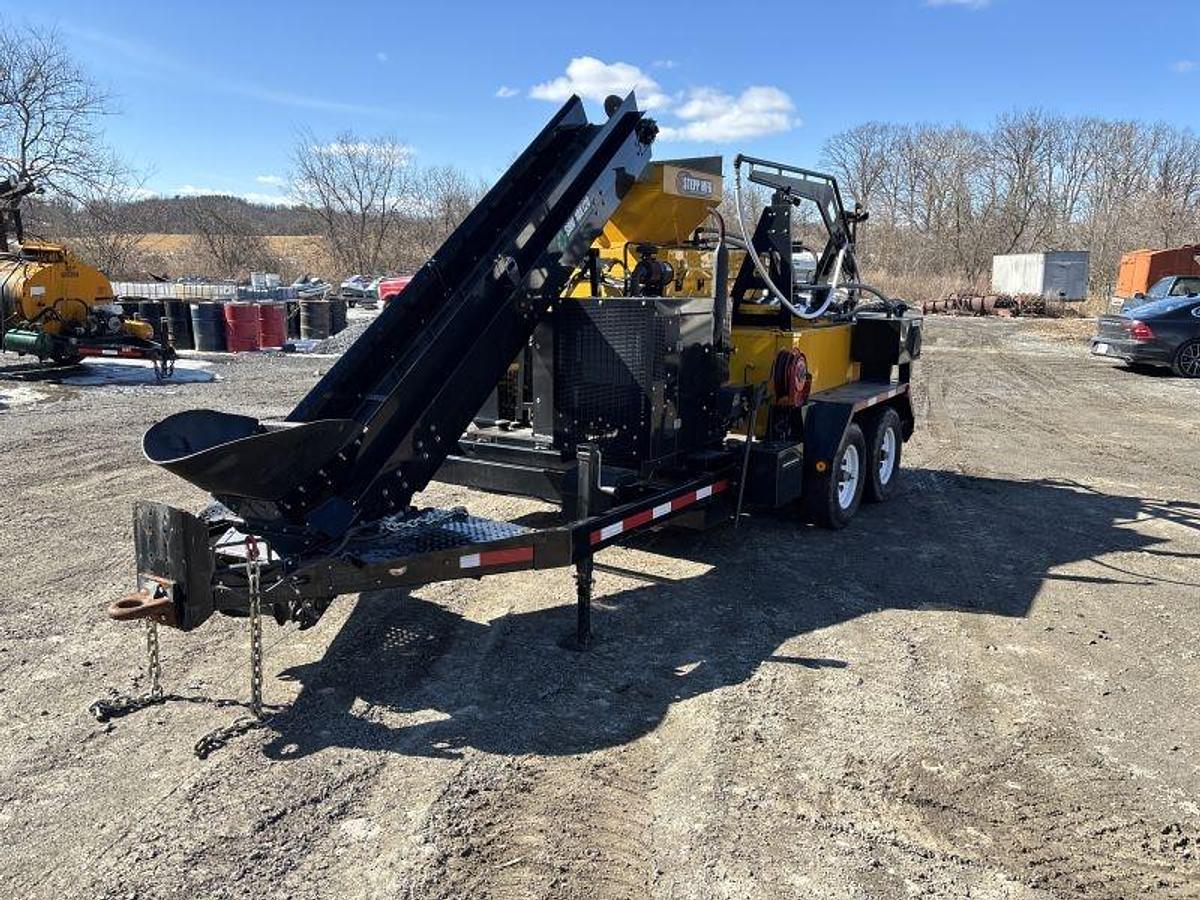

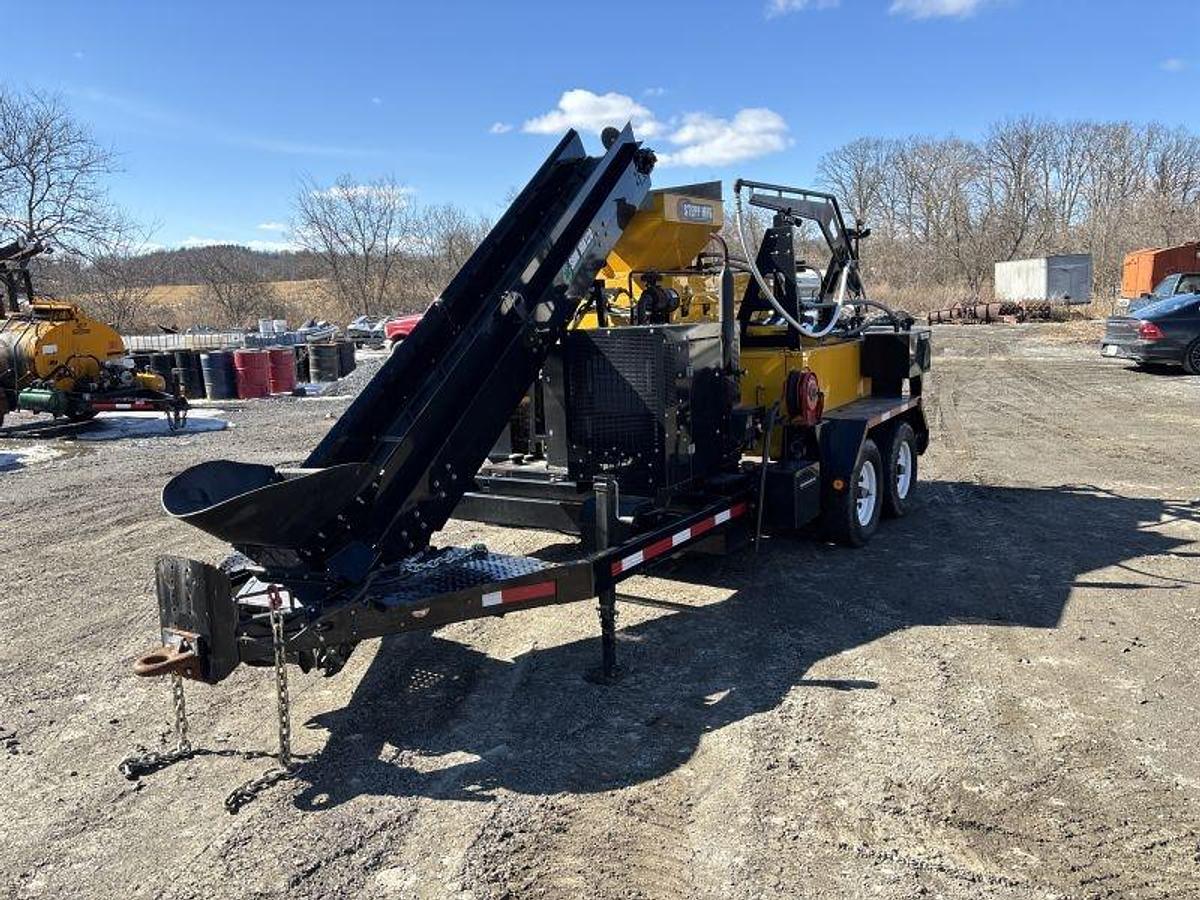

Loads from truck via built in conveyor

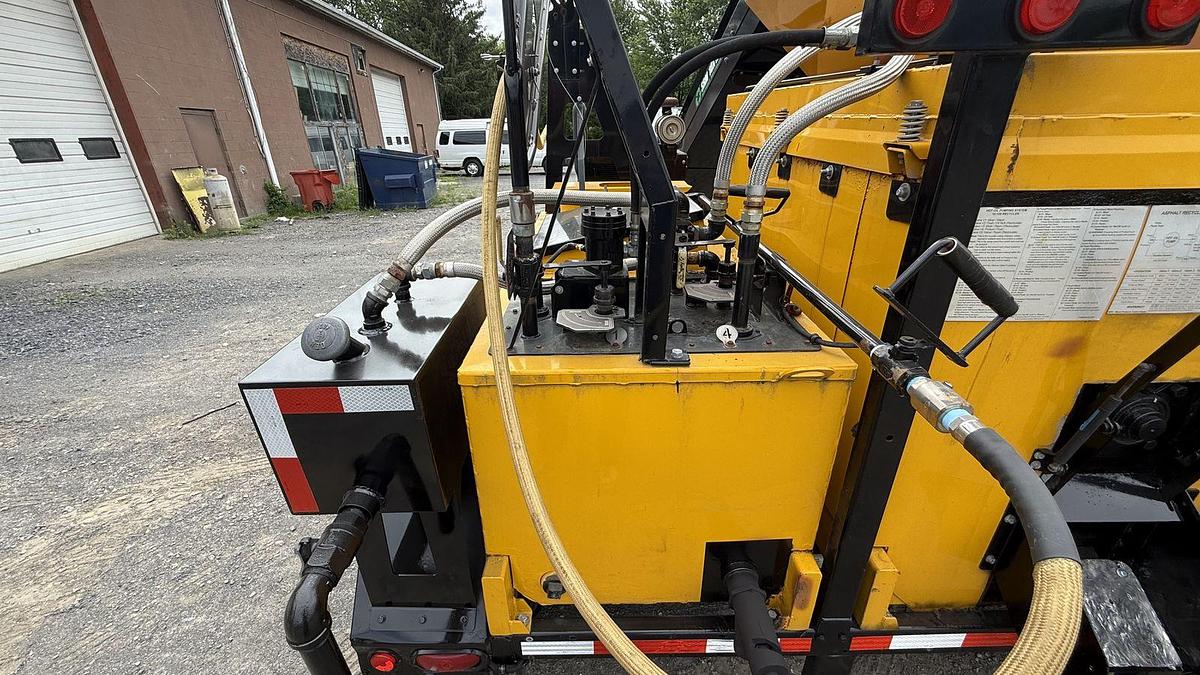

Includes 120 gallon heated tank tank with hose, boom and appicator wand for tack coating

L 20’-9”, W 8’-4”, H 9’-5” 12,900lbs

Recycles chunks and millings

1/2ton batch in 8-15 minutes

Kubota Diesel Engine

Indirect heating system via Beckett burners

With Optional Equipment:

With Optional Equipment:

Electrically Heated Overhead Boom, Heated Hose and Wand

Overnight Heater

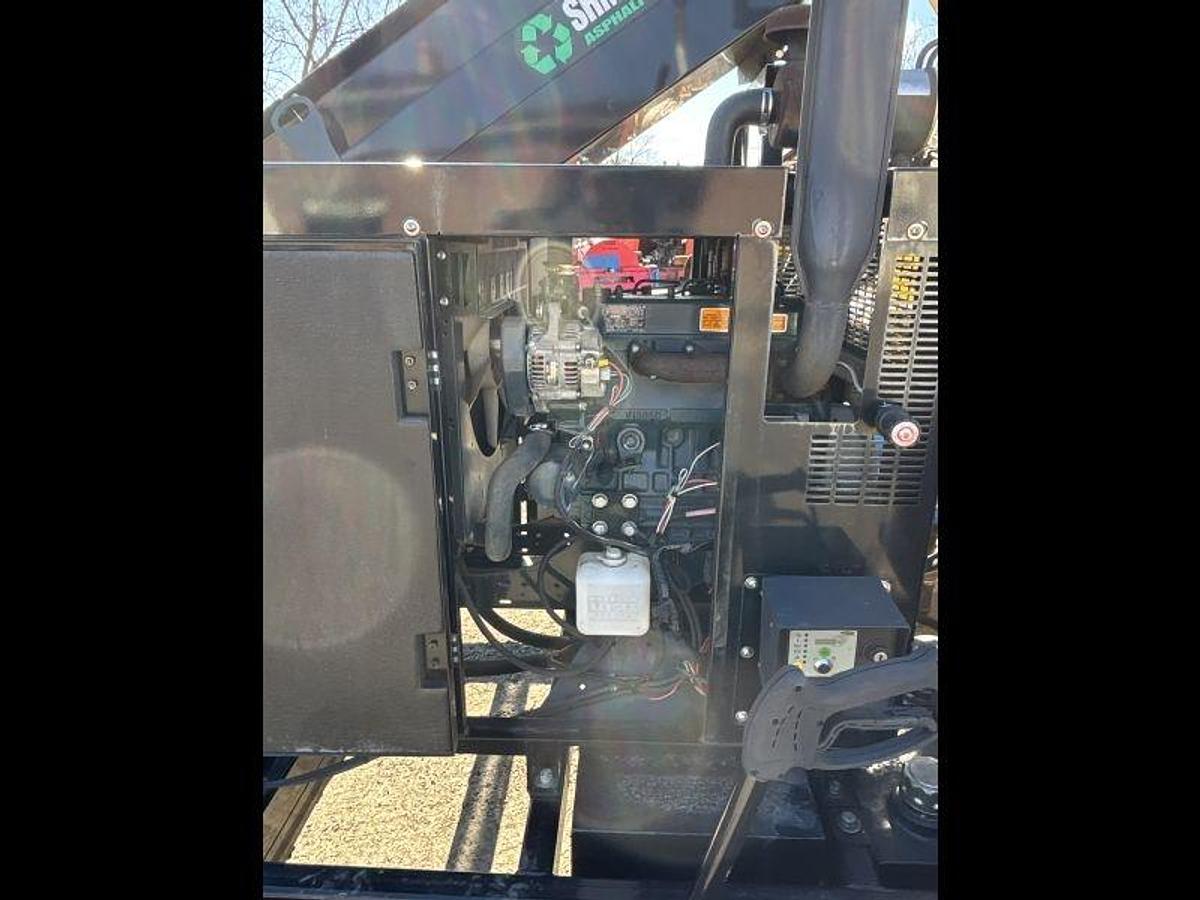

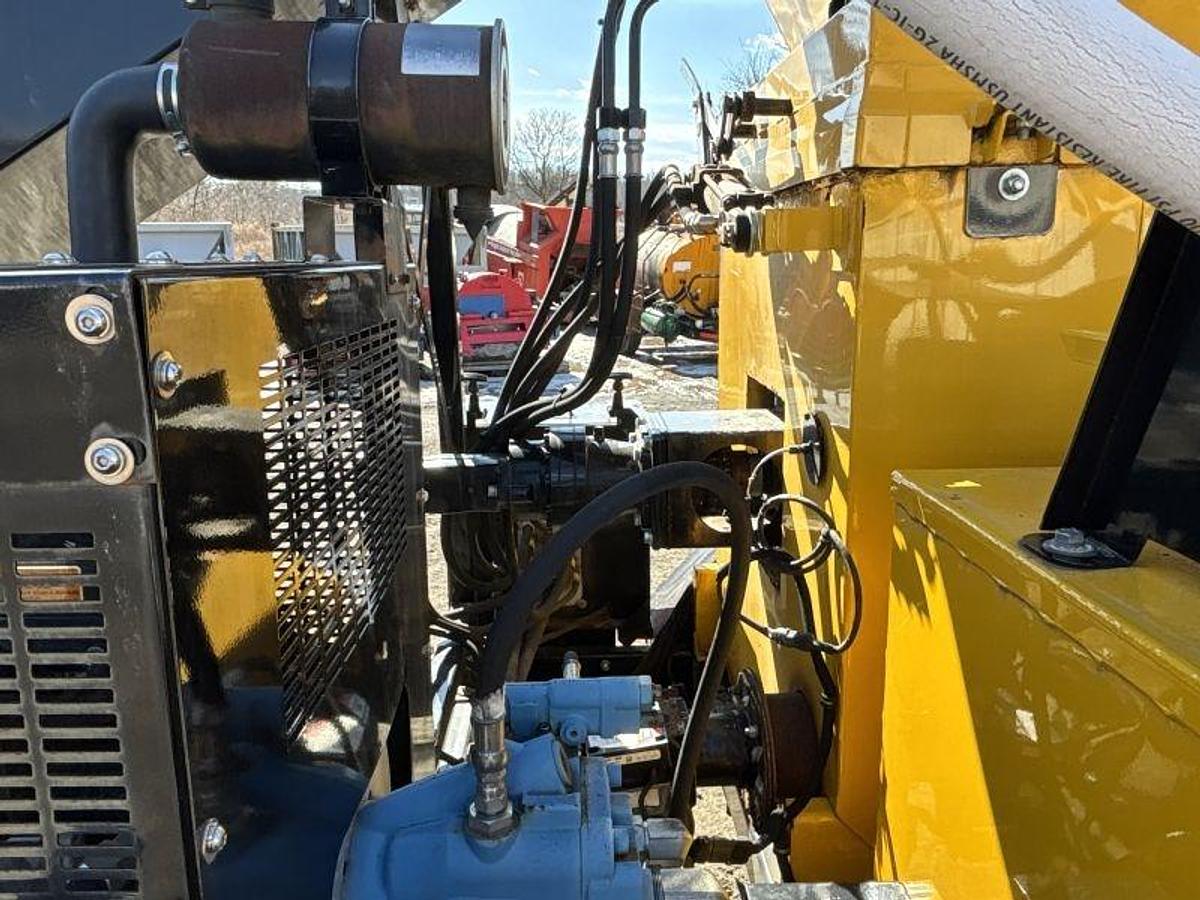

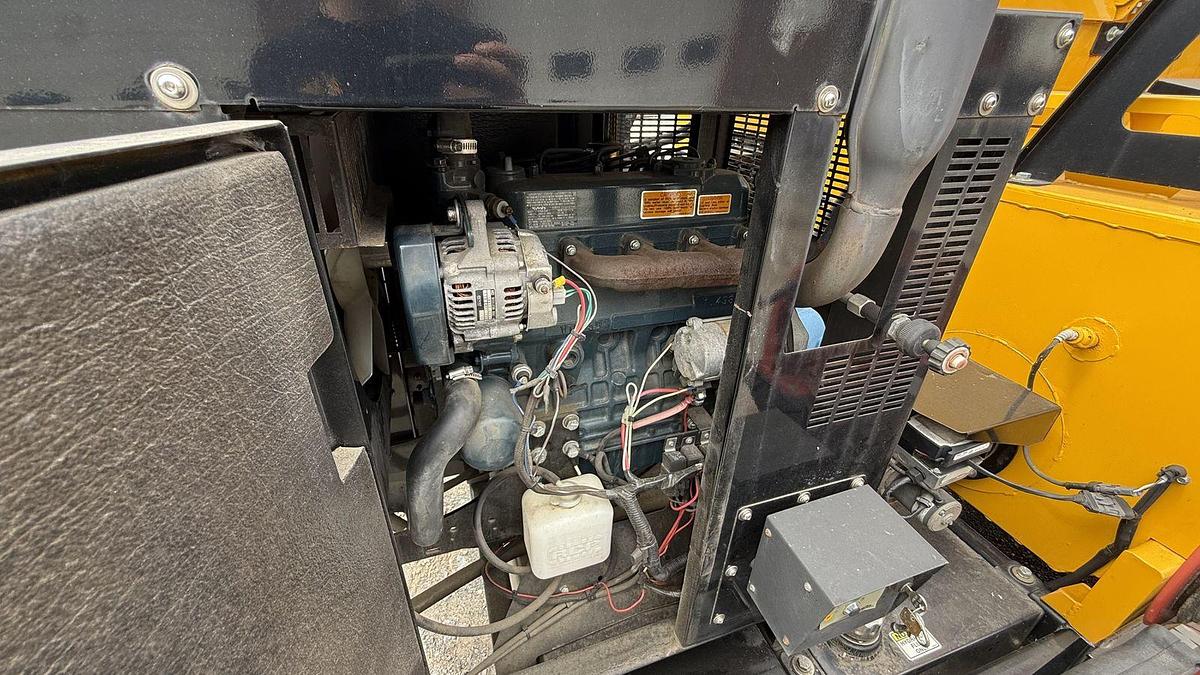

Engine: 36 HP Kubota Diesel, Engine Enclosure, lockable with Sound Dampening

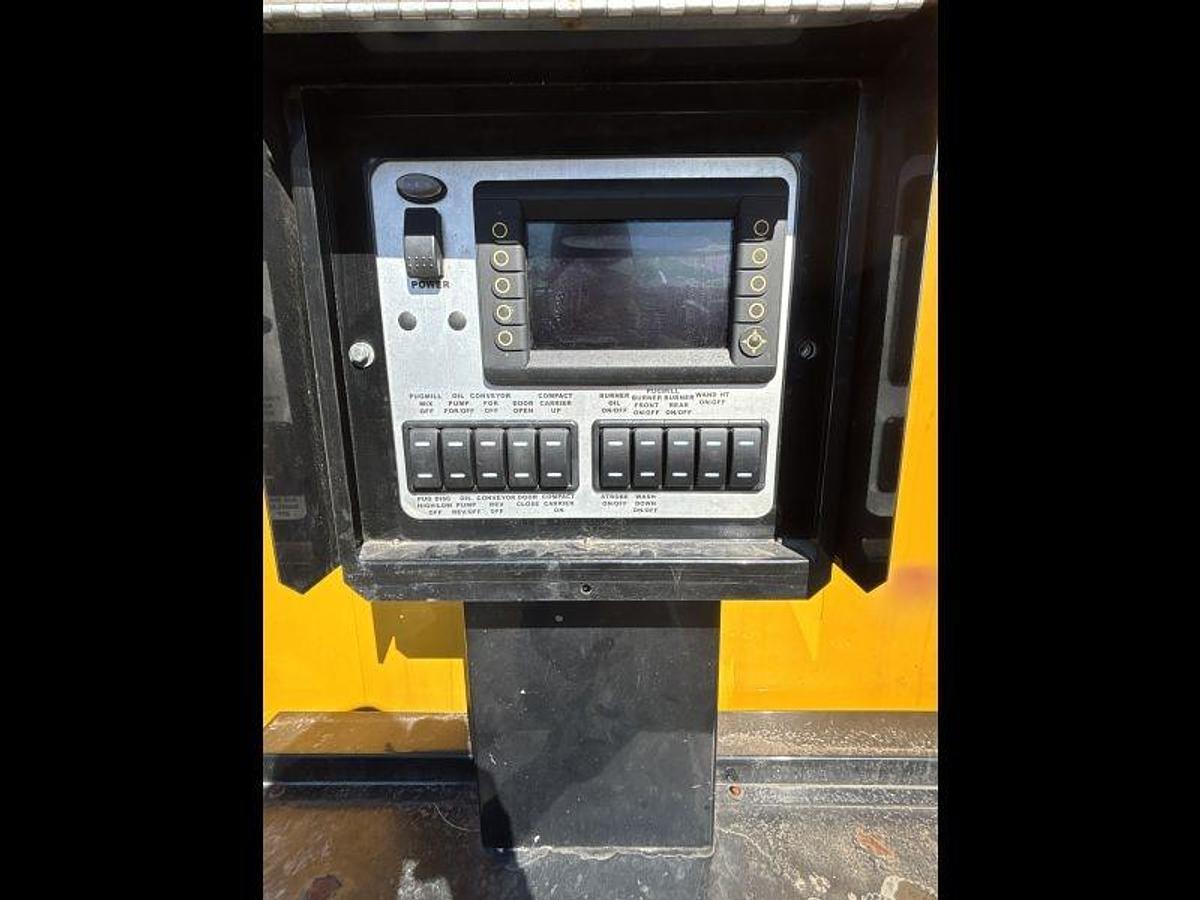

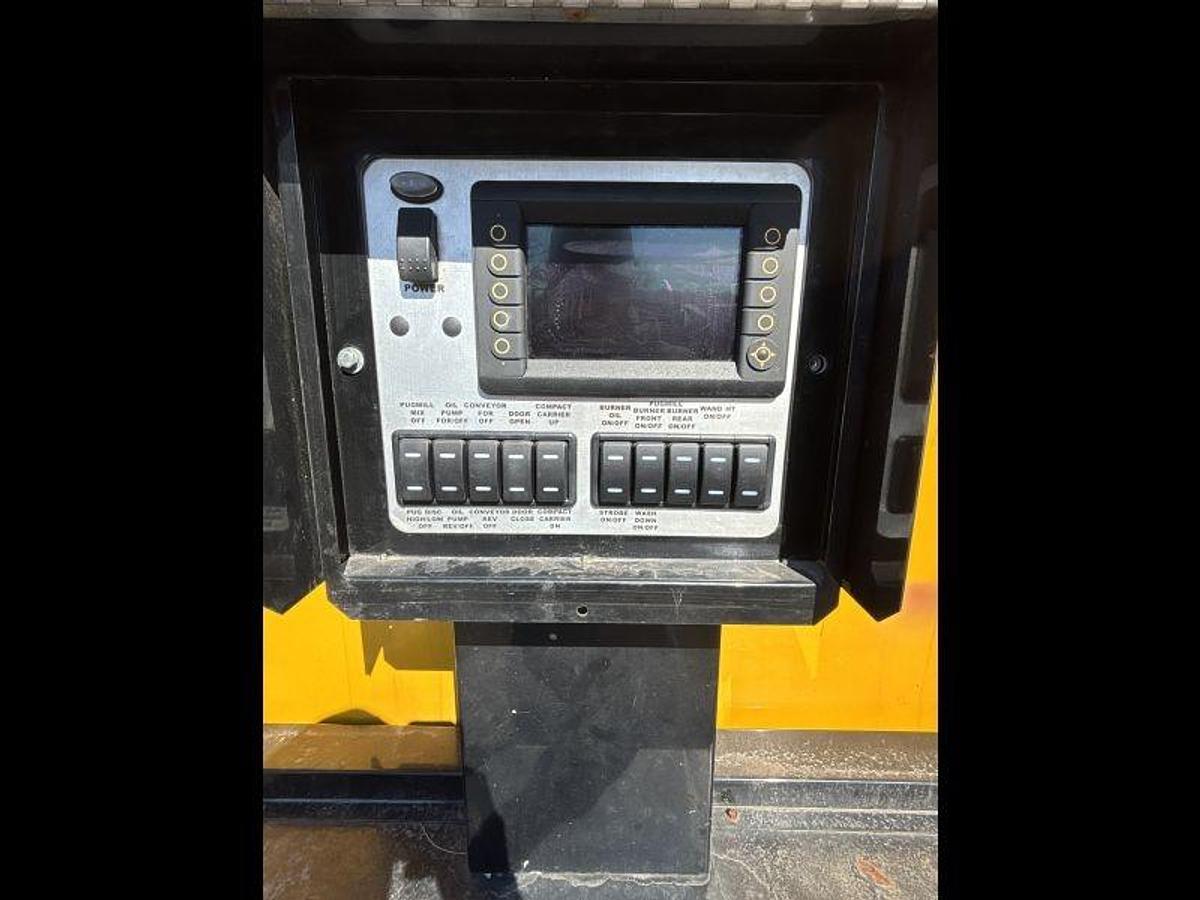

Heating: Automatic Temperature Controls, Diesel Heat, Beckett Burners

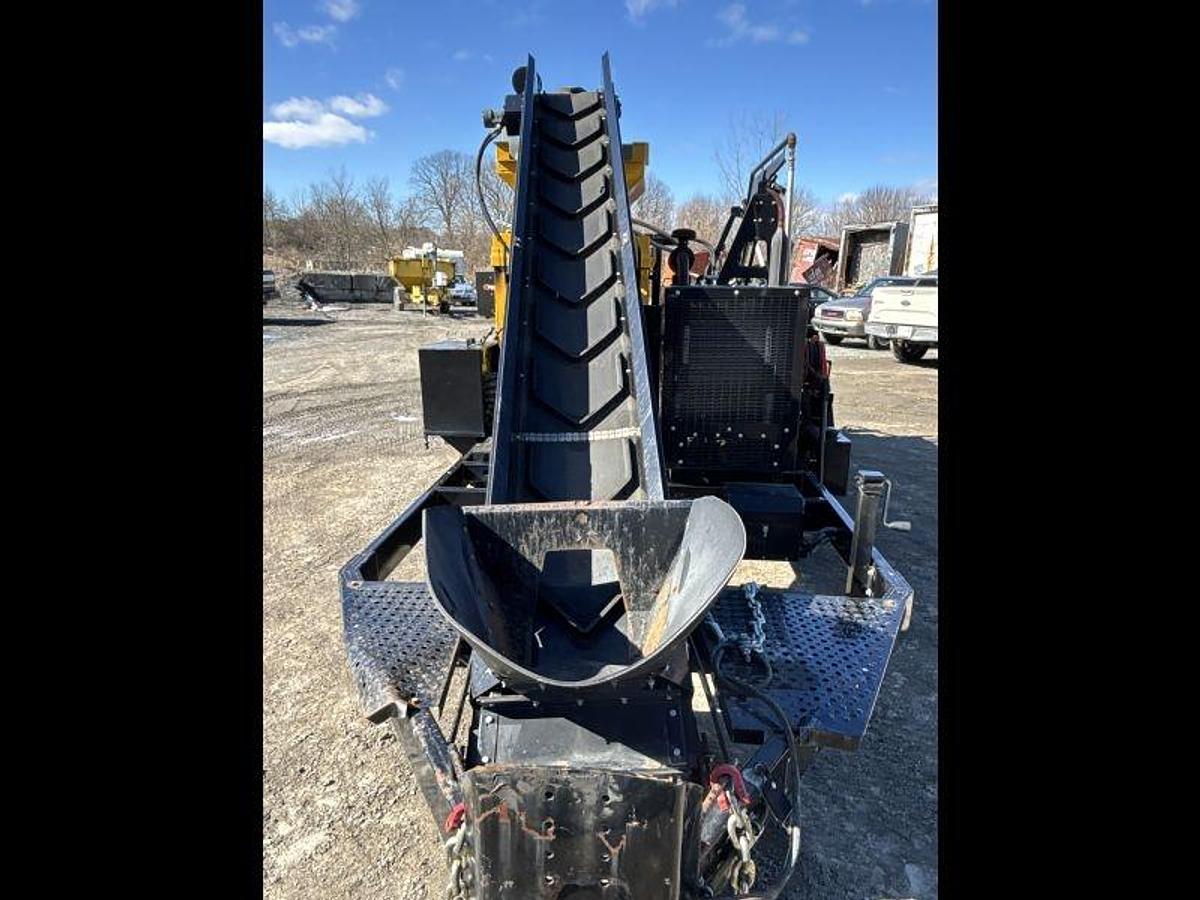

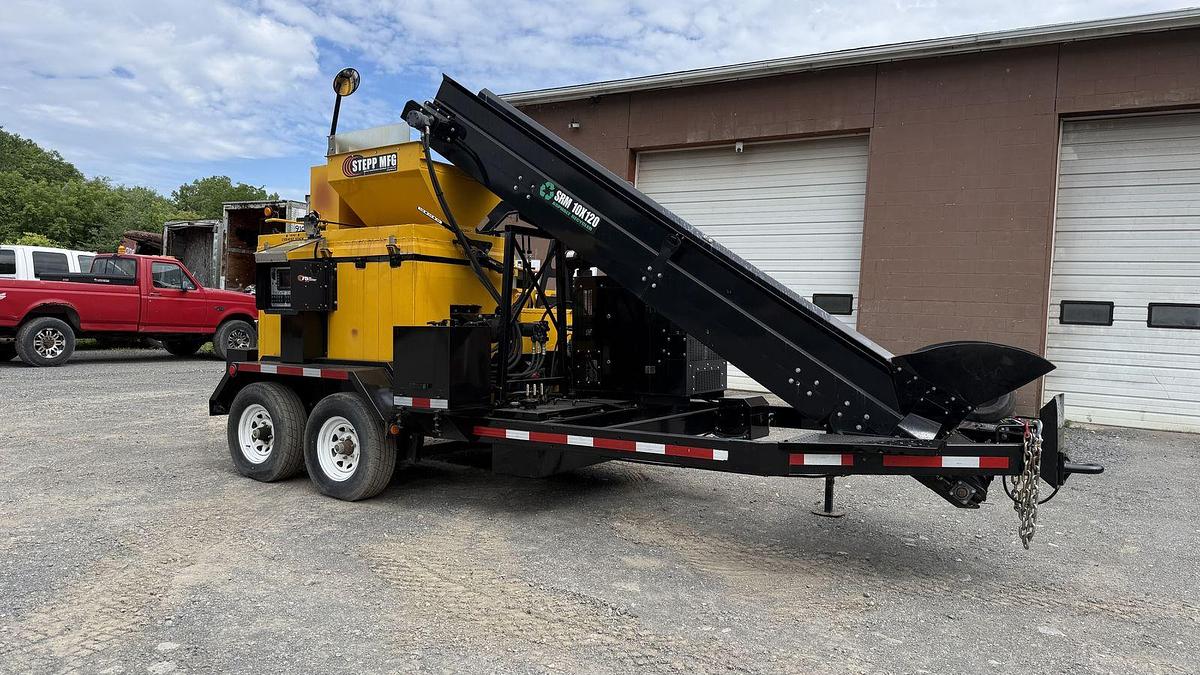

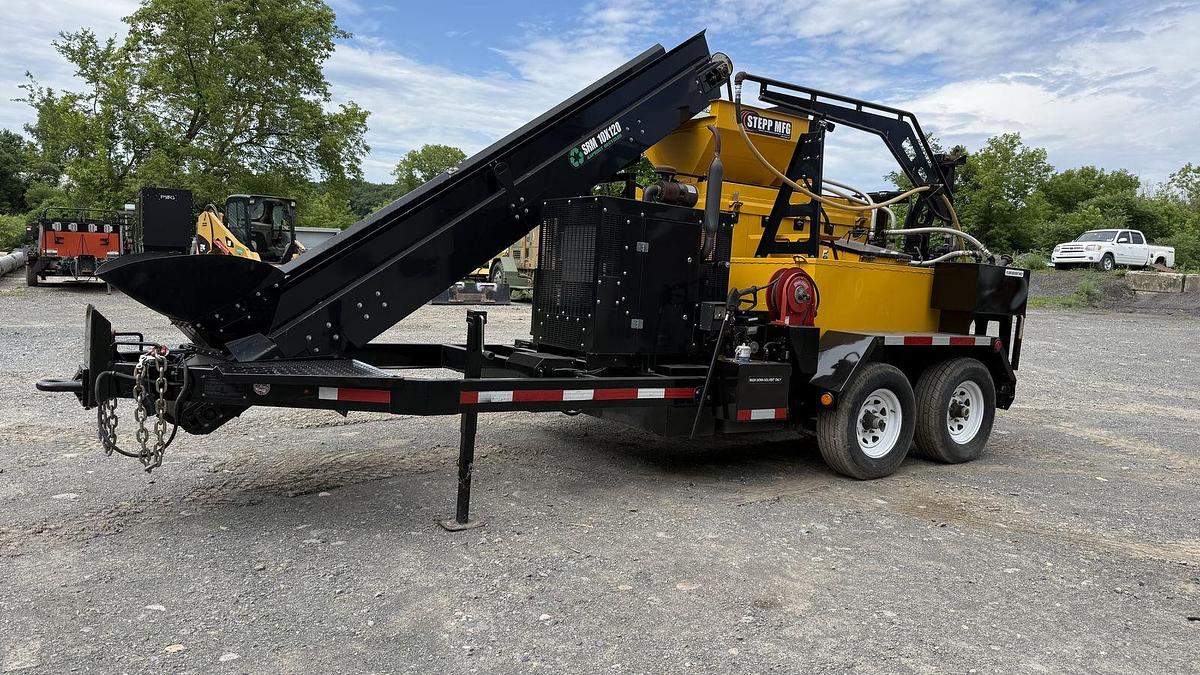

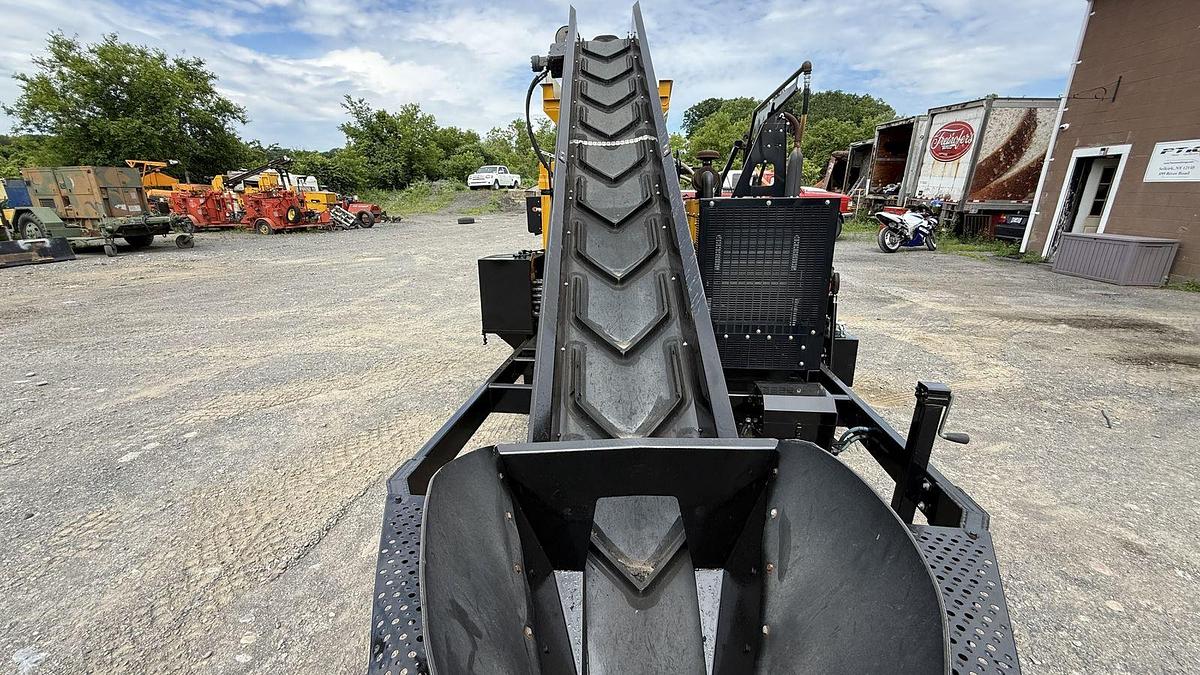

Conveyor: hydraulically operated reversible conveyor, to load millings from dump truck grain shoot up to loading bin

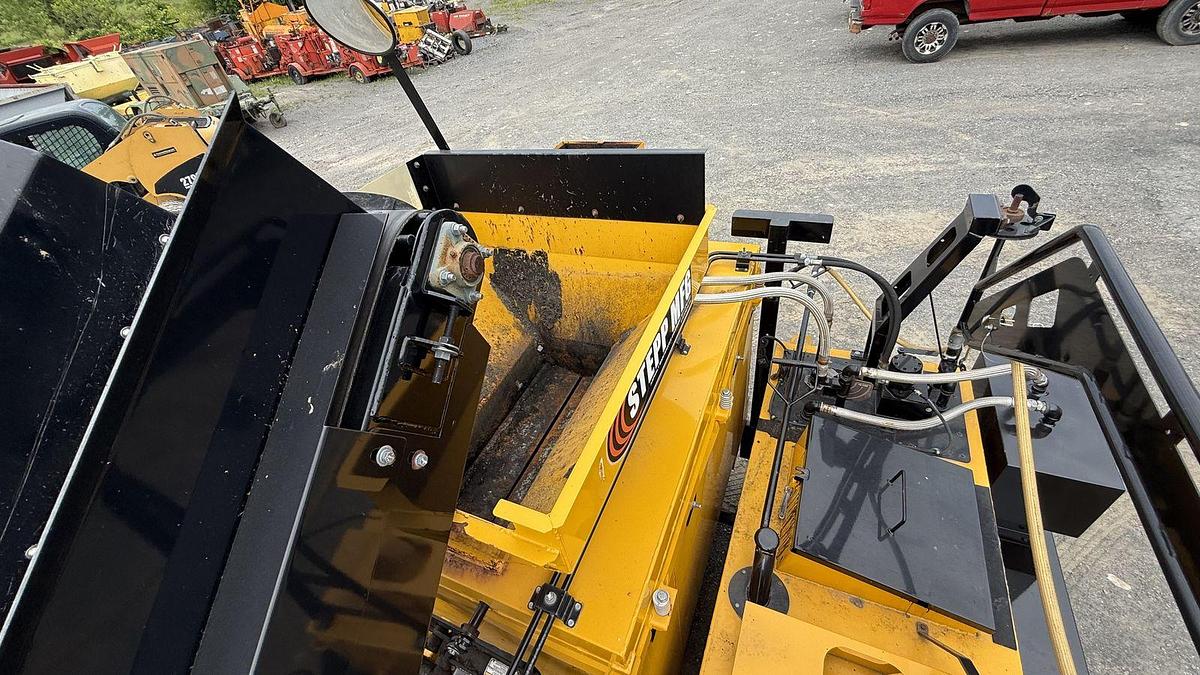

1/2 Ton Loading Bin/Hopper

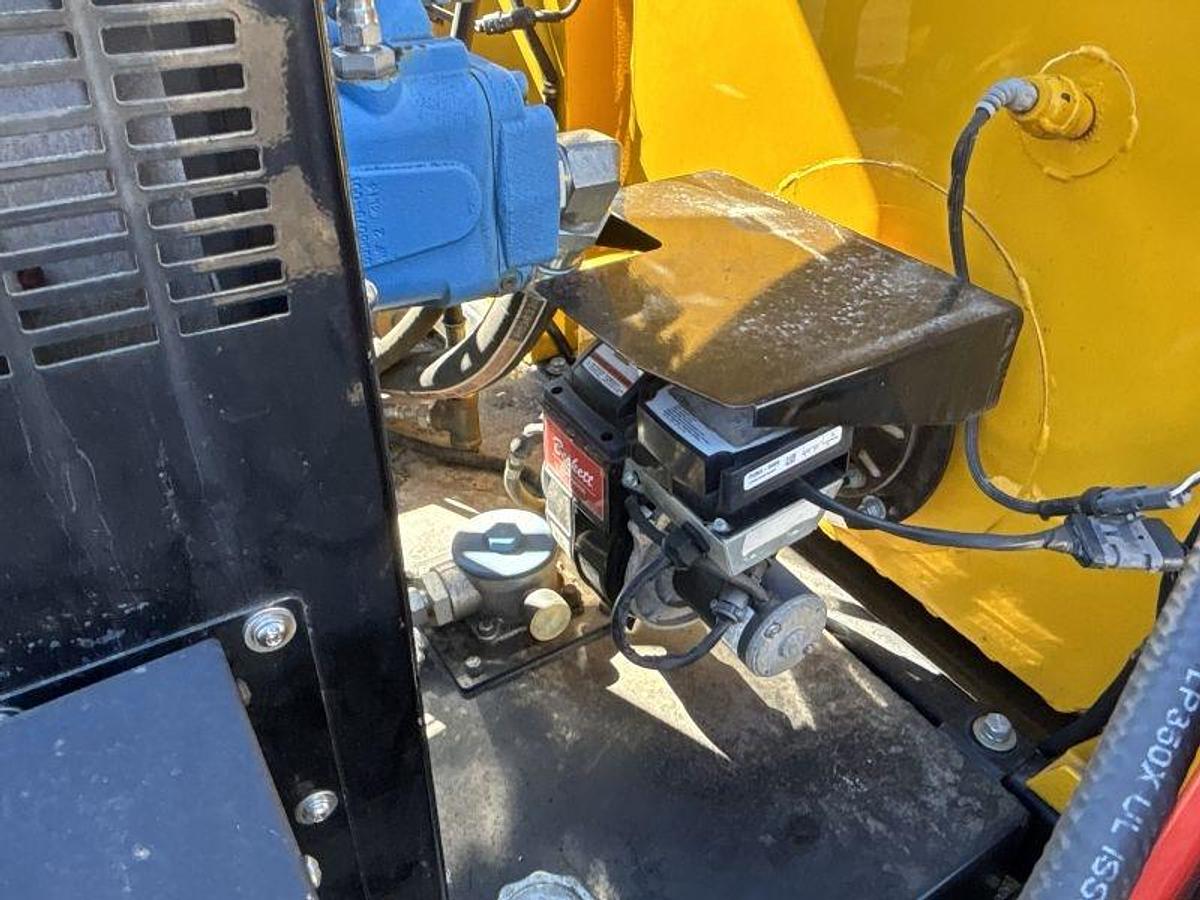

Beckett diesel burner heating system

TackTank: 125 Gallon Melter Kettle and Tack Spray System, Flush Tank

Chassis:

16,000 lb. Axles

DOT LED Lighting

Hydraulic Brakes

Breakaway Kit

22.5/75 R15 Tires

Owners Manual

Serviced in our shop, serviced and tested - DON'T MISS THIS ONE!!

518-218-7676

...........................................................................................................................................

Detailed Mfg Specs:

Dimensions

Length ...................................................................................................…. 144 in, 365.76 cm

(with conveyor) ………............................................................................... 174 in, 441.96 cm

Width……………………………………………………………………………..  96 in, 243.84 cm

Height with stack down (during transport)……………………………………  114 in, 289.56 cm

Height with stack up (during operation)……..……………………………….   143 in, 363.22

Weight (net)……........................................................................................ 5,400 lbs, 160.57 kg

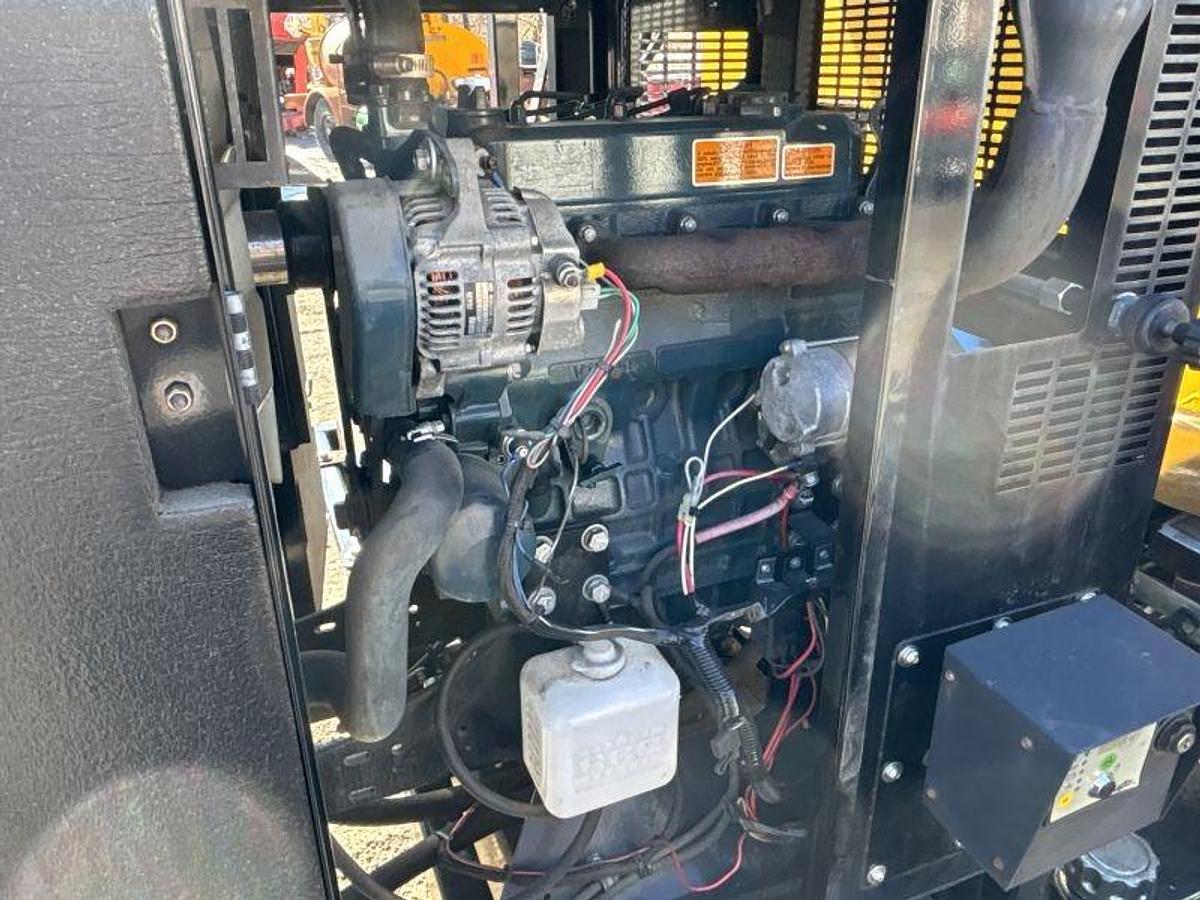

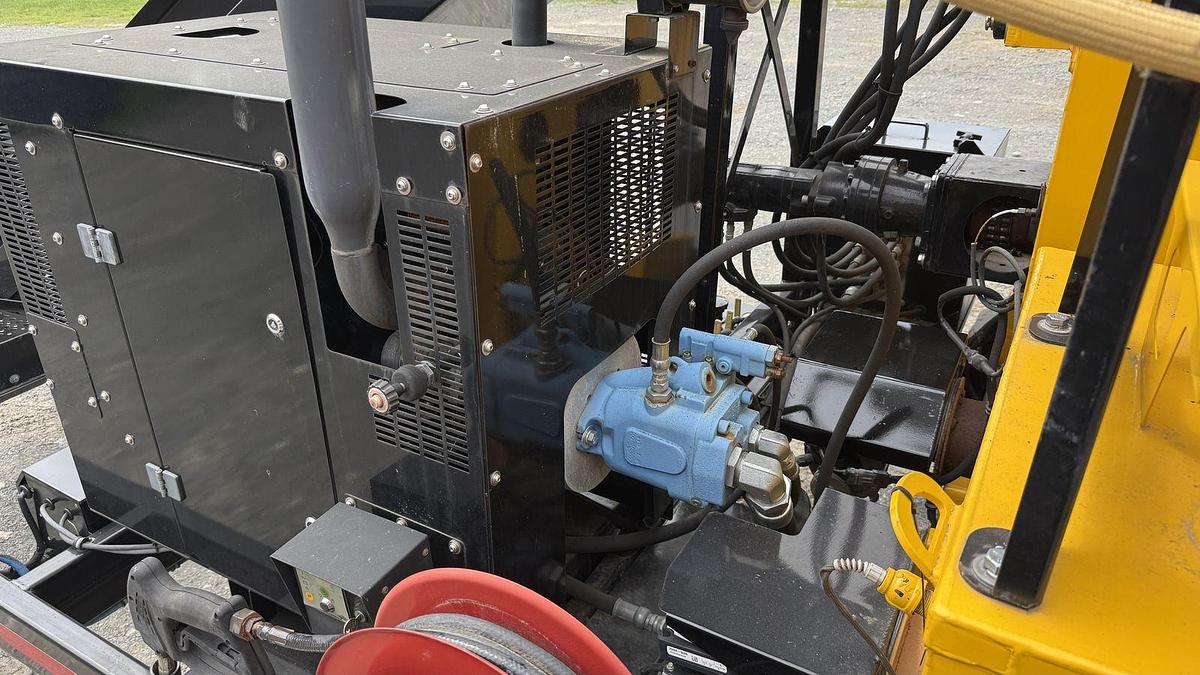

Engine

Mfg / Model........................................................………..……………………            Kubota D905

Engine Type…………...………………………………………………………     4-cycle, inline vertical diesel

Displacement ............................................................................................. 54.8 cu.in./898 cc

Number of Cylinders .................................................................................. Three (3)

Horse Power .............................................................................................. 23.5 hp

Fuel………………………………………………………………………………   Diesel

Cooling ………………………………………………………………………….   Liquid

Fuel Consumption………………………………………………………………  0% load: 0.23 gph (0.87 L/hr)
                             .…………………………………………………………….    50% load: 0.46 gph (1.74 L/hr)

   ………………………………………………………………   Full load: 0.80 gph (3.03 L/hr)

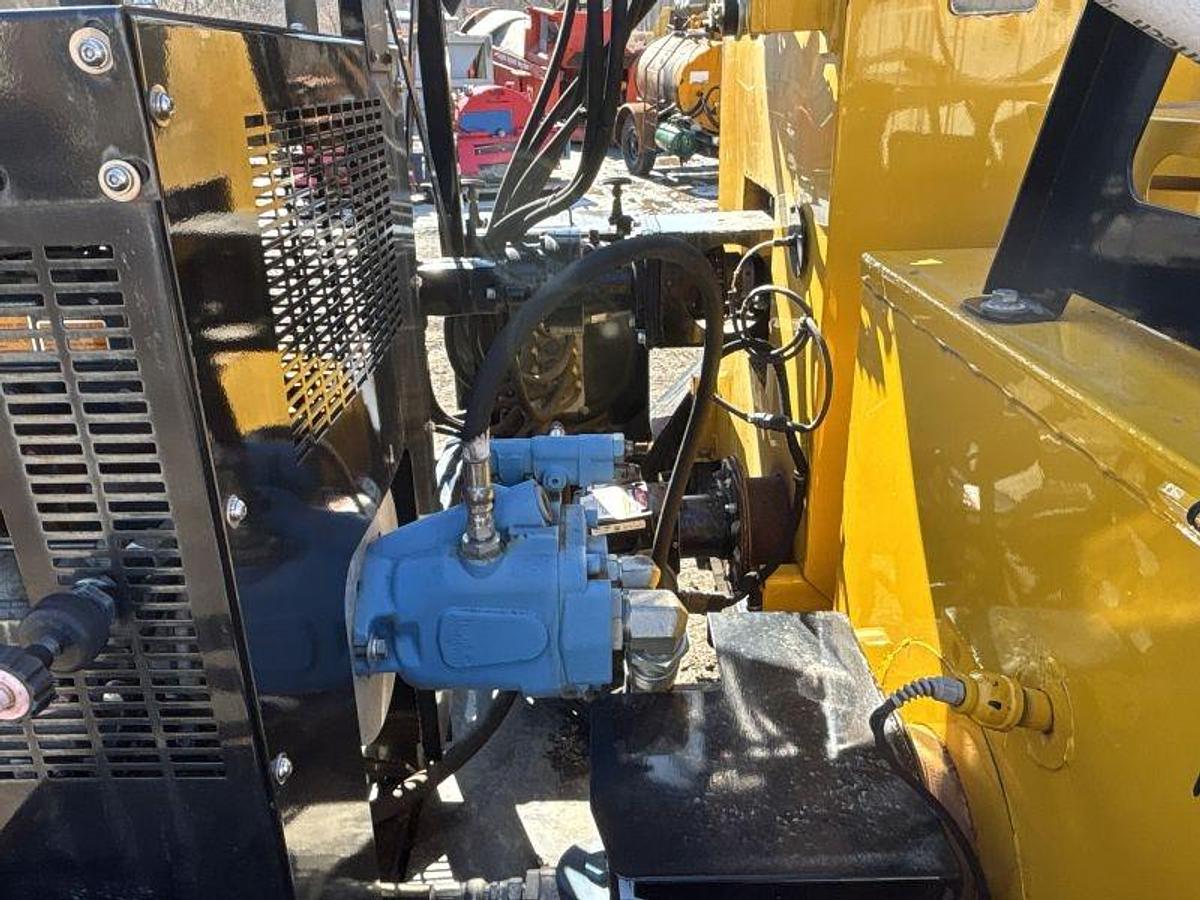

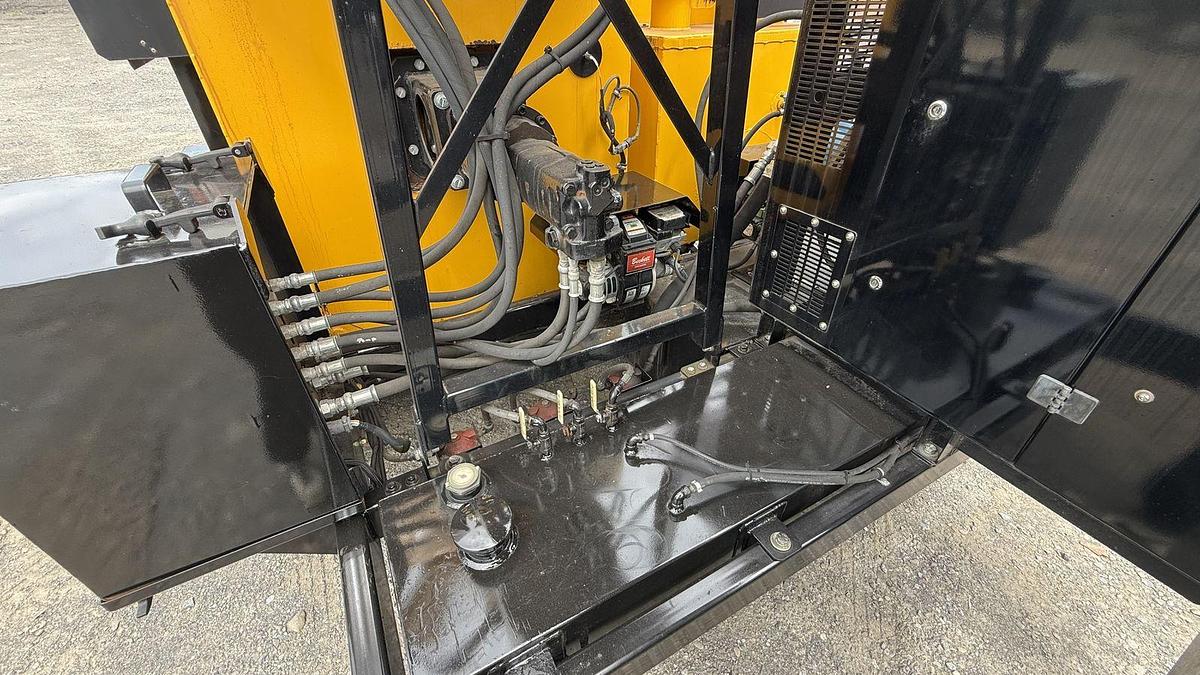

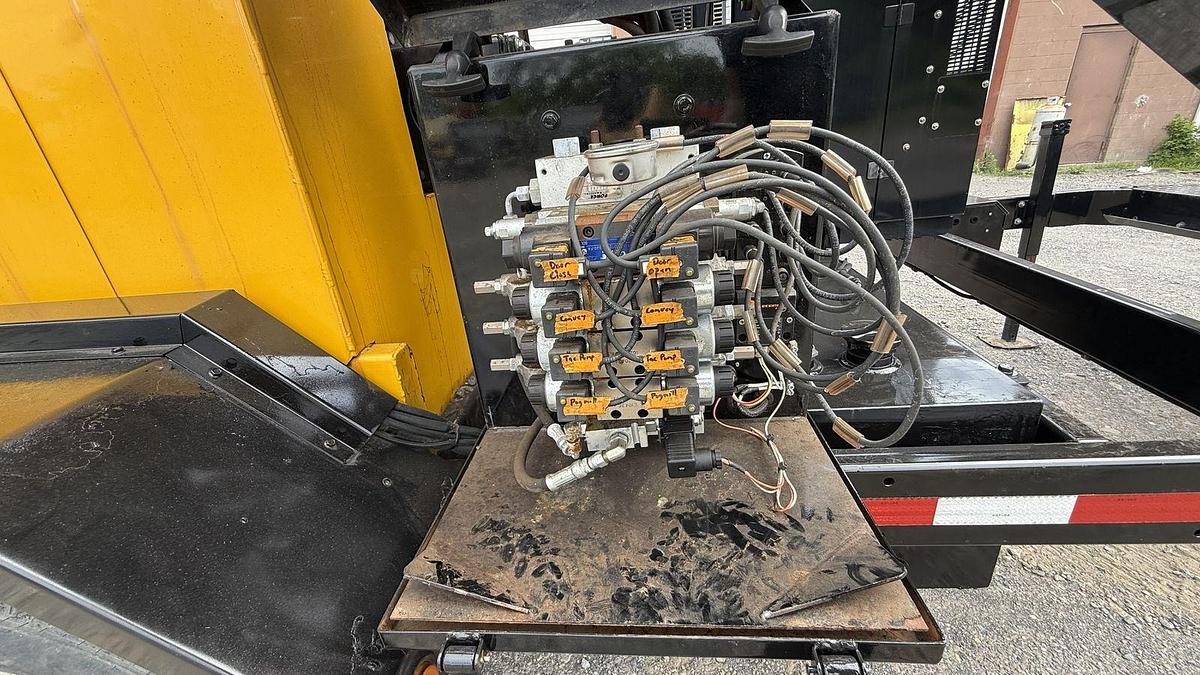

Hydraulic System

System Type ............................................................................................ Open Center Hydraulic System

Pump Displacement ................................................................................  Variable 0 to 4.21 CID

Control type ................................................................……………………   Forwd/Rev with Remote Flow Control

Reservoir Capacity .................................................................................   20 Gallons

Filtration ..................................................................................................  10 Micron Filter



Chassis

Number of Axles ....................................................................................... Two (2)

Axle Capacity ........................................................................................... 6000 lbs. each

Tire Type ……………………………………………………………………….   Goodyear, Range D, Radials

Tire Size ................................................................................................... 225 x 75, R15

Brake Type ............................................................................................... Electric, all 4 wheels

Landing Gear Static Capacity ..................................................................  12,000 lbs each

Landing Gear Quantity ............................................................................. Four (4)

Hitch Type ...............................................................................................  3" Pintle Ring

Frame Material ..........................................................................…………. 2" x 6" x 3/16" Rectangular Tubing

Weld Design…………………………………………………………………….   All weld, gas metal arc, ASME

compliant



General

Fuel Tank Capacity .................................................................................. 30 Gallons

Hopper Opening Dimensions ................................................................... 120" x 42" (customizable)

Loading Height ......................................................................................... 82"

Electric Start, 15” hose and spray wand for tack-coat standard, replaceable burner liners, collapsible stack



Mixing Chamber

Process Type ..........................................................................................  Batch – 10 CF/ batch

Mixing Style .............................................................................................. Rotating Pugmill

Liner Type ................................................................................................ U-shaped, Replaceable

Liner Material ..................................................................................……... ¼" Wear Resistant AR Steel

Insulation Type and Thickness..............................................................…. Cerwool, 2" thick

Feed Auger Dimensions ........................................................................... Length 116" Diameter 6"

Feed Auger Construction ...................................................................…... ¼" Wear Resistant AR Steel



Mixing Chamber Heating System

Burner Type .............................................................................................. Diesel, Forced Air

Number of Burners ................................................................................... Two (2)

Fuel Type .................................................................................................. Diesel

Manufacturer ............................................................................................ Beckett ®

BTU Output ............................................................………………………..  up to 420,000 BTU each



Pugmill

Pugmill Dimensions ...................................................................…………. Length 57" x Diameter 27"

Shaft Size ................................................................................................  2.5 in, 6.35 cm (square)

Paddle Size ............................................................................................. 4" x 5"

Number of Paddles .................................................................................  24 (each)

Paddle Material ..........................................…………………………………  ¼" Wear Rstnt AR Steel, replaceable

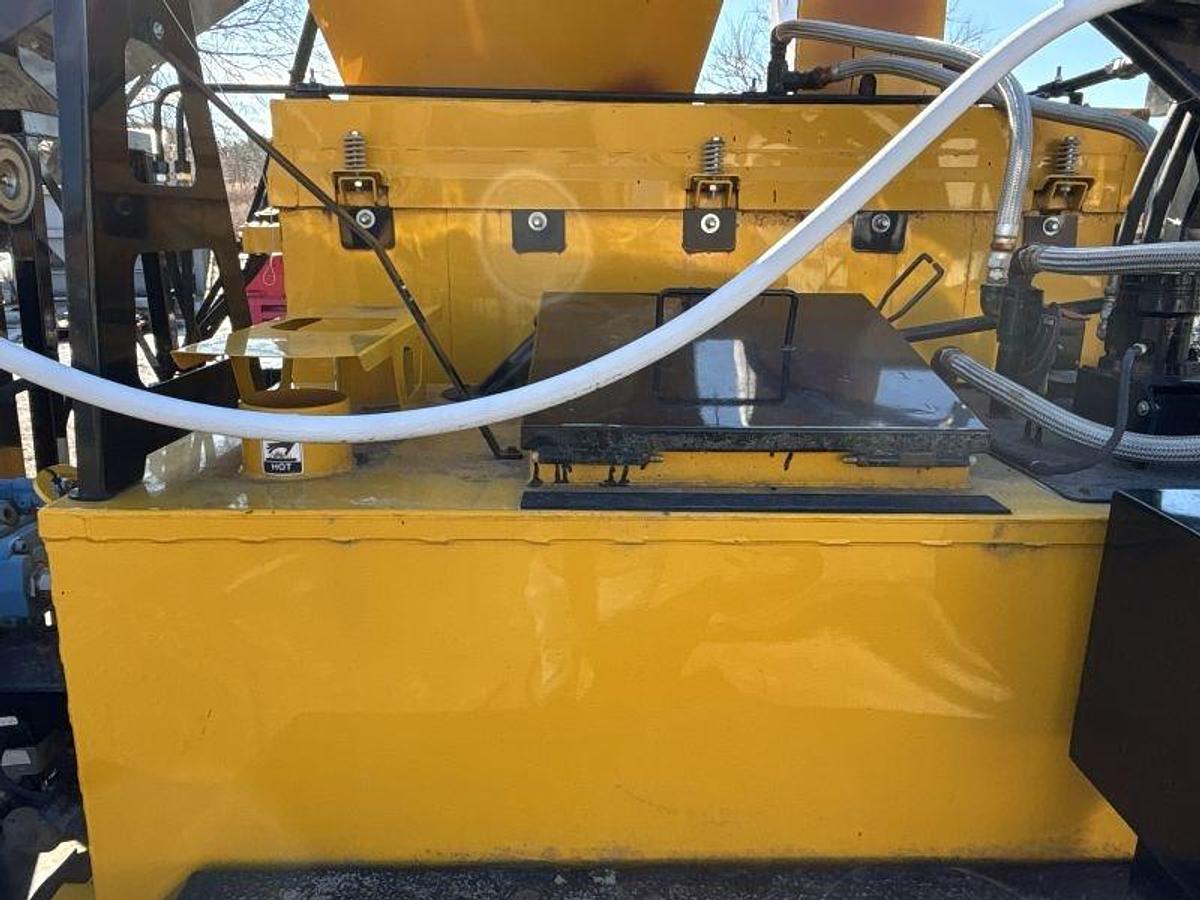

Kettle

Capacity .................................................................................................... 120 gallons, 454 liters

Tank………………………………………………………………………………  steel 14-gauge tank, 12-gauge heads, 16-gauge insulation tank

Flue Size ..………………………………………………………………………   6"

Heat Transfer Area of Flues ..................................................................... 3300 sq in

Insulation Type and Thickness.................................................................. Fiberglass, 2" thick

Cover Opening Dimensions ...................................................................... 28" x 20"

Loading Height ......................................................................................... 60"



Kettle Heating System

Burner Type .............................................................................................. Diesel Forced Air

Number of Burners ................................................................................... One (1)

Fuel Type ................................................................................................. Diesel

Manufacturer ............................................................................................ Beckett ®

BTU Output .............................................................................................. up to 106,000 BTU

Thermostat Control Range ....................................................................... 0 - 550°F

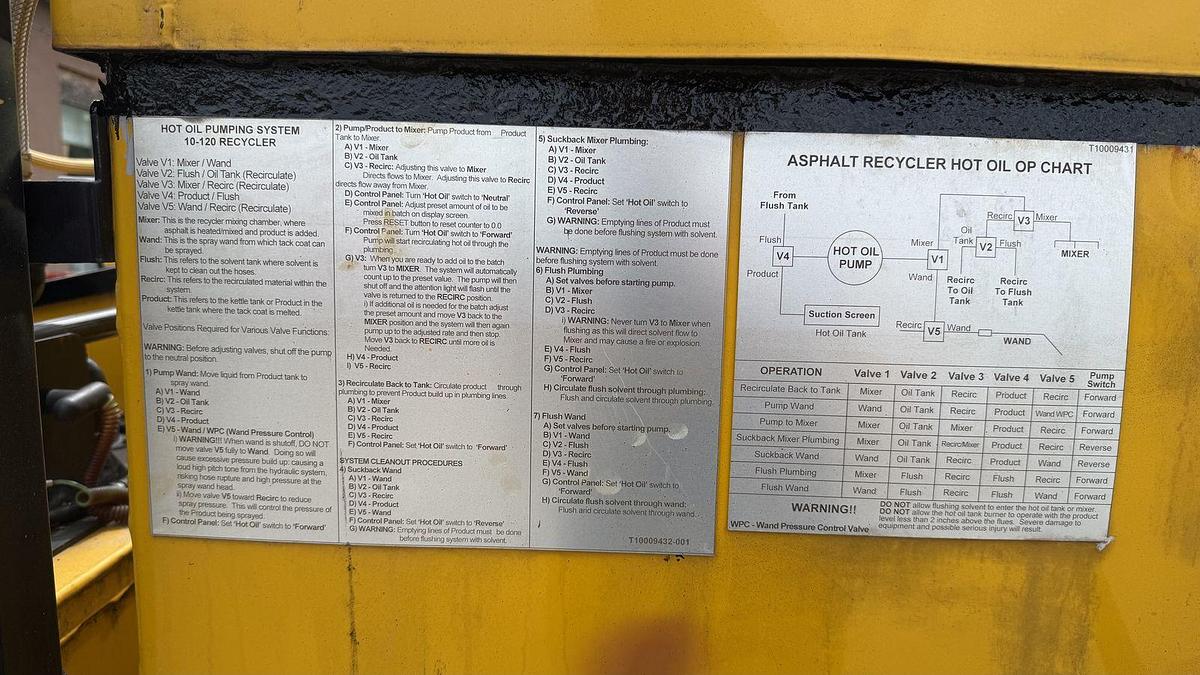

Kettle Pumping System

Pump Manufacturer ................................................................................... Viking ®

Relief Valve………………………………………………………………………  Yes

GPM Output Rating ................................................................................... 7 gpm

Pump Mounting ......................................................................................... Submerged

Pump Drive ............................…………....................………………………. Hydraulically driven

Flow Control……………………………………………………………………..  Metered pumping system



Options: Conveyor, LP System with LP Kohler Command 23.5hp, flush tank, shovel cleaning compartment, tamper, jack hammer.



Conveyer (Optional)

Working Length ......................................................................................... 178"

Max Loading Height ...............................................................................… 126"

Height Adjustment ..................................................................................... Electric

Belt Temperature Rating ........................................................................... 450°F

Belt Width ……………………………………………………………………….  20"

Cleat Height x Spacing...........................................................................… 2" x 9"

Drive type ................................................................................…………… Hydraulic, variable speed, reversible



Engine upgrade…………………………………………………………………   Kubota D1105, 27hp, water-cooled

CALL TODAY: 518-218-7676
