Description

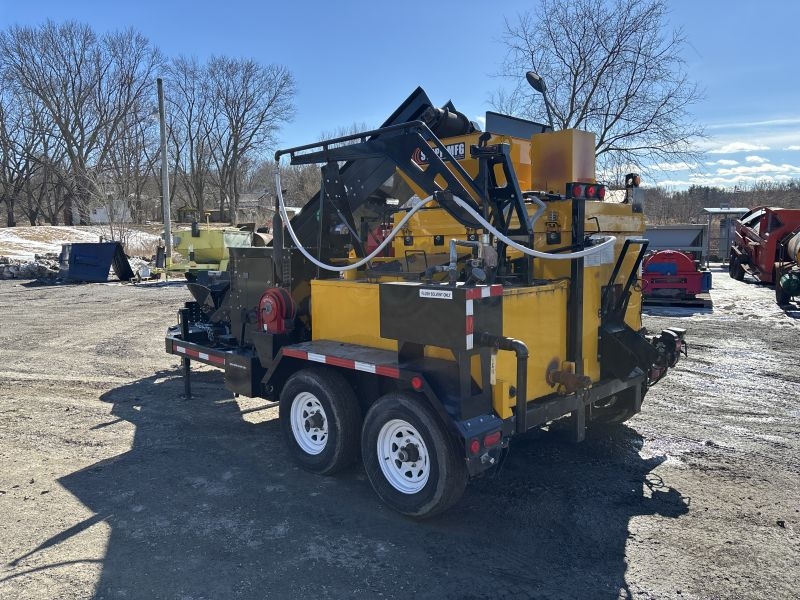

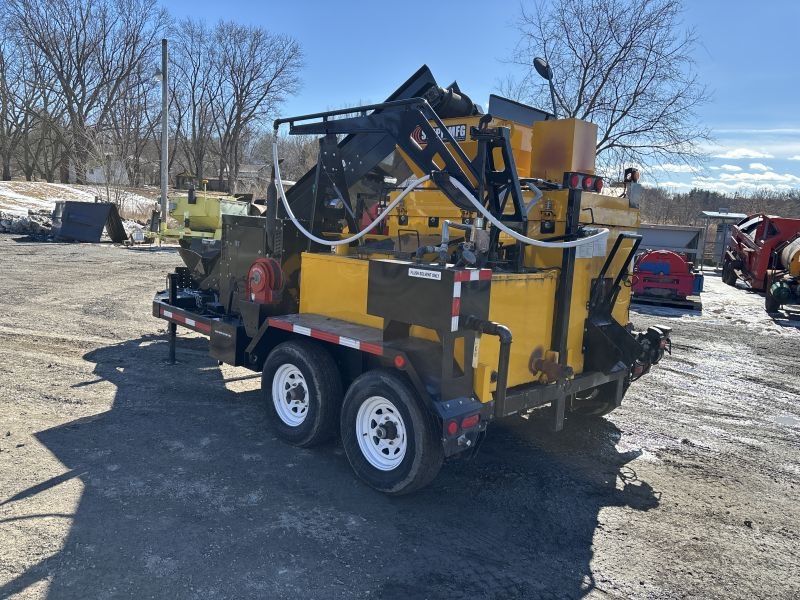

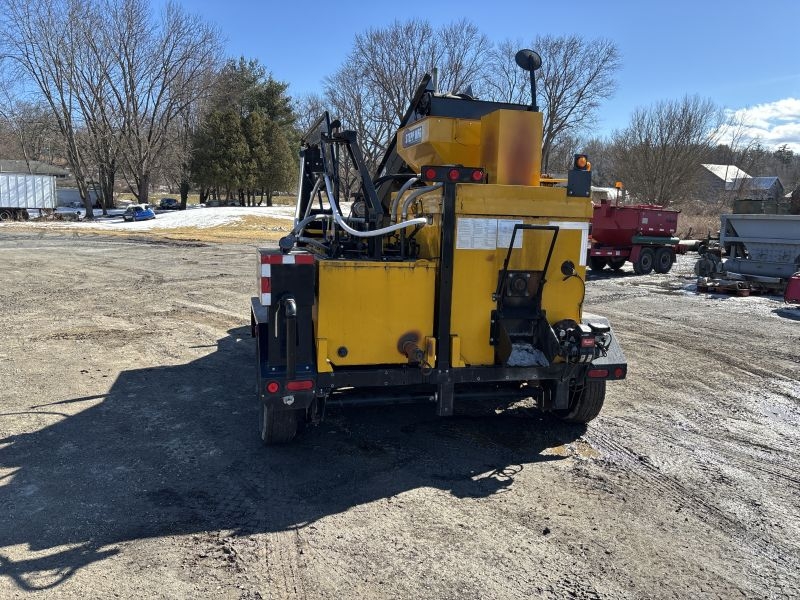

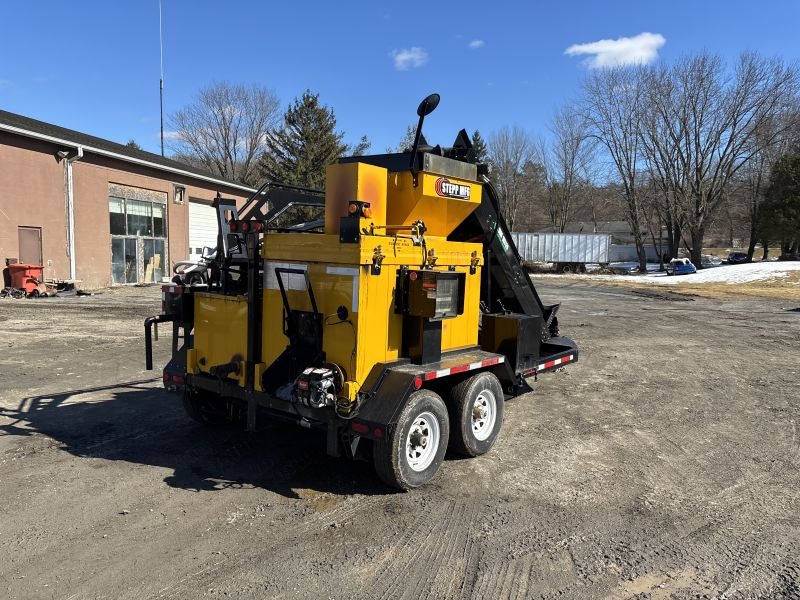

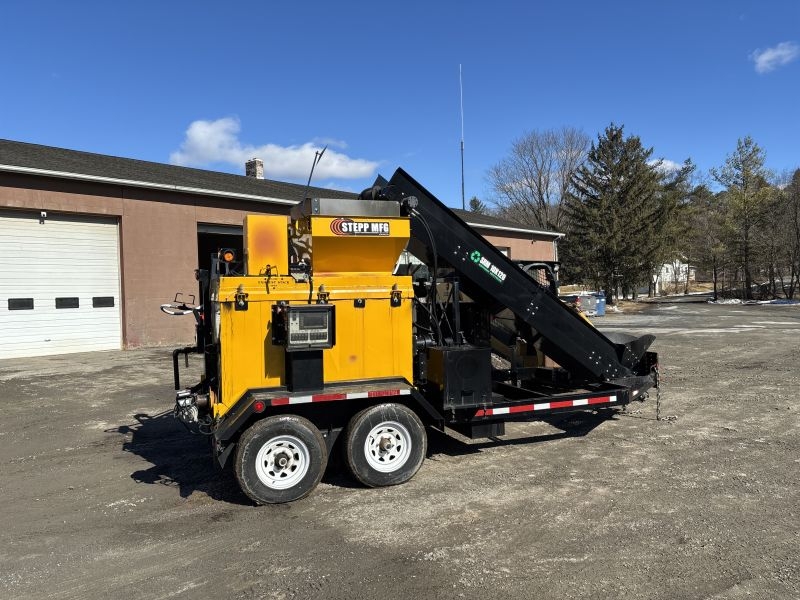

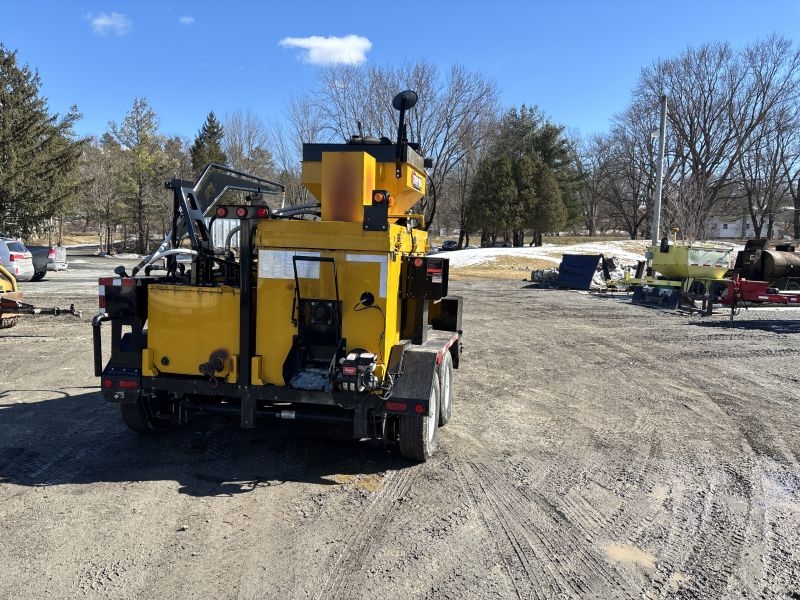

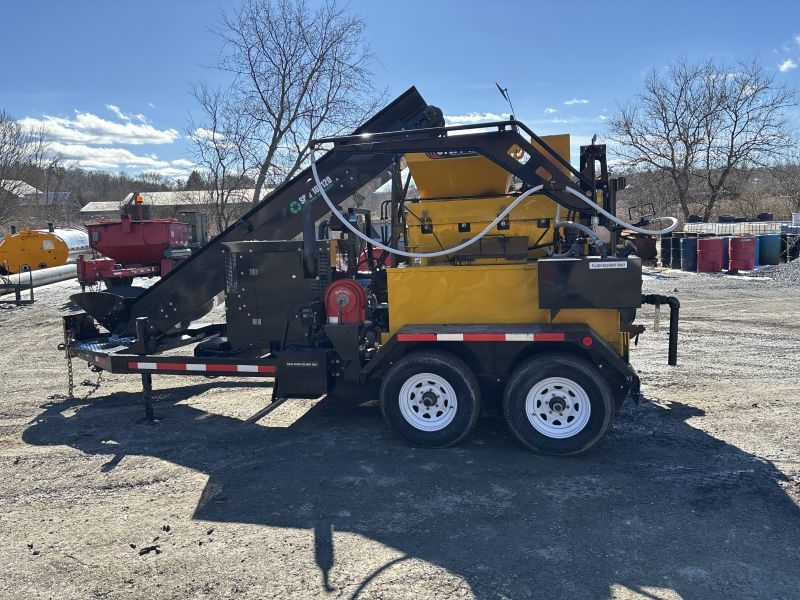

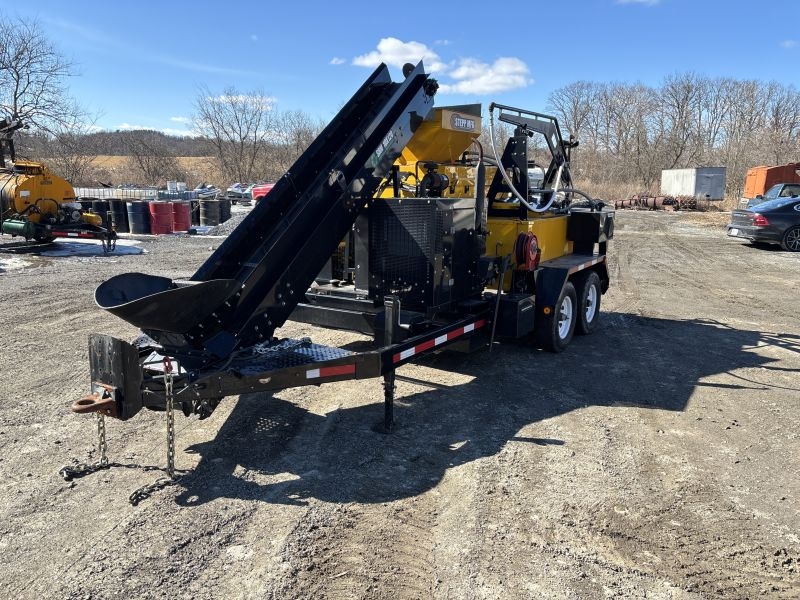

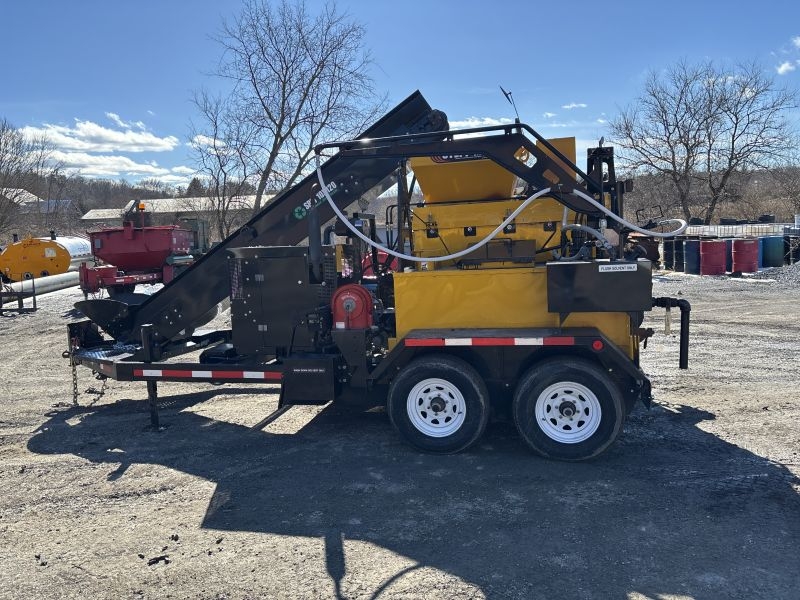

Stepp SRM 10-120 Asphalt Recycler (hotmix asphalt all year long, for pothole repairs and patching) Includes 110 gallon heated tack tank and electrically heated spray wand

• 2017
• ONLY 90 HOURS
• Stepp Mfg Model: SRM 10-120
• Loads from truck via built in conveyor
• Includes 120 gallon heated tank tank with hose, boom and appicator wand for tack coating
• L 20’-9”, W 8’-4”, H 9’-5” 12,900lbs
• Recycles chunks and millings
• 1/2ton batch in 8-15 minutes
• Kubota Diesel Engine
• Indirect heating system via Beckett burners
• With Optional Equipment:

With Optional Equipment:

• Electrically Heated Overhead Boom, Heated Hose and Wand
• Overnight Heater

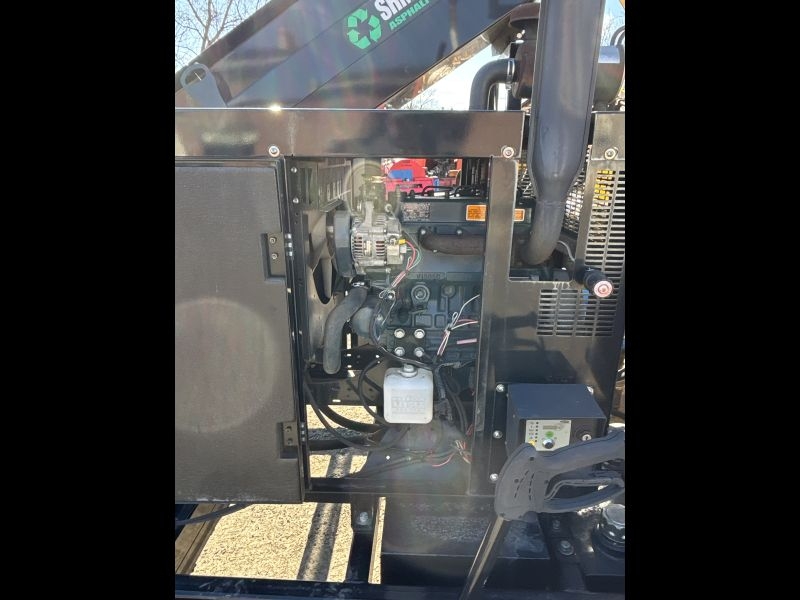

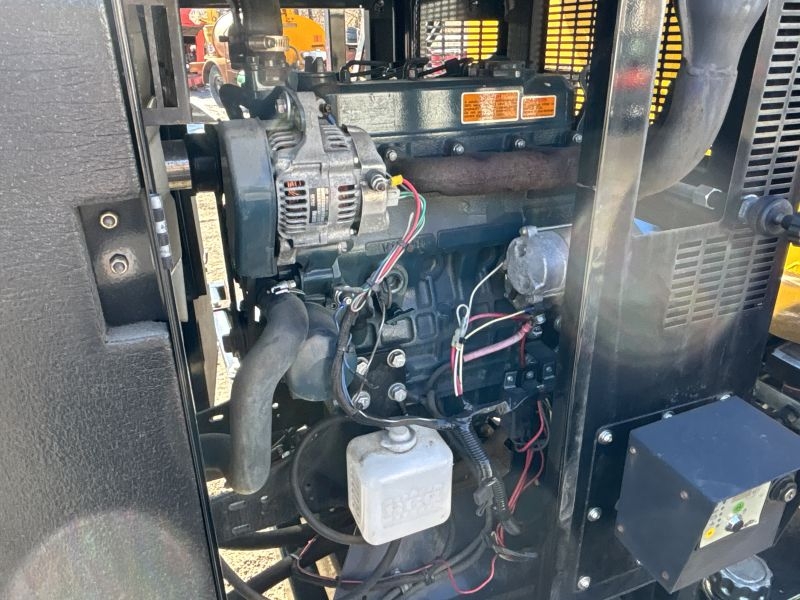

• Engine: 36 HP Kubota Diesel, Engine Enclosure, lockable with Sound Dampening

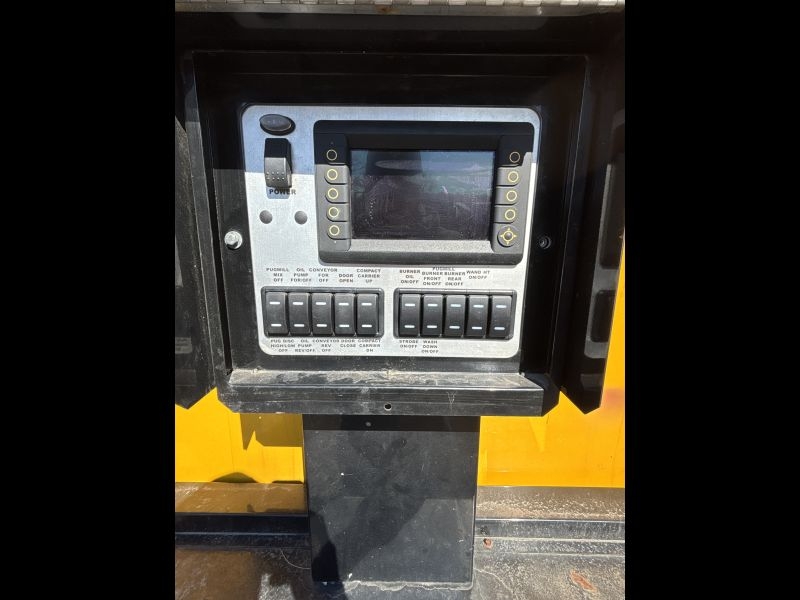

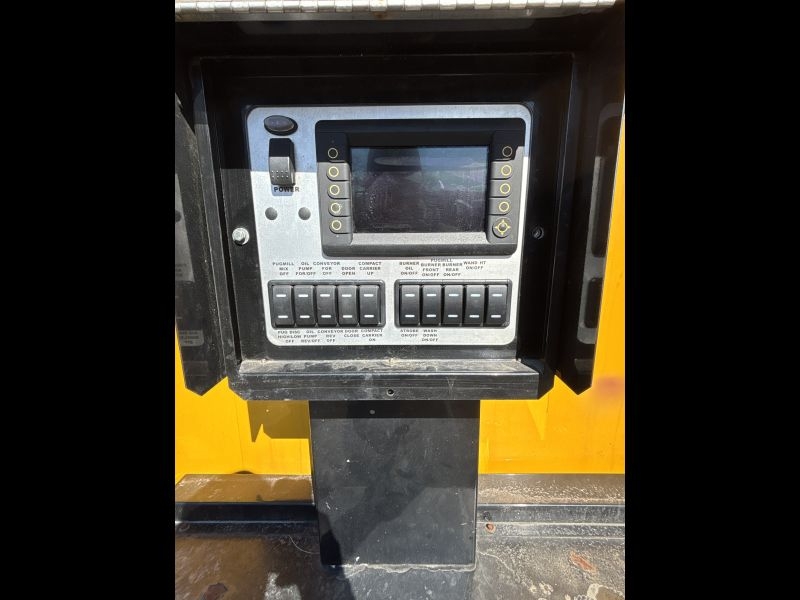

• Heating: Automatic Temperature Controls, Diesel Heat, Beckett Burners

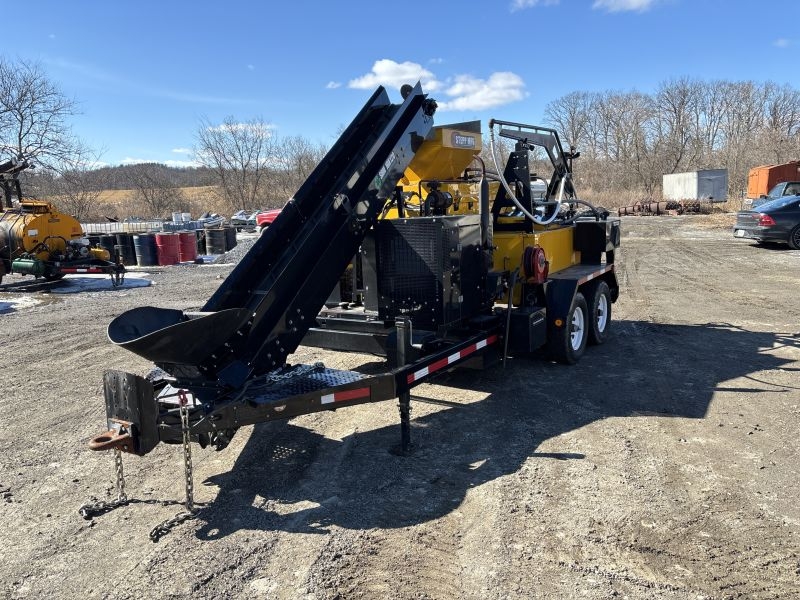

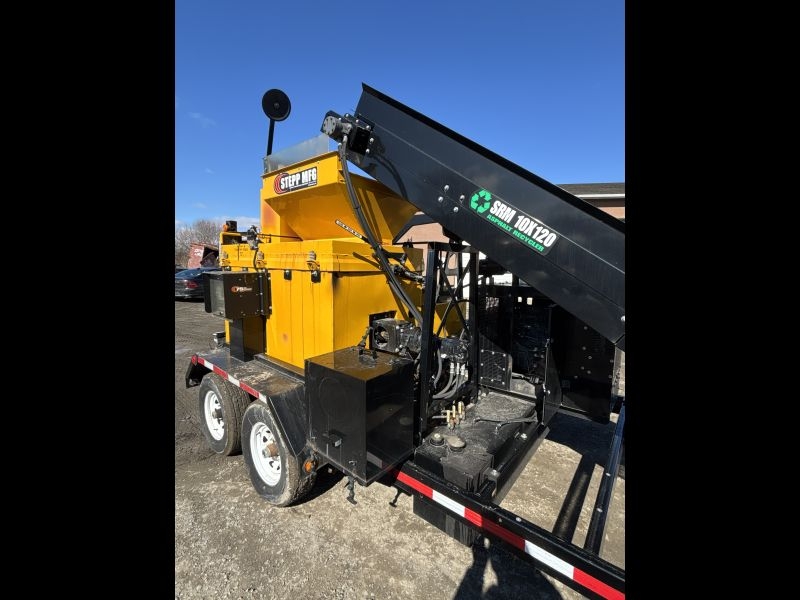

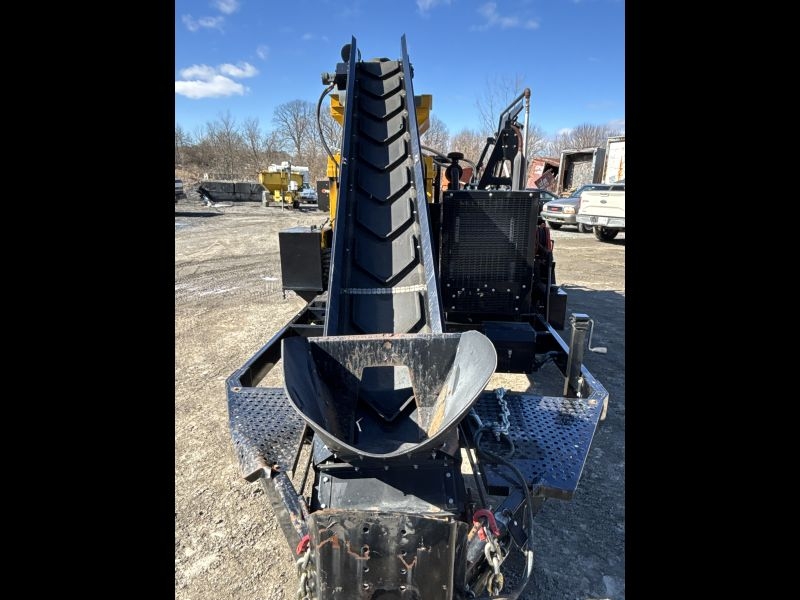

• Conveyor: hydraulically operated reversible conveyor, to load millings from dump truck grain shoot up to loading bin
• 1/2 Ton Loading Bin/Hopper

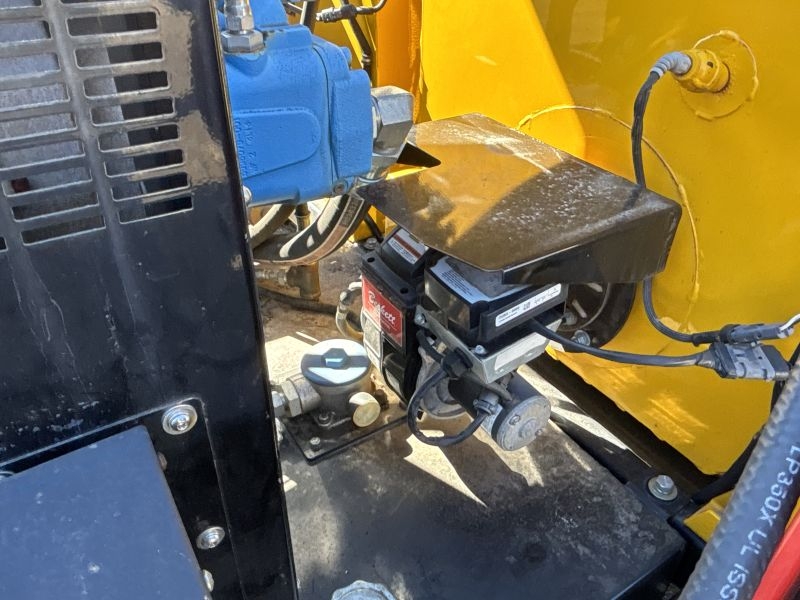

• Beckett diesel burner heating system
• TackTank: 125 Gallon Melter Kettle and Tack Spray System, Flush Tank

Chassis:

• 16,000 lb. Axles
• DOT LED Lighting
• Hydraulic Brakes
• Breakaway Kit
• 22.5/75 R15 Tires
• Owners Manual

Serviced in our shop, serviced and tested - DON'T MISS THIS ONE!!

518-218-7676

...........................................................................................................................................

Detailed Mfg Specs:

Dimensions

Length ...................................................................................................…. 144 in, 365.76 cm

(with conveyor) ………............................................................................... 174 in, 441.96 cm

Width……………………………………………………………………………..  96 in, 243.84 cm

Height with stack down (during transport)……………………………………  114 in, 289.56 cm

Height with stack up (during operation)……..……………………………….   143 in, 363.22

Weight (net)……........................................................................................ 5,400 lbs, 160.57 kg

Engine

Mfg / Model........................................................………..……………………            Kubota D905

Engine Type…………...………………………………………………………     4-cycle, inline vertical diesel

Displacement ............................................................................................. 54.8 cu.in./898 cc

Number of Cylinders .................................................................................. Three (3)

Horse Power .............................................................................................. 23.5 hp

Fuel………………………………………………………………………………   Diesel

Cooling ………………………………………………………………………….   Liquid

Fuel Consumption………………………………………………………………  0% load: 0.23 gph (0.87 L/hr)
                             .…………………………………………………………….    50% load: 0.46 gph (1.74 L/hr)

   ………………………………………………………………   Full load: 0.80 gph (3.03 L/hr)

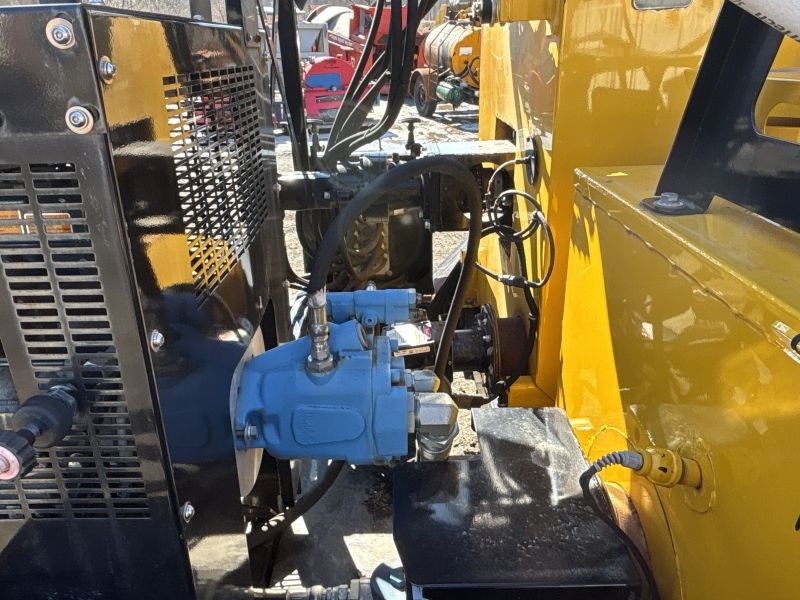

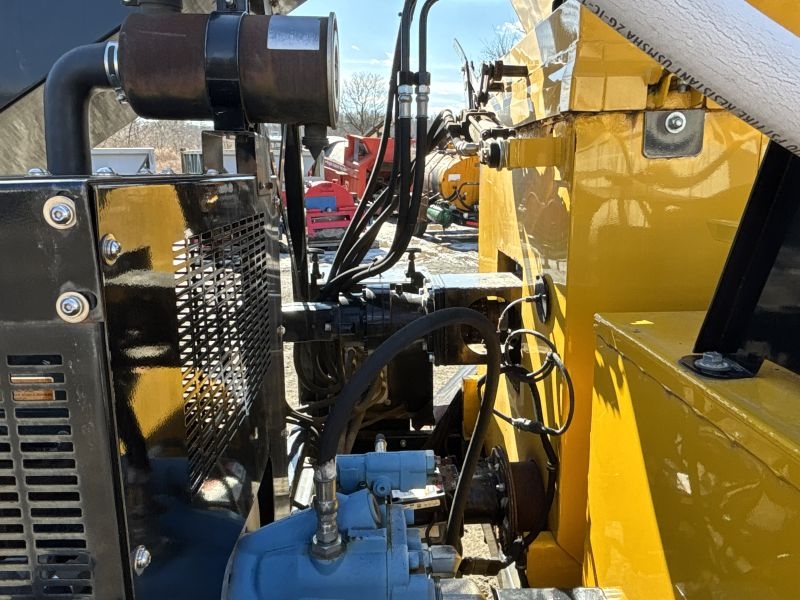

Hydraulic System

System Type ............................................................................................ Open Center Hydraulic System

Pump Displacement ................................................................................  Variable 0 to 4.21 CID

Control type ................................................................……………………   Forwd/Rev with Remote Flow Control

Reservoir Capacity .................................................................................   20 Gallons

Filtration ..................................................................................................  10 Micron Filter

Chassis

Number of Axles ....................................................................................... Two (2)

Axle Capacity ........................................................................................... 6000 lbs. each

Tire Type ……………………………………………………………………….   Goodyear, Range D, Radials

Tire Size ................................................................................................... 225 x 75, R15

Brake Type ............................................................................................... Electric, all 4 wheels

Landing Gear Static Capacity ..................................................................  12,000 lbs each

Landing Gear Quantity ............................................................................. Four (4)

Hitch Type ...............................................................................................  3" Pintle Ring

Frame Material ..........................................................................…………. 2" x 6" x 3/16" Rectangular Tubing

Weld Design…………………………………………………………………….   All weld, gas metal arc, ASME

compliant

General

Fuel Tank Capacity .................................................................................. 30 Gallons

Hopper Opening Dimensions ................................................................... 120" x 42" (customizable)

Loading Height ......................................................................................... 82"

Electric Start, 15” hose and spray wand for tack-coat standard, replaceable burner liners, collapsible stack

Mixing Chamber

Process Type ..........................................................................................  Batch – 10 CF/ batch

Mixing Style .............................................................................................. Rotating Pugmill

Liner Type ................................................................................................ U-shaped, Replaceable

Liner Material ..................................................................................……... ¼" Wear Resistant AR Steel

Insulation Type and Thickness..............................................................…. Cerwool, 2" thick

Feed Auger Dimensions ........................................................................... Length 116" Diameter 6"

Feed Auger Construction ...................................................................…... ¼" Wear Resistant AR Steel

Mixing Chamber Heating System

Burner Type .............................................................................................. Diesel, Forced Air

Number of Burners ................................................................................... Two (2)

Fuel Type .................................................................................................. Diesel

Manufacturer ............................................................................................ Beckett ®

BTU Output ............................................................………………………..  up to 420,000 BTU each

Pugmill

Pugmill Dimensions ...................................................................…………. Length 57" x Diameter 27"

Shaft Size ................................................................................................  2.5 in, 6.35 cm (square)

Paddle Size ............................................................................................. 4" x 5"

Number of Paddles .................................................................................  24 (each)

Paddle Material ..........................................…………………………………  ¼" Wear Rstnt AR Steel, replaceable

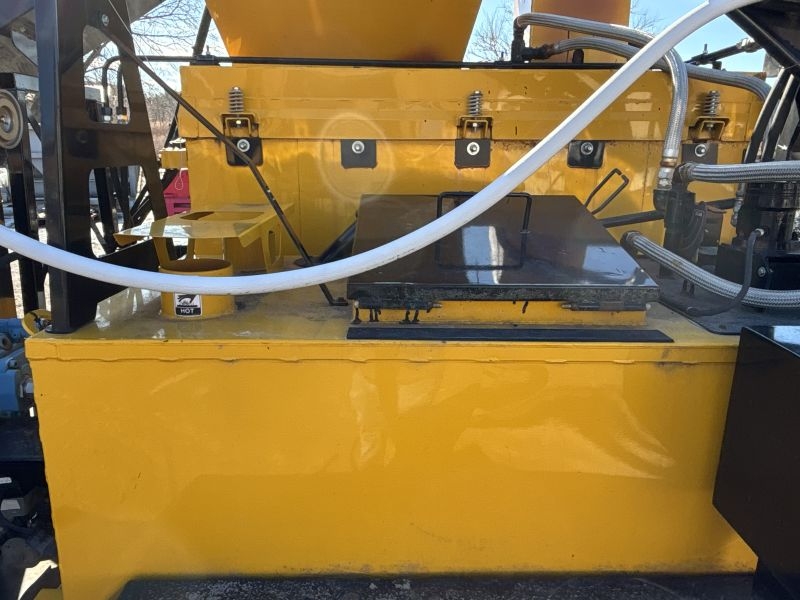

Kettle

Capacity .................................................................................................... 120 gallons, 454 liters

Tank………………………………………………………………………………  steel 14-gauge tank, 12-gauge heads, 16-gauge insulation tank

Flue Size ..………………………………………………………………………   6"

Heat Transfer Area of Flues ..................................................................... 3300 sq in

Insulation Type and Thickness.................................................................. Fiberglass, 2" thick

Cover Opening Dimensions ...................................................................... 28" x 20"

Loading Height ......................................................................................... 60"

Kettle Heating System

Burner Type .............................................................................................. Diesel Forced Air

Number of Burners ................................................................................... One (1)

Fuel Type ................................................................................................. Diesel

Manufacturer ............................................................................................ Beckett ®

BTU Output .............................................................................................. up to 106,000 BTU

Thermostat Control Range ....................................................................... 0 - 550°F

Kettle Pumping System

Pump Manufacturer ................................................................................... Viking ®

Relief Valve………………………………………………………………………  Yes

GPM Output Rating ................................................................................... 7 gpm

Pump Mounting ......................................................................................... Submerged

Pump Drive ............................…………....................………………………. Hydraulically driven

Flow Control……………………………………………………………………..  Metered pumping system

Options: Conveyor, LP System with LP Kohler Command 23.5hp, flush tank, shovel cleaning compartment, tamper, jack hammer.

Conveyer (Optional)

Working Length ......................................................................................... 178"

Max Loading Height ...............................................................................… 126"

Height Adjustment ..................................................................................... Electric

Belt Temperature Rating ........................................................................... 450°F

Belt Width ……………………………………………………………………….  20"

Cleat Height x Spacing...........................................................................… 2" x 9"

Drive type ................................................................................…………… Hydraulic, variable speed, reversible

Engine upgrade…………………………………………………………………   Kubota D1105, 27hp, water-cooled

CALL TODAY: 518-218-7676
